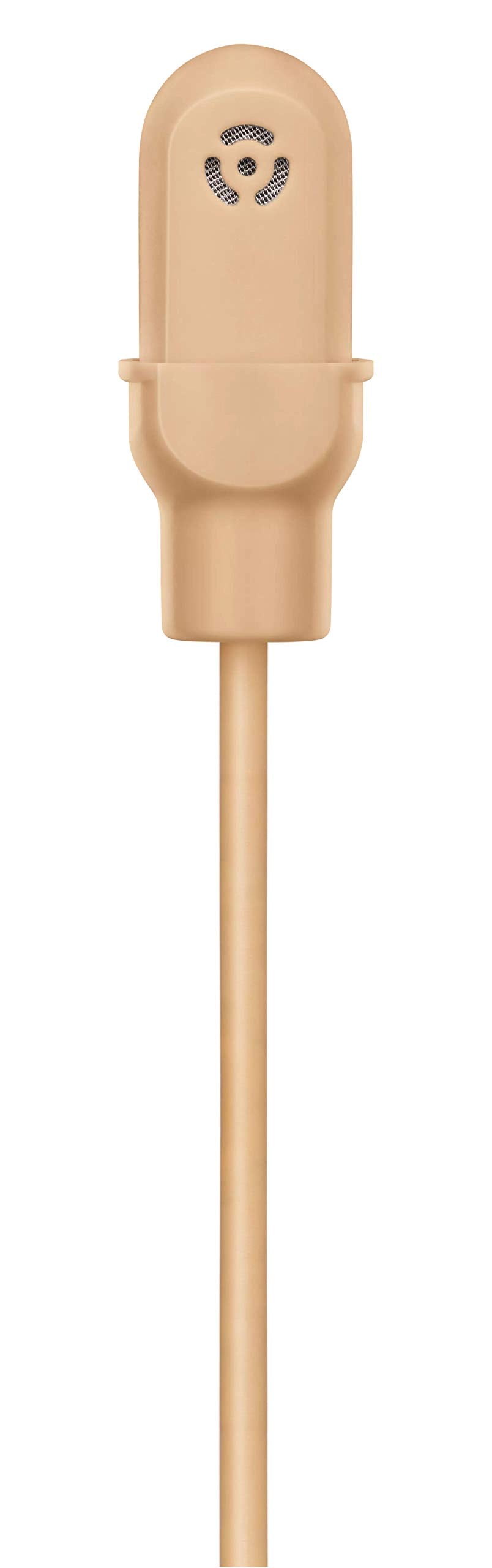

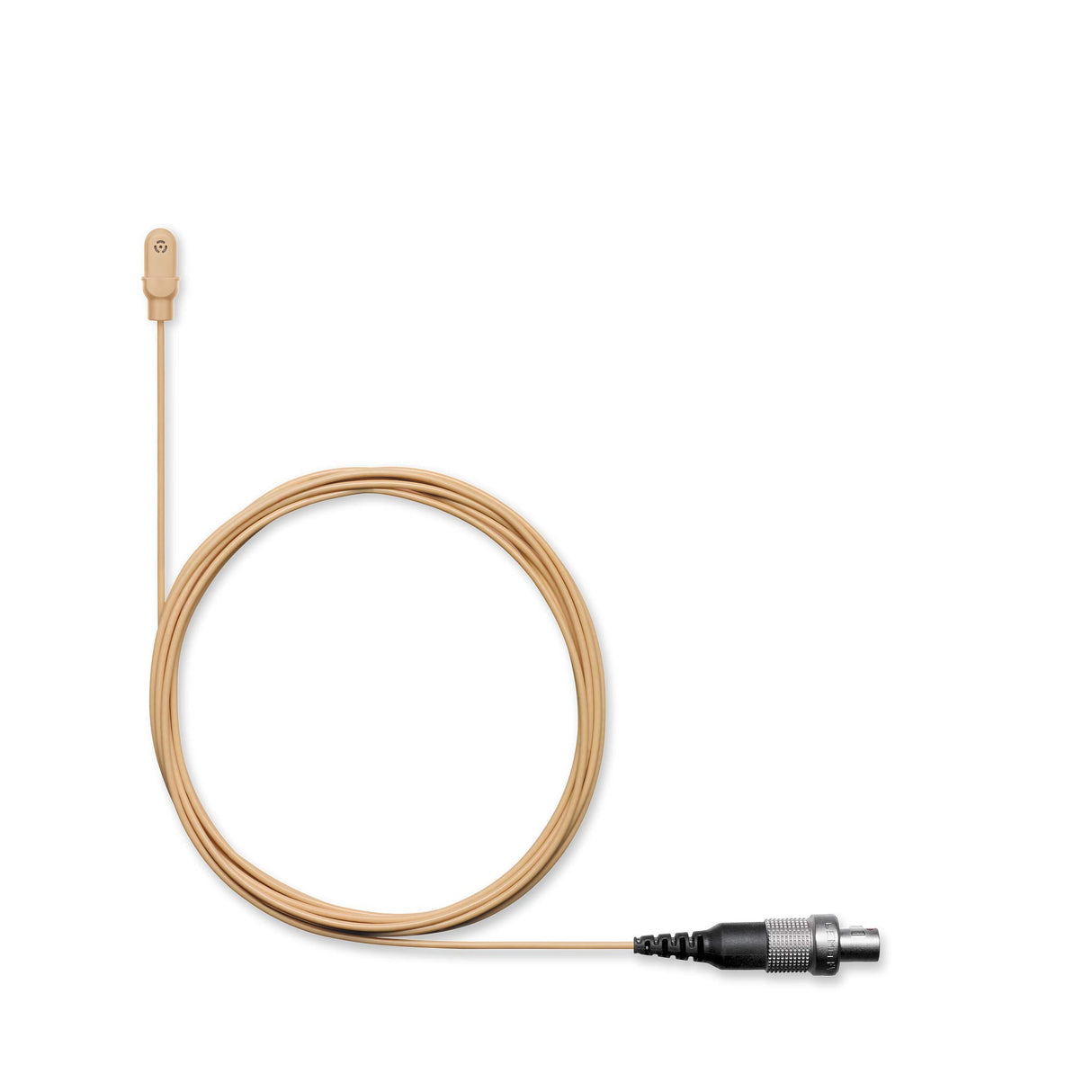

Shure DL4T/O-MTQG-A DuraPlex Omnidirectional Lavalier Microphone, Tan, MTQG Connector

Shure DL4T/O-MTQG-A DuraPlex Omnidirectional Lavalier Microphone, Tan, MTQG Connector

The Shure DL4T/O-MTQG-A DuraPlex Omnidirectional Lavalier Microphone offers unparalleled performance for a variety of professional audio applications. Whether you're shooting a reality TV show, embarking on a theatrical tour, or capturing audio in challenging environments, this microphone stands up to the test. Extensively tested to ensure an IP57 dust-resistant and waterproof rating, the DuraPlex microphone guarantees durability and reliability, no matter where your audio adventures take you.

This lavalier microphone boasts a neutral, full sound quality that meets the highest audio standards, making it as comfortable in a broadcast studio as it is on the beach. It comes equipped with the advanced 1.6 mm Shure Plex cable, which is known for its longevity thanks to a dual redundant ground that also serves as a secondary shield. Plus, the cable is immune to kinks and memory effect, ensuring that it maintains its shape and functionality over time. With its fully paintable design, the Shure DL4T/O-MTQG-A can seamlessly blend into any setting.

Available in both lavalier and headset forms, the DuraPlex microphone features a discreet 5 mm omnidirectional subminiature design that improves gain-before-feedback. This model is available in four colors (Black, Cocoa, Tan, White) and two connector types (TA4F (mTQG) and LEMO), making it versatile enough to meet a wide range of needs. Whether you are into film, broadcast, theater, or performance applications, this microphone provides unmatched audio clarity and presence, thanks to the included presence cap which offers a tailored frequency response.

Key Features

• 5 mm omnidirectional subminiature design for discrete placement and improved gain-before-feedback
• IP57 dust-resistant, waterproof rated
• Neutral, full sound quality for film, broadcast, speech, theater, and performance applications
• Advanced 1.6 mm Shure Plex cable with dual redundant ground for unprecedented longevity
• Immune to memory effect and kinks
• Fully paintable with typical theater paints, pens, and polishes
• Presence Cap included for tailored frequency response with additional vocal clarity and presence (3-4 dB boost near 10 kHz)
• Available in four colors: Black, Cocoa, Tan, White
• Available in two connector types: TA4F (mTQG) and LEMO
• Kit includes case, foam windscreen, snap-fit windscreen, single tie clip, sticky mount, and TQG locking collar (mTQG/TA4F SKUs only)

Specifications

• Microphone Capsule: MEMS
• Polar Pattern: Omnidirectional
• Frequency Response: 20 Hz to 20 kHz
• Sensitivity: -42.5 dBV (7.5 mVRMS) @ 1 kHz
• Self-Noise: 31 dB SPL-A (A-weighted, Equivalent Acoustical)
• Signal-to-Noise Ratio: 63.0 dB
• Maximum SPL: 132.0 dB SPL (1 kHz @ 1% THD, typical)
• Dynamic Range: 101.0 dB (Typical)
• Microphone Current Draw: 220 uA (maximum)
• Bias Voltage Recommended Operating Voltage: 5 VDC
• Housing: Molded ABS
• Polarity (MTQG): Positive pressure on diaphragm produces positive voltage on Pin 3 with respect to Pin 1
• Polarity (LEMO): Positive pressure on diaphragm produces positive voltage on Pin 3 with respect to Pin 1
• Cable Diameter: 1.6 mm
• Cable Length: 66.0 in (1.67 m)
• Net Weight: 15 g (0.53 oz)
• Capsule Dimensions (L x D): 14.5 mm x 5.2 mm

Package Contents

• Case
• Foam Windscreen
• Snap-fit Windscreen
• Single Tie Clip
• Sticky Mount
• TQG Locking Collar (mTQG/TA4F SKUs only)
