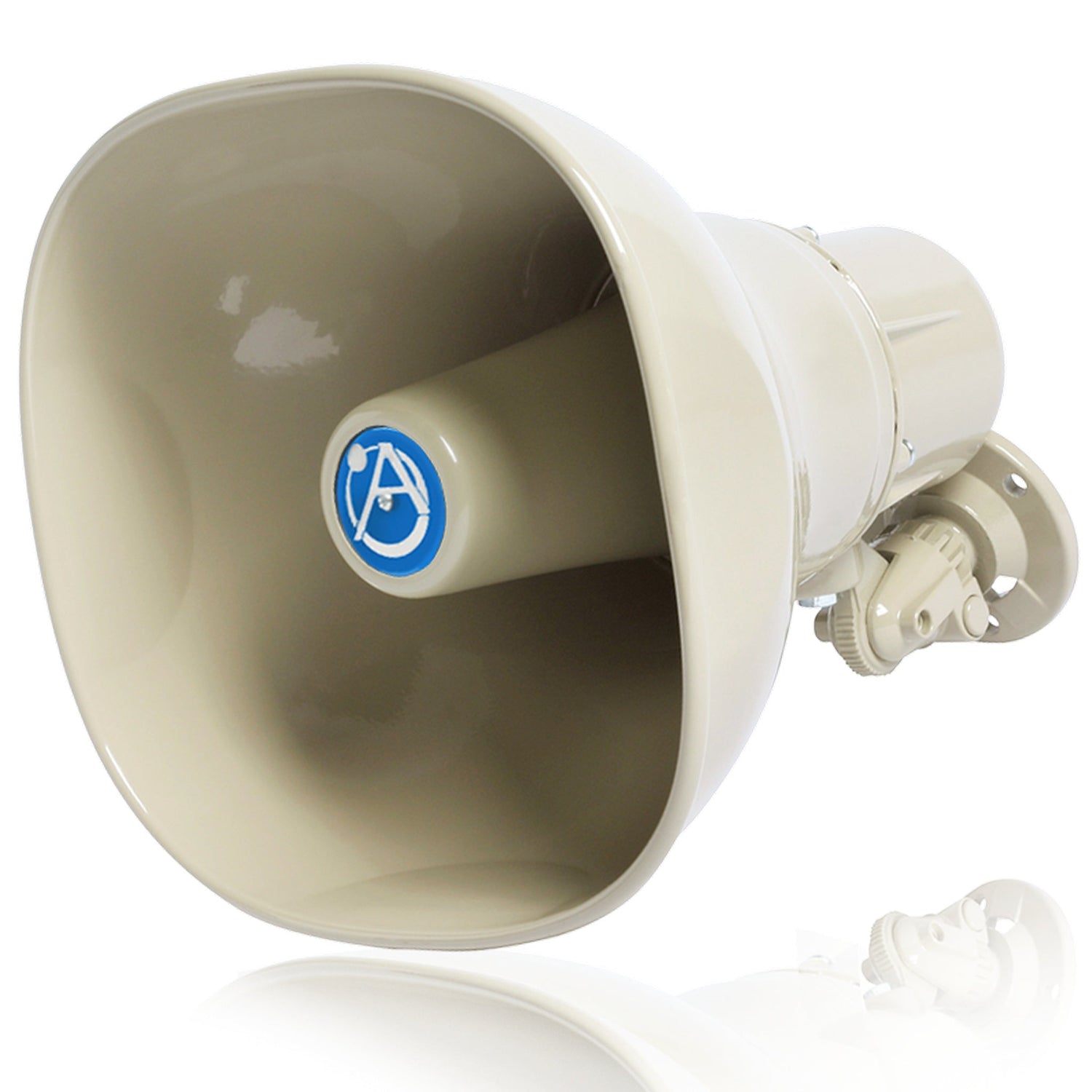

AtlasIED AP-15TC 15W Horn Loudspeaker with 25/70.7/100V Transformer
The AtlasIED AP-15TC is a high-performance horn loudspeaker designed for both indoor and outdoor applications. Equipped with a versatile 3-way transformer, it supports 25V, 70.7V, and 100V line systems, making it ideal for distributed audio installations in commercial, industrial, and institutional settings. Its robust construction and high-efficiency driver ensure clear and intelligible sound over long distances or wide areas.
Featuring a frequency response range of 400Hz to 14kHz and a sensitivity of 106dB at 1 watt/1 meter, the AP-15TC delivers superior intelligibility for voice and tone signaling. The speaker's 70° dispersion angle ensures broad coverage, while its baked epoxy finish provides resistance to environmental elements, enhancing its longevity and reliability. The included Omni-Purpose® mounting bracket allows for versatile installation options, including wall, ceiling, or I-beam mounting, facilitating precise positioning in diverse settings.
Key Features
- High Power Handling: 15 watts continuous power for robust sound output.
- Wide Frequency Response: Operates within 400Hz to 14kHz for clear audio reproduction.
- High Sensitivity: 106dB sensitivity ensures loud and intelligible sound.
- Wide Dispersion: 70° dispersion angle for broad coverage area.
- Weather-Resistant Construction: Baked epoxy finish protects against environmental elements.
- Versatile Mounting Options: Includes Omni-Purpose® mounting bracket for flexible installation.
Technical Specifications
- Height: 8.75 inches (22.23 cm)
- Width: 7.875 inches (20.00 cm)
- Depth: 9.3125 inches (23.66 cm)
- Shipping Weight: 5.0 lbs (2.27 kg)
- Frequency Response: 400Hz to 14kHz
- Sensitivity: 106dB at 1 watt/1 meter
- Dispersion Angle: 70° (-6dB, 2000 Hz octave band)
- Operating Temperature Range: -40°C to 70°C
- Power Taps: 1, 2, 3.8, 7.5, 15 watts @ 70.7V
- Warranty Period: 60 months from the date of purchase
What's Included in the Box
- AtlasIED AP-15TC Horn Loudspeaker
- Omni-Purpose® Mounting Bracket
- Installation Hardware
- Owner's Manual
