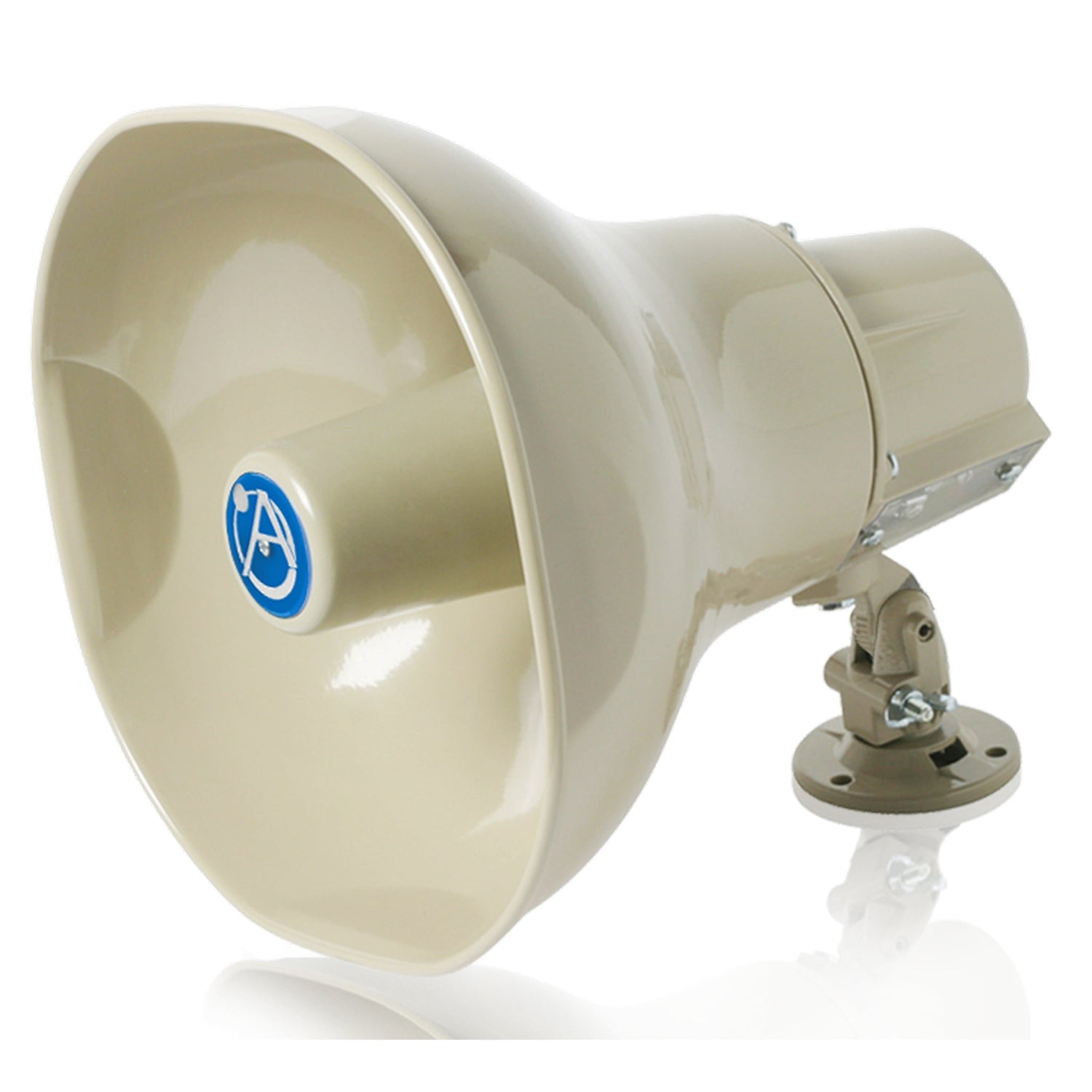

AtlasIED AP‑30TC 30W Horn Speaker with Transformer, Beige
The AtlasIED AP‑30TC is a robust, transformer-equipped horn loudspeaker that delivers 30 W of continuous power handling, ensuring exceptional voice and tone intelligibility in both indoor and outdoor applications. Featuring a double re-entrant design with a compression driver, the AP‑30TC operates across a wide 300 Hz–12 kHz frequency range and produces sensitivity up to 108 dB nominal, peaking at 126 dB at rated power for effective long-distance broadcasting.
Built to withstand harsh environments, this U.S.-made speaker includes a versatile built-in Vari‑Tap® transformer supporting 25 V, 70.7 V, and 100 V systems via a 7-position switch with screwdriver-adjustable taps and a protective strain-relief cover. The weather-resistant metal and ABS housing, finished in beige epoxy, mounts easily on surfaces or strap-attached to I-beams through the Omni‑Purpose® bracket—ideal for industrial sites, campuses, and emergency PA systems.
Key Features
- 30 W Continuous Power: Supports high-output PA needs
- Wide Frequency Range: 300 Hz–12 kHz for clear audio
- Vari‑Tap® Transformer: 25 V / 70.7 V / 100 V selectable
- High Sensitivity: Up to 126 dB at rated power
- Weather-Resistant Build: Metal and ABS enclosure with epoxy finish
- Omni‑Purpose® Bracket: Allows precise vertical and horizontal aiming
- US-Made Quality: Durable construction with industrial reliability
Technical Specifications
- Frequency Response: 300 Hz–12 kHz
- Sensitivity: 108 dB nominal; 126 dB at rated power
- Dispersion Angle: 60° (‑6 dB @ 2 kHz)
- Power Rating: 30 W continuous
- Height: 11 in
- Width: 10 in
- Depth: 10½ in
- Shipping Weight: 6.3 lb
- Operating Temperature: –40 °C to 70 °C
- Finish: Beige baked epoxy
- Warranty: 60 months (5 years)
Included in the Box
- AtlasIED AP‑30TC Horn Speaker
- Integrated Vari‑Tap® transformer with protective cover
- Omni‑Purpose® mounting bracket
- Protective strain‑relief cover
- Owner’s manual and technical datasheet
