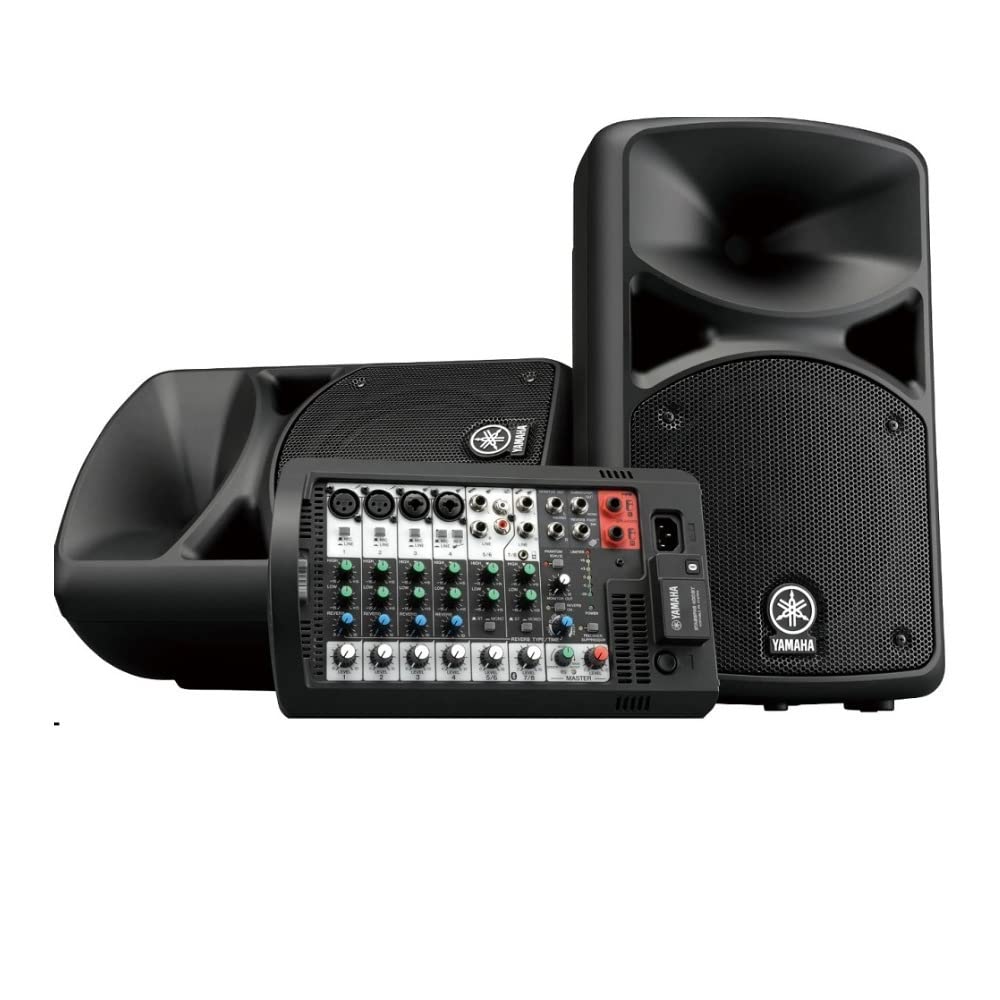

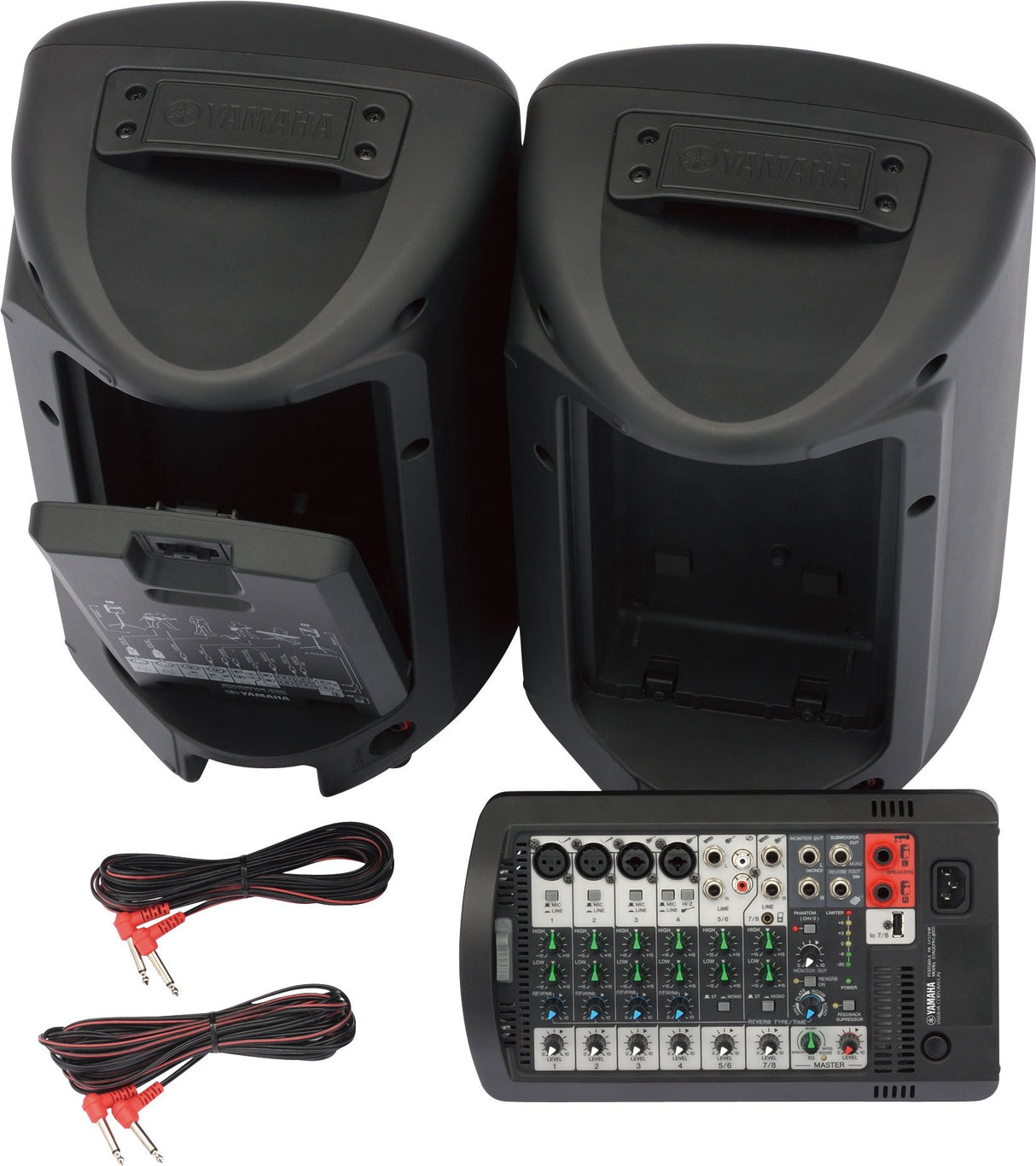

Yamaha STAGEPAS 400BT 400W 8 Channel Phantom Powered Bluetooth PA Speaker
Yamaha STAGEPAS 400BT 400W 8 Channel Phantom Powered Bluetooth PA S...
Yamaha STAGEPAS 400BT 400W 8 Channel Phantom Powered Bluetooth PA Speaker
400-watt, portable PA system with 8-channel powered mixer, two 8" speakers, a Bluetooth® input, SPX digital reverbs, an onboard feedback suppressor and versatile EQ.
Key Features
- 400W (200W + 200W) power output
- High quality speakers (LF:8" woofer/ HF:1" voice coil compression driver)
- Detachable 8-channel mixer (4 mono/line + 4 mono / 2 stereo line)
- Bluetooth® audio streaming
- 1-Knob Master EQ with virtual bass boost
- High resolution SPX digital reverbs (4 types, parameter control)
- Onboard feedback suppressor
- Great-sounding 2-band channel EQ
- Switchable stereo/ mono inputs
- Hi-Z (high impedance) inputs
- Phantom power
- Monitor and Subwoofer outputs
Technical Specifications
Type
Powered mixer with 2 passive speakers
Mixing capability
Mixing channels
8
Input channel functions
Hi-Z switch: CH4, ST/MONO switch: CH5/6-7/8
Output channel functions
Feedback suppressor, 1-Knob Master EQ
I/O
Inputs
4 mono mic / line + 4 mono / 2 stereo line
Phantom power
+30V (CH1, 2)
Outputs
SPEAKERS OUT (L, R), MONITOR OUT (L/MONO, R), SUBWOOFER OUT (MONO) with auto HPF
Bluetooth
Bluetooth Ver.4.1, A2DP v1.2, Maximum Range: Approx. 10 m
Control and others
Reverb foot switch
Input Channel Function
Hi-Z
CH4
EQ HIGH
HIGH Shelving: 8 kHz
EQ LOW
LOW Shelving: 100 Hz
On-board processors
DSP
SPX digital reverb (4 program, parameter control)
On-board amplifiers
Maximum output power @4ohms
400W (200 W + 200 W) (Dynamic), 360W (180W + 180W) (Continuous)
Speaker type
Two-way bass-relfex speakers
Dimensions (W x H x D)
Speaker 289 x 472 x 275 mm, Mixer 308 x 180 x 116 mm
Weight
18.3 kg (40.3 lbs) (2 x Speaker 7.7kg + Mixer 2.9kg)
