Wittner PGFGW Finetune Single Guitar Peg, Medium 9.5 mm, Flamenco

Wittner Finetune Single Guitar Peg, Medium 9.5 mm

The Wittner Finetune Single Guitar Peg in the medium 9.5 mm option provides geared tuning for compatible flamenco guitars. Its 8.5:1 reduction mechanism allows controlled pitch adjustment through the peg head. A tapered body fits into a prepared peg hole without glue, while the outer shaft remains stationary during tuning.

Flamenco players and repair specialists can select this individual component when sourcing a replacement geared guitar peg. For a flamenco guitar tuning upgrade, the installation diameter, overall length, and shaft taper help establish fit. The same peg design serves either side of the headstock, simplifying selection for an individual replacement. Correct sizing depends on the existing peg holes and installation position.

Wittner manufactures this fitting in Germany using composite material and light alloy. Its installation instructions specify a 1:30 reamer, a cutting tool that prepares tapered peg holes. A luthier, a specialist who builds and repairs string instruments, can assess the fit and string clearance. The string winds onto the rotating central section, with crossed windings recommended for smooth nylon strings.

Key Features

• Single-Peg Format: Replace an individual tuning component without purchasing a complete set.
• Medium 9.5 mm Option: Match the specified installation diameter to the guitar's measured fitting requirements.
• 8.5:1 Reduction Gearing: Make fine pitch adjustments with controlled movement at the peg head.
• Either-Side Installation: Use the same design on the left or right side of a compatible headstock.
• Stationary Outer Shaft: The fitted shaft stays fixed while the central string-bearing section rotates.
• Glue-Free Fitting: Seat the tapered body in a correctly prepared peg hole without adhesive.
• Composite and Light Alloy Construction: Choose a mechanical alternative to a traditional wooden friction peg.

Technical Specifications

• Brand: Wittner
• Product Line: Finetune
• Product Type: Geared guitar tuning peg
• Quantity: 1 peg
• Size Option: Medium, 9.5 mm
• Manufacturer-Listed Application: Flamenco guitars

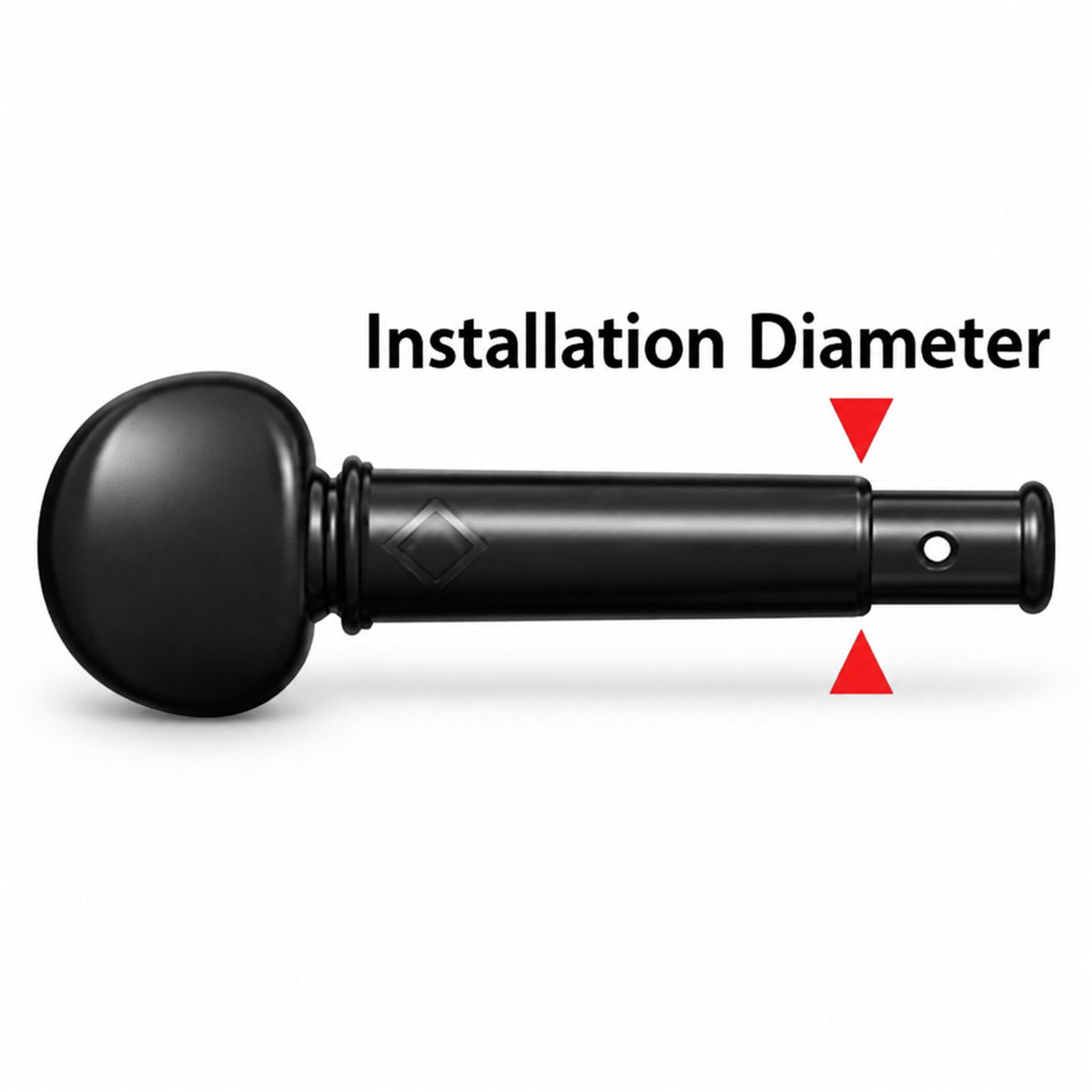

• Installation Diameter: 0.4 inches
• Overall Length: 2.9 inches
• Taper: 1:30
• Transmission Ratio: 8.5:1
• Materials: Composite material and light alloy
• Mounting Position: Left or right side
• Installation: Fitted tapered shaft; no glue required
• Country of Manufacture: Germany

What's In the Box

• 1 Wittner Finetune guitar peg in the medium 9.5 mm option
