Wooden Camera UVF Mount No Clamp
Free Shipping
More finance options:
Estimated Shipping Widget will be displayed here!
Most orders placed before 10:00am PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New

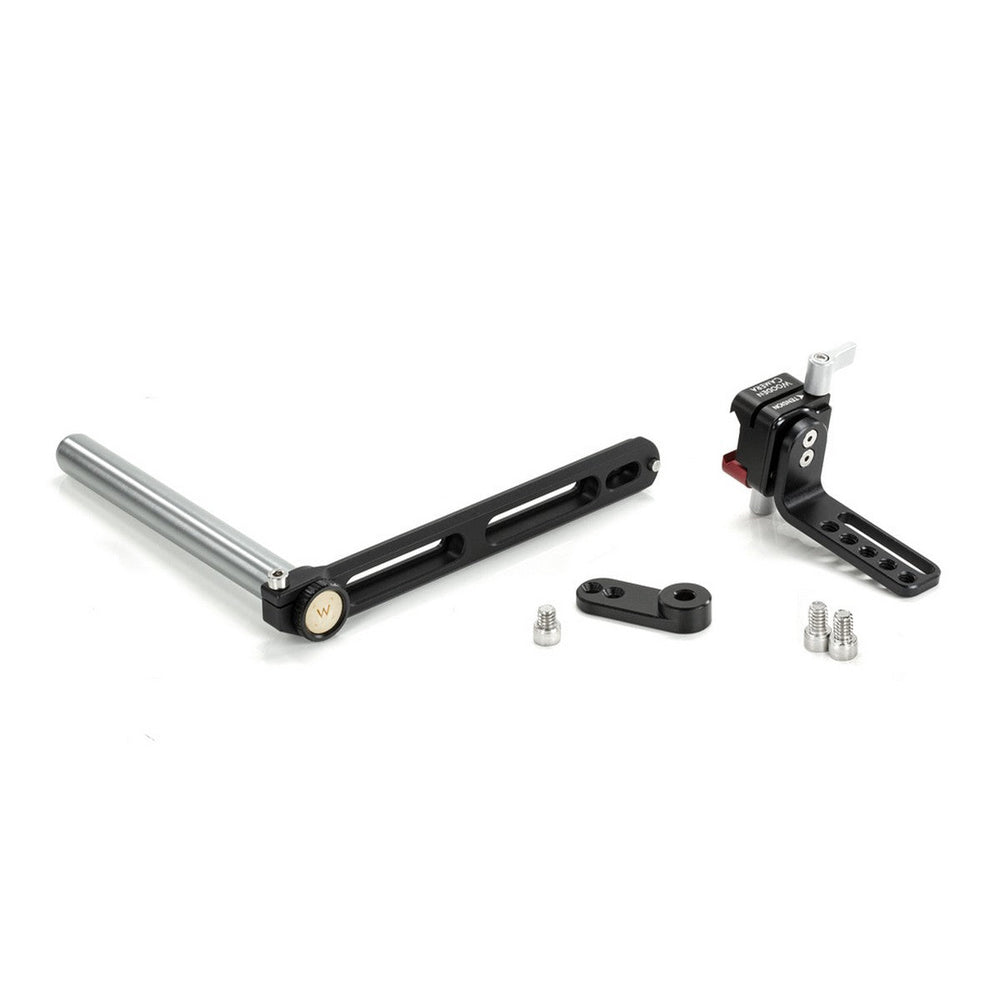

Wooden Camera 179900 UVF Mount No Clamp
UVF Mount (No Clamp) is a version of our popular UVF Mount v2 without the 15mm Tube Clamp portion. This kit works great with NATO Handle (Plus) which has an integrated 15mm clamp.
Accepts most EVFs and LCDs and has three points of adjustment: 15mm tube clamp for tilt and distance to the camera, NATO thumbscrew (identified by red component) for positioning on NATO rail, and tension thumbscrew to adjust tilt of EVF. Tool-less design allows quick installation and removal of UVF v2 Sled. Safety pin prevents accidental removal. UVF v2 Sled can attach directly to any NATO-style rail and includes adapter for using SmallHD and Alphatron viewfinders.
NATO Arm length approximately 5"
The horizontal 15mm rod can attach directly to AJA CION handle, Sony FS7 Handle, and other third party 15mm rod interfaces.
Key Features
- Includes: (2) 1/4-20 x 3/8" screws, (1) 1/4-20 x 1/4" screws
Technical Specifications
Weight: 222g (0.5 lbs)
Dimensions: 169.9 x 21.6 x 15.6 mm (6.7 x 0.9 x 0.6 in)
