Wooden Camera 193900 Top Plate FS7

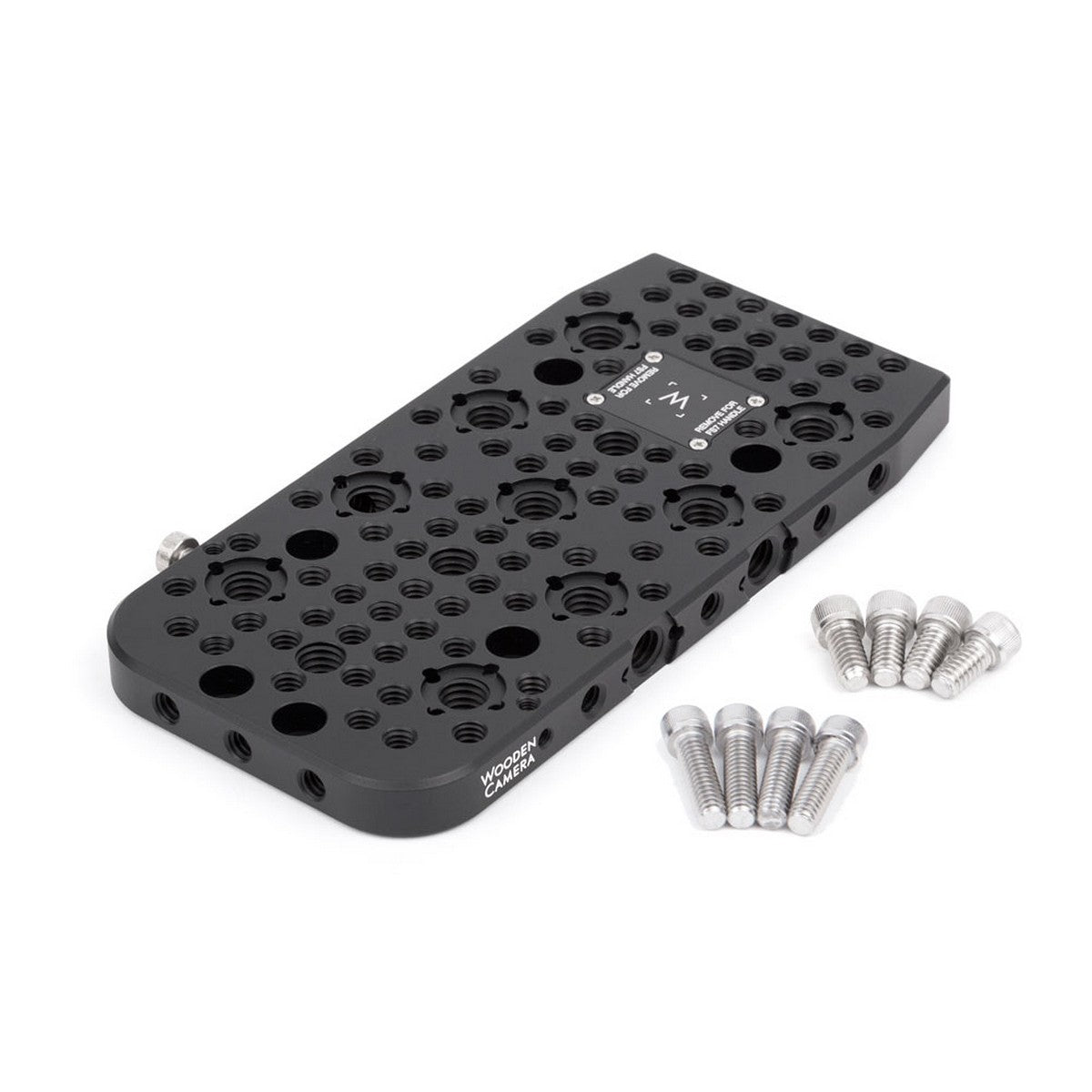

Top plate for Sony PXW-FS7 camera. Arrays of 1/4-20 holes in standard spacing and multiple 3/8-16 holes for large accessories. ARRI accessory mount also available in several places (3/8-16 screw hole with locating pins adjacent). Includes tape hook for accurate focus measuring. Original Sony handle can be reinstalled on the top plate by removing the cover plate and using the provided long screws. Currently communication between the handle and the Sony body is not possible, however we are working on a solution to bridge the gap between connection points. The Sony XDCA-FS7 (V-Mount/ProRes module) can also be attached to the rear of the camera without obstruction.
We also recommend the E-Mount to PL Mount (Pro, FS7) which integrates into the top plate to provide strong support for PL mount lenses.
Key Features
- (4) 1/4-20 x 1/2" screws (for attaching top plate directly to camera)
- (4) 1/4-20 x 7/8" screws (for attaching original handle and top plate to camera)
- (1) M2 Philips screw (for relocating the Sony cable clamp onto the side of the top plate)
Technical Specifications
Weight: 0.3 lbs
Dimensions: 3.7 x 3.7 x 0.5 in
