Wooden Camera 194000 E Mount to PL Mount Pro FS7

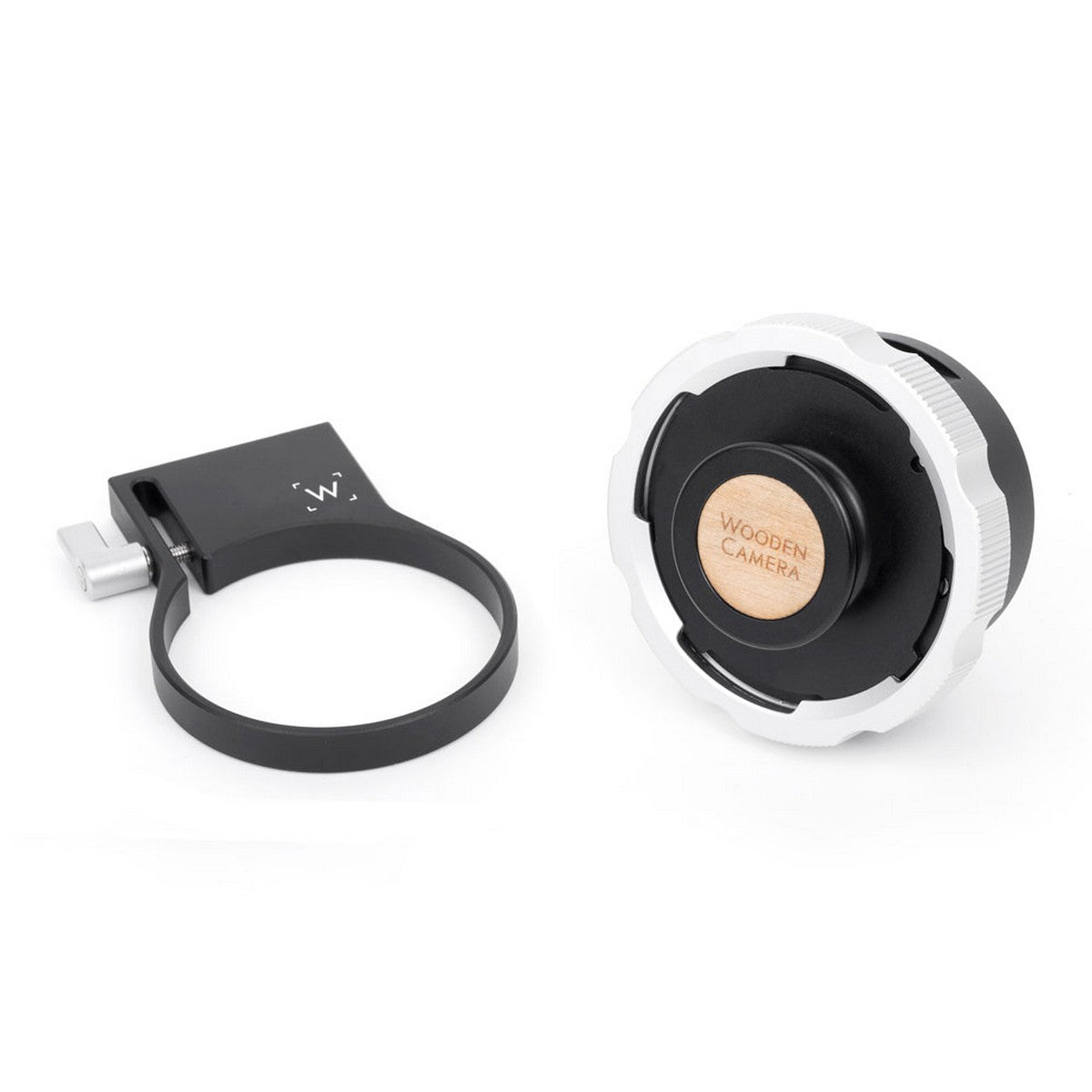

E-Mount to PL Adapter Pro (FS7) is a shimmable Sony E-Mount to PL mount adapter that enables mounting of all PL mount lenses onto the Sony PXW-FS7 camera. In our factory, we set the flange focus to match a Sony FS7 camera. You only need to adjust the shims should you find that your camera is out of calibration. The adapter is shimmable by loosening six socket cap screws around the collar area, separating the two sections, and adding color coded shims of various thickness. Back focus should be checked using collimation tools or a wide lens focused to infinity. Mount includes a support ring that integrates with our Top Plate (FS7), a highly recommended addition to this system. Loosen the support ring thumbscrew to quickly remove the mount and install another adapter. We are working on additional E-Mount to Canon, Nikon, etc. that will be available in the near future and will integrate with the same ring support.
Key Features
- Support ring capable of integrating with Top Plate (FS7)
- Includes: (2) 1/4-20x1/2" socket cap screws
Technical Specifications
Weight: 0.9 lbs
Dimensions: 4.0 x 4.0 x 3.0 in
