Wooden Camera UVF Mount VariCam 35 No Clamp
Wooden Camera UVF Mount VariCam 35 No Clamp
Free Shipping
Wooden Camera 197500 UVF Mount VariCam 35 No Clamp

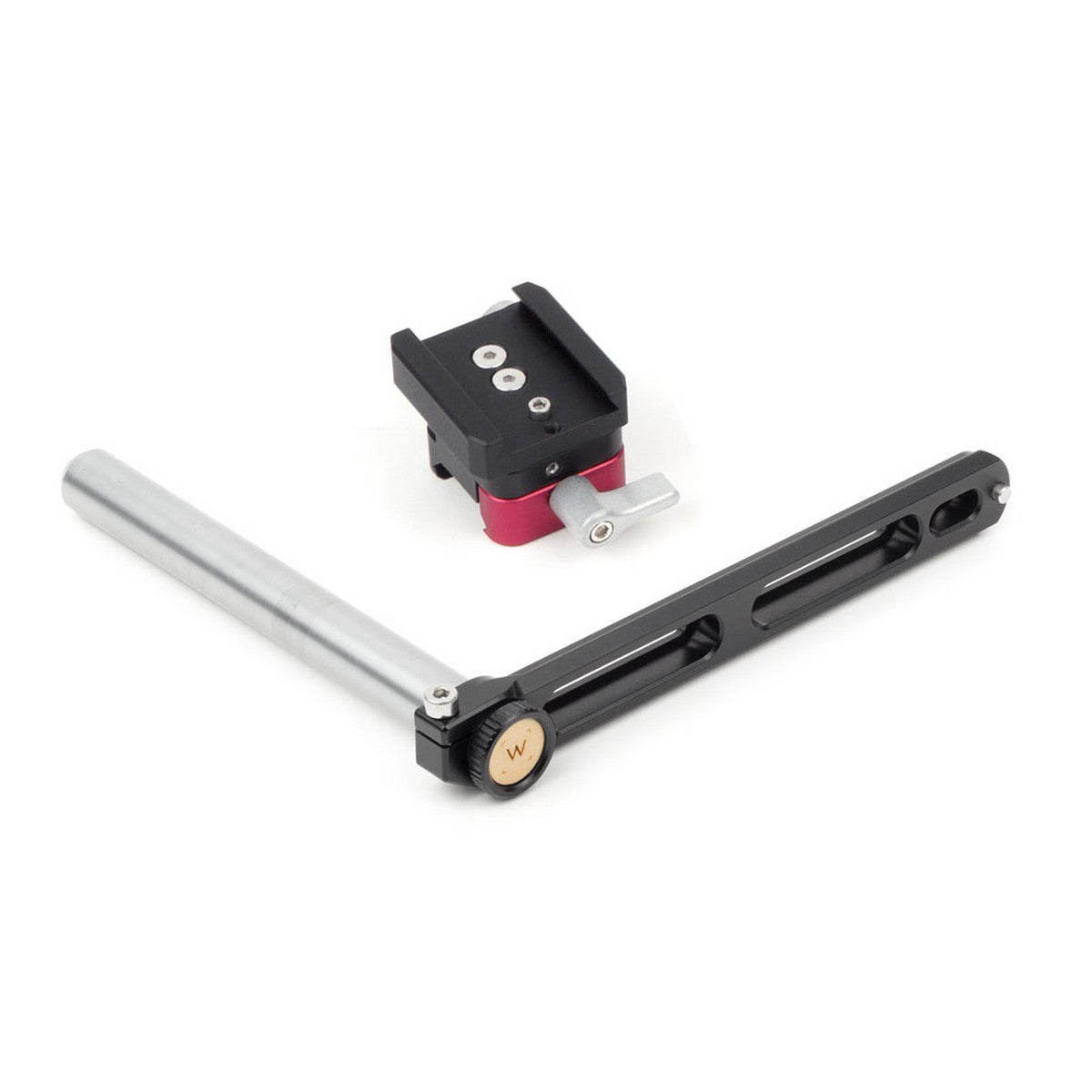

UVF Mount (VariCam 35, No Clamp) accepts the Panasonic VariCam 35 EVF (AU-VCVF1G OLED CVF). Three points of adjustment: 15mm rod for tilt and distance to the camera, NATO thumbscrew (identified by red component) for positioning on NATO rail, and tension thumbscrew to adjust tilt of EVF. Tool-less design allows quick installation and removal of UVF Sled. Safety pin prevents accidental removal. UVF Sled can attach directly to any NATO-style rail.
NATO Arm length approximately 5"
When bolting a stand alone UVF Mount to a Rod Clamp or cheeseplate like Top Plate (VariCam 35, Front), instead choose the regular kit with the included 15mm Tube Clamp: UVF Mount (VariCam 35)
Key Features
- Panasonic AU-VCVF1G OLED CVF
- (2) 1/4-20 x 3/8" socket cap screws
Technical Specifications
Weight: 0.7 lbs
Dimensions: 8.1 x 6.3 x 2.4 in
