Wooden Camera 207300 UVF Mount for MVF-1/MVF-2

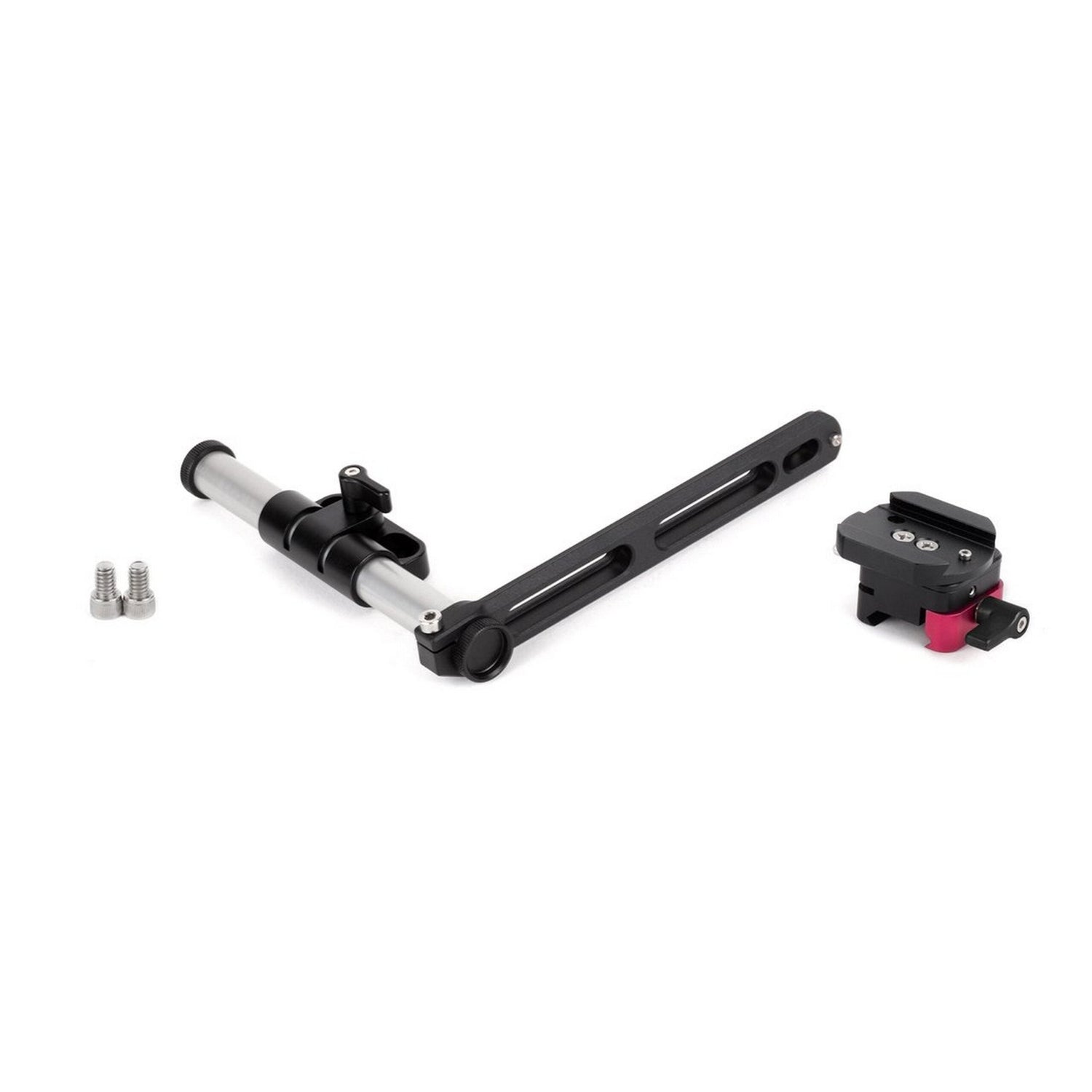

UVF Mount (Alexa Mini / Mini LF) attaches the ARRI Multi Viewfinder MVF-1 or MVF-2 directly. Three points of adjustment: 15mm Tube Clamp for tilt and distance to the camera, NATO thumbscrew (identified by red component) for positioning on NATO rail, and tension thumbscrew to adjust tilt of EVF. Tool-less design allows quick installation and removal of UVF v2 Sled. Safety pin prevents accidental removal. UVF v2 Sled can attach to any NATO-style rail.
Key Features
- NATO Arm length approximately 5"
- 15mm Tube Clamp bolts directly to two 1/4-20 screw holes spaced between 25mm and 36mm center to center
Technical Specifications
Includes
(2) 1/4-20 x 3/8" screws
Weight
282g (0.6 lbs)
Dimensions
158.8 x 145.5 x 45.4 mm (6.3 x 5.7 x 1.8 in)
