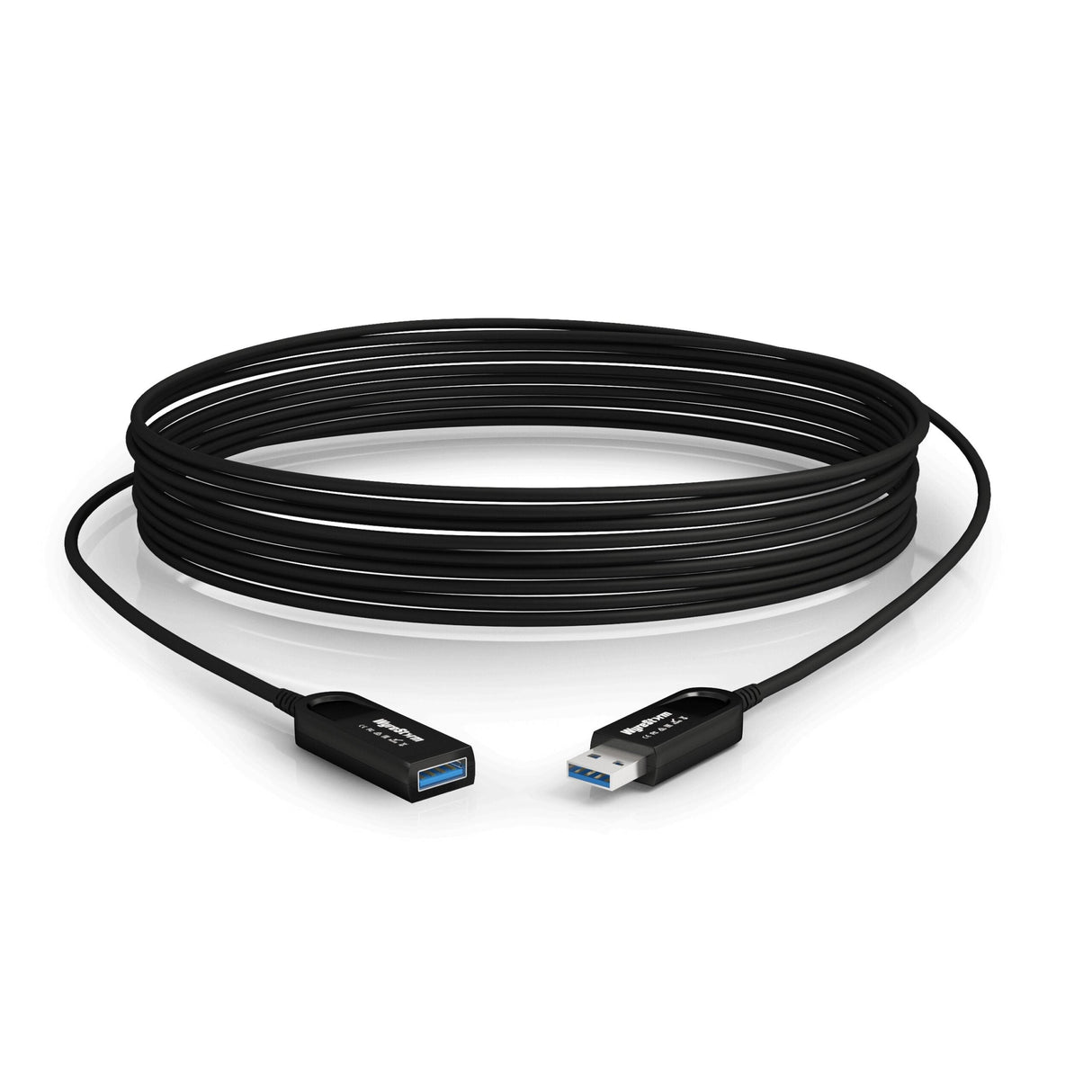

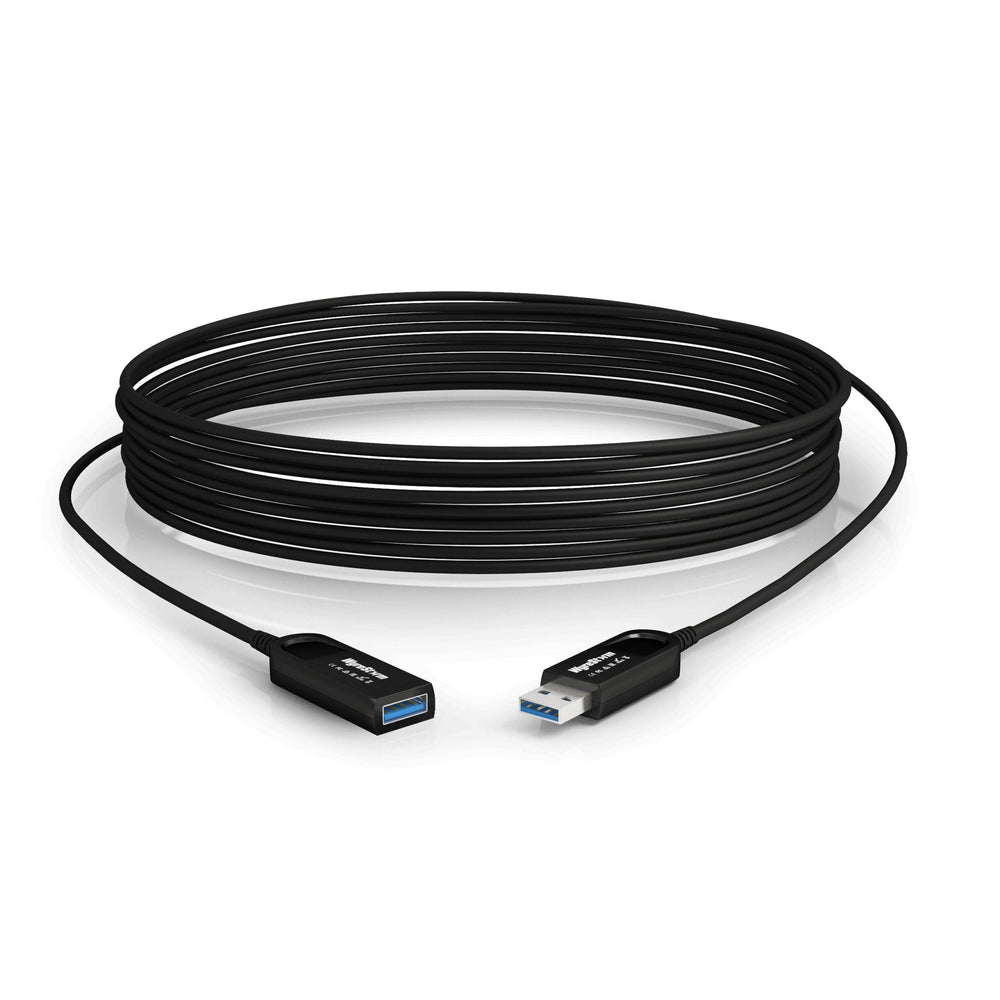

WyreStorm CAB-UAOC-15-P 15-Meter USB 3.2 GEN 2 10Gbps Active Optical Extension Cable
WyreStorm CAB-UAOC-15-P 15-Meter USB 3.2 GEN 2 10Gbps Active Optic...
Free Shipping
WyreStorm CAB-UAOC-15-P 15-Meter USB 3.2 GEN 2 10Gbps Active Optical Extension Cable
The CAB-UAOC-15 is an active optical cable supporting extension of USB signals ranging from 2.0 up to the 3.2 Gen 2 spec, meaning this cable can support 10Gbps at a distance of 15 meters (50ft). The CAB-UAOC-15 is great for connection of remote USB devices such as PTZ cameras, interactive touchscreens or smartboards, audio/video extension or simply high-speed data transfer over long distances. With the USB Male to USB Female design, you can connect and extend practically any USB peripheral device in seconds.
PLUG AND PLAY
The USB Type A Female connector allows universal compatibility with almost any USB device. Just simply connect the USB cable that came with your device to the CAB-UAOC-15 and you are up and running. No software or drivers required.
USB SUPERSPEED+
Supporting the USB 3.2 Gen 2 specification, send A/V or data signals at up to 10Gbps. Thatās equivalent to transferring a 10Gb file in 8 seconds or transmitting a 4K 60Hz 4:2:0 video signal from a computer or media player.
BACKWARDS COMPATIBLE
With compatibility for USB 2.0, you can rest assured that lower spec USB devices will still work. Many devices still utilize USB 2.0 such as cameras, speakerphones, and touchscreens. We have made sure that no matter the device you connect, it will work.
SAFETY RATED
Plenum, FT6 & CPR safety ratings allow the CAB-UAOC-15 to be installed in air plenums, ducts, walls, conduits, ceilings, or anywhere else a fire rating is required.
5 YEAR WARRANTY
This WyreStorm Pro AV product comes with a 5 Year Warranty
Key Features
- Extends USB signals up to 15 meters (50ft)
- USB Type A male to Type A female connectors allow universal compatibility with USB devices
- Supports USB 3.2 Gen 2 spec allowing up to 10Gbps bandwidth
- Maximum power carry of 5v 900mA to remotely power USB devices. Average power consumption of common USB devices:
-Mouse: 100mA
-Flash Drive: 100mA
-Webcam: 300mA
-Keyboard: 500mA
-External Hard Drive: 900mA - Compatible with USB 3.0 hubs to allow connection of multiple USB devices (combined power consumption of devices cannot exceed 5v 900mA)
- Backwards compatible with USB 2.0 specification
- Plenum, FT6 & CPR safety ratings for installation in air plenums, ducts, walls, conduits, ceilings, or anywhere else a fire rating is required
- Kevlar protected communication cores
- Fiber optic cores are ideal for use in environments with excessive EM or RF interference
- SUP (single use plastic) free packaging
Technical Specifications
Video Resolutions (Max)
1920x1080p @60Hz 16bit
3840x2160p @30Hz 8bit 4:4:4
3840x2160p @60Hz 8bit 4:2:0
15m/49ft
Note: To send video from a computer an additional cable is required depending on the source deviceās output capability, such as an HDMI to USB 3.0 adapter or a USB-C to USB Type A cable.
USB
USB3.2 (Gen 2) | USB3.1 (Gen 2) | USB3.1 (Gen 1) | USB 2.0 Max bandwidth: 10Gbps
Power Consumption
<= 0.2W (Both sides)
Power Carry
Max: 5v 900mA
Operating Temperature
14F ~ 122F (-10C ~ 50C) | 10% ~ 90%, non-condensing
Storage Temperature
-4F to ~ 140F (-20C ~ +60C) | 10% ~ 90%, non-condensing
Max Cable Bend Radius
0.9cm/0.35in
Max Pull Tension/Tensile Strength
10kg/22lbs (100n)
Length x Width x Height
Type A Male Connector: 40mm x 18mm x 5mm
Type A Female Connector: 38mm x 18mm x 5mm
Cable Diameter
4.5mm
Safety and Emission
CE | FCC | RoHS | EAC | RCM | Plenum UL (CL3) | FT6
