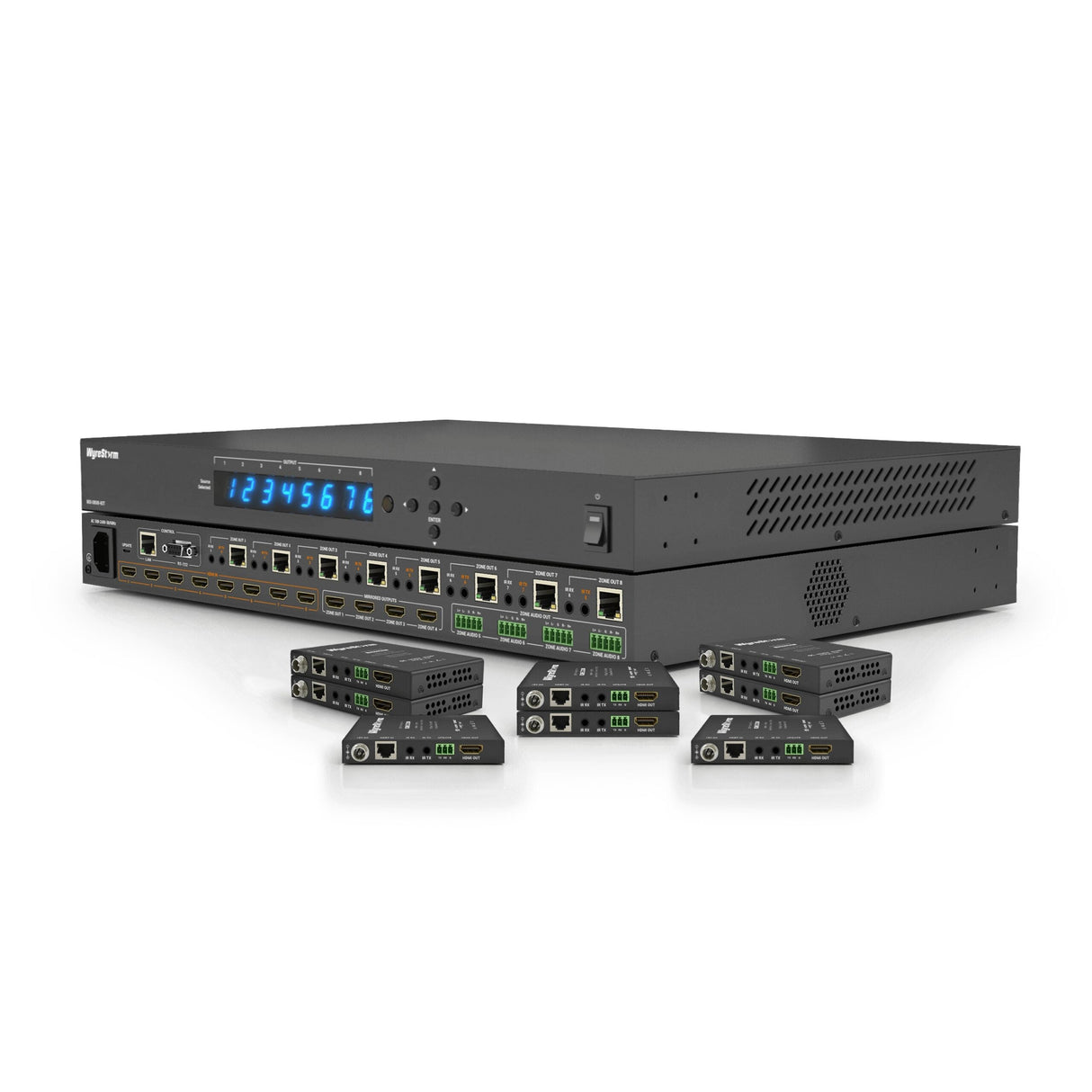

WyreStorm MX-0808-KIT V2 8 x 8 4K UHD HDBaseT Matrix Kit

The MX-0808-KIT v2 gets a makeover, sharing many of the same powerful features of version 1, but with a vision of lite commercial installations in mind. Offering the same transmissions of 4K UHD up to 35m/115ft, but now up to 8 HDBaseT outputs with included receivers. Additionally, version 2 is equipped with 4 mirrored outputs, which can be paired with any of our HAOC hybrid optical HDMI cables to connect to 4 additional screens. Also new and fitting are 4 balanced analog audio outputs 2ch support to connect to ceiling/over-hanging speakers or to an audio amplifier. Lastly, still enjoy the same great features of version 1, including CEC triggering, A/V mute and standby mode to extend the life of the matrix during downtime.

In the modern House of Worship venues, video distribution to a few screens or large displays paired with just as powerful 2 channel audio distribution is common place. The MX-0808-KIT v2 ensures a workhorse AV matrix distribution system for up to 8 endpoints, all while keeping longevity and system health in mind with the Standby Mode, allowing for distribution to save on energy when not in use.

4K UHD and HDR SUPPORT
Small in price yet big on specification, this 8x8 kit can handle current video content up to 4K/60 4:2:0 covering a majority of current source devices, even supporting 10-bit HDR content at up to 30Hz and multi-channel audio. Powerful HDBaseT technology sends this, IR control and PoH for the included receivers up to 35m/115ft.

BALANCED AUDIO DE-EMBED
Equipped with 4 balanced analog audio breakouts that follow the last 4 HDBaseT outputs. This gives the commercial integrator confidence to connect to long-run audio cabling without fear of audio interference.

A/V MUTE
Certain applications in the hospitality, education and commercial markets don’t always require a source to be routed through to an output. The 8×8 kit makes it possible to “mute” the video output as well as the audio, meaning that the HDMI signals to the zones can be independently switched off via the API.

CEC TRIGGERING
Working automatically on signal presence or triggered via the API, this 8x8 kit can send power trigger commands to all compatible connected screens or projectors meaning an integrated autonomous control solution.

Key Features

• True 8x8 matrix with 8 HDBaseT zones and 4 mirrored HDMI outputs
• SmartEDID feature also dynamically detects display/source capabilities and automatically outputs the highest possible resolution
• Additional EDID management through DIP switches for global setting or via WebUI for independent management of EDID per source
• Embedded WyreStorm WebUI enables simple source switching and installer set-up & configuration
• WebUI includes full EDID management to copy EDID from connected devices
• Independent user control interface with separate password-protected installer settings
• Personalize switching interface with source and output labelling
• Hide unused I/O for cleaner appearance and navigation
• API triggered standby mode puts unit into low power state during downtime
• 2-way IR for far-end device control from control system or source control from a zone.
• US, UK, EU & AU Power cables included
• Compact 1U chassis with adjustable depth rack mounting brackets included

Technical Specifications

AUDIO & VIDEO
Matrix
Inputs
8x HDMI: 19-pin type A
Receivers
1x HDBT: 8-pin RJ-45 Female
Outputs
8x HDBT: 8-pin RJ-45 Female
4x 5-pin Balanced Analog Audio
Receivers
1x HDMI: 19-pin type A
Output Video Encoding
HDBaseT Class B
Encoding Data Rate
9.2Gbps
End to End Latency
10μs (micro seconds)
Audio Formats
HDMI/HDBaseT: 2ch LPCM | Multichannel up to Dolby Atmos and DTS-X
Analog Output: 2ch PCM
Video Resolutions (Max)
1920x1080p @60Hz 16bit
3840x2160p 10bit 4:2:0 HDR
3840x2160p @30Hz 8bit 4:4:4
3840x2160p @60Hz 8bit 4:2:0
Supported Standards
DCI | RGB | HDR10 | HLG | BT.2020
Maximum Pixel Clock
HDBaseT: 340MHz
COMMUNICATION & CONTROL
HDMI
HDMI 1.4 | HDCP 2.2 | EDID | CEC
HDBaseT
HDMI 1.4 | HDCP 2.2 | EDID | CEC | 1-way PoH | Bidirectional IR
CEC
CEC power triggering for connected screens - Requires CEC compatibility
IR
Matrix
8x IR RX: 3.5mm (1/8in)
8x IR TX: 3.5mm (1/8in)
Receivers
1x IR TX: 3.5mm (1/8in)
1x IR RX: 3.5mm (1/8in)
RS-232
Matrix
1x RS-232: DB9 Female (API)
Receivers
1x RS-232: 3-pin Terminal Block
Ethernet
1x LAN: 10/100BaseT RJ-45
POWER
Power Supply
Matrix
100~240V AC 50/60Hz
Receivers
18V DC (Optional)
PoH
1-way Matrix to Receiver
