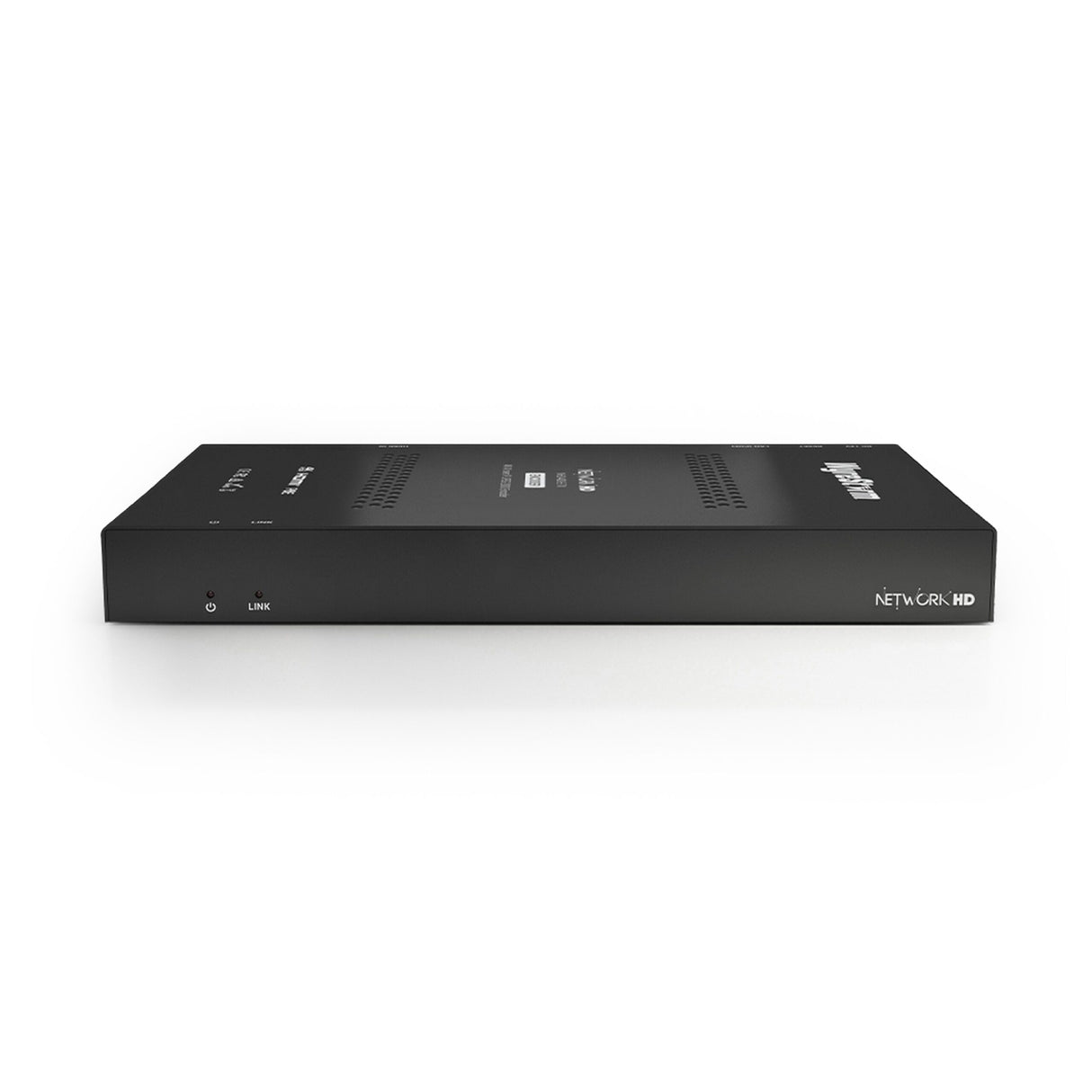

WyreStorm NetworkHD 400 Series 4K AV over IP JPEG 2000 Encoder

The NHD-400-E-TX encoder offers stunning 4K HDR video, multichannel audio support and 4K/2K scaling to seamlessly handle mixed resolution HDMI sources for matrix and video wall functionality. The reduced cost Type E version removes some control ports but retains the 400 Series core features. Featuring incredible low latency the 400 Series is the ideal AV over IP solution for systems where high quality and low delay are key requirements, making it perfect for demanding commercial applications.

Key Features

• Stunning visually lossless 4K UHD HDMI video with HDR over 1GbE / IP networks
• Ultra-low end-to-end latency only a single video frame (16ms at 60fps)
• Multi-channel audio including DTS:X & Dolby ATMOS supported over HDMI
• Image scaling with 400 Series decoders - use a mix of 4K & 1080p displays throughout an installation
• Easy network set-up using standard Layer 2 or Layer 3 managed switches
• Hugely scalable I/O, utilizing multicast technology
• Live video unicast preview streams for use with NetworkHD Touch or a custom control UI
• Powerful audio matrix functionality - route audio separately from video to any decoder
• CEC One-Touch Play & Standby, IR or RS-232 control of connected devices using 400 Series decoder
• 400 Series supports up to 16x16 video walls with image scaling, bezel compensation and rotation
• 400 Series supports custom “No Source” idle image upload for branded down time
• Support all SD, HD and UHD video formats - including interlaced content
• Batch firmware update and batch settings functions offers a massive reduction on installation times
• Custom EDID management with import/export
• HDCP 2.2 Compliant
• IEEE 802.3af PoE compliant PD
• Compatible with NHD-000-RACK4 rack mounting kit (brackets included with encoder)

Technical Specifications

Connectivity
Inputs
1x HDMI Out 19-pin type A
Outputs
1x LAN (PoE): 8P8C “RJ45” Socket ANSI/TIA-568
Transmission
Transmission Encoding
Proprietary stream encoding. Video compression based on JPEG 2000
End to End Latency
With RX, 1 video frame (Passthrough mode) 2 video frames (scaling/video wall) e.g. 16ms @ 60Hz
Max Transmission Bit Rate
850Mb/s
Video
HDMI
300MHz Max.TMDS Clock
Maximum Data Rate
8.91Gb/s HDMI
Video Resolutions (Max)
1280x720p @50/59.94/60Hz 12bit 4:4:4/RGB
1920x1080i @29.97/30Hz 12bit 4:4:4/RGB
1920x1080p @23.98/24/25/29.97/30/50/59.94/60Hz 12bit 4:4:4/RGB
3840x2160p @23.98/24/25/29.97/30Hz 10/12bit 4:2:2/4:2:0 HDR10 HLG
3840x2160p @23.98/24/25/29.97/30Hz 8bit 4:4:4/RGB
3840x2160p @50/59.94/60Hz 8bit 4:2:0
720x480p @59.94/60Hz 12bit 4:4:4/RGB
720x576p @50Hz 12bit 4:4:4/RGB
60fps Progressive 4:4:4/RGB: 640x480 | 800x600 | 1024x768 | 1280x800 | 1280x960 | 1280x1024 | 1360x768 | 1366x768 | 1400x1050 | 1440x900 | 1600x1200 | 1680x1050 | 1920x1200
Passthrough mode
Output at RX matches input at TX except for:
1) YUV 4:2:0 converted to 8bit RGB
2) For resolutions above 1920x1200 at 50/60Hz framerate is halved
Scaler mode
User-selectable scaled output
1) All formats converted to 8bit RGB
2) Up to 3840x2160p @30Hz
Supported Standards
HDR10 | HLG | BT.2020 | BT.709 | 3D Video
Audio
Audio Formats
PCM up to 8ch | Bitstream audio formats including Dolby Atmos & DTS:X
Communication and Control
Ethernet
IEEE 802.1ab 1000BASE-T
HDCP
HDCP
2.2 | 1.x
EDID
Programmable EDID | EDID Copy/Import | Custom EDID
CEC
Programmable CEC Commands | Custom Command Generation (RX Only)
RS-232
Programmable RS-232 Commands | Custom Command Generation (RX Only)
INSTALLATION & MOUNTING
Compatible Rack Mount Kit
NHD-000-RACK4
Included Accessories
Wall Mount Brackets | Brackets for NHD-000-RACK4
Orientation
Observe product chassis text
Power
Power Over Ethernet
IEEE 802.3af (15.4W at PSE)
External Power Supply
Optional part: PSU-12V-1A
Nominal Power Consumption
8W
Environmental
Operating Temperature
32F ~ 113F (0C ~ 45C) 10% ~ 90%, non-condensing
StorageTemperature
-4F to ~ 158F (-20C ~ +70C) 10% ~ 90%, non-condensing
Maximum BTU
51.18 BTU/hr
Dimensions & Weight
Rack Units/Wall Box
<1U Flat on Shelf | 6U in NHD-000-RACK4
Height
25mm/1in
Width
220mm/8.67in
Depth
130mm/5.12in
Weight
0.75kg/1.65lbs
