Description

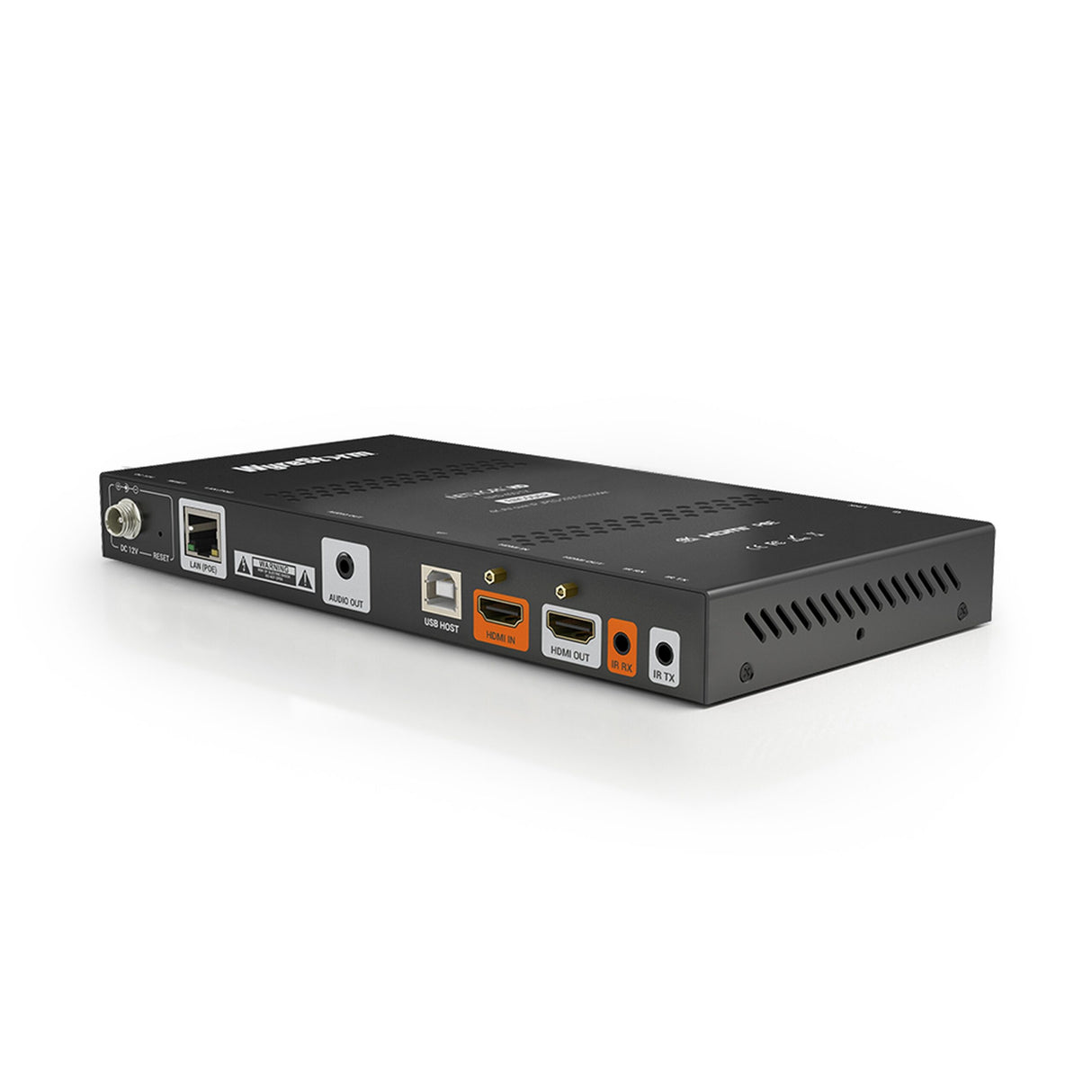

WyreStorm NHD-400-TX NetworkHD 400 Series 4K AV over IP JPEG 2000 Encoder
As part of the new WyreStorm NetworkHD 400 Series, the NHD-400-TX streaming encoder offers stunning 4K HDR video, multi-channel audio support and 4K/2K auto-scaling to seamlessly handle mixed resolution sources, content and display devices for matrix and video wall functionality when used in conjunction with a 400 Series decoder.
Featuring incredibly low latency, the 400 Series is the ideal AV over IP solution for systems where high quality and low latency are key requirements, making it perfect for both residential and commercial applications.
Key Features
- Stunning visually lossless 4K UHD video with HDR over 1GbE / IP networks
- Ultra-low end-to-end latency - only a single video frame (16ms at 60fps)
- Multi-channel audio including DTS:X & Dolby ATMOS
- Image scaling - use a mix of 4K & 1080p displays throughout an installation
- Easy network set-up using standard Layer 2 or Layer 3 managed switches
- Hugely scalable I/O, utilizing multicast technology
- Live video unicast preview streams for use with NetworkHD Touch or a custom control UI
- Powerful audio matrix functionality - route audio separately from video to any decoder
- CEC One-Touch Play & Standby, bidirectional IR or RS-232 control of connected devices
- Up to 16x16 video walls with image scaling, bezel compensation and rotation
- Custom āNo Sourceā idle image upload for branded down time
- Support all SD, HD and UHD video formats - including interlaced content
- Breakaway, independent routing of all video, audio, IR, USB and RS-232 streams
- Infrared signal generation direct from an encoder or decoder - supports Hex IR format
- Analog audio de-embed output with volume control
- Batch firmware update and batch settings functions offers a massive reduction on installation times
- Custom EDID management with import/export
- HDCP 2.2 Compliant
- IEEE 802.3af PoE compliant PD
- Includes optional DC power adapter and mounting brackets
- Compatible with NHD-000-RACK4 rack mounting kit (brackets included with encoder)
Technical Specifications
Inputs
1x HDMI Out 19-pin type A
Outputs
1x HDMI Out 19-pin type A
1x Audio Out: 3.5mm (1/8in) TRS Stereo
1x 8-pin RJ-45 (Transmission to RX)
Output Video Encoding
JPEG 2000
Encoding Data Rate
Max: 850Mbps
End to End Latency (Max)
1 video frame latency (pass-through mode) 16ms @60fps 2 video frames latency (scaler/VW mode) 33ms @60fps
Audio Formats
2ch PCM | Multichannel: LPCM and Up to DTS-X and Dolby Atmos
Video Resolutions (Max)
1280x720p @50/59.94/60Hz 12bit 4:4:4/RGB
1920x1080i @29.97/30Hz 12bit 4:4:4/RGB
1920x1080p @23.98/24/25/29.97/30/50/59.94/60Hz 12bit 4:4:4/RGB
3840x2160p @23.98/24/25/29.97/30Hz 10/12bit 4:2:2/4:2:0 HDR10 HLG
3840x2160p @23.98/24/25/29.97/30Hz 8bit 4:4:4/RGB
3840x2160p @50/59.94/60Hz 8bit 4:2:0
720x480p @59.94/60Hz 12bit 4:4:4/RGB
720x576p @50Hz 12bit 4:4:4/RGB
60fps Progressive 4:4:4/RGB: 640x480 | 800x600 | 1024x768 | 1280x800 | 1280x960 | 1280x1024 | 1360x768 | 1366x768 | 1400x1050 | 1440x900 | 1600x1200 | 1680x1050 | 1920x1200
Passthrough mode:
Output at RX matches input at TX except for:
1) YUV 4:2:0 converted to 8bit RGB
2) For resolutions above 1920x1200 at 50/60Hz framerate is halved
Scaler mode:
User-selectable scaled output
1) All formats converted to 8bit RGB
2) Up to 3840x2160p @30Hz
Supported Standards
HDR10 | HLG | BT.2020 | BT.709 | 3D Video
Maximum Pixel Clock
300MHz
3D
HDMI 1.4b 3D: TnB, SbS, F.P
HDMI
HDCP 2.2 | CEC
Ethernet
1x LAN (PoE): 8-pin RJ-45 ANSI/TIA-568 8P8C, 1000Base-T, PoE PD (IEEE 802.3af)
USB
1x USB Host: USB Type B
IR
1x IR TX: 3.5mm (1/8in) TS Mono Jack | 1x IR RX: 3.5mm (1/8in) TRS Stereo Jack | Bidirectional Over Ethernet
RS-232
1x RS-232: 4-pin Phoenix | 2 Way (RX only)
Power Supply
12V DC 1A
PoE
IEEE 802.3af (15.4W at PSE)
Max Power Consumption
8W (with PSU)
Operating Temperature
32F ~ 113F (0C ~ 45C) 10% ~ 90%, non-condensing
Storage Temperature
-4F to ~ 158F (-20C ~ +70C) 10% ~ 90%, non-condensing
Maximum BTU
51.18 BTU/hr
Rack Units/Wall Box
<1U Flat on Shelf | 6U in NHD-000-RACK4
Height
25mm/1in
Width
220mm/8.67in
Depth
130mm/5.12in
Weight
0.75kg/1.65lbs
Safety and Emission
CE | FCC | RoHS
