Description

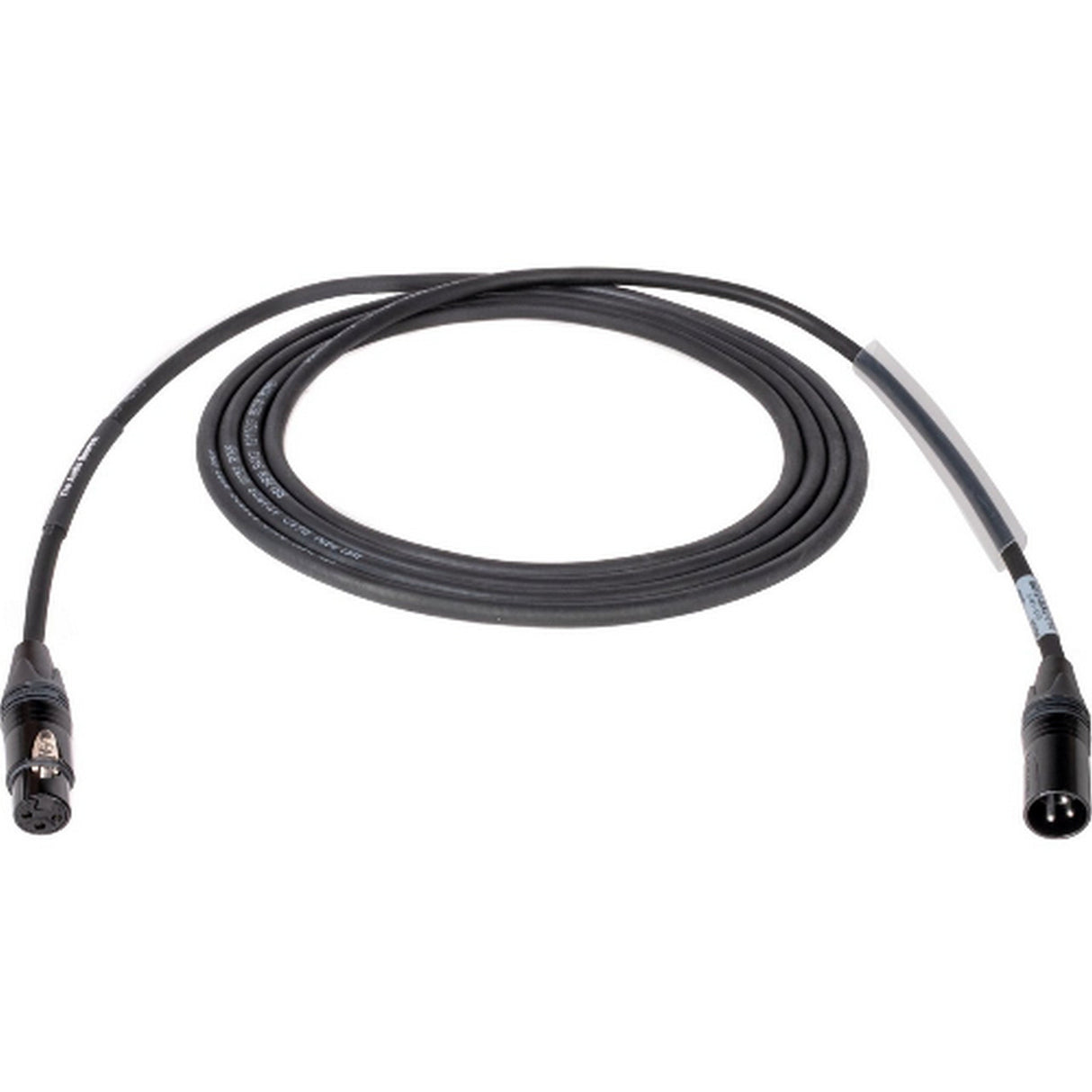

Sescom 8412 Touring XLR Microphone Cable with Neutrik 3-Pin XLR Connectors
The Sescom Belden 8412 Touring XLR Cable is a tour-grade indoor balanced analog microphone cable assembly built for reliable XLR audio signal transfer in demanding environments. Using Belden 8412 rugged mic cable and Neutrik XLR connectors, it is designed for clean, consistent audio performance in professional workflows.
This deployable microphone audio cable features EPDM jacketing and insulation for flexibility and resistance to moisture, while a tinned copper braided shield helps protect the signal from electromagnetic interference. The XLR connector boot with a polyurethane gland adds protection against cable bending stresses during frequent setup and teardown.
Built to withstand years of deployment, this touring XLR mic cable is ideal for studio use, recordings, houses of worship, and live production where durability and dependable connectivity matter. Choose the length that fits your stage, rack, or patching needs while keeping a rugged cable build and professional connector performance.
Key Features
- Balanced analog design: Indoor microphone audio cable assembly for professional XLR applications
- Deployable touring construction: Ruggedized build designed for repeated deployment and handling
- EPDM materials: EPDM jacketing and insulation for flexibility and moisture resistance
- Neutrik XLR connectors: High-quality 3-pin XLR connection type with long mating life
- Strain protection: XLR connector boot with polyurethane gland helps protect against bending stresses
- EMI shielding: Tinned copper braided shield helps protect audio signal integrity
Technical Specifications
- Cable model: Belden 8412
- Number of elements: 2
- Wire gauge: 20 AWG
- Conductor stranding: 26x34
- Conductor material: TC-Tinner Copper (High Conductivity)
- Insulation material: EPDM (Ethylene Propylene Diene Monomer)
- Insulation nominal thickness: 0.023 in (0.58 mm)
- Insulation nominal diameter: 0.083 in (2.1 mm)
- Outer shield 1 material and coverage: Braided Rayon/85%
- Outer shield 2 material and coverage: Braided TC (Tinned Copper)/85%
- Outer jacket separator: Cotton Serve
- Outer jacket material: EPDM (Ethylene Propylene Diene Monomer)
- Outer jacket nominal thickness: 0.035 in (0.89 mm)
- Overall cable nominal diameter: 0.26 in (6.65 mm)
- Nominal conductor DCR: 10.6 Ohm/1000 ft
- Nominal capacitance conductor-to-conductor: 33 pF/ft (110 pF/m)
- Nominal capacitance conductor-to-other: 58 pF/ft (190 pF/m)
- Nominal characteristic impedance: 67 Ω
- Minimum bending radius stationary: 2.6 in (66 mm)
- Minimum bending radius installation: 2.6 in (66 mm)
- Maximum pull tension: 100 lbs (45 kg)
- Connector type: XLR
- Capacitance between contacts: ≤ 4 pF
- Contact resistance: ≤ 3 mΩ
- Insulation resistance: > 10 GΩ (initial)
- Insertion force: ≤ 20 N
- Withdrawal force: ≤ 20 N
- Connector lifetime: > 1000 mating cycles
