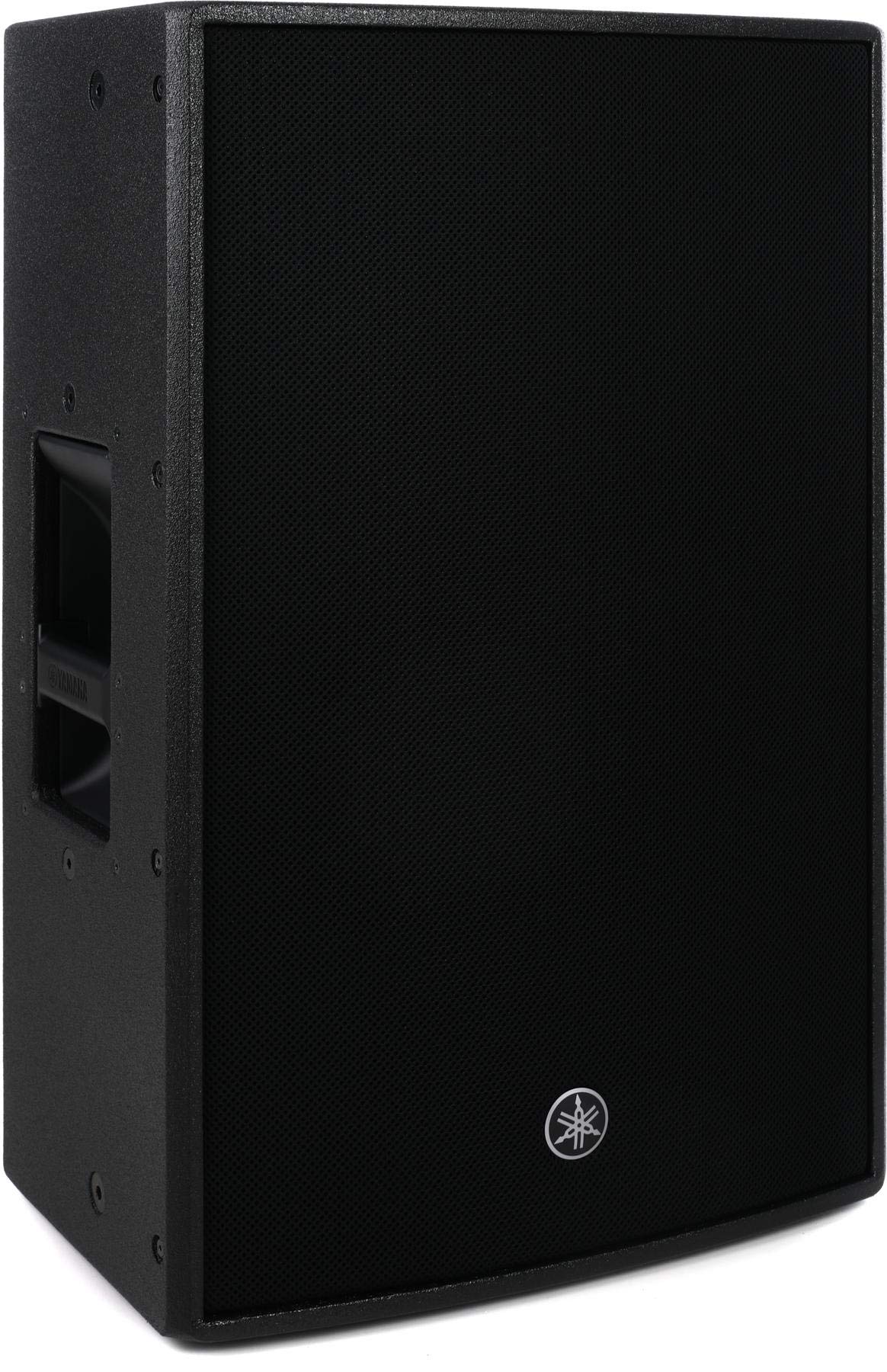

Yamaha CZR12 2-Way 800W 12-Inch Loudspeaker
Yamaha CZR12 2-Way 800W 12-Inch Loudspeaker
Yamaha CZR12 2-Way 800W 12-Inch Loudspeaker
The CZR12 is a 2-way loudspeaker offering high power handling and outstanding sonic performance in a portable, lightweight, yet rugged design. Its versatile, compact enclosure design makes the lightweight CZR12 ideal for range of live performance and installed sound environments-from live bands at outdoor festivals to DJ’s in clubs-these loudspeakers deliver crystal clear, high-quality sound with impressive low frequency performance.
Key Features
- 2-way loudspeaker with a 2” HF and a 12" LF
- Features Yamaha's own Wide Dispersion CD Waveguide Horn
- High power 800W(PGM) power handling and Bi-amp capable
- Floor monitoring setting enables mirroring configuration
- Lightweight yet very durable plywood cabinet with premium graded Polyurea coating
- Dual-angle pole socket
- Optional speaker cover (SPCVR-DZR12)
- Rotatable horn and variety of U-bracket options (UB-DZR12H/V) for rigging allow for very flexible setup and speaker placement
Technical Specifications
Speaker type
2-way Speaker, Bass-reflex
Frequency range (-10dB)
Passive: 43 Hz - 20 kHz, Normal (*1): 42 Hz - 20 kHz, FOH (*1): 38 Hz - 20 kHz
Coverage area
H90 deg x V60 deg Rotatable Constant Directivity Horn
Floor Monitor Angle
50 deg Symmetrical
Components
LF: 12" Cone, 3" Voice Coil, Neodymium magnet
HF: 2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet
Crossover
2.0 kHz
Power rating
NOISE: Passive (EIA 426-A) 400 W, Bi-amp LF (EIA 426-A): 400W, HF (AES): 50W
PGM: Passive (EIA 426-A) 800 W, Bi-amp LF (EIA 426-A): 800W, HF (AES): 100W
PEAK: Passive (EIA 426-A) 1600 W, Bi-amp LF (EIA 426-A): 1600W, HF (AES): 200W
Nominal impedance
Passive: 8 OHM, Bi-amp: LF: 8 OHM, HF: 16 OHM
SPL
Sensitivity (1W; 1m on axis): Passive: 97dB SPL, Bi-amp: LF: 97dB SPL, HF: 108dB SPL
Peak (Calculated): Passive: 129 dB SPL, Bi-amp: LF: 129dB SPL, HF: 131dB SPL
I/O connectors
SpeakON NL4MP x 2 (Parallel)
Handle
Aluminium die-cast, Side x2
Pole socket
35 mm x2 (0 deg or -7 deg)
Rigging
M10 x 12
Dimensions
W: 410 mm (16.1")
H: 646 mm (25.4") (with rubber feet)
D: 394 mm (15.5")
Net weight
18.0 kg (39.7 lbs)
Options
Bracket: UB-DZR12H/V, Cover: SPCVR-DZR12
Others
Enclosure Material, Finish, Color: Plywood, Durable Polyurea coating, Black
