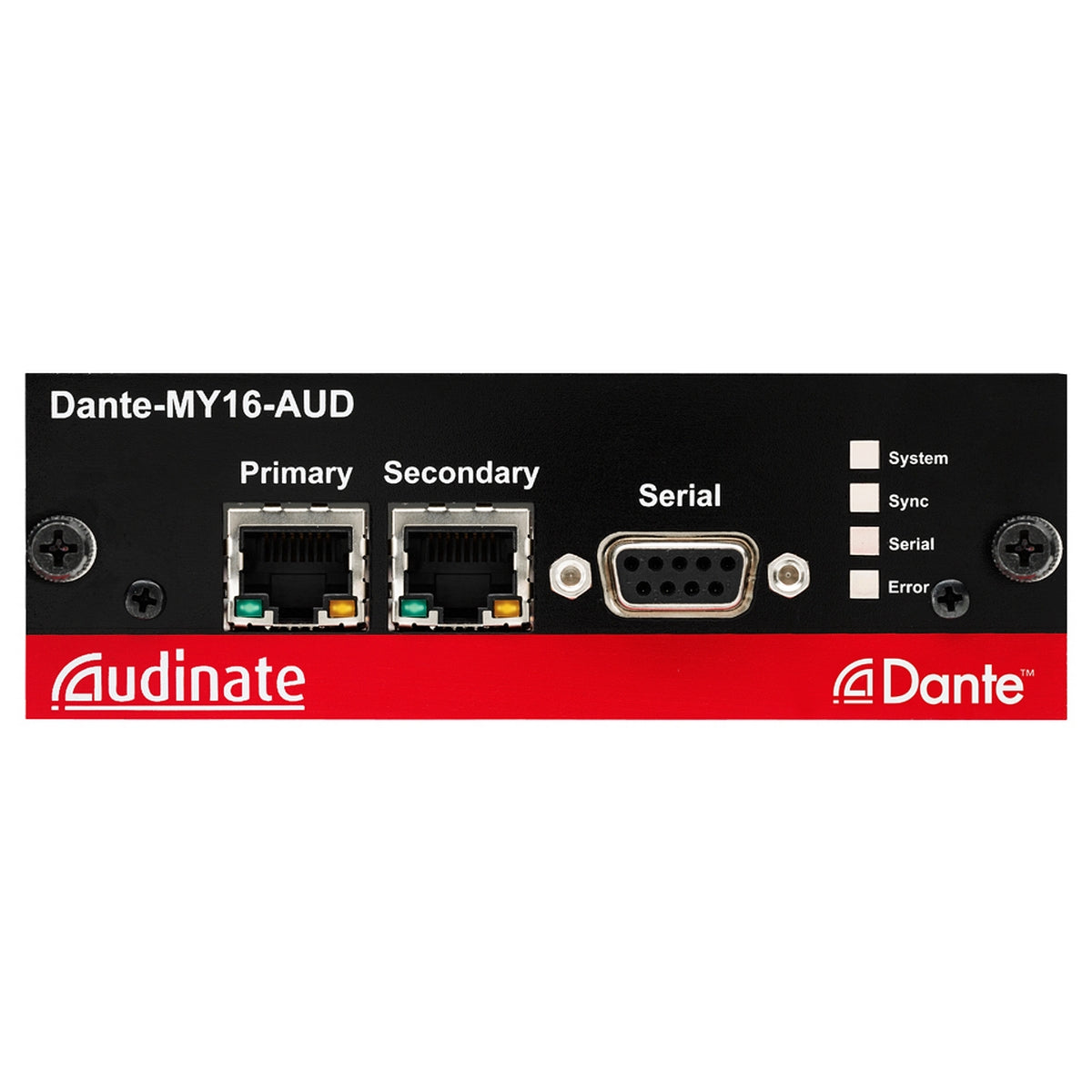

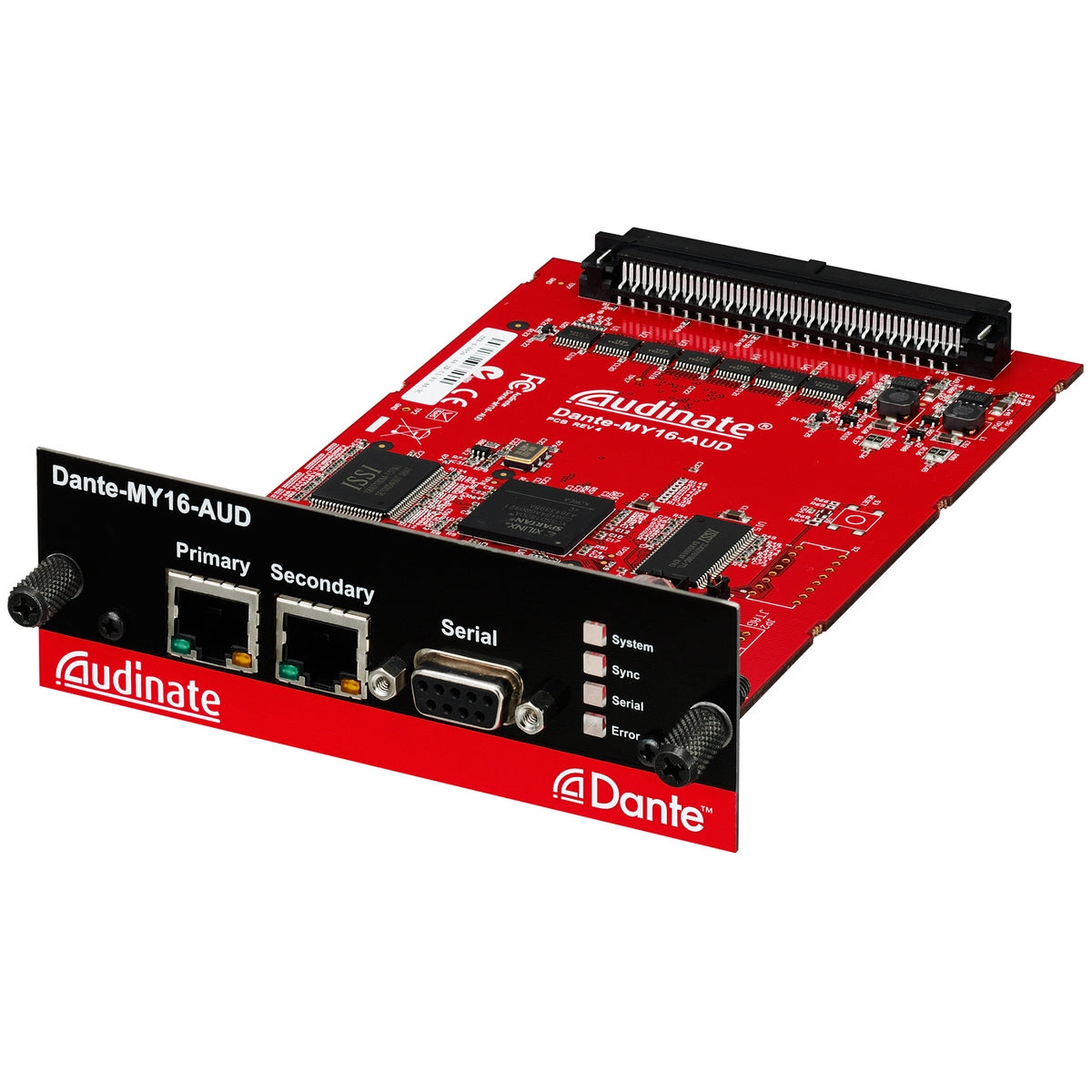

Yamaha DANTE-MY16-AUD Audinate 16 Channel Dante Network In Out Card
Dante-MY16-AUD card is a fully compatible Yamaha Mini-YGDAI standard card that instantly Danteenables your Yamaha mixer, processor or power amp. Each Dante-MY16-AUD provides 16 bidirectional audio channels (8 at 96 kHz) and full Dante network audio redundancy over Gigabit Ethernet.
*Please note that when using HA Remote function, both Dante-MY16-AUD (V3.3.9.2 or newer) and Dante Controller (V3.2.9 or newer) are necessary.
Key Features
- 24bit resolution, 16-in/16-out Dante interface (8-in/8-out at 96kHz)
- 2x RJ-45 connectors for Dante I/O, 1x D-sub 9 pin connector for RS232-C
- Latency can be selected from four preset values: 0.15 ms, 0.5 ms, 1.0 ms, or 5.0 ms
- More than 16 audio channels can be transferred when used with a standard network switch
- Automatic discovery and setup for network devices. Devices names can be specified as required
- Allows direct PC or Mac audio input and output without the need for an audio interface
Technical Specifications
Channel Count
16IN / 16OUT
Sampling Frequency
48kHz and 96kHz
Sample Bit-Depth
24 bit
Network
2 x Gigabit (1000Mbps; 1Gbps) Ethernet RJ45 connectors
Redundancy
Glitch-free Dante audio redundancy using dual Ethernet networks
HA Remote
Supported on HA Remote capable Yamaha products
Expandable
Install up to four Dante-MY16-AUD cards in available Mini-YGDAI-compatible slots for up to 64 bidirectional audio channels
Clock
High quality on-board VCXO clock can provide master clock OR slave off audio equipment; automatic synchronization with Dante network
