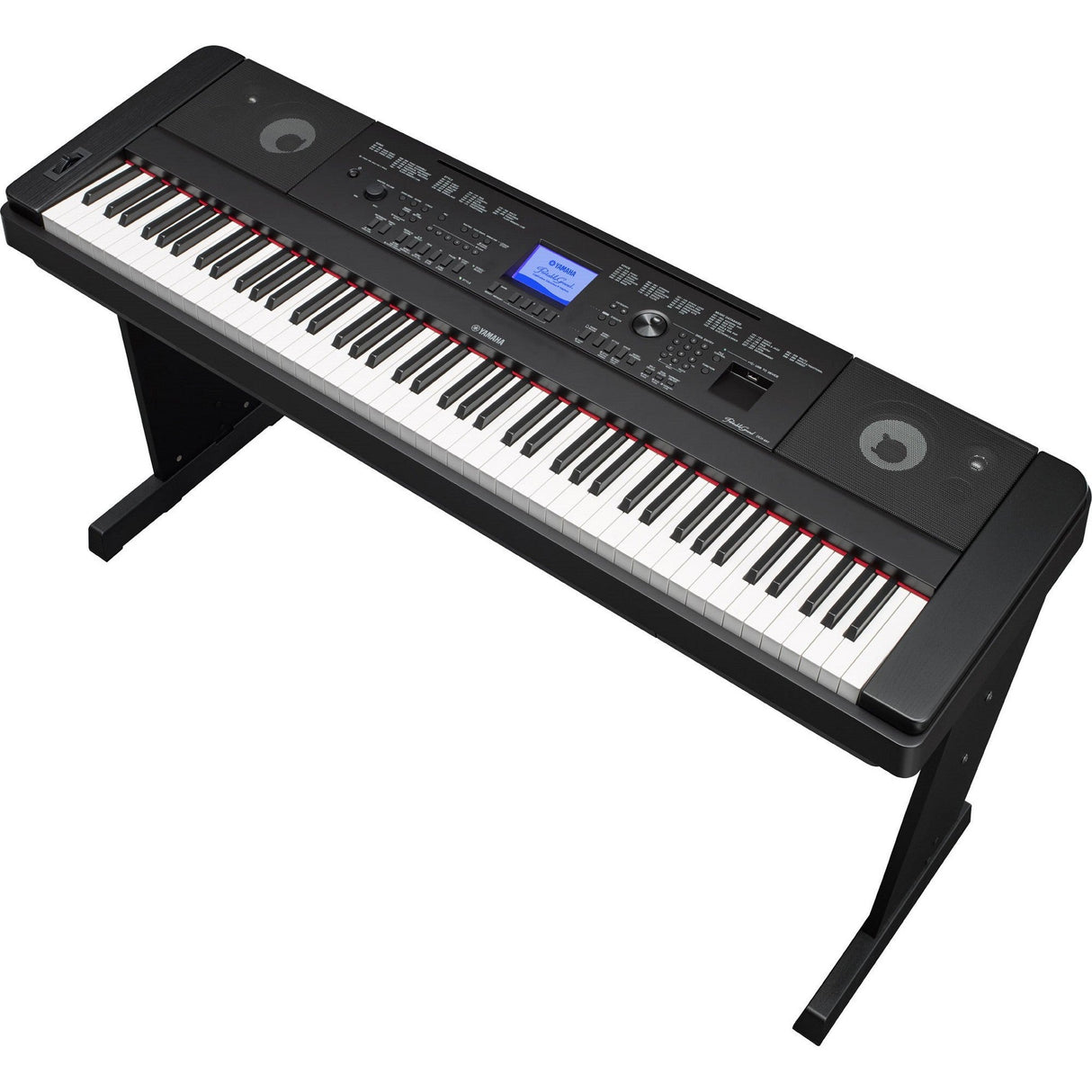

Yamaha DGX-660 88-Note GHS Digital Piano, Black

Contemporary and versatile, the DGX-660 has something for everyone!

The new Yamaha DGX-660 is the latest ensemble digital piano to feature a variety of interactive features that make learning, playing and sharing music fun for everyone. The new Piano Room feature of this Portable Grand lets you choose from a variety of pianos and acoustic settings to create your very own personal piano environment.

Yamaha keyboards are known for their versatility. Now you can connect a microphone so you can sing along while you play, hearing your voice with digital effects through the instrument's speakers. Plus, you can even record your performance to a USB device to share with your friends and family!

The DGX-660 contemporary digital piano gives aspiring pianists a fun way to enhance their learning experience. Players of all abilities can feel what it's like to play with a band and sound like a pro. The built-in USB Audio Recorder captures your musical inspirations when you're ready to share your accomplishments.

Welcome to your personal “Piano Room”! The DGX-660 provides a dedicated virtual space where you can choose from a variety of pianos and acoustic settings, creating your personalized practice or performance environment. Simply select your desired piano, then choose acoustic spaces from a plain room to a club stage to a concert hall. You can even adjust the position of the virtual piano lid!

Simply connect a microphone to the DGX-660 to either sing along with your playing or with pre-recorded karaoke song files from Yamaha Musicsoft. Hear what you sound like with everything mixed perfectly together from the built-in speakers. View the lyrics on the included score display. Three convenient presets are provided for different vocal performance situations. You can even create and save your own original microphone settings including professional reverb and chorus effects.

World Class concert grand piano sound - Pure CF Sampling
The Pure CF Sound Engine is the result of years of piano-making history combined with state-of-the-art sampling technology and piano expertise. Yamaha is the industry leader in digital piano technology, and you can hear this in the Voices that utilize the Pure CF piano sample. The sound of the renowned Yamaha CFIIIS 9' concert grand piano is faithfully reproduced, allowing for incredible dynamics and expressiveness, making the DGX-660 worthy of the Yamaha name.

Authentic piano touch, 88-note weighted GHS keyboard
The Yamaha Graded Hammer Standard (GHS) keyboard features a weighted action with heavier touch in the low end and lighter touch in the high end, just like the hammers inside an acoustic piano. Great for the aspiring pianist, practicing on the GHS action builds the proper finger technique and strength for when the time comes to perform on an acoustic piano.

Damper Resonance
Damper Resonance digitally reproduces the sympathetic vibration between strings on acoustic pianos. Just like an acoustic piano, when the damper pedal is used in a performance, other strings add sonic color to the notes you play until the pedal is released.

Easy-to-read score and lyric display
The crystal-clear LCD can be switched to score or lyric display, showing you notation for any MIDI song that the DGX-660 is playing. Read the music for your favorite built-in songs, or follow along with songs downloaded to a USB device from Yamaha MusicSoft. Even see the score for songs you've created yourself on the DGX-660!

Live! Cool! and Sweet! Voices
Authentic guitars, lush strings, punchy brass… the highly acclaimed Live! Cool! and Sweet! Voices feature a unique blend of long, stereo and multi-layered samples that capture the essence of each instrument, right down to genuine resonance, expression and vibrato.

USB Audio Recording/Playback
Record performances or MIDI songs as uncompressed, CD-quality audio (WAV) to a USB flash drive using the Audio Recorder. From there, you can copy songs to your computer to make CDs, share over the Internet or transfer to your portable music player. You can also playback uncompressed WAV files stored on a USB flash drive.

Chords played simply. Sound like a pro!
Smart Chord makes you sound like a pro, even if you're just learning how to play. With a single finger on your left hand, Smart Chord will create entire chords from simple Pop triads to complex jazz 7th and 9th chords. Accompaniment Styles create the rest of your virtual band so you can get straight to playing music.

Style Recommender - Choose styles the easy way!
Style Recommender helps you find styles quickly and easily when you know how the music should feel, but don't know which style is right for the part. Simply play a few notes in the rhythm of the song you want to perform, and Style Recommender will offer a list of matching Styles to choose from.

Let your mobile music device be heard!
Use the Aux line input to connect your portable music player or even another instrument and hear the playback through the speakers of your DGX-660. The DGX-660's speaker system is powerful, clear and fine-tuned for playing back music of all types.

Technical Specifications

Size/Weight
Dimensions
Width
1,397mm (55”) /with keyboard stand 1,399mm (55-1/16”)
Height
146mm (5-3/4”) /with keyboard stand 761mm (29-15/16”)
Depth
445mm (17-1/2”) /with keyboard stand 445mm (17-1/2”)
Weight
21kg (46 lbs. 5 oz.)/with keyboard stand:28kg (61 lbs. 12 oz.)
Control Interface
Keyboard
Number of Keys
88
Type
Graded Hammer Standard (GHS) keyboard
Touch Response
Soft, Medium, Hard, Fixed
Other Controllers
Pitch Bend
Yes
Display
Type
Full Dot LCD
Size
320x240 dots
Color
Monochrome
Contrast
Yes
Score Display Function
Yes
Lyrics Display Function
Yes
Language
English
Panel
Language
English
Voices
Tone Generation
Piano Sound
Pure CF Sound Engine
Damper Resonance
Yes
Polyphony
Number of Polyphony (Max.)
192
Preset
Number of Voices
151 + 15 Drum/SFX Kits + 388 XGlite
Featured Voices
1 Natural! Voice, 10 Live! Voices, 11 Sweet! Voices, 7 Cool! Voices
Compatibility
GM
Yes
XGlite
Yes
Effects
Types
Reverb
41 types
Chorus
44 types
DSP
237 types
Master EQ
5 types
Intelligent Acoustic Control (IAC)
Yes
Functions
Dual
Yes
Split
Yes
Panel Sustain
Yes (Function Menu)
Accompaniment Styles
Preset
Number of Preset Styles
205
Fingering
Multi Finger, Full Keyboard, AI Fingered
Style Control
INTRO, MAIN x 2, FILL-IN x 2, ENDING
Other Features
Music Database
320
One Touch Setting (OTS)
Yes
Style Recommender
Yes
Smart Chord
Yes
Compatibility
Style File Format (SFF), Style File Format GE (SFF GE)
Songs
Preset
Number of Preset Songs
100
Recording
Number of Songs
5
Number of Tracks
6
Data Capacity
Approx. 30,000 notes for 1 user song
Compatible Data Format
Playback
SMF (Format 0, Format 1), XF
Recording
SMF (Format 0)
Functions
Registration
Number of Buttons
4 (x 8 banks)
Lesson/Guide
Yamaha Education Suite (Y.E.S.)
Waiting, your tempo, minus one, Repeat & Learn, Chord Dictionary
Demo/Help
Demonstration
Yes
Overall Controls
Metronome
Yes
Tempo Range
5 - 280
Transpose
-12 - 0 - +12
Tuning
415.3 - 440.0 - 466.2 Hz
Miscellaneous
Piano Room
Yes
Audio Recorder/Player
Recording Time (max.)
80 minutes/Song
Recording
WAV (44.1kHz, 16bit, stereo)
Playback
WAV (44.1kHz, 16bit, stereo)
Storage and Connectivity
Storage
Internal Memory
Approx. 1.7 MB
External Drives
USB Flash Memory
Connectivity
DC IN
12V
Headphones
x 1 (Standard stereo phone jack)
Sustain Pedal
Yes
Pedal Unit
Yes
Microphone
Yes (Standard phone jack)
AUX IN
Yes (Stereo mini jack)
USB TO DEVICE
Yes
USB TO HOST
Yes
Amplifiers and Speakers
Amplifiers
6W x 2
Speakers
12cm x 2 + 5cm x 2
Power Supply
Adaptor (PA-150 or an equivalent recommended by Yamaha)
Power Consumption
13 W
Auto Power Off
Yes
Accessories
Owner's Manual Data List Keyboard Stand Footswitch Music Rest AC Power Adaptor (PA-150 or an equivalent recommended by Yamaha) *1 Warranty *1 Online Member Product Registration *2 *1: May not be included depending on your area. Check with your Yamaha dealer. *2: The PRODUCT ID on the sheet will be needed when you fill out the User Registration form.
