The Yamaha DTX-PROX Electronic Drum Trigger Module is a cutting-edge electronic drum trigger module that sets a new standard for sonic realism and intuitive control. At its core lies an unparalleled commitment to authentic drum reproduction. By meticulously capturing the essence of real drums in world-renowned studios, the DTX-PROX delivers a level of detail and nuance that rivals acoustic kits. From the initial attack of a snare drum to the sustained resonance of a bass drum, every tonal characteristic is faithfully represented. Moreover, the inclusion of real-room ambience further immerses the drummer in a lifelike playing environment, elevating the overall experience.

Beyond its sonic prowess, the DTX-PROX empowers drummers with unprecedented control over their sound. The innovative KIT MODIFIER knobs offer a dynamic and intuitive approach to sound sculpting. With a simple turn, drummers can effortlessly transform their kit from natural to heavily processed, unlocking a vast array of sonic possibilities. Complementing the KIT MODIFIER knobs are the precision-oriented LED rotary faders, which allow for fine-tuning of individual instruments. This combination of intuitive controls enables drummers to craft highly personalized and expressive drum kits tailored to their unique musical vision.

Built for both studio and stage, the DTX-PROX boasts a robust feature set designed to meet the demands of professional drummers. Eight individual outputs, coupled with flexible routing options, provide unparalleled connectivity and mixing capabilities. Additionally, a high-performance headphone amplifier ensures exceptional sound quality for private practice or monitoring in loud environments. The DTX-PROX seamlessly integrates with computers, smart devices, and MIDI equipment, expanding creative possibilities and facilitating modern music production workflows.

To enhance the drummer's practice and performance, the DTX-PROX incorporates a comprehensive suite of training functions. A programmable metronome, recorder, and a variety of practice exercises offer valuable tools for skill development and improvement. Furthermore, the inclusion of Cubase AI music production software provides a powerful platform for recording, editing, and mixing drum performances. By combining exceptional sound quality, intuitive controls, and versatile features, the Yamaha DTX-PROX redefines the possibilities of electronic drumming.

Key Features

• Authentic replication of real drum kit sounds and studio ambience

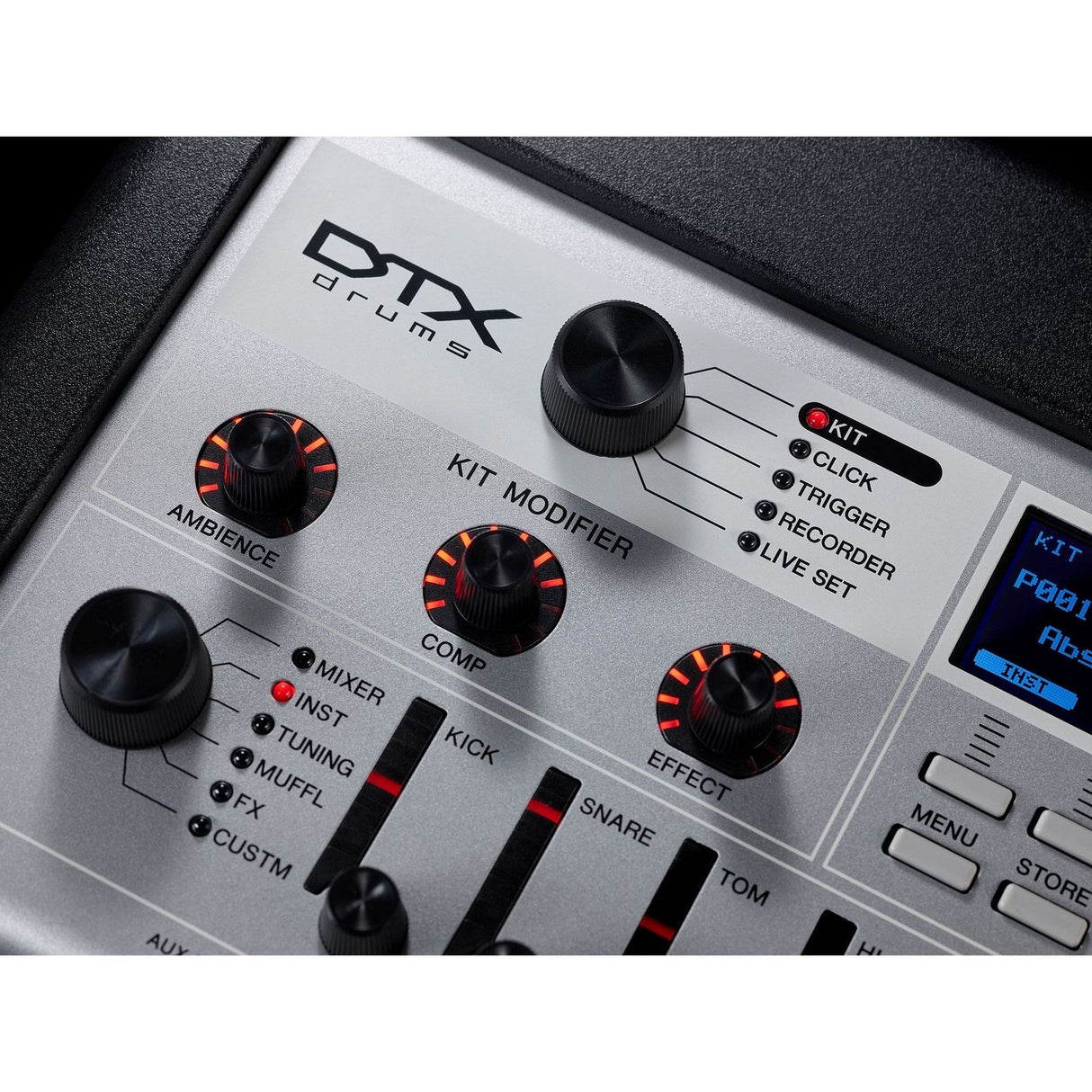

• AMBIENCE, COMP and EFFECT KIT MODIFIER knobs for personalized drum kit sounds

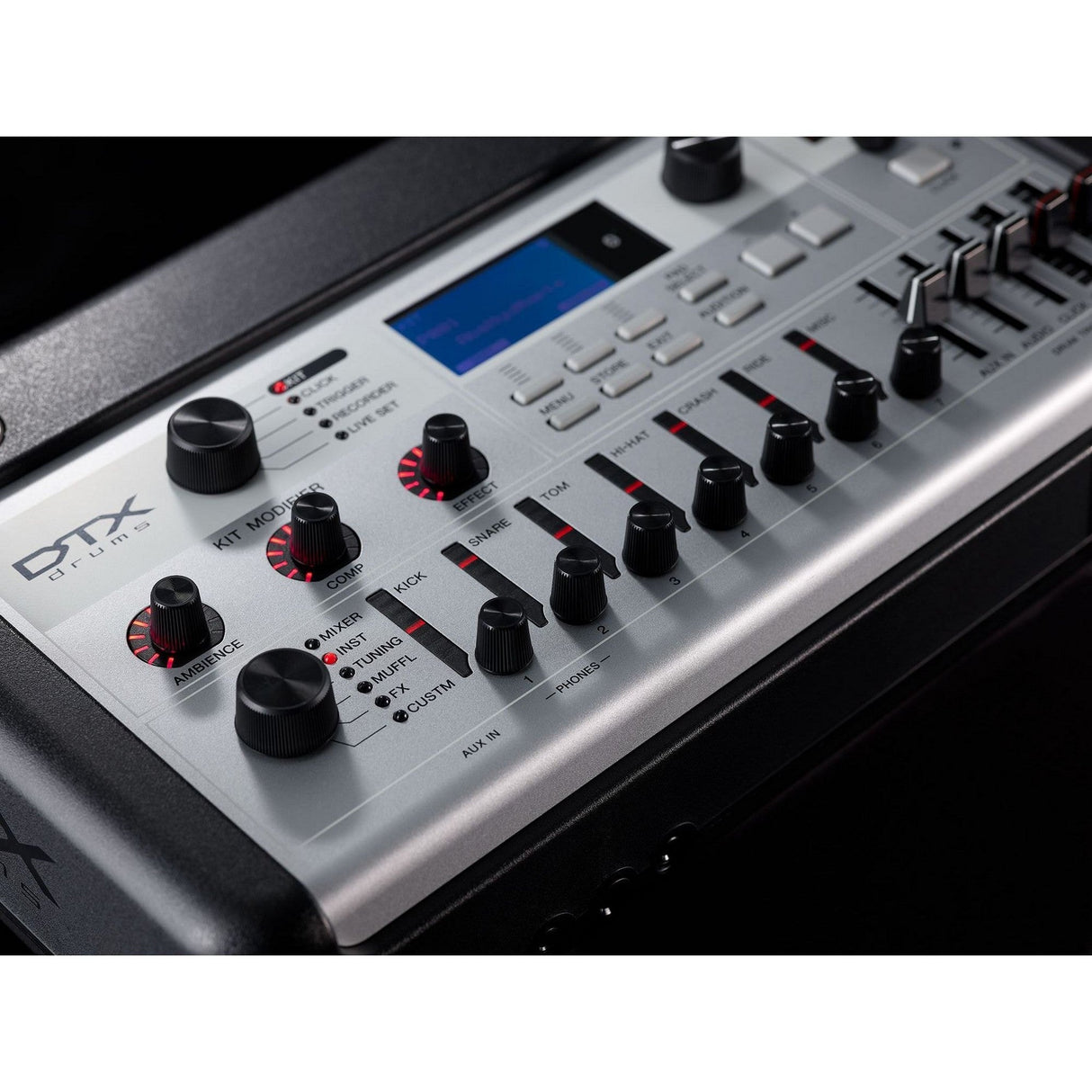

• LED rotary faders for intuitive and precise adjustments

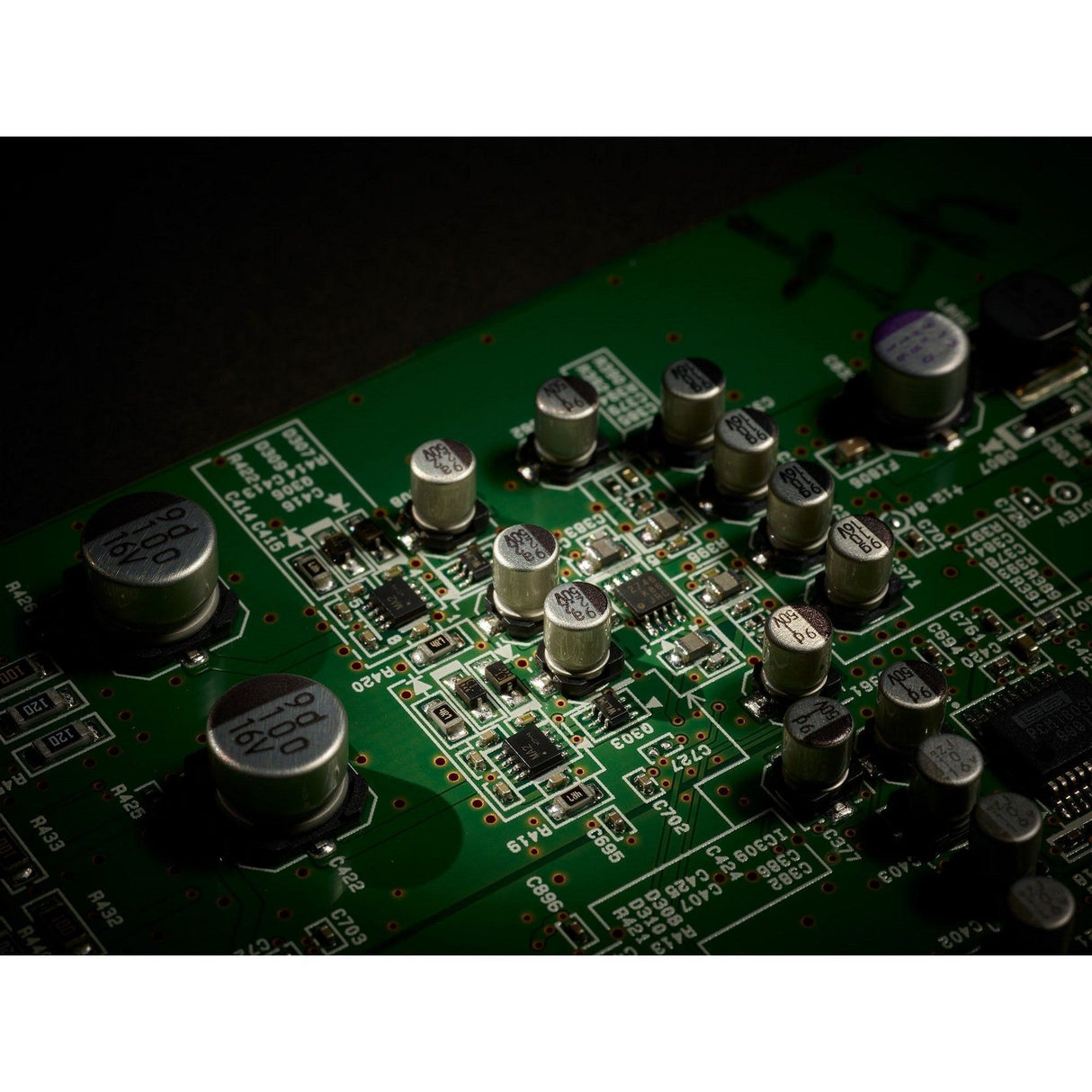

• Specialized headphone amplifier circuit for natural audio reproduction

• Up to 8 individual audio channels with INDIVIDUAL OUT sockets

• Rear AUX IN socket for monitor sound input from PA systems and other instruments

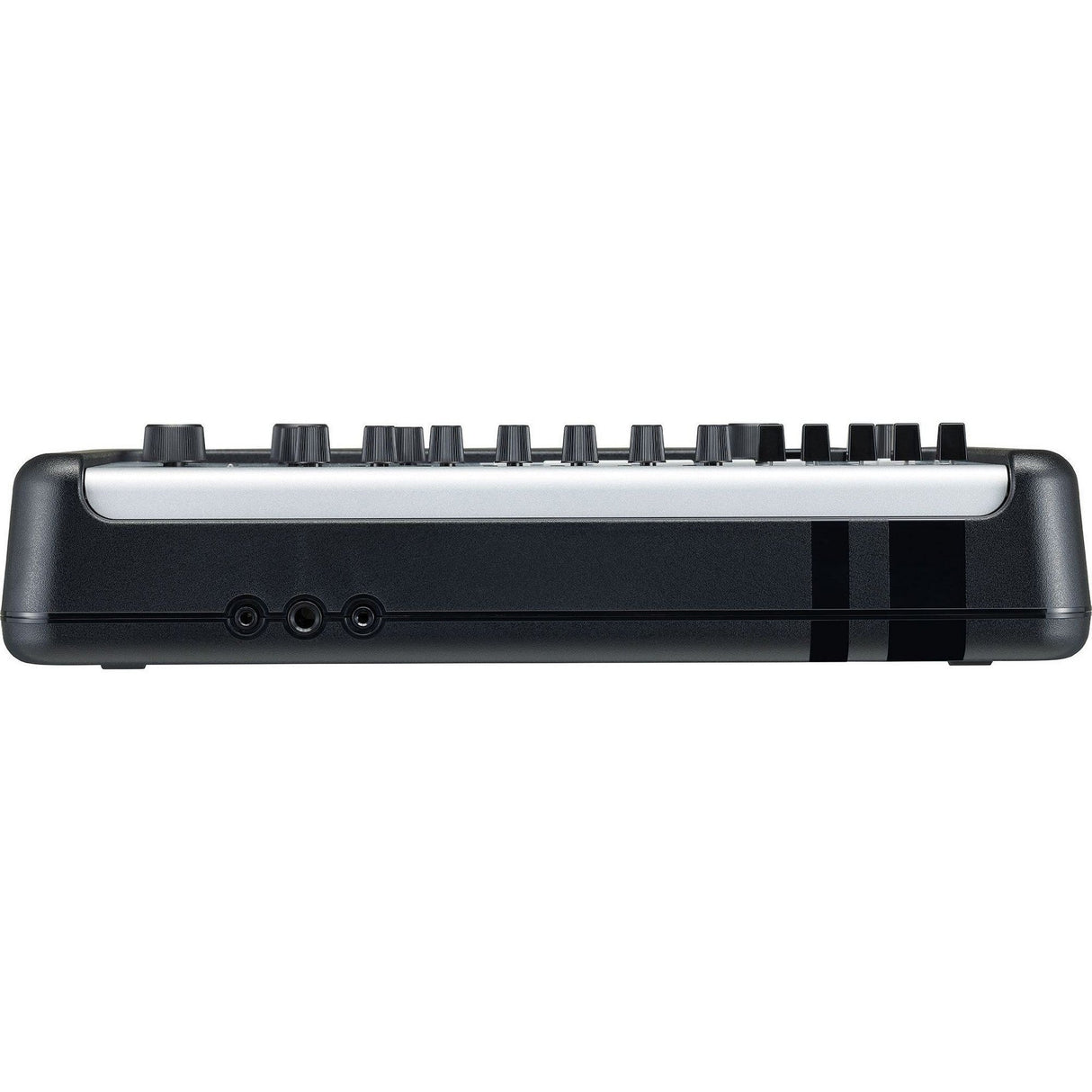

• Front AUX IN socket designed for seamless connection to music players

• Flexible routing for output of clicks, USB Audio, and AUX IN sounds to various outputs

• USB Class Compliant compatibility for direct connection to computers and smart devices

• Quick and easy creation of unique drum kit sounds with the help of the AMBIENCE, COMP and EFFECT KIT MODIFIER knobs

Technical Specifications

Tone Generator
Dimensions
Width
342 mm (13-7/16 in)
Height
196 mm (7-11/16 in)
Depth
66 mm (2-5/8 in)
Weight
2 kg (4 lbs, 7 oz)
Maximum Polyphony
256 notes
Effects
For each Inst: EQ / Comp / Transient / Insertion (*1), For each Kit: Ambience / Effect 1 / Effect 2 and Master Comp / Master Effect, For overall: Master EQ / Phones EQ (*1) Insertion effects can be used only for specific Inst.
Drum Kits
Preset: 70 Kits, User: 200 Kits
Voices
733

Click
Click Sets
30
Tempo
30 to 300 BPM, Tap Tempo supported. Voice guide
Time Signatures
1/4 to 16/4, 1/8 to 16/8, and 1/16 to 16/16
Subdivisions
Accents, quarter notes, eighth notes, sixteenth notes, and eight-note triplets
Others
Individual click volume control, WAV import, timer

Training
Types
10
Songs
Preset: 37 songs, User: 1 song

Audio Files
Import Limit
1,000 files
Maximum Loadable Sample Time
50 minutes 40 seconds (44.1 kHz, 16 bit, mono), 25 minutes 20 seconds (44.1 kHz, 16 bit, stereo)
Sample Format
WAV

Recorder
Recording Time
Internal Memory
Maximum of 90 seconds
USB Flash Drive
Maximum of 90 minutes per file
Format
Record/playback: WAV (44.1 kHz, 16 bit, stereo)

Other

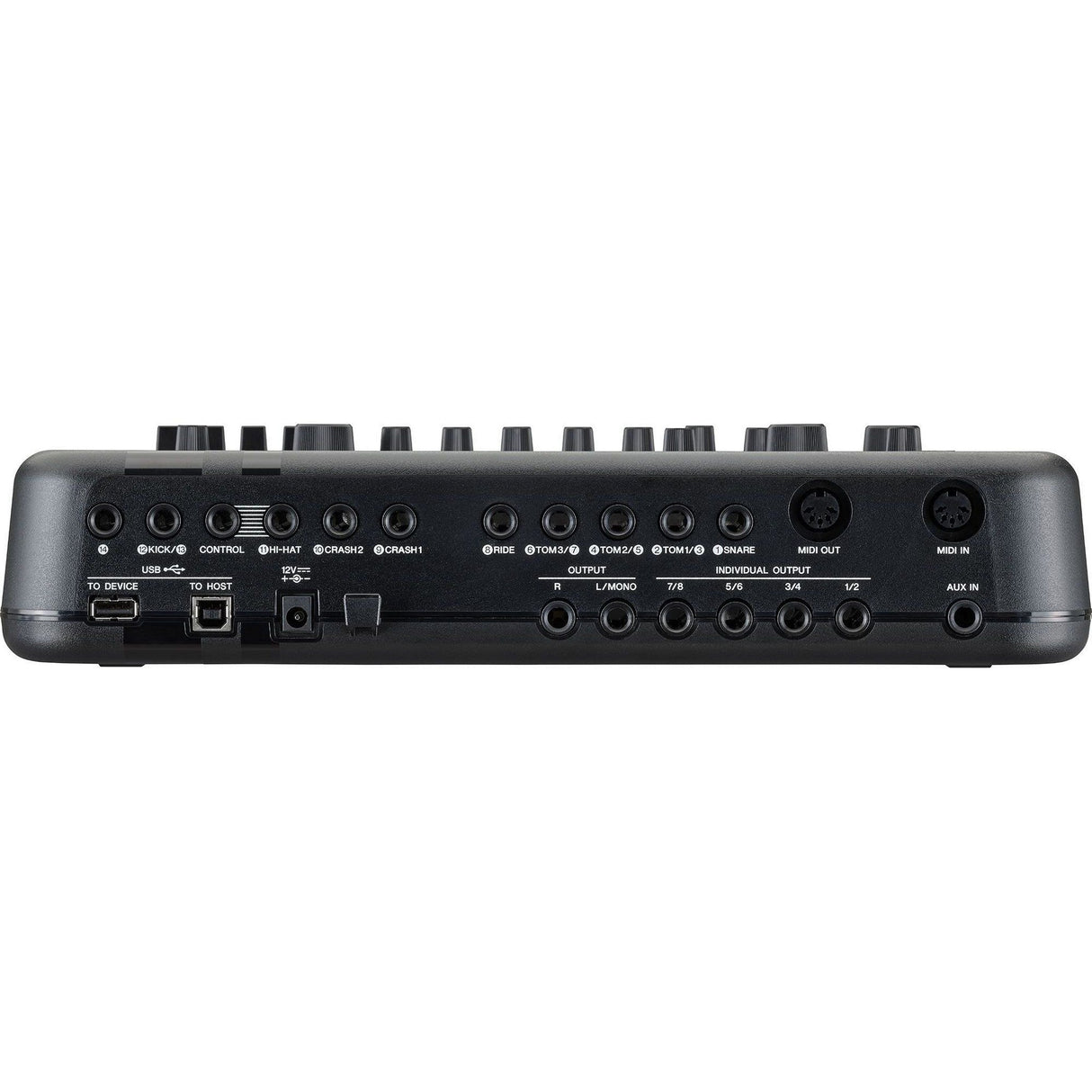

Connectors
DC IN
DC IN (+12V)
Headphones
Headphones (standard stereo phone jack ×1, stereo mini jack ×1)
AUX IN
AUX IN (stereo mini jack ×1, stereo standard phone jack ×1)
Output
OUTPUT L/MONO, R (standard phone jack, one for each), INDIVIDUAL OUTPUT 1/2, 3/4, 5/6, 7/8 (stereo standard phone jack, one for each)
USB
USB TO DEVICE, USB TO HOST
MIDI
MIDI OUT ×1, MIDI IN ×1
Trigger Input
Trigger input jack ×10 (standard stereo phone jack, not including the HI-HAT CONTROL jack. 1, 14 for all types of pads; 2, 4, 6 for 2-zone; 8, 9, 10 for 3-zone; 11 dedicated for hi-hat pad/controller; 12 for kick, 2-zone) *If other pad is connected to each of the above terminals, it will operate as a 1-zone pad. *Maximum of 14 pads can be connected (when Y-cable is used)
Bluetooth
Audio (varies by country)
Display
Full Dot LCD (128×64 dot)
Accessories
AC adapter (PA-150 or equivalent recommended by Yamaha (Output : DC 12V, 1.5 A))(*2), Owner’s Manual , module holder, module holder wing bolts (× 4), Cubase AI Download Information (*2) May not be included depending on your area. Check with your Yamaha dealer.
Included in package
DTX-PROX Electronic Drum Trigger Module
