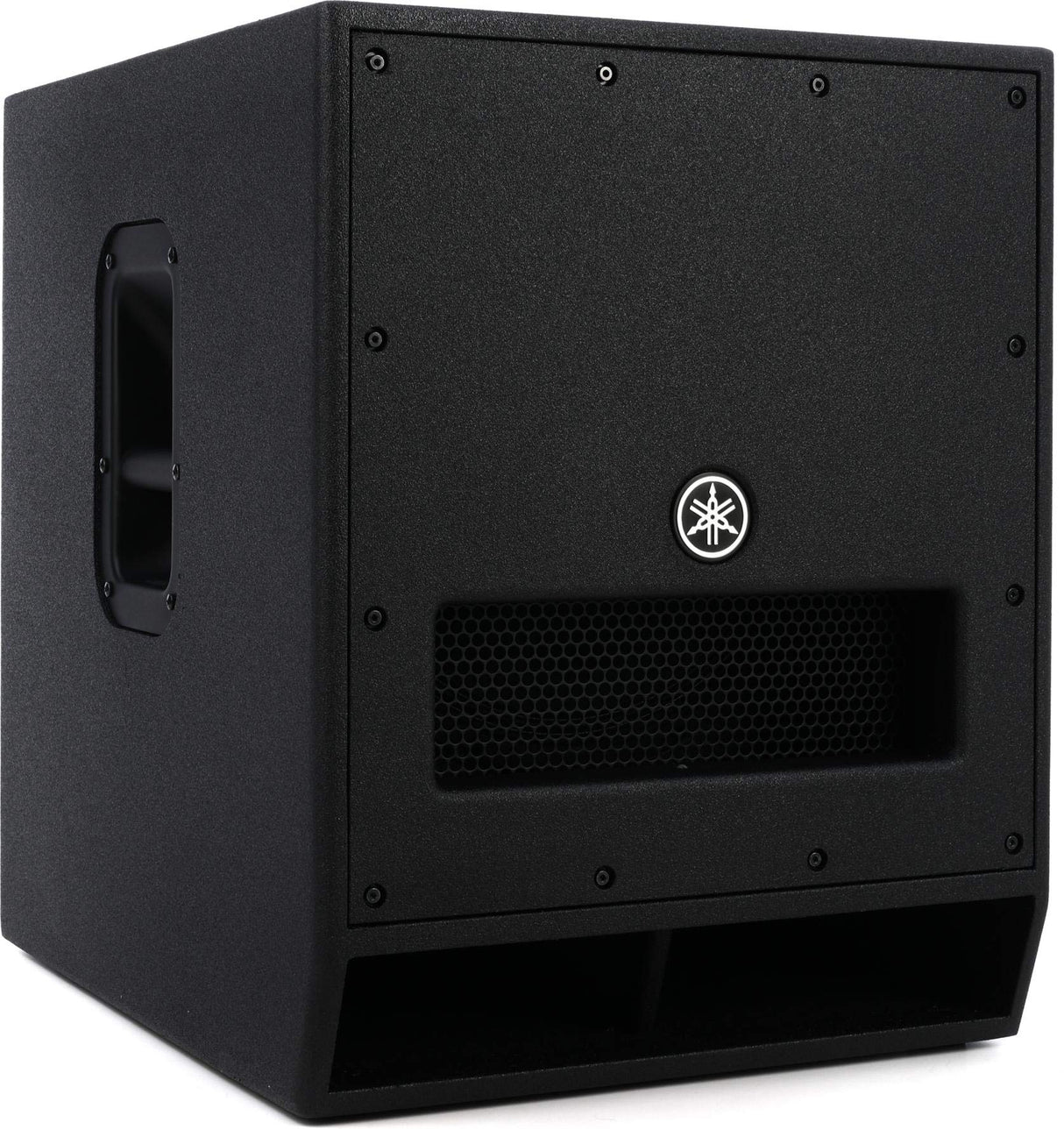

Yamaha DXS15MKII | 15 Inch Active Subwoofer
Yamaha DXS15MKII | 15 Inch Active Subwoofer
Yamaha DXS15MKII 15 Inch Active Subwoofer
The new DXS15mkII capable of producing tight, thunderous low frequencies as low as 40Hz at a maximum SPL of 135dB, this updated model's optimized band-pass design and state-of-the-art DSP ensure the extremely high-power output is focused, powerful, and distortion-free. A custom made, long throw 15” driver and 1020W of Class D power allow high output all night long!
Key Features
- 15" powered subwoofer, Band-pass type
- 15" cone, 2.5" voice coil
- Dynamic:1020W / Continuous: 800W
- INPUT: XLR3-31 x2 , THRU: XLR-3-32 x 2(THROUGH or HPF POST)
- Material, Finish, Color: Meranti Plywood, Durable Polyurea Coating, Black
Technical Specifications
Speaker type
15" powered subwoofer, Band-pass type
Frequency range (-10dB)
40 Hz - 150 Hz
Components
LF
15" cone, 2.5" voice coil
Output power
Dynamic:1020W / Continuous: 800W
Maximum output level (1m; on axis)
135 dB SPL
I/O connectors
INPUT: XLR3-31 x2 , THRU: XLR-3-32 x 2(THROUGH or HPF POST)
Processors
D-XSUB: BOOST, XTD LF, NORMAL
Cooling
Natural convection
Power requirements
100V - 240V, 50Hz/60Hz
Power consumption
100W
Pole socket
35 mm (depth 80 mm) & M20 (threaded depth 25 mm)
Dimensions
W
480 mm (18.90”)
H
611 mm (24.06”)
D
614 mm (24.17”)
Net weight
36.0 kg (79.4lbs)
