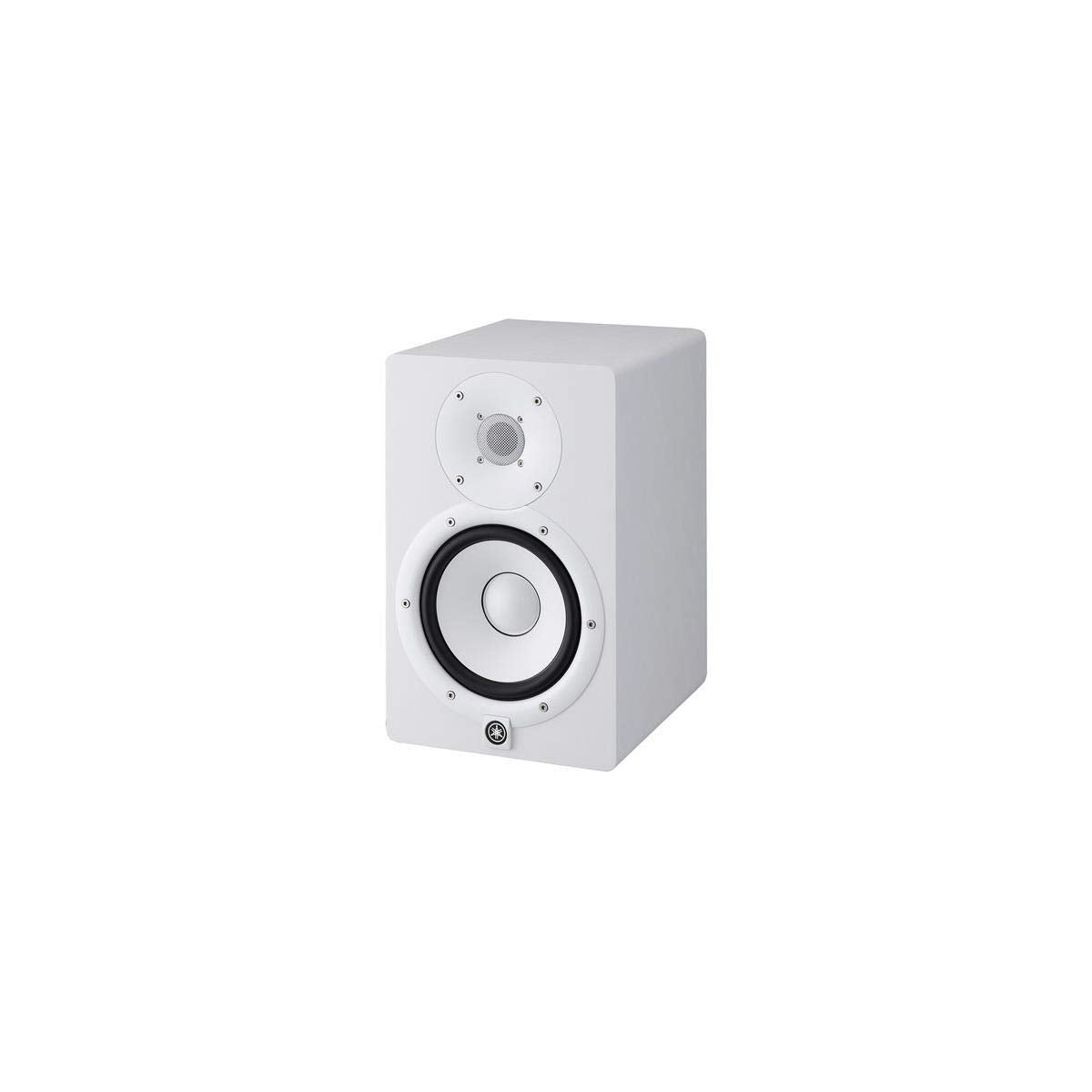

Yamaha HS7 White 6.5" Powered Studio Monitor

2-way bass-reflex bi-amplified nearfield studio monitor with 8" cone woofer and 1" dome tweeter

Key Features

• 38Hz - 30kHz frequency response
• 75W LF plus 45W HF bi-amp system for high-performance 120W power amplification

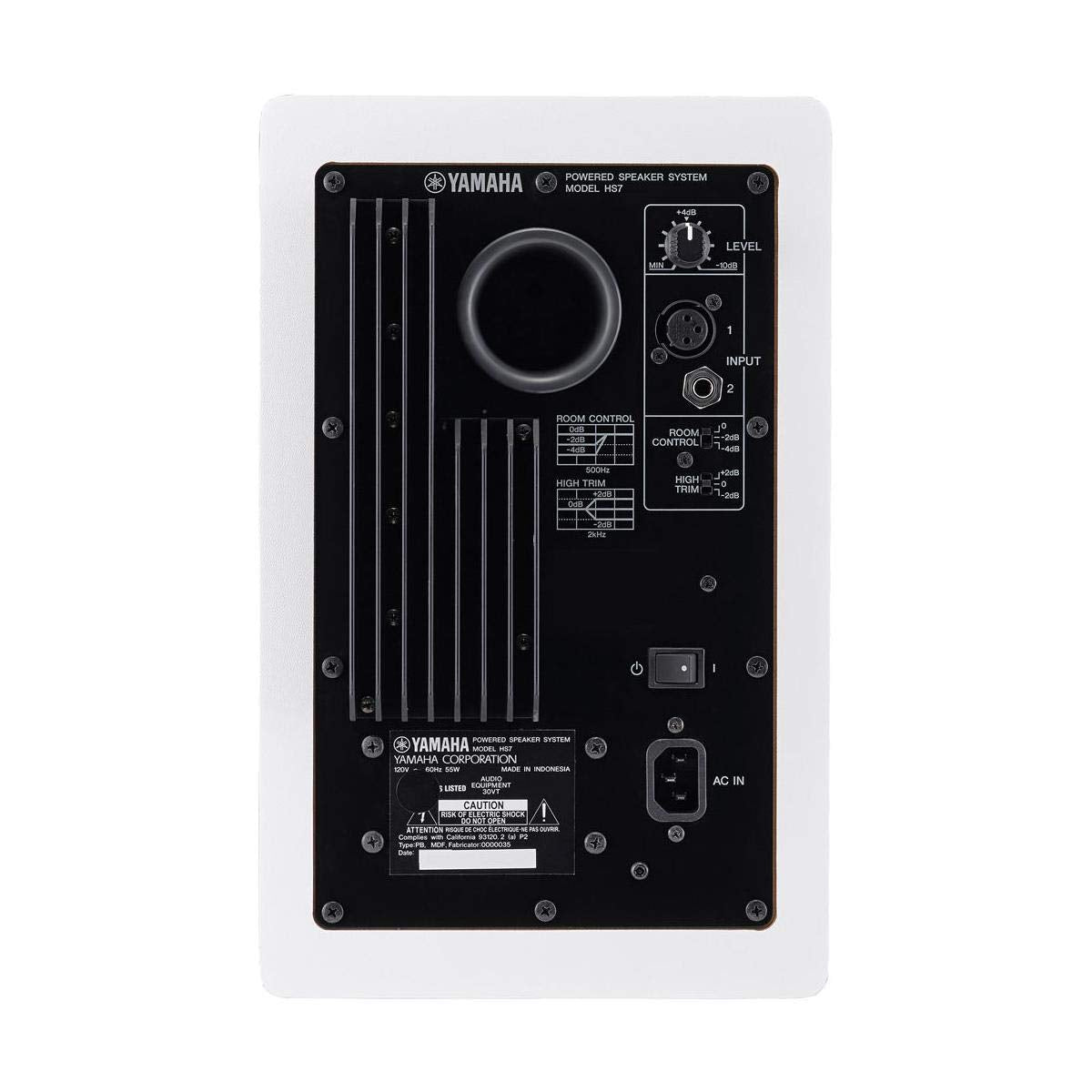

• ROOM CONTROL and HIGH TRIM response controls
• XLR and TRS phone jack inputs accept balanced or unbalanced signals

Technical Specifications

Speaker type
2-way bi-amp powered studio monitor

Frequency range (-10dB)
38Hz - 30kHz

Components
LF 8" cone
HF 1" dome

Crossover
2kHz

Output power
120W (LF:75W, HF:45W)

I/O connectors
XLR3-31 type (balanced), PHONE (balanced)

Power consumption
60W

Shape
Bass-reflex type

Cabinet material
MDF

Dimensions
W 250mm (9.8")
H 390mm (15.4")
D 334mm (13.1")

Net weight
10.2kg (22.5 lbs.)

Others
LEVEL control (+4dB/center click) , EQ: HIGH TRIM switch (+/- 2dB at HF) / ROOM CONTROL switch (0/-2/-4 dB under 500Hz)
