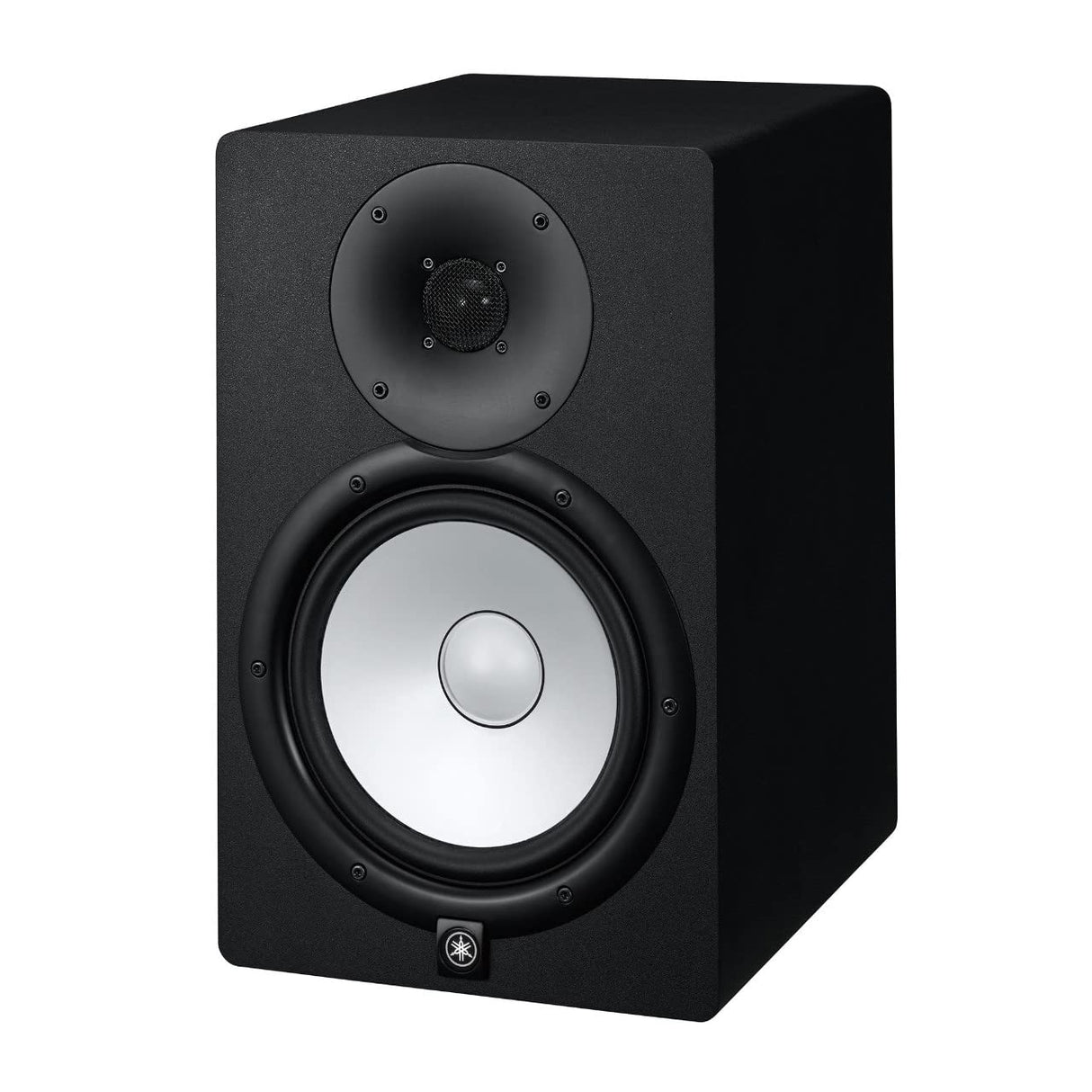

Yamaha HS8 120W Active Studio Monitor with 8" Cone Woofer 1" Dome Tweeter and Room-control and High Trim Response Controls

The Yamaha HS8 120W Active Studio Monitor with 8" Cone Woofer 1" Dome Tweeter and Room-control and High Trim Response Controls is a bi-amplified monitor that is designed for accurate sound reproduction. It is capable of up to 120W of total output and features an 8-inch woofer and a 1-inch tweeter with waveguide that can produce frequencies up to 30kHz. The HS8 has both an XLR and 1/4" TRS input that accept either balanced or unbalanced signals for integration into a variety of studio setups.

High-performance drivers and mounting system
The drivers used in the HS series monitors deliver superb audio performance that is considerably enhanced by a sophisticated mounting system. A scientific arrangement of screws and a specially designed mounting ring eliminates unwanted vibration and resonance, letting the speaker realize its full sonic potential, without distortion or coloration. Yamaha selects their magnets to optimize solid low-end response. Tweeter frames use an advanced smooth-contour design that minimizes losses, letting you hear high-frequency details with stunning accuracy. The extra thick tweeter frame also diminishes resonance that can interfere with treble clarity. The bottom line? Smooth, accurate response throughout the audio spectrum. And that translates to better-sounding recordings for you.

Beefy magnets; Advanced Magnetic Circuit design
HS series monitors rock extra large magnets. Why is this important? Glad you asked! In concert with the HS8's advanced magnetic circuit design, these beefy magnets deliver a robust, uniform, and tightly controlled flux field that yields exceedingly smooth response and dynamic efficiency over a wider frequency range.

Optimum response in any room
HS series monitors deliver outstanding monitoring performance, enabling you to get your mixes just right. Even better, you can take your accurate monitoring on the road. The HS8 boasts room-control and high-trim response controls that let you tailor your monitors to your room for optimal response. So whether you're in a control room or in a cramped remote truck, you'll always be able to trust your monitoring. And that, friends, is more than half the battle.

Key Features

• 120W Total Output
• 8" Cone Woofer
• 1" Dome Tweeter
• Room Control Response Switch
• High Trim
• 1x XLR Input
• 1x 1/4" TRS Input
• Low Resonance Enclosure

Technical Specs

System Type

2-Way Bi-Amped Powered Studio Monitor

Frequency Response

38 Hz to 30 kHz

Crossover Frequency

2 kHz

Transducer

LF: 8" (127 mm) Cone

HF: 1" (25 mm) Dome

Output Power

Total: 120W, LF: 75W, HF: 45W

Input Sensitivity

-10 dBu / 10 kΩ

Inputs

1x Balanced XLR3-31 Type

1x 1/4" (6.35 mm) Balanced TRS

Controls

Level Control (+4 dB/Center Click)

EQ: High Trim Switch (+/- 2 dB @ HF)

Room Control Switch(0, -2, -4 dB under 500 Hz)

Indicators

1x Power On White LED

Power Consumption

60 W

Enclosure

Type: Bass-Reflex, Material: MDF

Dimensions (WxHxD)

9.8 x 15.4 x 13.1" (250 x 390 x 334 mm)
