Yamaha MG10X CV 10 Channel Stereo Mixer (Used)
Like New: Open box product with no signs of use.

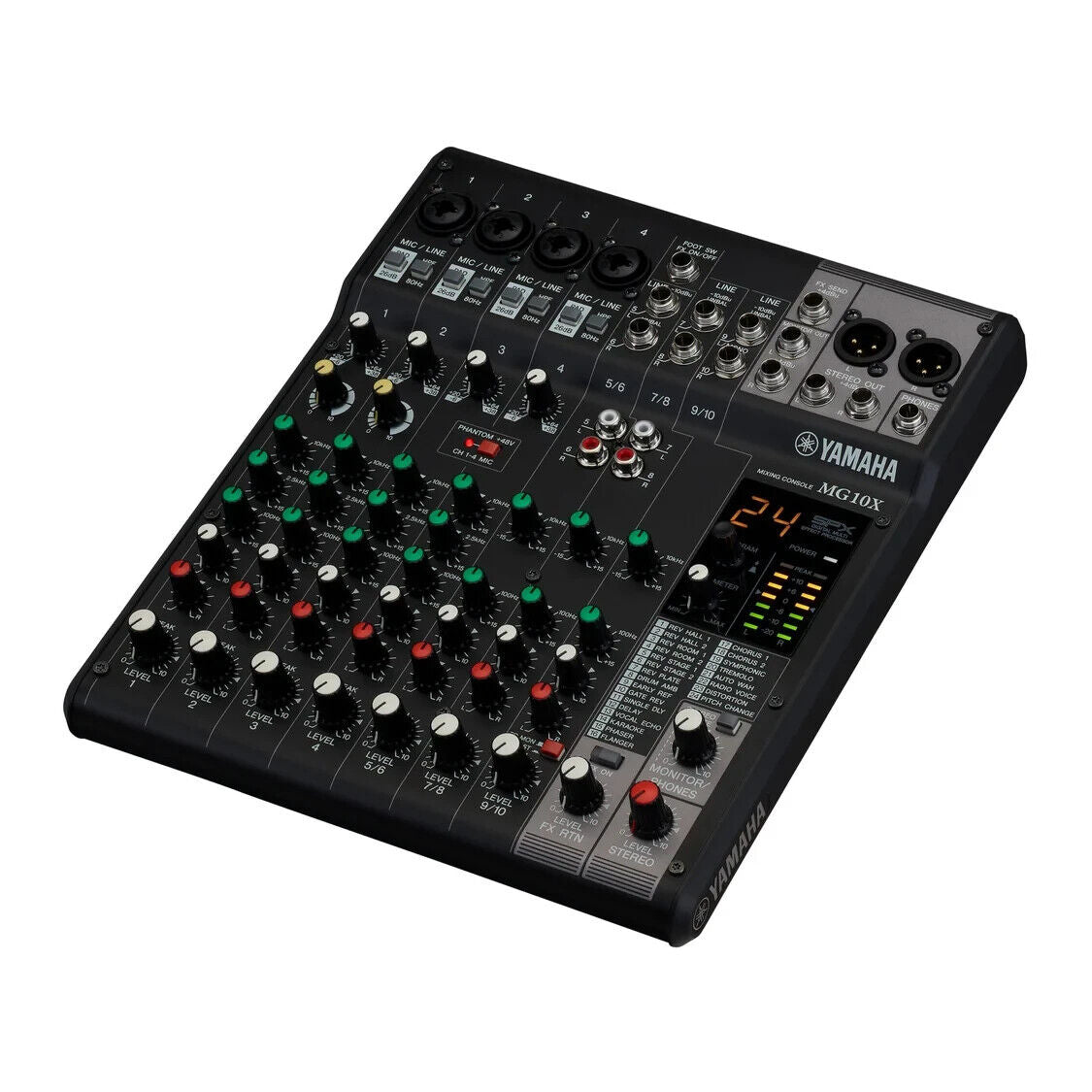

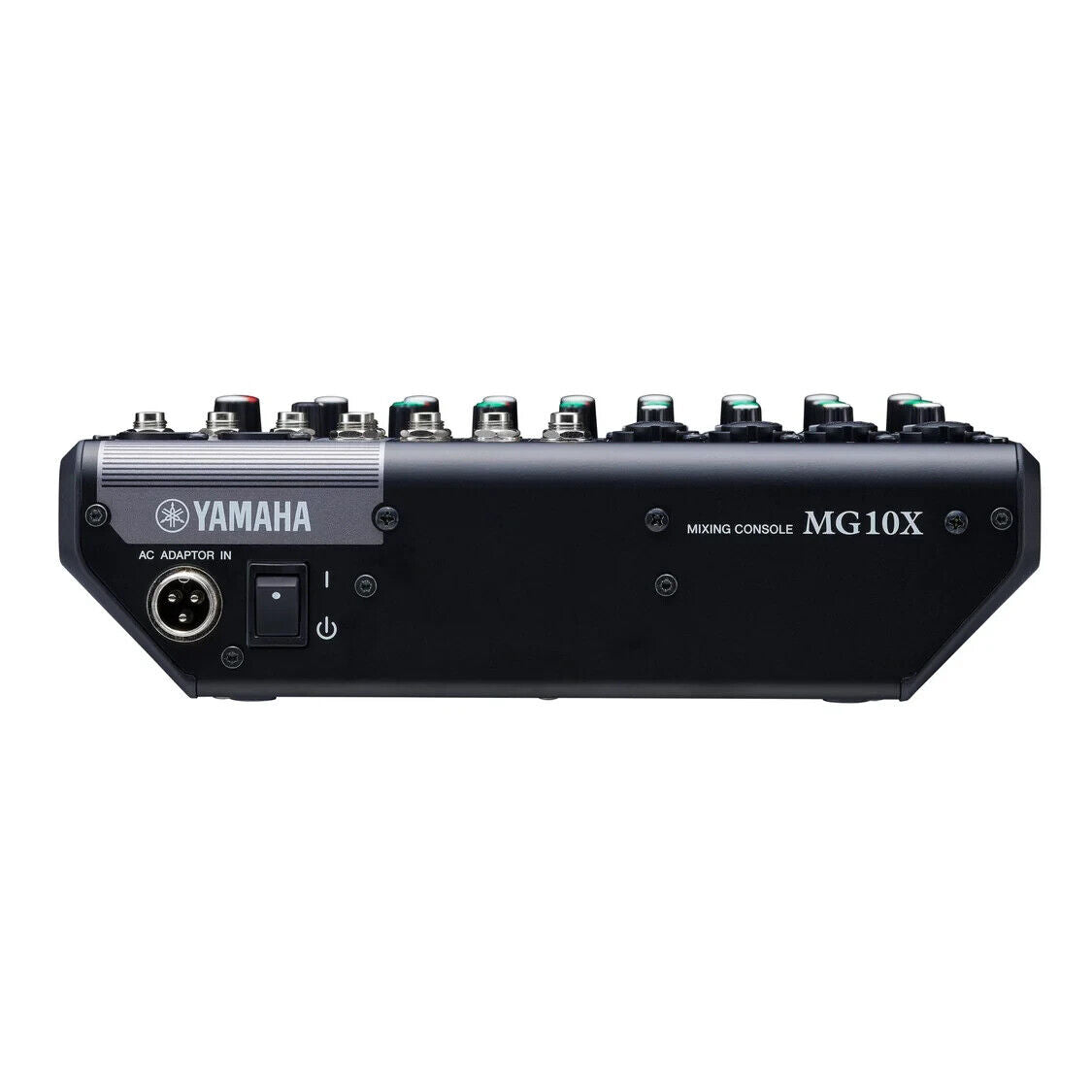

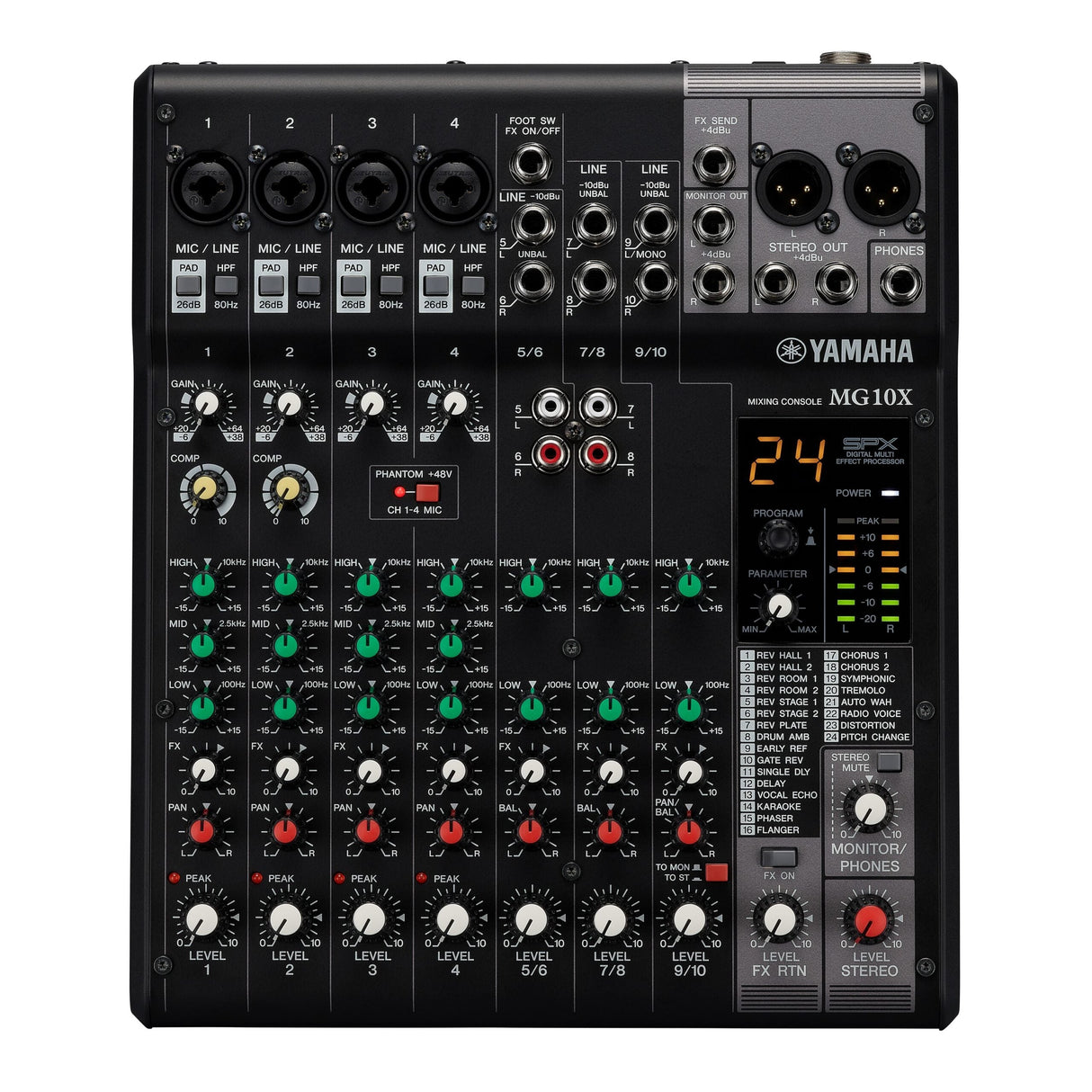

Yamaha MG10X CV 10 Channel Stereo Mixer
Housed in a rugged steel chassis, the MG10X CV can accommodate up to 10 inputs and offers a balanced stereo output. Featuring D-Pre discrete Class A microphone preamplifiers for pristine sound, it includes an Aux bus for the built-in SPX effect with 24 presets and 2 channels of single knob compression. The MG10X can accept XLR, Ā¼ā Phone and RCA type pin jack inputs, and offers XLR and Phone outputs. The MG10X offers rotary controls instead of faders, reducing the footprint for discrete placement onstage or anywhere space is a premium. A footswitch input allows hands free effect muting.
Key Features
- Rugged, Powder-coated steel chassis for superior durability
- Discrete Class-A microphone preamps
- Built-in SPX digital effects with 24 programs
- Switchable +48V Phantom power
- Color coded controls offer easy operation
Technical Specifications
Frequency Response Input to STEREO OUT
+0.5 dB/-1.5 dB (20 Hz to 48 kHz), refer to the nominal output level @ 1 kHz, GAIN knob: Min
Total harmonic distortion (THD+N) Input to STEREO OUT
0.02 % @ +14 dBu (20 Hz to 20 kHz), GAIN knob: Min
Hum & Noise (20 Hz to 20 kHz)
Equivalent Input Noise
-128 dBu (Mono Input Channel, Rs: 150 Ī©, GAIN knob: Max)
Residual Input Noise
-102 dBu (STEREO OUT, STEREO master knob: Min)
-102 dBu (STEREO OUT, STEREO master fader: Min)
Crosstalk (1kHz)
-78dB
Input Channels
Mono
4
Mono/Stereo
0
Stereo
3
Output Channels
STEREO OUT
2
MONITOR OUT
1
PHONES
1
AUX SEND
1
GROUP OUT
0
Bus
STEREO
1
GROUP
0
AUX SEND
1 (incl. FX)
Pad (Mono)
26dB
HPF (Mono, Mono/Stereo)
80 Hz, 12 dB/oct (Mono)
Input Channel Function
COMP (Mono)
1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec
High
Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ Mid
Gain: +15 dB/-15 dB, Frequency: Mono 250 Hz - 5 kHz peaking,Stereo 2.5 kHz peaking
Low
Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
Peak LED (mono)
LED turns on when post EQ signal reaches 3 dB below clipping
Level Meter
Pre-Monitor Level Meter
2 x 7 -segment LED meter
Internal Digital Effect
SPX Algorithim
24 programs
Phantom Power Voltage
+48V
Power Requirements
PA-10 Power adapter (included)
Power Consumption
22.9W
Dimensions (W x H x D)
244 mm x 71 mm x 294 mm
9.6āx 2.8āx 11.6ā
Net Weight
2.1 kg (4.63 lbs.)
