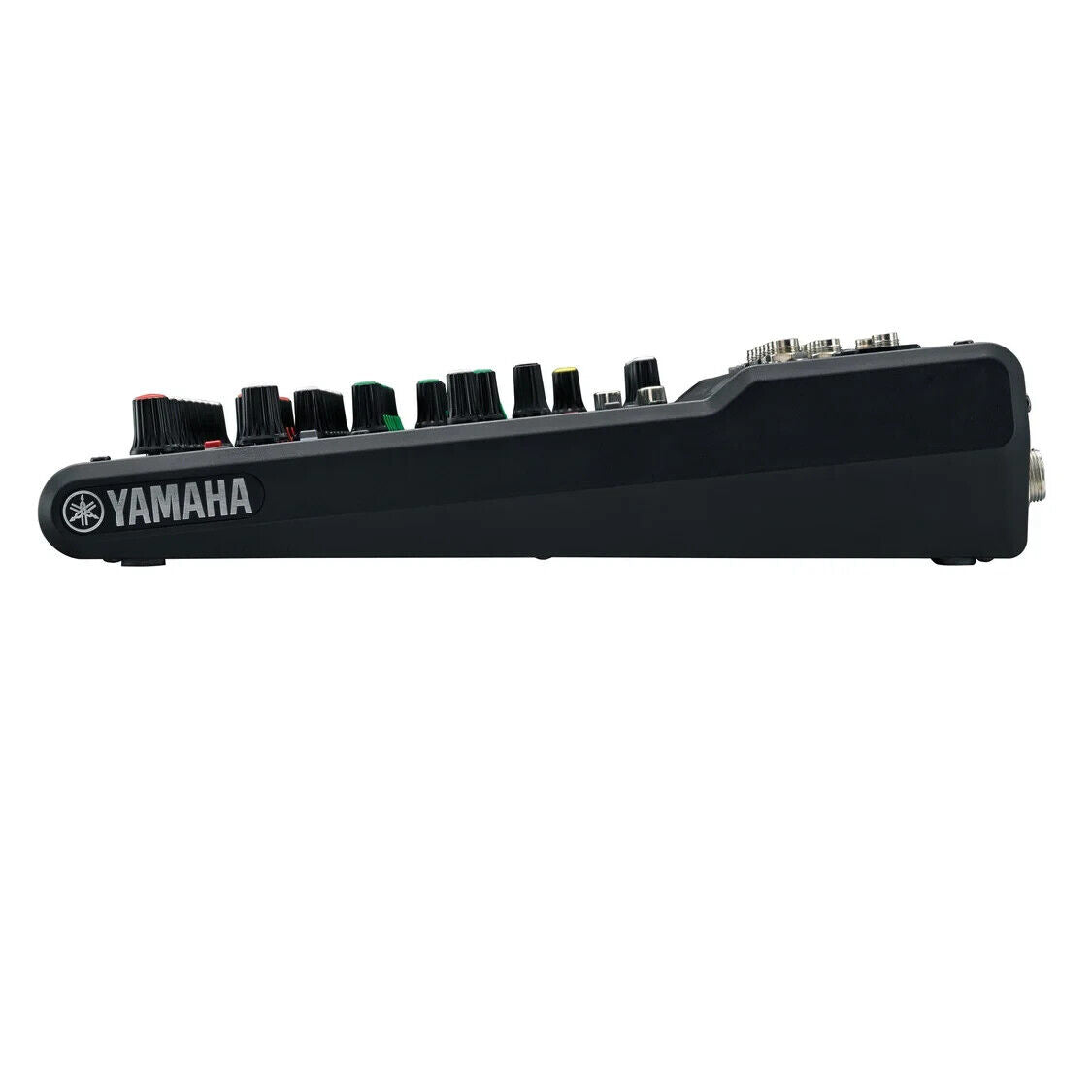

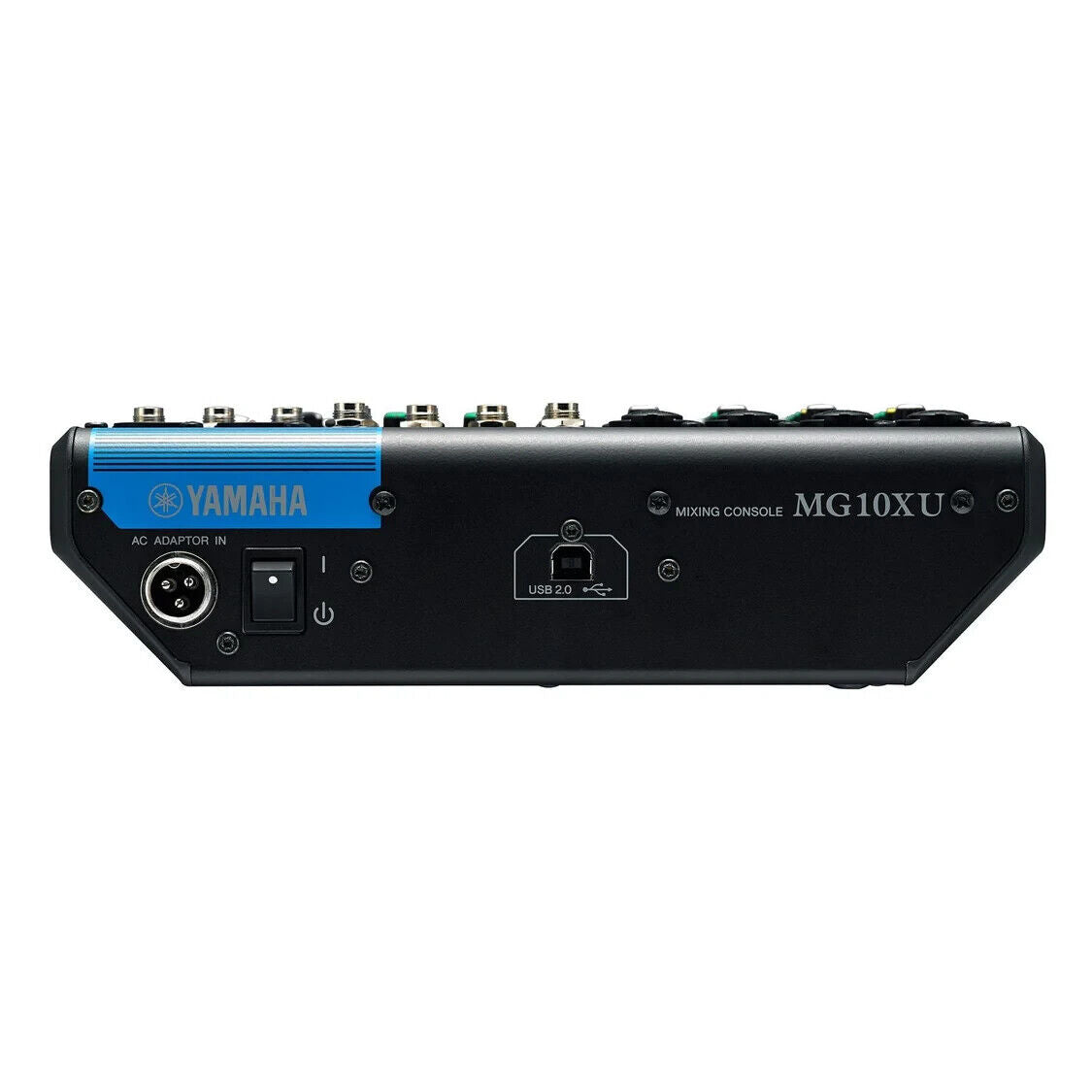

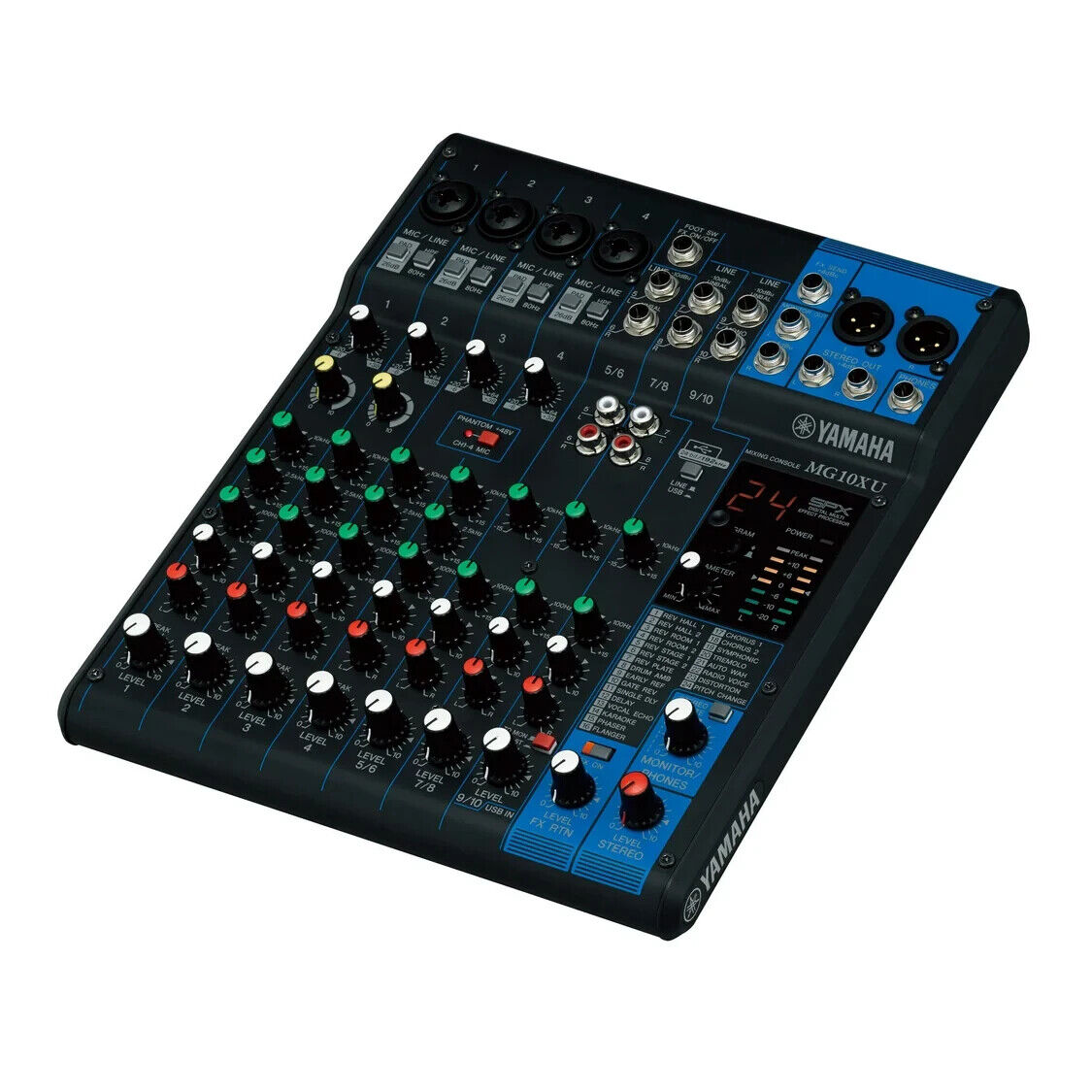

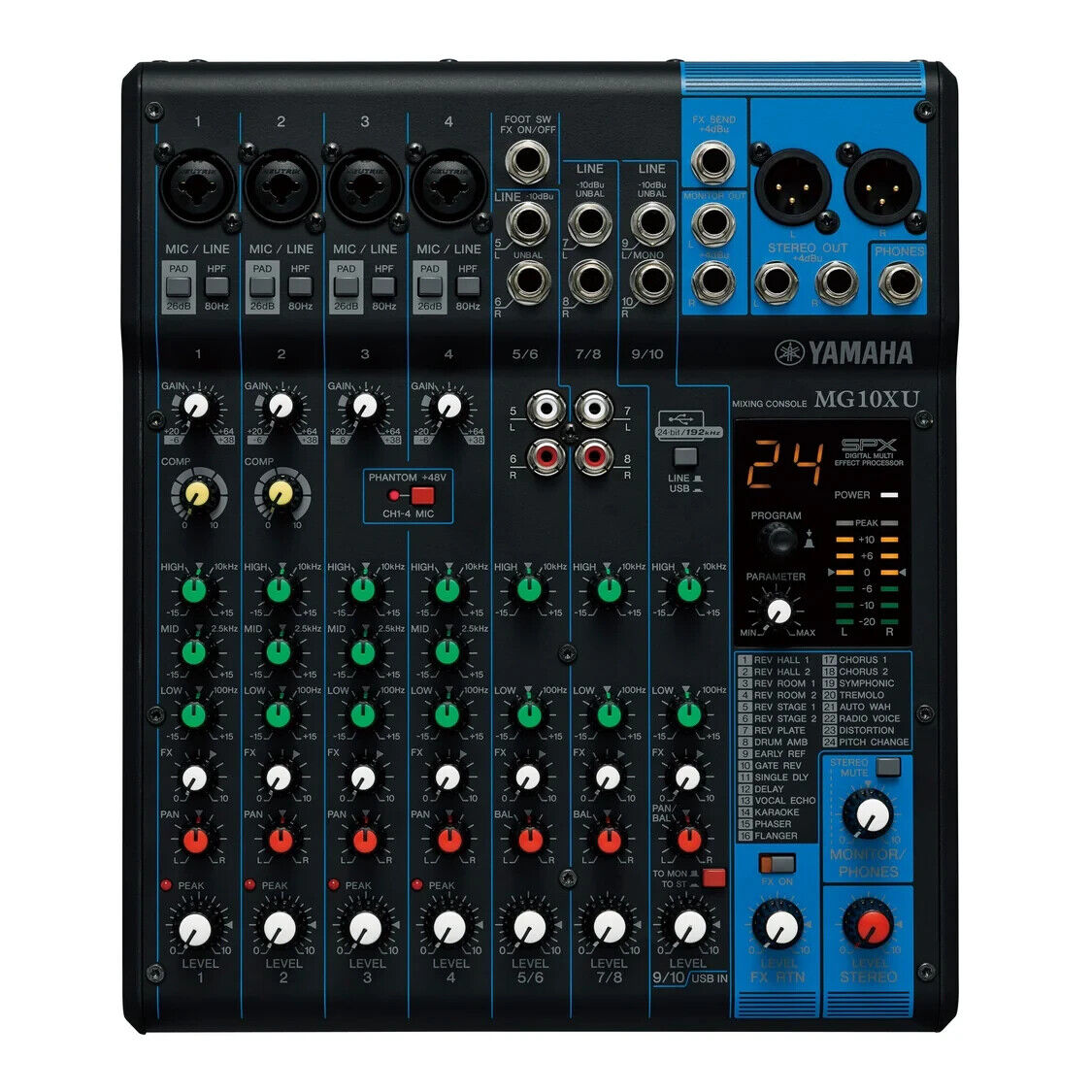

Yamaha MG10XU 10-Channel USB Mixer with Built-in SPX Digital Effects (Used)
Like New: Open box product with no signs of use.
Yamaha MG10XU 10-Channel USB Mixer with Built-in SPX Digital Effects
For a more precise control and enhancement of your sound, XU models of the MG Series come equipped with a suite of Yamaha's renowned SPX effects. Featuring high-resolution Chorus, Flanger, Distortions, Reverb and Delay, all with editable parameters, these are the same multieffects processors used on Yamaha's high-end mixing consoles, giving you the tools you need to elevate your mixes to a higher plane.
Key Features
- 10-Channel Mixing Console
- Max. 4 Mic / 10 Line Inputs (4 mono + 3 stereo)
- 1 Stereo Bus
- 1 AUX (incl. FX)
- D-PRE mic preamps with an inverted Darlington circuit
Technical Specifications
On-board processors
SPX algorithm: 24 programs
Phantom power
+48 V
Digital I/O
USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit
Mono[MIC/LINE]
4
Stereo[LINE]
3
STEREO OUT
2
MONITOR OUT
1
PHONES
1
AUX SEND
1
Bus
Stereo: 1, AUX[FX]: 1
PAD
26 dB (Mono)
HPF
80 Hz, 12 dB/oct (Mono)
COMP
1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec
EQ HIGH
Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ MID
Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking
EQ LOW
Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LED
LED turns on when post EQ signal reaches 3 dB below clipping
Level Meter
2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB]
Total Harmonic Distortion
0.02 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +24dBu (1kHz), GAIN knob: Min
Frequency Response
+0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
Equivalent Input Noise
-128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
Residual Output Noise
-102 dBu (STEREO OUT, STEREO LEVEL knob: Min)
Crosstalk
-83 dB
Power Requirements
PA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m) or equivalent recommended by Yamaha
Power Consumption
22.9 W
Dimensions
W
244 mm (9.6")
H
71 mm (2.8")
D
294 mm (11.6")
Net Weight
2.1 kg (4.63 lbs.)
Accessories
Included Accessory: AC Adaptor, Owner’s Manual, Cubase AI Download Information, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10A, Foot Switch FC5
Others
Operating Temperature: 0 to +40˚C
