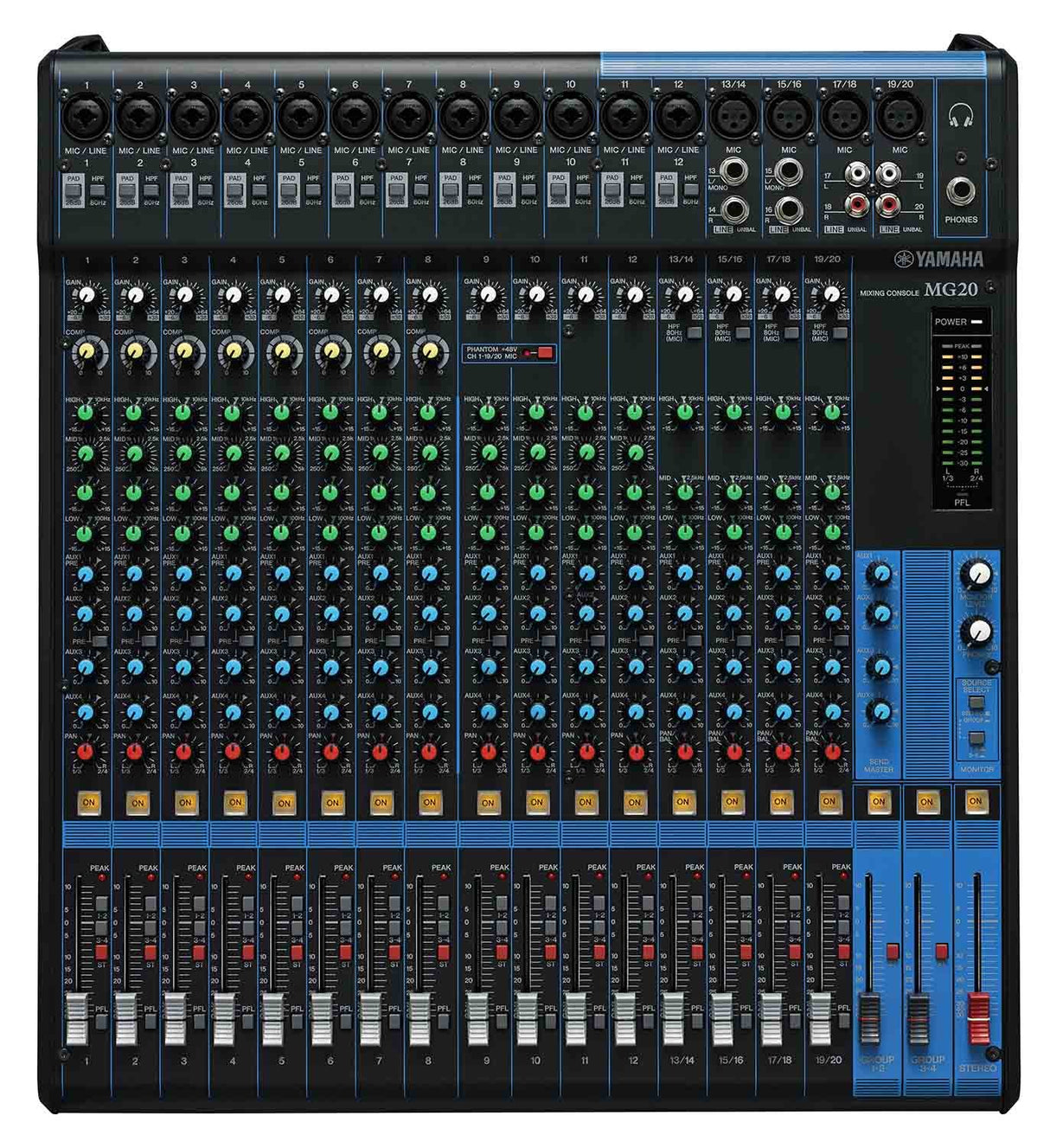

Yamaha MG20 | 20-Channel Mixing Console

Yamaha | SKU: YMHA-MIXER-MG20
$74999

Free Shipping

Estimated Shipping Widget will be displayed here! (with custom color)

Condition: New


Yamaha MG20 | 20-Channel Mixing Console

20-Channel Mixing Console: Max. 16 Mic / 20 Line Inputs (12 mono + 4 stereo) / 4 GROUP Buses + 1 Stereo Bus / 4 AUX (incl. FX)

Key Features

  • 20-Channel Mixing Console
  • Max. 16 Mic / 20 Line Inputs (12 mono + 4 stereo)
  • 4 GROUP Buses + 1 Stereo Bus
  • 4 AUX (incl. FX)
  • “D-PRE” mic preamps with an inverted Darlington circuit
  • 1-Knob compressors
  • PAD switch on mono inputs
  • +48V phantom power
  • XLR balanced outputs
  • Internal universal power supply for world-wide use
  • Rack Mount Kit Included
  • Metal chassis
  • Dimensions(W×H×D): 444 mm x 130 mm x 500 m (17.5" x 5.1" x 19.7")
  • Net Weight: 6.9kg (15.2 lbs.)

Technical Specifications

Phantom power
+48V
Input Channels
Mono: 12
Mono/Stereo: 4
Stereo: -
Output Channels
STEREO OUT: 2
MONITOR OUT: 1
PHONES: 1
AUX SEND: 4
GROUP OUT: 4
Bus
Stereo: 1, GROUP: 4, AUX: 4
PAD
26 dB(Mono)
HPF
80 Hz, 12 dB/oct (Mono/Stereo: MIC only)
COMP
1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec
EQ HIGH
Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ MID
Gain: +15 dB/-15 dB, Frequency: Mono 250 Hz – 5 kHz peaking, Stereo 2.5 kHz peaking
EQ LOW
Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LED
LED turns on when post EQ signal reaches 3 dB below clipping(Mono)
Level Meter
2x12 -segment LED meter
Total harmonic distortion
0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min
Frequency response
+0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
Equivalent input noise
-128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
Residual output noise
-102 dBu (STEREO OUT, STEREO master fader: Min)
Crosstalk
-78 dB
Power requirements
AC 100 – 240 V, 50 / 60 Hz
Power consumption
36 W
Dimensions
W: 444 mm (17.5")
H: 130 mm (5.1")
D: 500 mm (19.7")
Net weight
6.9kg (15.2 lbs.)
Accessories
Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Rack-mount kit
Others
Operating Temperature: 0 to +40-deg C
