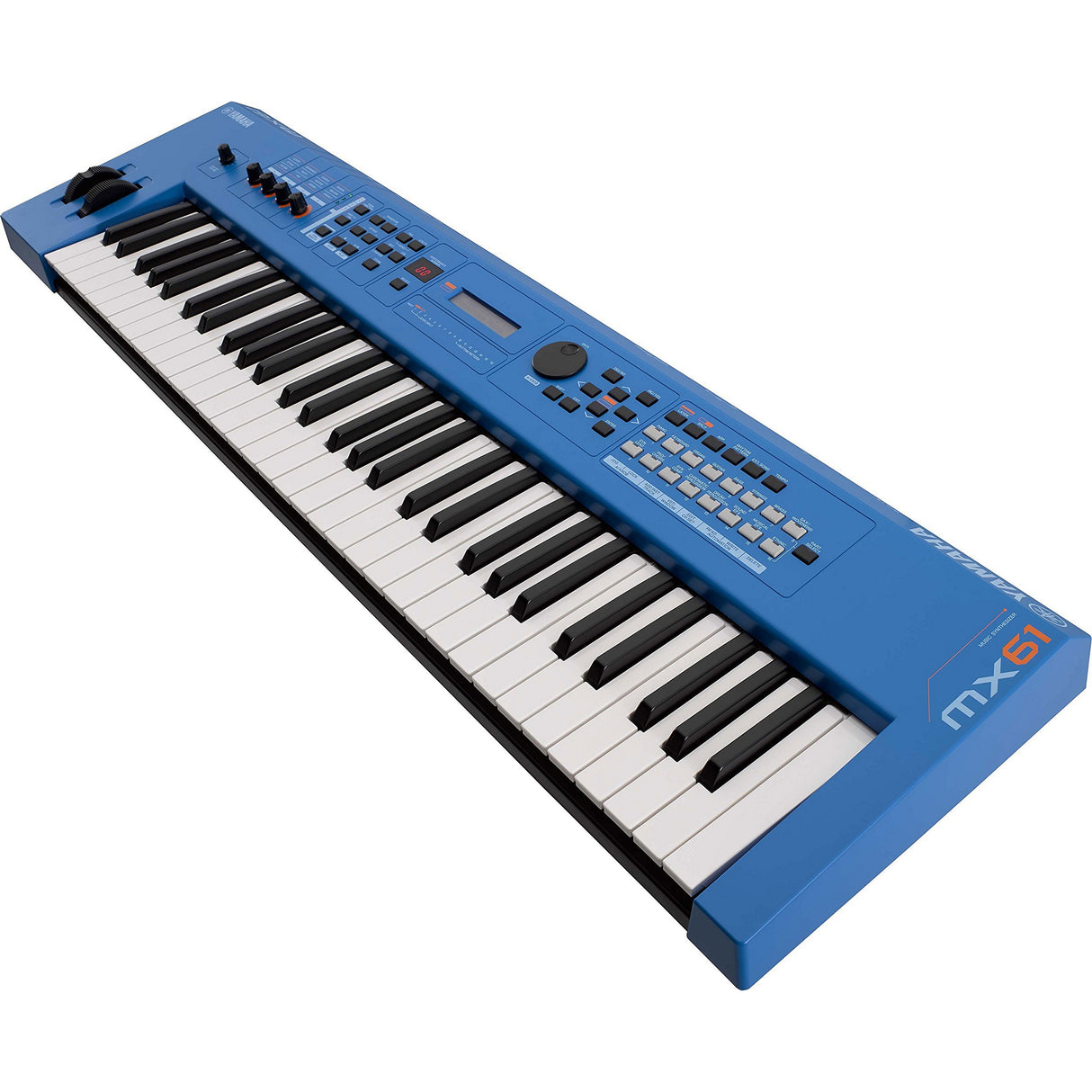

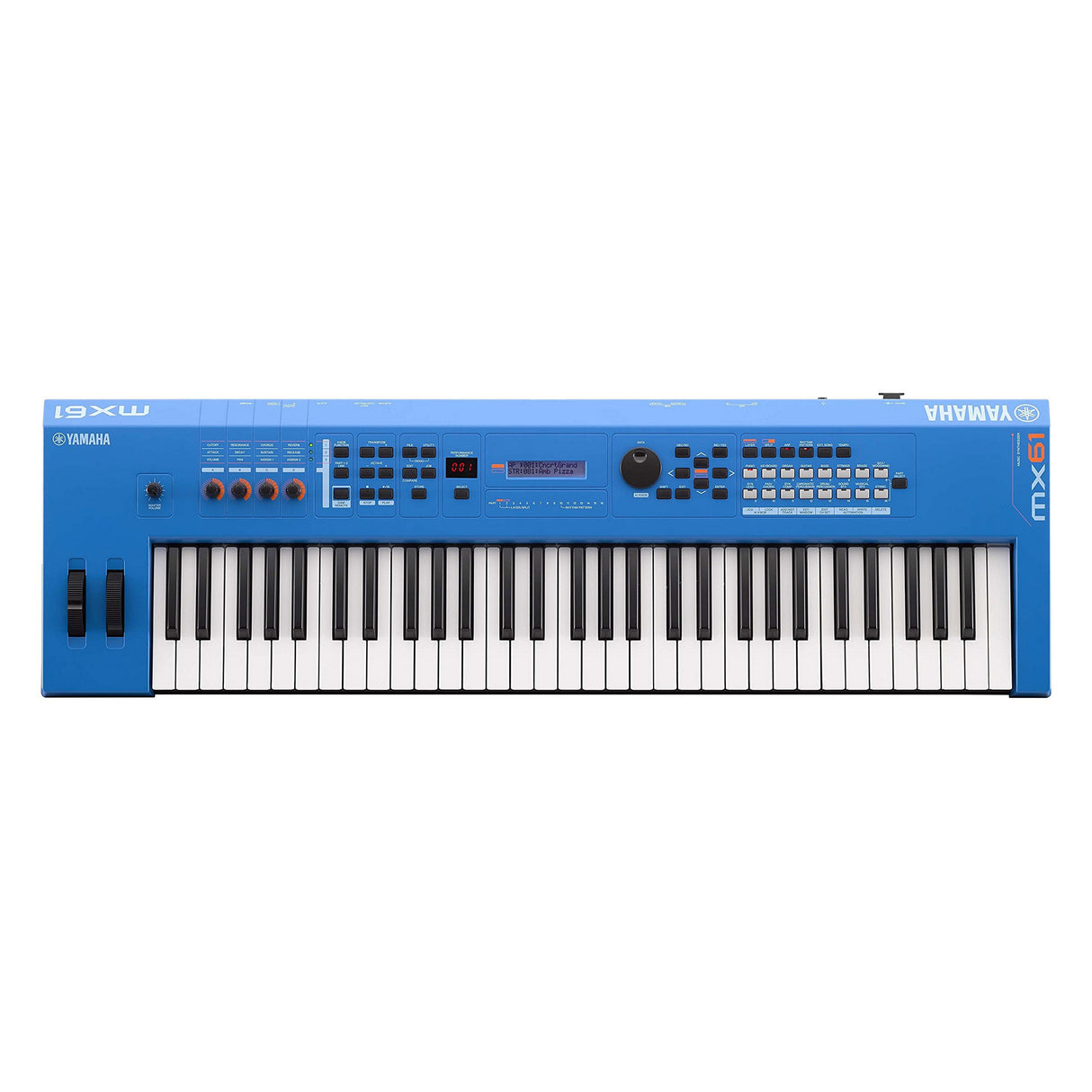

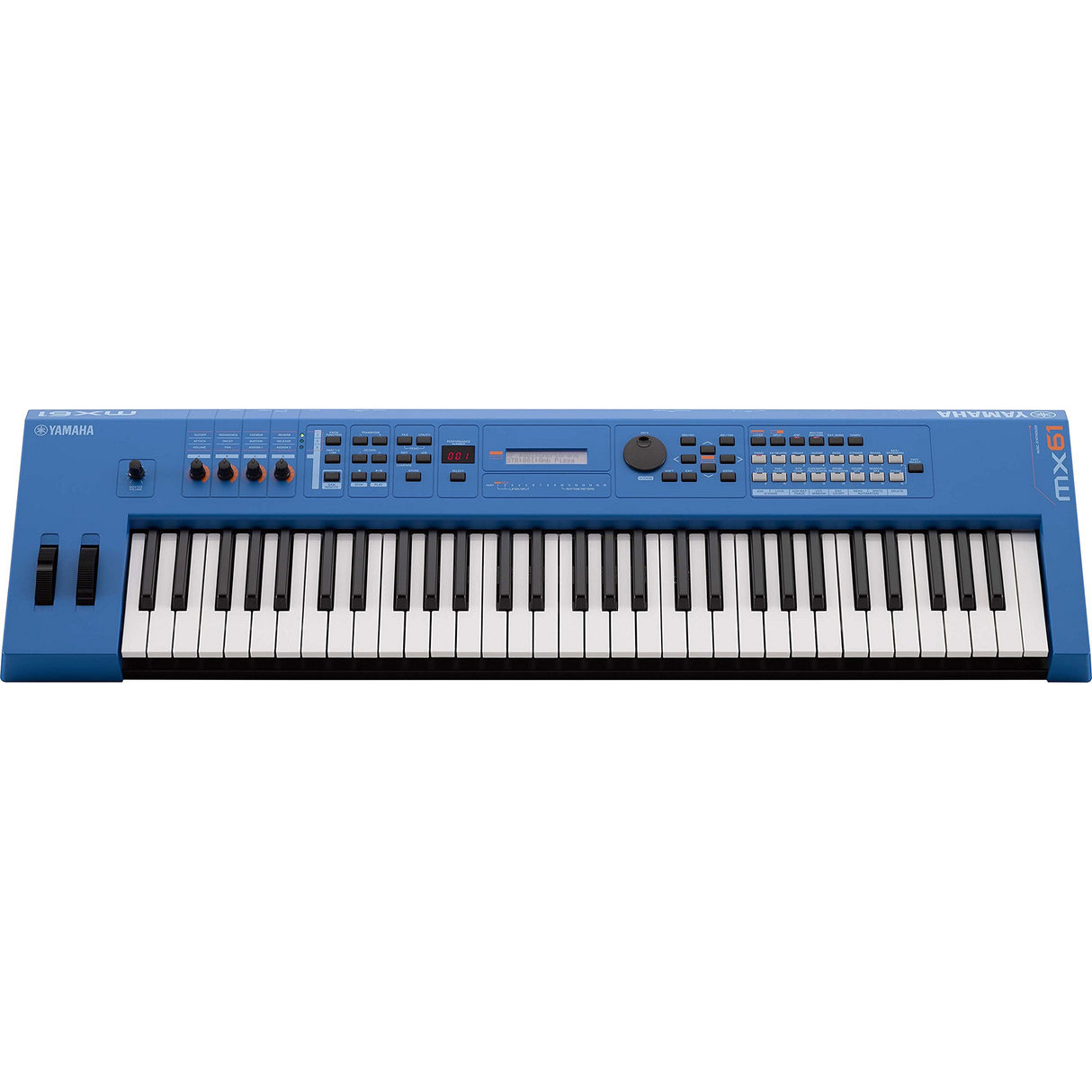

Yamaha MX61 61-Key Music Synthesizer

The Yamaha MX61 is a compact, lightweight synthesizer that delivers over 1,000 high-quality Voices derived from Yamaha’s legendary MOTIF series. With 61 semi-weighted keys and 128-note polyphony, it’s designed for expressive performances on stage or in the studio. The MX61 integrates seamlessly with computers and iOS devices via class-compliant USB audio/MIDI, enabling plug-and-play connectivity without drivers. Its durable build and intuitive front-panel controls make it an ideal choice for professional keyboardists and producers.

Featuring Yamaha’s MOTIF Sound Engine, you can layer, zone, and switch up to eight elements within a single Voice. The Virtual Circuitry Modeling (VCM) recreates the behavior of vintage effects and signal processors, while Damper Resonance DSP replicates the acoustics of a grand piano. DAW Remote functionality lets you control transport, mixer, and software instruments directly from the MX61. A built-in arpeggiator with 999 patterns and 27 demo songs inspire creativity right out of the box.

Key Features

• MOTIF Sound Engine: Layer, zone, switch, cycle, randomize, and control up to 8 elements per Voice.
• VCM Effects: Vintage effect and signal processor modeling.
• Damper Resonance DSP: Authentic grand piano damper resonance simulation.
• Polyphony: 128 notes for dropout-free performance.
• Keyboard Action: FSB synth action with expressive semi-weighted response.
• DAW Remote: Transport, mixer, and instrument control from front panel.
• USB Audio/MIDI: Class-compliant connectivity; record/playback stereo audio plus 16 MIDI channels.
• USB “TO DEVICE” Port: Store and recall data via USB flash drives.
• AUX IN: 3.5 mm line input for mobile devices.
• Auto Power Off: Energy-saving automatic shutdown.

Technical Specifications

• Dimensions: 38.74" × 4.41" × 11.77" (98.4 × 11.2 × 29.9 cm)
• Weight: 10.58 lbs (4.8 kg)
• Packing Box Dimensions: 44.72" × 8.23" × 15.39" (113.6 × 20.9 × 39.1 cm)
• Number of Keys: 61 semi-weighted (FSB synth action)
• Initial Touch: Yes
• Tone Generator: AWM2
• Maximum Polyphony: 128 notes
• Multi-Timbral Capacity: 16 parts (internal)
• Wave Memory: Approx. 166 MB (16-bit linear equivalent)
• Voices: Preset 1,106 Voices + 61 Drum Kits; GM 128 Voices + 1 Drum Kit; User 128 Voices + 8 Drum Kits
• Performance Memories: 128 (16 parts)
• Effects: Reverb ×9 types (42 presets), Chorus ×17 types (88 presets), Insertion Effects ×48 types (267 presets) ×4, Master EQ (5 bands)
• Tempo Range: 5–300 BPM
• Demo Songs: 27
• Patterns: 208
• Arpeggiator: 999 types
• Sequence Format: SMF Format 0 (playback only)
• Compatible DAW Software: Windows: Cubase 8+, SONAR X2 Producer; Mac: Cubase 8+, Logic Pro X, Digital Performer 9
• Controllers: Pitch Bend Wheel ×1, Modulation Wheel ×1, Assignable Knobs ×4, Data Dial ×1
• Display: 3-digit LED + 20×2-character backlit LCD

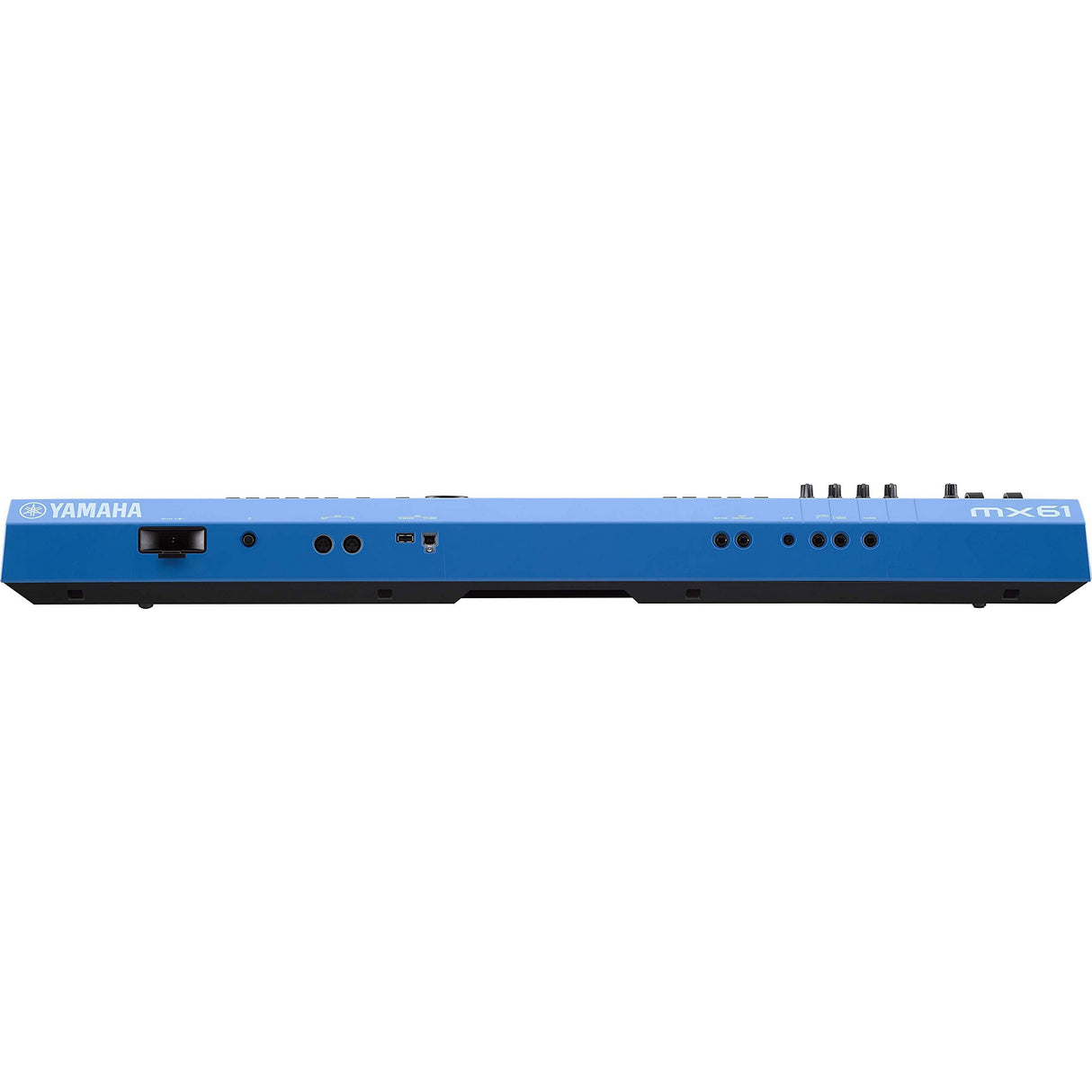

• Connectors: OUTPUT L/Mono, R (¼" jack), PHONE (stereo ¼"), Foot Controller, Sustain, MIDI In/Out, USB To Host, USB To Device, AUX In, DC In
• Power Consumption: 9 W

What's Included

• AC adaptor (PA-150B or equivalent)
• Owner’s Manual
• Cubase AI download information
