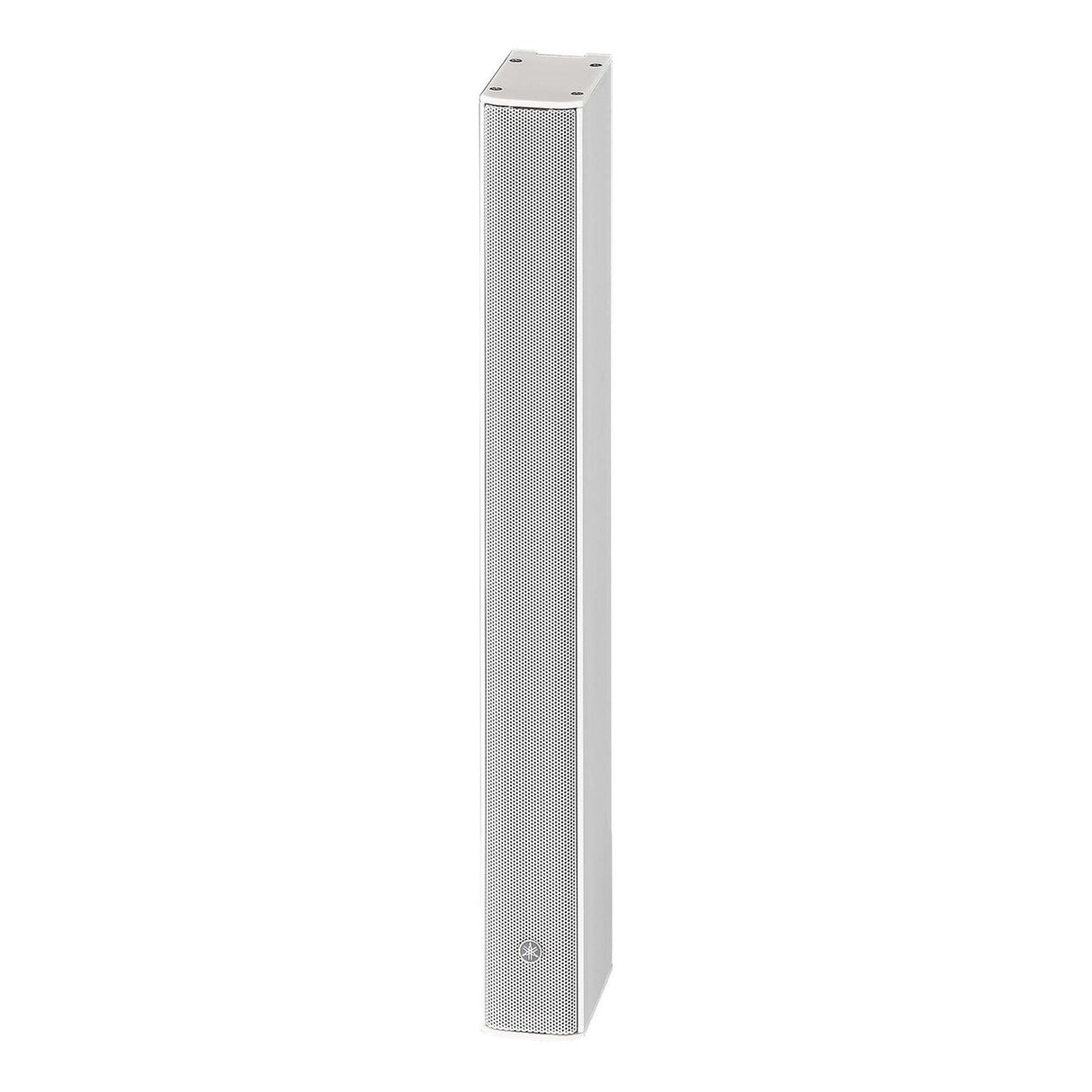

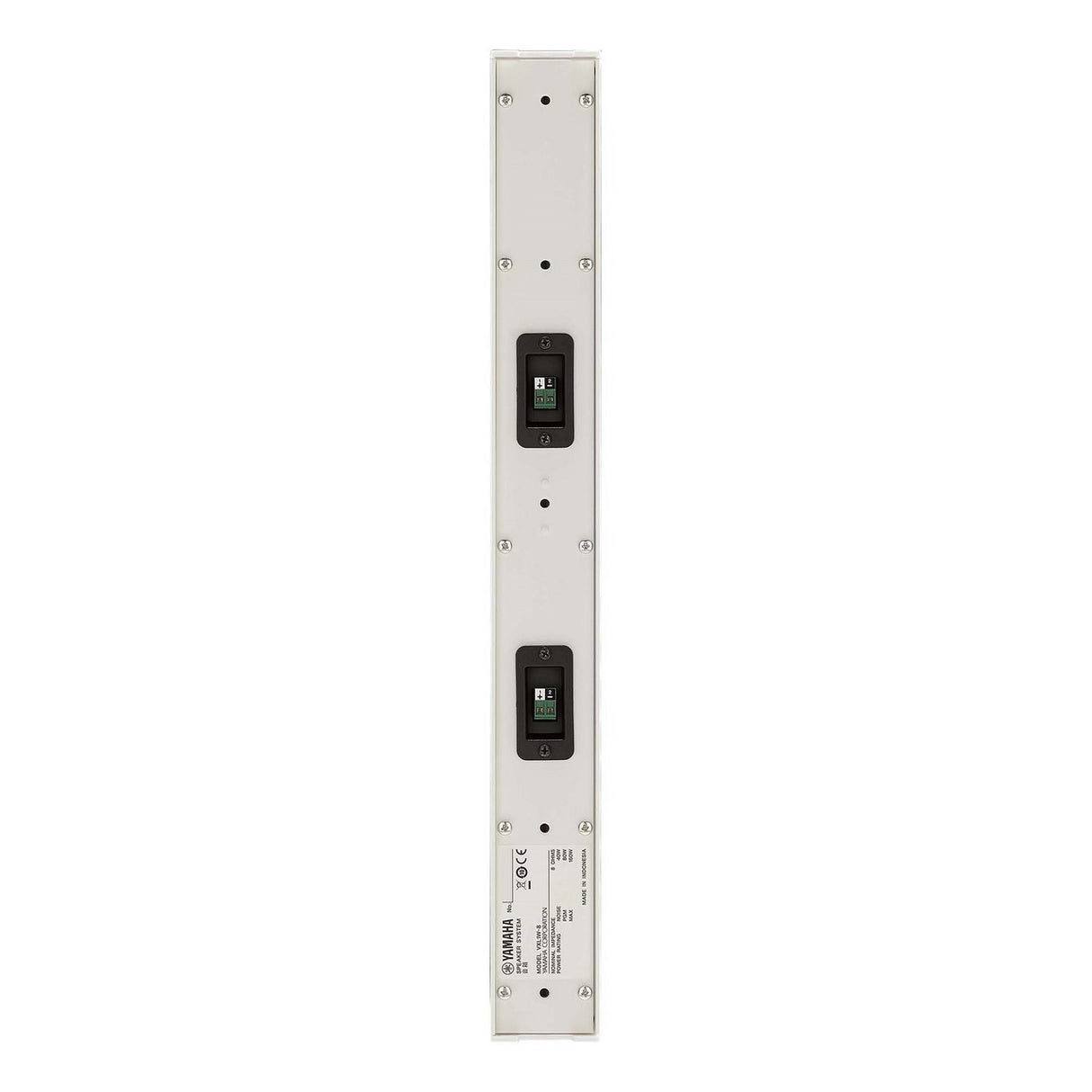

Yamaha VXL1W-8 Slim Line Array Speaker System with 8 x 1.5 Inch Drivers, White

VXL series line source loudspeakers offer a unique combination of outstanding sound quality and slim form-factor that is ideal for a variety of environments. VXL line source loudspeakers offer excellent projection as well as uniform volume and sound quality over a wide listening area, making them a great choice for highly reflective rooms, lecture halls, conference rooms, and other facilities that require maximum intelligibility throughout the listening area.

Key Features

• 1.5 inch (3.75 cm) full-range loudspeaker units with neodymium magnets
• 170 horizontal and 40 vertical dispersion for uniform SPL over a wide area
• Slim design complements any interior decor
• Enclosures can be painted to match surroundings
• Wall mount bracket supplied

Technical Specifications

Speaker type
Full-range, Bass reflex
Frequency range (-10dB)
70 Hz - 20 kHz *1
Coverage area
Horizontal: 170, Vertical:40(+20 -20)
Components
LF-HF
1.5” (3.75 cm) Cone - 8
Power rating
NOISE
40 W
PGM
80 W
PEAK
160 W
Nominal impedance
16
SPL
Sensitivity (1W; 1m on axis)
89 dB SPL (1 m/1 W) *1 *2
Peak (Calculated)
111 dB SPL (1 m) *3
I/O connectors
Euroblock (2 pin) - 2 (input: +/-) Max. wire size AWG 12 (3.3 mm)
Protection circuit
Load protection
Full-range power limiting to protecting network and transducers
Finish
VXL1B-8: Black painting (approximate value: Munsell N3.0), VXL1W-8: White painting (approximate value: Munsell N9.0)
IP-Rating
Dust and water resistant : IP35
Packaging
Packaged in 1 pc
Dimensions (W x H x D)
2.1 x 18.9 x 4.1 in. (54 x 1212 x 104 mm) - Speaker Only, 2.1 x 18.9 x 4.4 in. (54 x 1212 x 111.5 mm) - with Included Bracket
Weight
4.6 lbs (2.1 kg) - Speaker Only
