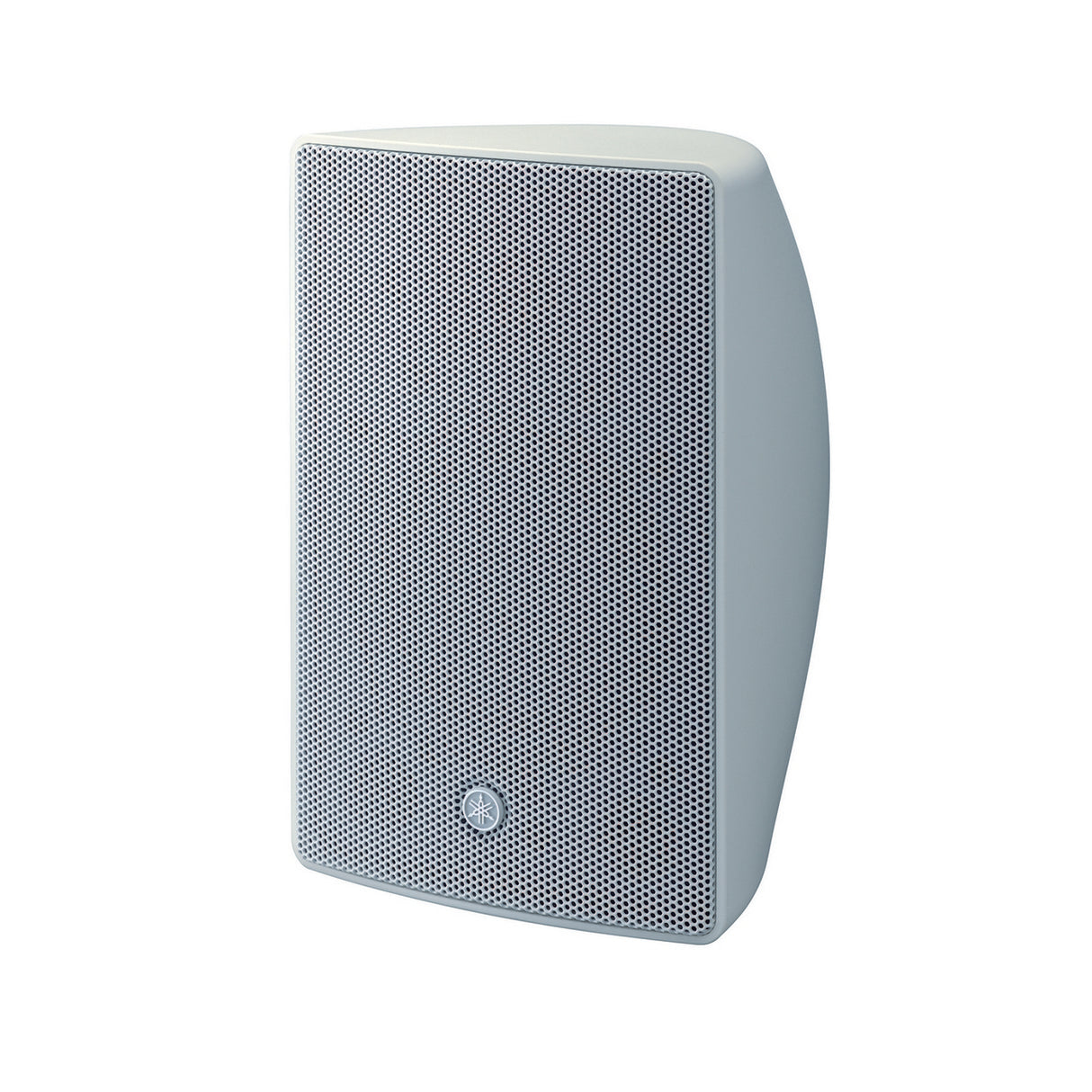

Yamaha VXS5W Two Way 5 Inch Woofer Pair White

Yamaha designed the new VXC and VXS speakers to accommodate a growing list of applications in the installation market. While these speakers deliver quintessential Yamaha sound quality, they have also been carefully designed for safe and easy installation. Featuring both ceiling and surface mount options, these speaker series include a comprehensive range of models that are available in either black or white, or can be painted to match the interior of any application.

Key Features

• Highly adaptable surface mount speakers equipped with internal transformers to operate at high or low impedance
• Comes with a dedicated bracket which allows the speakers to be mounted on both walls and ceilings
• Features newly customized transducers with large, powerful magnetic circuits that increase driving and braking force
• Hexagonal design featured on the grille of both series' speakers that improve sound clarity by raising aperture ratio
• Speaker cone paper made from a carefully-created blend of materials that help optimize sound reproduction

Technical Specifications

Speaker type
2-way, Bass-reflex
Frequency range (-10dB)
62Hz - 20kHz
Nominal coverage
H: 120 degrees
V: 120 degrees
Components
LF: 5.25" Cone
HF: 0.75" Soft dome
Crossover
3kHz
Power rating
NOISE: 75W
PGM: 150W
Nominal impedance
8 Ohm
Transformer taps
100V: 30W (330 Ohm), 15W (670 Ohm), 7.5W (1.3k Ohm)
70V: 30W (170 Ohm), 15W (330 Ohm), 7.5W (670 Ohm), 3.8W (1.3k Ohm)
SPL
Sensitivity (1W; 1m on axis): 89dB SPL
Peak (Calculated): 114dB SPL
I/O connectors
1x Euroblock (4P) (Input: + / -, Loop Thru: + / -)
Shape
Rectangular
Cabinet material
ABS
Waterproof
IP35
Dimensions
W: 176mm (6.9")
H: 280mm (11.0")
D: 163mm (6.4")
Net weight
3.6kg (7.9lbs)
Accessories
Wall / Ceiling mount bracket, Terminal cover
Packaging
Packaged in pairs
Certificate
UL1480, NFPA70, CE, EAC, RoHS
