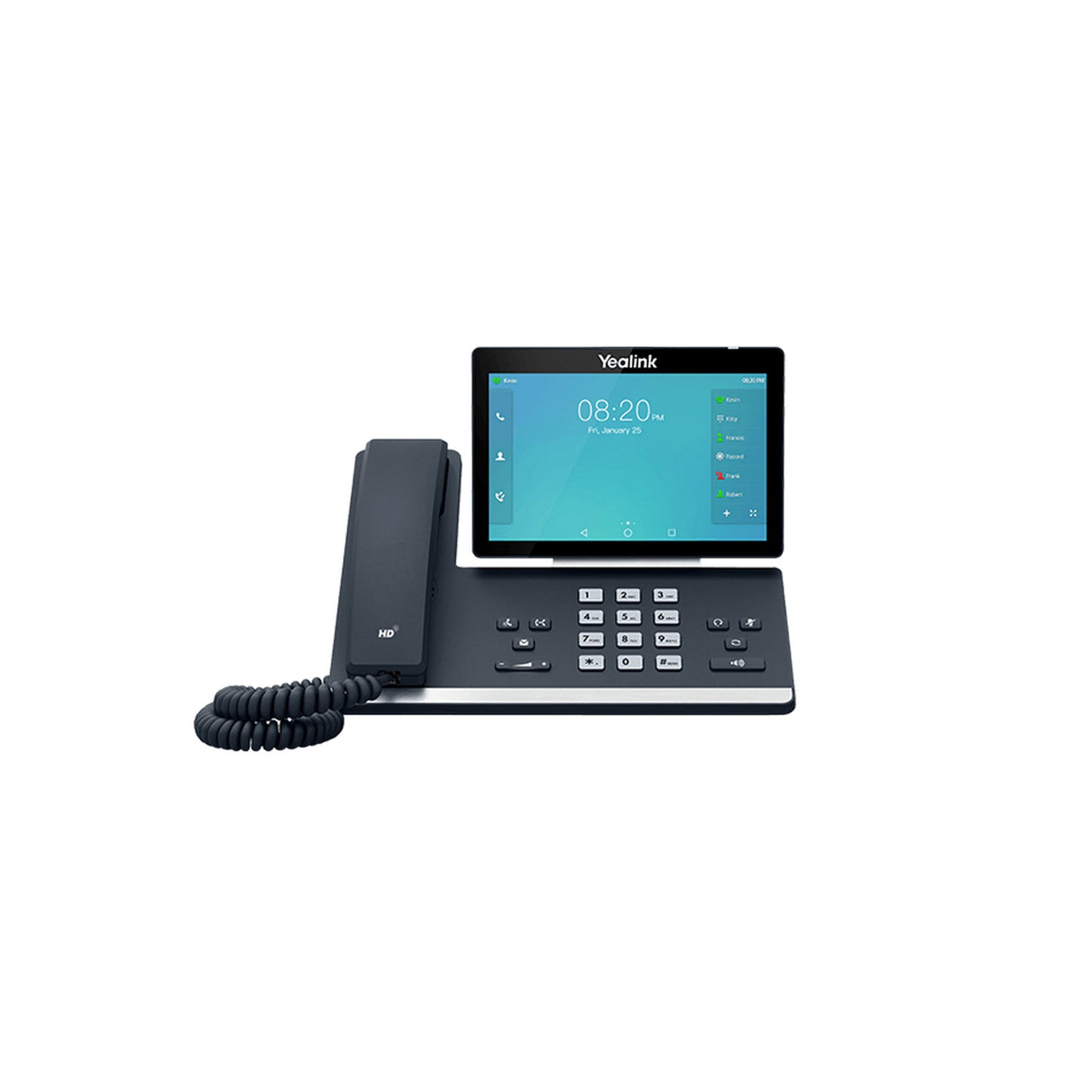

Yealink SIP-T58A Bluetooth Touchscreen Smart Business Phone

The Yealink SIP-T58A is a simple-to-use smart media phone that provides an enriched HD audio and video calling experience for business professionals. This all-new smart media phone enables productivity-enhancing visual communication with the ease of a standard phone. Based on Android 5.1.1 operating system, the SIP-T58A features a seven-inch adjustable multi-point touch screen, integrated Wi-Fi and Bluetooth 4.0+ EDR, and it is coupled with a built-in web browser, calendar, recorder and more, which also support the installation of third-party applications for business customization. More than that, you can easily turn your SIP-T58A smart media phone into a video phone ready with an optional removable two-megapixel HD camera CAM50Thanks to the DECT technology, if you want to expand your horizons for busy environments, or, share one phone system with your small team by adding multiple handsets, simply turn Yealink SIP-T58V/T58A/T56A phone to the corded cordless phone, and it will repay you up to 4 DECT handsets in total to meet your daily demands. The Yealink SIP-T5 Smart Media Phone Series strikes an exquisite balance between simplicity and sophistication, offering an all-in-one communications solution for today's busy executives, managers and teleworkers.

Key Features

• 7 inch (1024 x 600) capacitive adjustable touch screen
• 720p30 HD video (with CAM50)
• Runs Android 5.1.1
• Yealink Noise Proof Technology
• Yealink's SDK (Software Development Kit)
• DoorPhone Features (Preview, One-button Open, Monitoring)
• Built-in Bluetooth 4.0+ for headsets and pairing mobile devices
• Built-in Wi-Fi (802.11b/g/n)
• USB 2.0 port (2.0 compliant) for USB headset, media and storage applications
• Opus Codec support
• Up to 16 VoIP accounts
• Up to 5-party audio conferencing
• Wall mountable
• Color-screen Expansion Module support

Technical Specifications

Audio Features
HD voice
HD handset, HD speaker
Hearing aid compatible (HAC) handset
Yealink Noise Proof Technology
Audio codec
Opus, G.722, G.722.1, G.722.1C, G.711 (A/µ), G.723, G.726, G.729AB, iLBC
DTMF
In-band, Out-of-band (RFC 2833) and SIP INFO
Full-duplex hands-free speakerphone with AEC
VAD, CNG, AEC, PLC, AJB, AGC
Video Features
720p@30fps HD video call
Video codec
H.264 High Profile, H.264, VP8
Video quality
720P (1280x720)-30fps (≥ 512 kbps)
Yealink CAM50 camera
2 mega-pixels, plug and play, adjustable, with privacy shutter and LED indicator
Vertical tilt angle adjustable
50°
Field of view (FOV)
70.2°
Self-view (local video preview)
Display and Indicator
LCD screen
7” 1024 x 600 capacitive adjustable touch screen
Vertical tilt angle adjustable: 48°
5 points multi-touch surface
Screensaver and Wallpaper
LED for call and message waiting indication
Intuitive user interface with icons and soft keys
Multilingual user interface
Caller ID with name, number and photo
Android bundled Applications
FileManager/Email/Calendar/Camera/Gallery/Recorder/Calculator/Browser/Message
Third party Android application support
Phone Features
Yealink’s SDK (Software Development Kit)
16 VoIP accounts
Call hold, call forward
Call waiting, call transfer
One-touch speed dial, hotline
Mute, DND
Group listening, emergency call
Redial, call return, auto answer
Direct IP call without SIP proxy
Ring tone select/import/delete
Set date time manually or automatically
Dial plan, action URL/URI
RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
Five-party audio conferencing
Data import/export via Bluetooth, email, etc.
DoorPhone features
Preview, One-button Open, Monitoring
Corded-Cordless Phone (via DECT Dongle DD10K)
Up to 4 DECT cordless handsets
Up to 4 concurrent calls
Support Yealink W52H/W53H (OTA pending)/W56H/DD Phone
Slave Handset for Master Deskset
IP-PBX Features
Busy Lamp Field (BLF), Bridged Line Appearance (BLA)
Anonymous call, anonymous call rejection
Remote office, hot desking, intercom, paging
Message Waiting Indicator (MWI)
Voice mail, call park, call pickup, music on hold
Call completion, call recording
Directory
Local phonebook up to 1000 entries
Black list
XML/LDAP remote phonebook
Smart dialing
Phonebook search/import/export
Call history
dialed/received/missed/forwarded
Feature keys
27 one-touch DSS keys
8 feature keys
hold, transfer, message, headset, mute, redial, speakerphone, volume
Illuminated mute/headset/hands-free speakerphone key
Interface
Dual-port Gigabit Ethernet
Power over Ethernet (IEEE 802.3af), class 3
Built-in Wi-Fi (2.4GHz, 802.11b/g/n)
Built-in Bluetooth 4.0+ EDR for
Bluetooth headsets
Pairing mobile devices
1 x USB 2.0 port (on the top of the phone) for
Yealink CAM50 camera
1 x USB 2.0 port (on the rear of the phone) for
USB flash drive
Wired/wireless USB headset
Color-screen expansion modules
1 x Security lock port
1 x RJ9 (4P4C) handset port
1 x RJ9 (4P4C) headset port
Supports up to 3 color-screen expansion modules
Management
Configuration
browser/phone/auto provision
Auto provision via FTP/TFTP/HTTP/HTTPS for mass deployment
Auto-provision with PnP, Zero-sp-touch, TR-069
Phone lock for personal privacy protection
Reset to factory, reboot
Package tracing export, system log
T56A&T58A&T58V unified firmware and common.cfg file
Only the administrator can install/uninstall apps via auto-provisioning
Setup Assistant wizard
Network and Security
IPv4/IPv6
SIP v1 (RFC2543), v2 (RFC3261)
Call server redundancy supported
NAT traversal
STUN mode
Proxy mode and peer-to-peer SIP link mode
IP assignment
static/DHCP/PPPoE
HTTP/HTTPS web server
Time and date synchronization using SNTP
UDP/TCP/DNS-SRV (RFC 3263)
QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS DSCP
SRTP
Transport Layer Security (TLS)
HTTPS certificate manager
AES encryption for configuration file
Adb encryption authenticated
Digest authentication using MD5/MD5-sess
OpenVPN, IEEE802.1X
Other Physical Features
Color
Metallic Grey
Wall mountable (optional)
External Yealink AC adapter (optional)
AC 100~240V input and DC 5V/2A output
Power consumption (PSU)
1.5W-4.5W
Power consumption (PoE)
2.3W-6.0W
Dimension (W*D*H*T)
259.4mm*220mm*215mm*42.6mm
Operating humidity
10~95%
Operating temperature
-10~40°C (+14~104°F)
Package content
Yealink SIP-T58A IP phone
Handset with handset cord
Ethernet Cable (2m CAT5E FTP Cable)
Stand
Yealink CAM50 camera (Optional)
Quick Start Guide
Power Adapter (Optional)
Qty/CTN: 5 PCS
N.W/CTN: 9.3 kg
G.W/CTN: 10.4 kg
Giftbox size
324 mm*293 mm*128 mm
Carton Meas
680 mm*303 mm*332 mm
