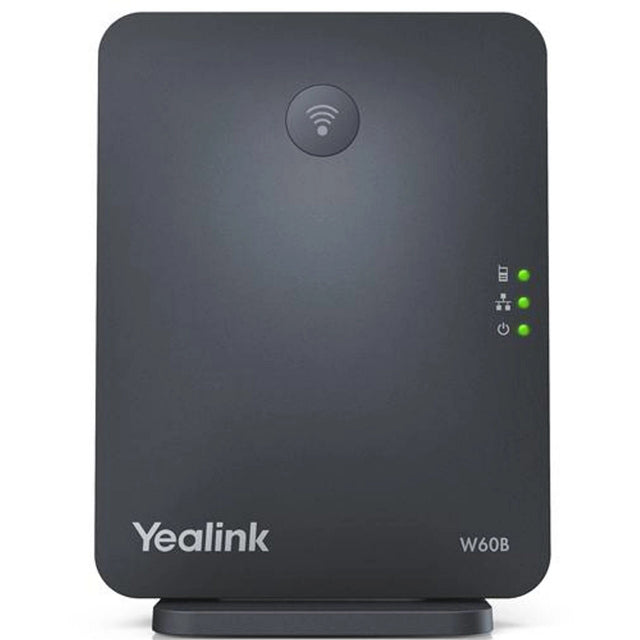

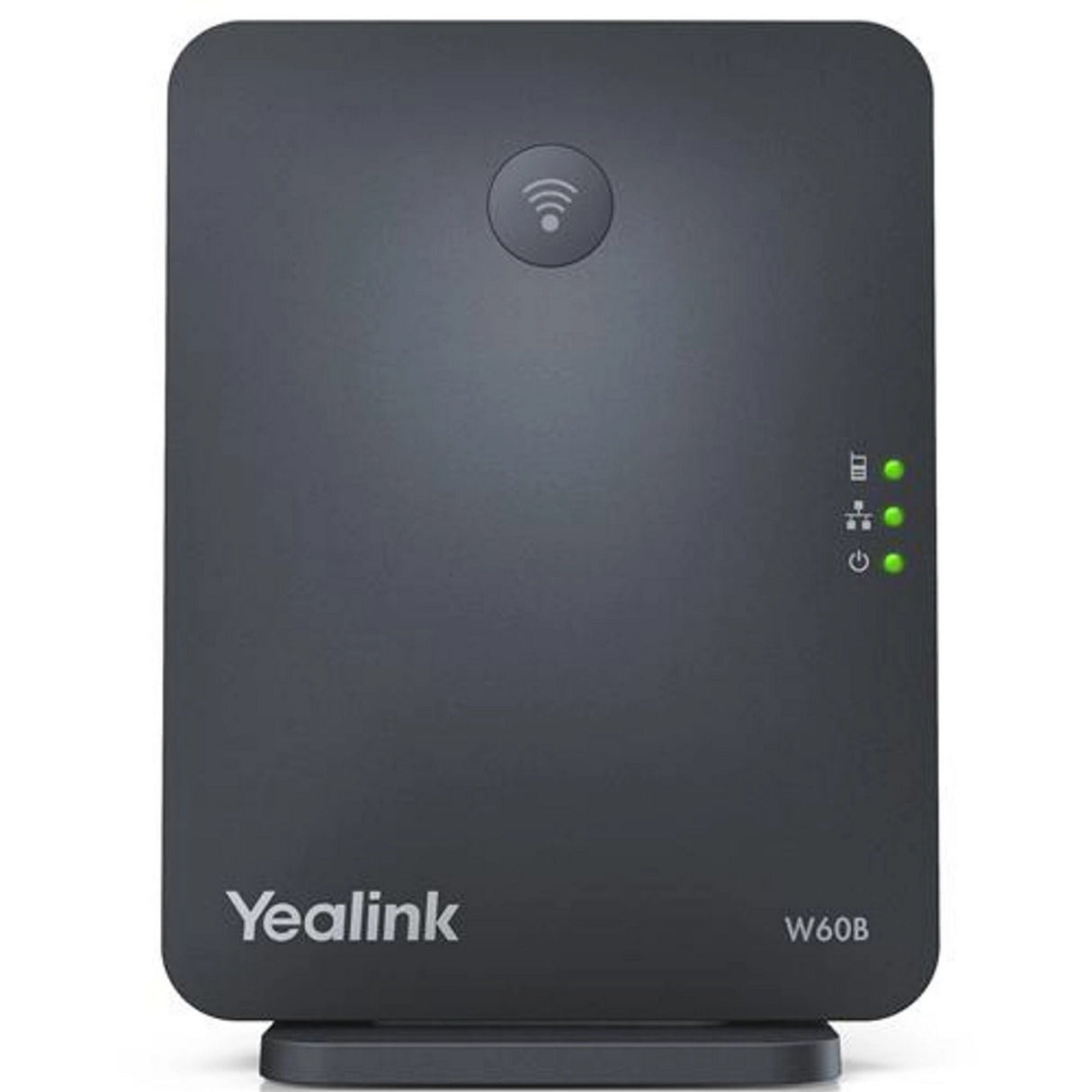

Yealink W60B DECT IP Base Station

The Yealink W60B is the DECT IP base station for small and medium-sized businesses. Paring with up to a total of 8 Yealink W56H DECT handsets, W60B allows you enjoy superb mobility and efficient flexibility immediately as well as significantly eliminates additional wiring troubles and charges. A powerful chip ensuring a better and higher performance, this DECT IP base station not only supports up to 8 VoIP accounts and 8 concurrent calls, but also speeds up its startup and signal connection, slashes its upgrade downtime as well.

Designed in modern and elegant style, this compact DECT IP base station possesses a wire-hidden design, presenting a concise and tidy desk to you even being mounted to the wall. By supporting Opus codec, Yealink W60B consistently delivers excellent and professional audio quality in both high-bandwidth and poor network conditions, comparing with other wideband or narrowband audio codecs.

The Yealink W60B DECT IP base station supports efficient provisioning and effortless mass deployment with Yealink’s Redirection and Provisioning Service (RPS) and Boot mechanism to help you realize the Zero Touch Provisioning without any complex manual settings, which makes It'simple to deploy, easy to maintain and upgrade, saving even more time and IT costs for businesses.

Key Features

• Up to 8 concurrent calls
• Up to 8 DECT cordless handsets
• Up to 8 VoIP accounts
• Support Opus audio codec
• TLS and SRTP security encryption
• Noise Reduction System

Technical Specifications

Phone Features
Up to 8 concurrent calls
Up to 8 handsets
Up to 8 VoIP accounts
Up to 5 repeaters per base station
Paging, intercom, auto answer
Call hold, call transfer, call waiting
Three-way conference
Switching between calls
Mute, silence, DND
Caller ID with name and number
Redial
Anonymous call
Anonymous call rejection
Call forward (always/busy/no answer)
Speed dial
Voicemail
Message Waiting Indication (MWI)
Local phonebook for up to 800 entries (store in the base)
Remote phonebook/LDAP
Phonebook search/import/export
Call history (all/missed/placed/received)
Direct IP call without SIP proxy
Reset to factory, reboot
Emergency call
Dial plan
Music on hold (server-based)
Broadsoft directory
BroadSoft call log
Broadworks feature key synchronization
Shared Call Appearance (SCA)
Management
Auto-provision via TFTP/FTP/HTTP/HTTPS/RPS
Auto-provision with PnP
Handset upgrade
OTA (Over-The-Air)/USB port
Configuration
Browser/phone/auto-provision
Trace package and system log export
Audio Features
Wideband codec
Opus, AMR-WB (optional), G.722
Narrowband codec
PCMU, PCMA, G.726, G.729, iLBC
VAD, CNG, AGC, PLC, AJB
Support VQ-RTCPXR (RFC6035)
Network Features
SIP v1 (RFC2543), v2 (RFC3261)
SNTP/NTP
VLAN (802.1Q and 802.1P)
802.1x, LLDP, PPPoE
STUN Client (NAT Traversal)
UDP/TCP/TLS
IP assignment
Static/DHCP
Support outbound proxy server backup
Security
Open VPN
Transport Layer Security (TLS)
HTTPS (server/client)
SRTP (RFC3711)
Digest authentication using MD5
Secure configuration file via AES encryption
Support SHA256/SHA512/SHA384
Three-level configuration mode: Admin/Var/User
DECT
Frequency bands
1880 1900 MHz (Europe), 1920 1930 MHz (US)
DECT Standards: CAT-iq 2.0
Interface
1 x RJ45 10/100M Ethernet port
Power over Ethernet (IEEE 802.3af), Class 1
Physical Features
Indoor Range
20m~50m (The ideal distance is 50m)
Outdoor Range
300m (in ideal conditions)
Desktop or wall mountable
Energy-saving ECO mode/ECO Mode+
Three LED indicators on W60B
1 x Registration LED
1 x Network Status LED
1 x Power Indicator LED
External Yealink AC adapter
AC 100-240V Input and DC 5V/600mA Output
Dimension (W*D*H)
130mm x 100mm x 25.1mm
Operating humidity
10~95%
Operating temperature
-10~+50 Degrees C (+14~122 Degrees F)
Package content
W60B Base Station
Base Stand
Power Adapter
Ethernet Cable
Quick Start Guide
Qty/CNT: 10 PCS
Giftbox size
205mm*196mm*95mm
Carton measure
512mm*414mm*213mm
N.W: 3.6 kg
G.W: 4.3 kg
