YOLOLIV YOLOBOX ULTRA Portable 4K Multi-Camera Encoder/Switcher/Monitor/Recorder

YOLOLIV | SKU: YOLO-YOLOULTRA
1 5
$1,29800

Free Shipping

Estimated Shipping Widget will be displayed here!

Enjoy free standard shipping on all orders over $99. Please note that this offer excludes oversized, overweight, special orders, custom products, and items with minimal profitability. Most orders placed before 10:00am PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible. Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand. No restocking fee will be charged when you opt for store credit. Exclusions apply.

Condition: New

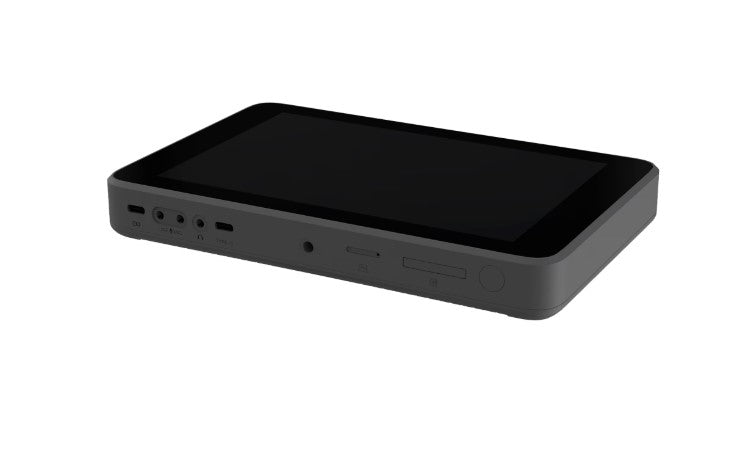

YoloLiv YoloBox Ultra Portable 4K Live Streaming Studio

The YoloLiv YoloBox Ultra combines a 4-input 4K60 switcher, H.264/H.265 encoder, recorder, and 8" 650 nits touchscreen monitor in one rugged handheld unit, enabling professional multi-camera live production anywhere with Ethernet, Wi-Fi 6, or 4G LTE connectivity.

Leveraging a Qualcomm 865 processor and 8 GB RAM, it supports ISO recording for all inputs, simultaneous horizontal (up to three) or vertical (up to two) platform streaming, and advanced features such as chroma key, instant replay, guest call-ins, and network bonding of up to five connections for rock-solid broadcast reliability.

Key Features

  • 4K Streaming & ISO Recording: Capture and stream up to 4K 30 fps while recording each input separately.

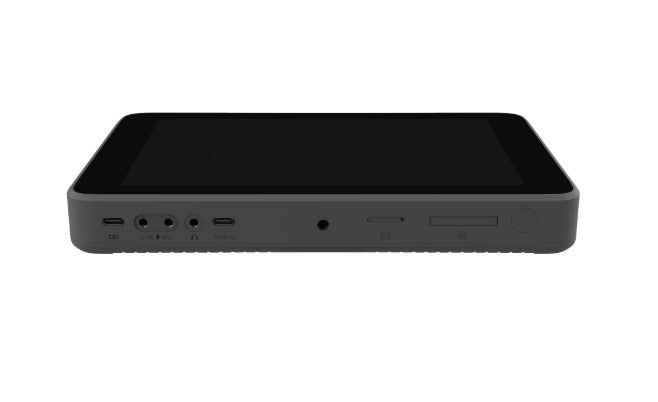

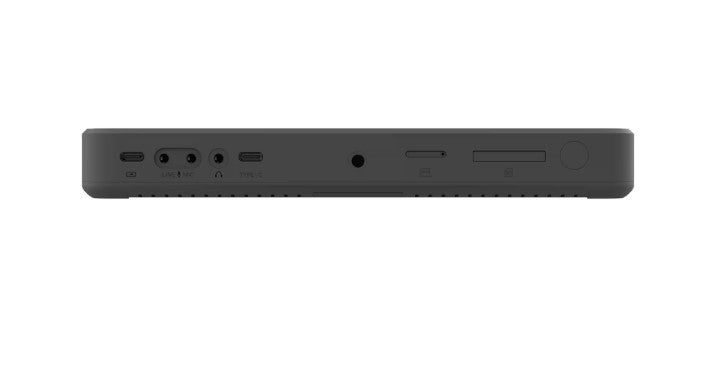

  • Comprehensive I/O: 4× HDMI in, 2× USB-A 3.0 in, HDMI out, Gigabit Ethernet, USB-C power/data, 3.5 mm line in, mic in, and headphone out.

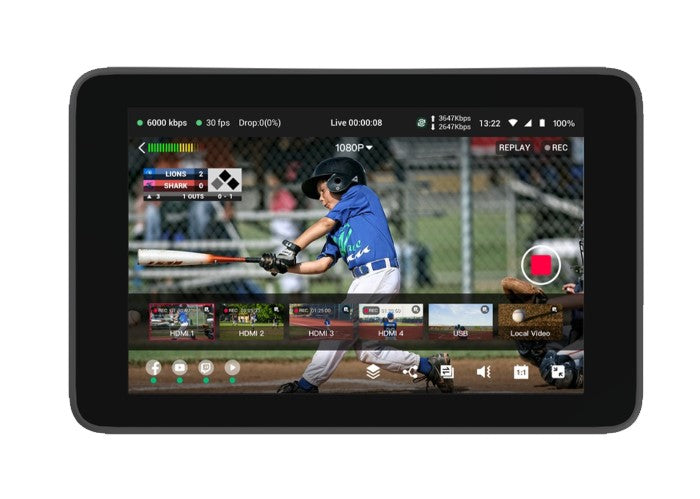

  • 8" Touchscreen Monitor: 1200 × 1920 IPS panel with 650 cd/m² brightness and 1 500:1 contrast for clear daylight viewing.
  • Network Bonding: Combine 4G SIM, Wi-Fi, Ethernet, and USB-dongle links for higher throughput and redundancy.
  • Multi-Platform Output: Native integration for Facebook, YouTube, Twitch plus custom RTMP/RTMPS and SRT; USB webcam out for Zoom/Teams.
  • Advanced Production Tools: PIP, split, news & triple layouts, graphics overlays, scoreboard, auto-switching, video cropping, replay.
  • Internal 75 Wh Battery: ~6 hours of untethered operation; charges via USB-C PD.

Technical Specifications

  • Dimensions: 8.62 × 5.51 × 1.07 in (21.9 × 14.0 × 2.71 cm)
  • Weight: 2.16 lb (0.98 kg)
  • Video Inputs: 4× HDMI, 2× USB-A 3.0, USB-C, RJ-45
  • Video Outputs: HDMI, USB-C (UVC), FLV-RTMP
  • Supported Resolutions: 480p/720p/1080p 60 fps, 4K 30 fps
  • Encoding Formats: H.264/H.265; Bitrate modes CBR/VBR/CQ
  • Recording Format: MP4 to SD (≤ 1 TB) or USB drive
  • Audio I/O: 3.5 mm mic in, line in, headphone out; HDMI/USB embedded
  • Wireless: Dual-band Wi-Fi 6; nano-SIM 4G LTE (NA B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B41/B66/B71)
  • Battery: 6 800 mAh lithium (≈ 6 h); USB-C 5-15 V PD input; 45 W max draw
  • Operating Environment: 0 – 40 °C, 15 – 85 % RH (non-condensing)
  • Storage Formats: FAT32, exFAT, NTFS
  • Construction: Portable tablet-style chassis with ¼-20 mount

What's Included

  • YoloBox Ultra unit
  • USB-C charging cable × 2
  • Hot-shoe mounting adapter
  • User manual
  • SIM-card eject pin
