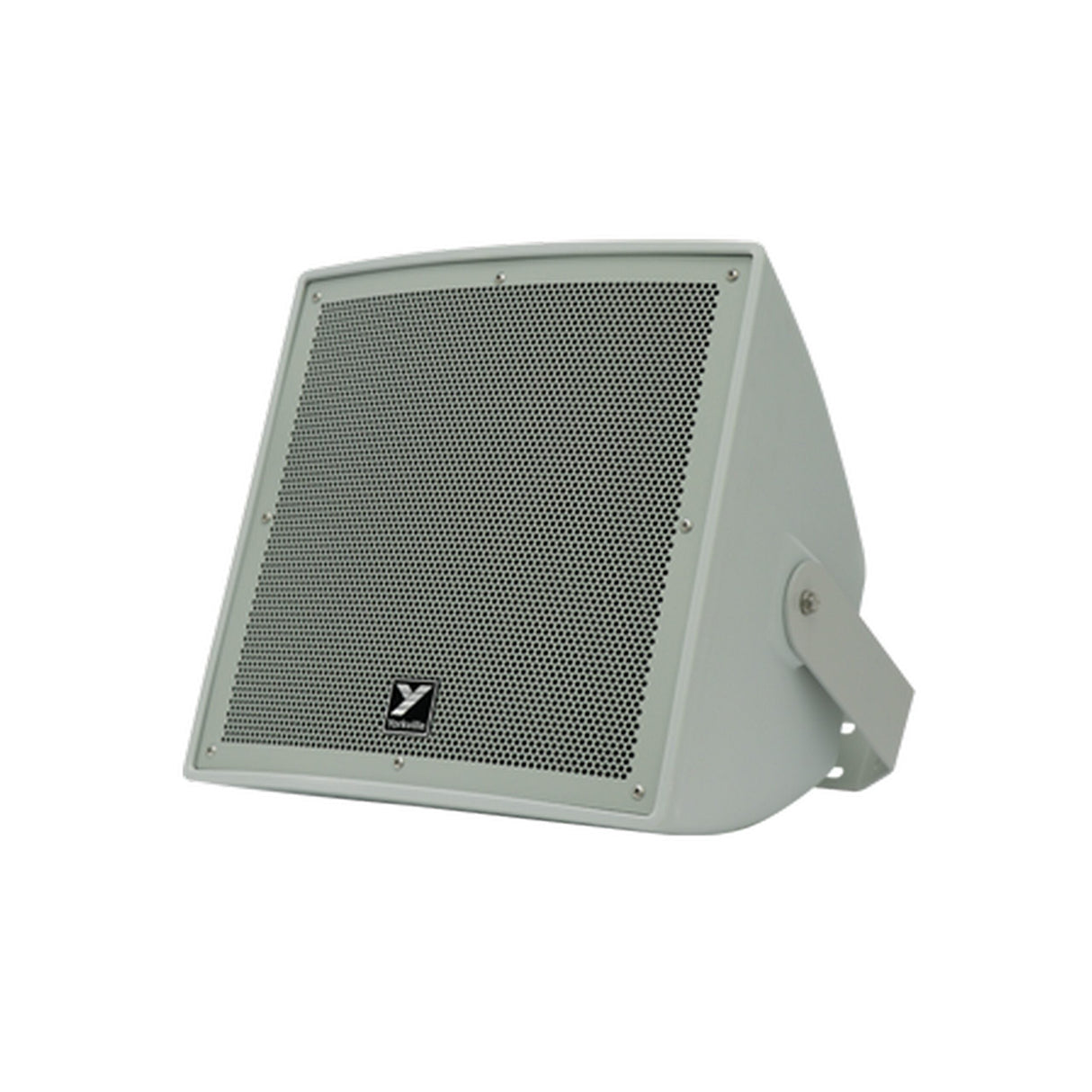

Yorkville C12CW Coliseum Series Two-Way 12-Inch Coaxial Loudspeaker System
Yorkville C12CW Coliseum Series Two-Way 12-Inch Coaxial Loudspeaker System
The C12CW is a 2-way speaker designed with a 12” coaxial driver, providing a small footprint for high SPL.
With an Ingress Protection rating of IP56, the C12CW has been treated to be highly weather resistant, particularly to dust and high-pressure water.
The Coliseum C12CW is a perfect sound solution for sports fields, restaurant patios, and wherever waterproof speakers are required.
All metal U bracket is included.
Key Features
- Two-way loudspeaker system
- Engineering plastic injection molding
- High SPL
- Horn loaded design for coaxial components
- Highly weather-resistant IP56 rating
Technical Specifications
System Type
Two-way
Active or Passive
Passive
Power Rating (Watts)
300
Nominal Impedance (Ohms)
8 or 70/100 Volt
Sensitivity (dB @1Watt/1m)
98
Max SPL (dB)
129
Frequency Response (Hz +/- 3dB)
55 - 18k
Dispersion (°H x °V)
80 x 80
Crossover Frequency (Hz)
2.2 kHz Passive
Driver Configuration
12-inch, 1 inch
Inputs
Screw Terminal
Outputs
Screw Terminal
Controls
50w / 100w / 200w / off / 8 Ohm
Included Hardware
Yoke Bracket
Enclosure Materials
Injection Molded Plastic
Baffle Material
Injection Molded Plastic
Grille
Metal
Dimensions (DWH xbackW, inches)
17 x 16 x 11.88 x 16.2
Dimensions (DWH xbackW, cm)
44.3 x 40.7 x 41.1
Weight (lbs/kg)
43.65 / 19.8
