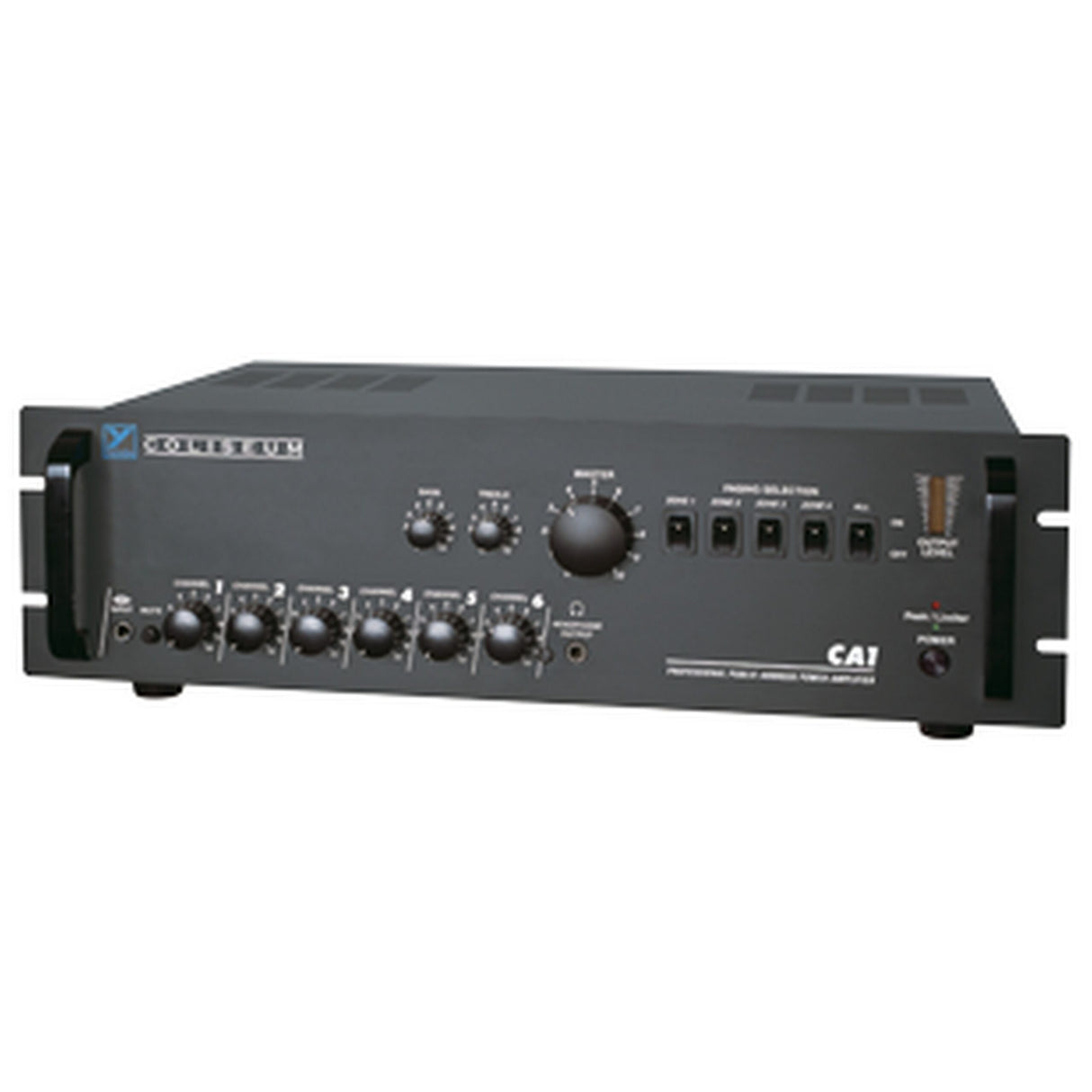

Yorkville CA1 6 Channel 70V Installation Amplifier

The Coliseum CA1 public address amplifier has been designed specifically for installations where a versatile paging system with high quality music playback is required. Ideal for restaurants, small clubs, offices and retail environments where a simple and reliable system capable of servicing multiple paging zones is required. Multiple inputs for microphone or source material, and voice activated paging from either a microphone or telephone matrix means the CA1 can be used in virtually any application.

Key Features

• Versatile input mixing capabilities make the CA1 the solution for small churches, boardrooms and conference room PA applications
• Unlike most installation amplifiers in this class, user selectable phantom power is available on three channels to drive condenser microphones, the type most commonly used on podiums or as a lavaliere (tie clip) microphone
• XLR / TRS balanced combi-jack inputs and attenuated RCA unbalanced inputs ensure the CA1 system can interface with any source (CD, Cassette, Satellite Tuner, DVD or video system) your installation may require
• Capable of driving either a 4-ohm speaker load, or four separate 70-volt speaker systems (one 'system' per zone), the CA1 system delivers 180 watts (mono)

Technical Specifications

Number of Channels
6
Inputs - 1/4" / XLR Combi
3
Inputs - RCA (unbal)
2
Phantom Power
Yes
Headphone Monitor Features
Yes - main Output
Record Outputs
Yes
Mixer - Signal to Noise Ratio (dB)
Greater than 55dB
50 - 15kHz
Amp A - Power Output @ 4 Ohms
180 Watts
Amp A - Power Output other
180 Watts 70-volts
THD - 1kHz (dB)
Less than 1%
Cooling
Passive
Finish
Black
Chassis Construction
Steel
Rackmount
Yes
Other Features
Zone Paging / Telephone interface
Dimensions (DWH, inches)
12 x 19 x 6
Dimensions (DWH, cm)
320 x 480 x 150
Weight (lbs/kg)
24 / 9
