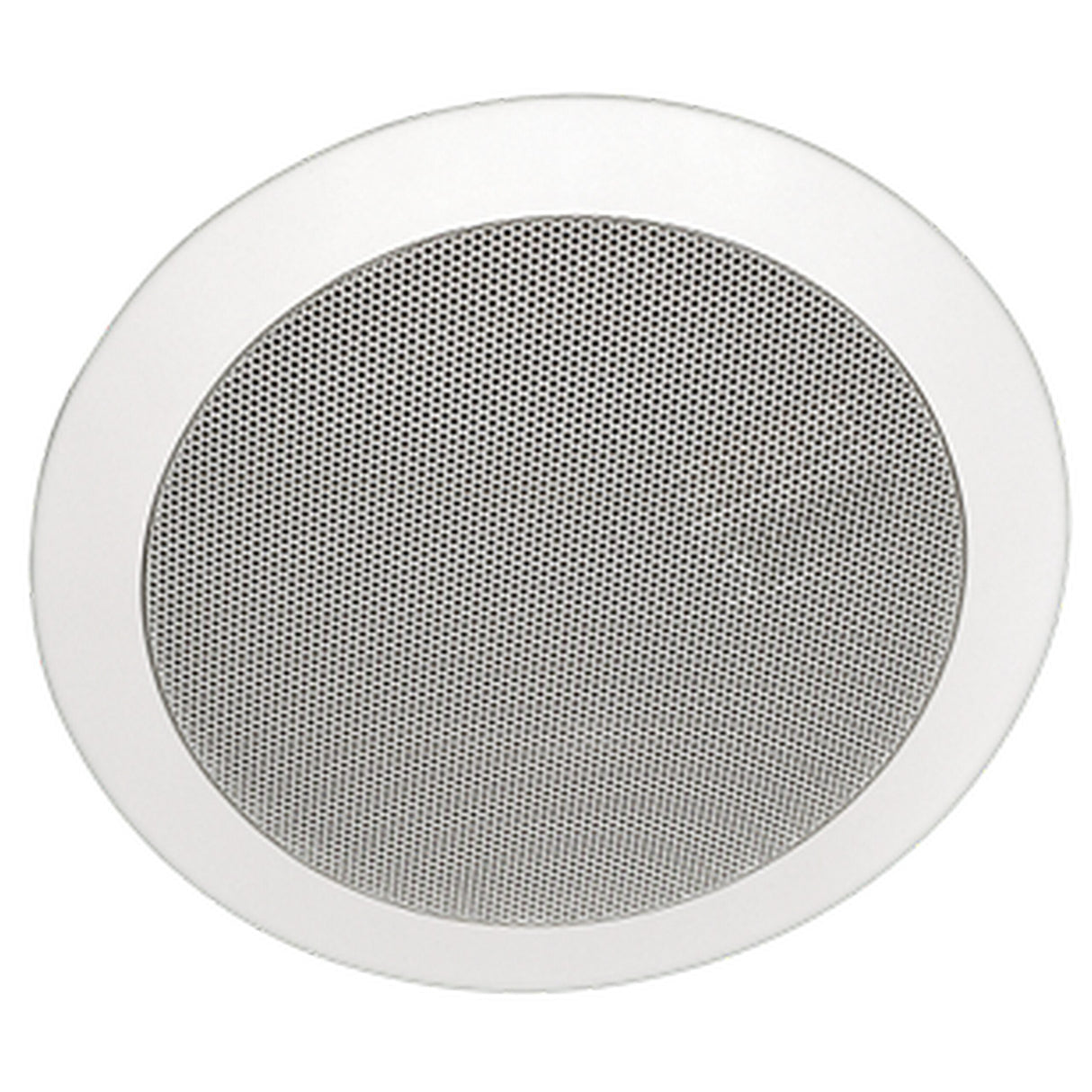

Yorkville CM5/70 Coliseum Mini Series 30W 5-Inch Ceiling Speaker

Yorkville | SKU: YOR-CM570
$3000

Estimated Shipping Widget will be displayed here!

Condition: New


Yorkville CM5/70 Coliseum Mini Series 30W 5-Inch Ceiling Speaker

Built in 70-volt taps at 5, 10 or 20 watts as well as optional 8-ohm (30 watt) operation means that virtually any amplification or paging system, including the Coliseum CA1 or CA1T can drive the CM5/70.

Key Features

  • 5-inch High Performance Flush Mount Ceiling Speaker
  • Selectable 70-volt or 8-ohm Operation
  • Power Taps at 5, 10 and 20 Watts
  • 30 watts (8-ohm mode)
  • Open Back Design
  • Mounting Hardware Included

Technical Specifications

System Type
Ceiling Speaker
Active or Passive
Passive
Power Rating (Watts)
30
Nominal Impedance (Ohms)
8 / 70-volt Transformer
Sensitivity (dB @1Watt/1m)
91
Frequency Response (Hz +/- 3dB)
150 - 20k
Driver Configuration
Single 5 inch
HF Dispersion (°H x °V)
90 x 90
Inputs - Screw Terminal
Solder Lugs
Enclosure Materials
ABS Plastic
Grille
Perforated Metal
Wiring
5W (Blue) 10W (Yellow) 20W (Red) for 70V Operation
Dimensions (DWH xbackW, inches)
8 x 3
Dimensions (DWH xbackW, cm)
20 x 7.6
Weight (lbs/kg)
3.0 / 1.4
