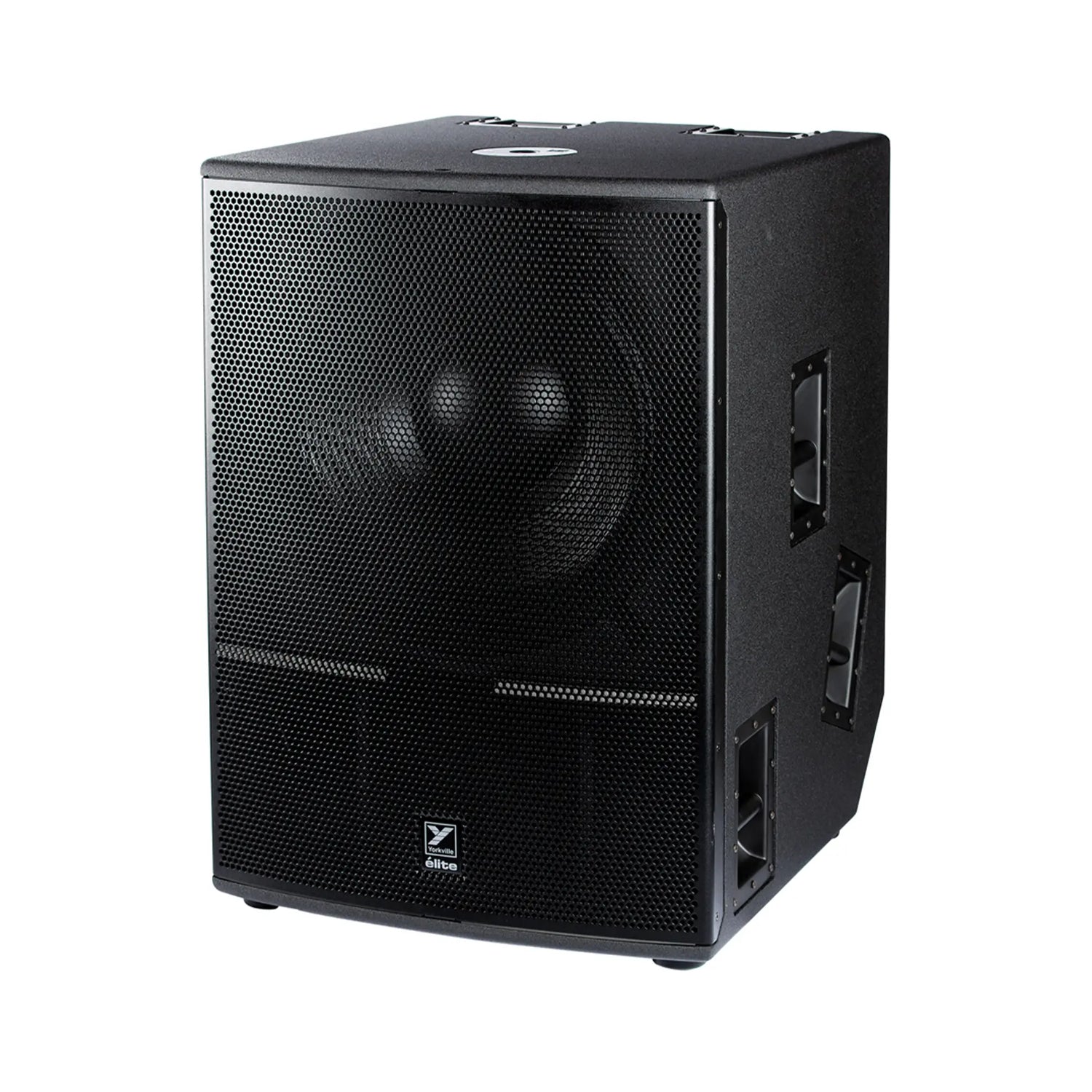

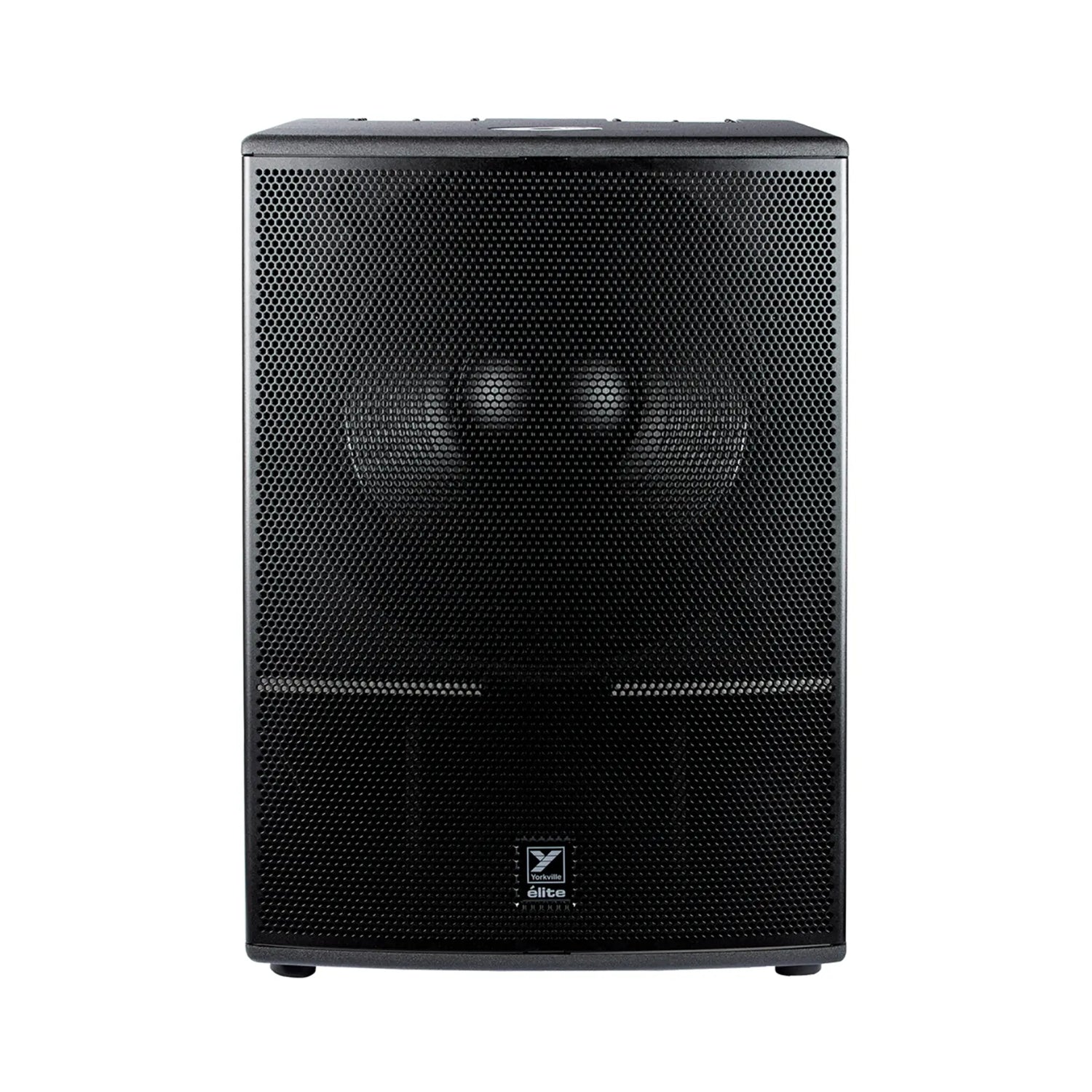

Yorkville ES21P 2400-Watts 21-Inch Powered Subwoofer

Yorkville ES21P 2400-Watts 21-Inch Powered Subwoofer

The most powerful subwoofer in the elite family.

Key Features

• 21-inch rear horn loaded subwoofer
• 2400 watts (3600 watts Peak)
• 142db Peak (136dB Continuous)
• 32-150 (Hz +/- 3dB) Max SPL
• Selectable Punchy, Smooth and Deep modes
• 80Hz to 150 Hz High Frequency Roll-off
• 2 Wheels with rear tilt back
• Handles 2X top rear, 2X bottom front, 3X each side
• Pole mount adapter 1X Top (1 3/8-inch-3.5 cm)

Technical Specifications

System Type
Rear Horn Loaded Subwoofer
Active or Passive
Active
Program Power (Watts)
2400 watts (3600 Watts Peak)
Max SPL (dB)
142dB Peak (136dB Continuous)
Frequency Response (Hz +/- 3dB)
32 - 150 (Hz +/- 3dB)
LF Driver(s)
21-inch Cast Frame Woofer w/6-inch Voicecoil
LF Protection
Thermal / Overcurrent (X-max) / Clip
Power Consumption (typ/max)
120V (4.0A / 5.6A), 230V (2.0A / 2.8A)

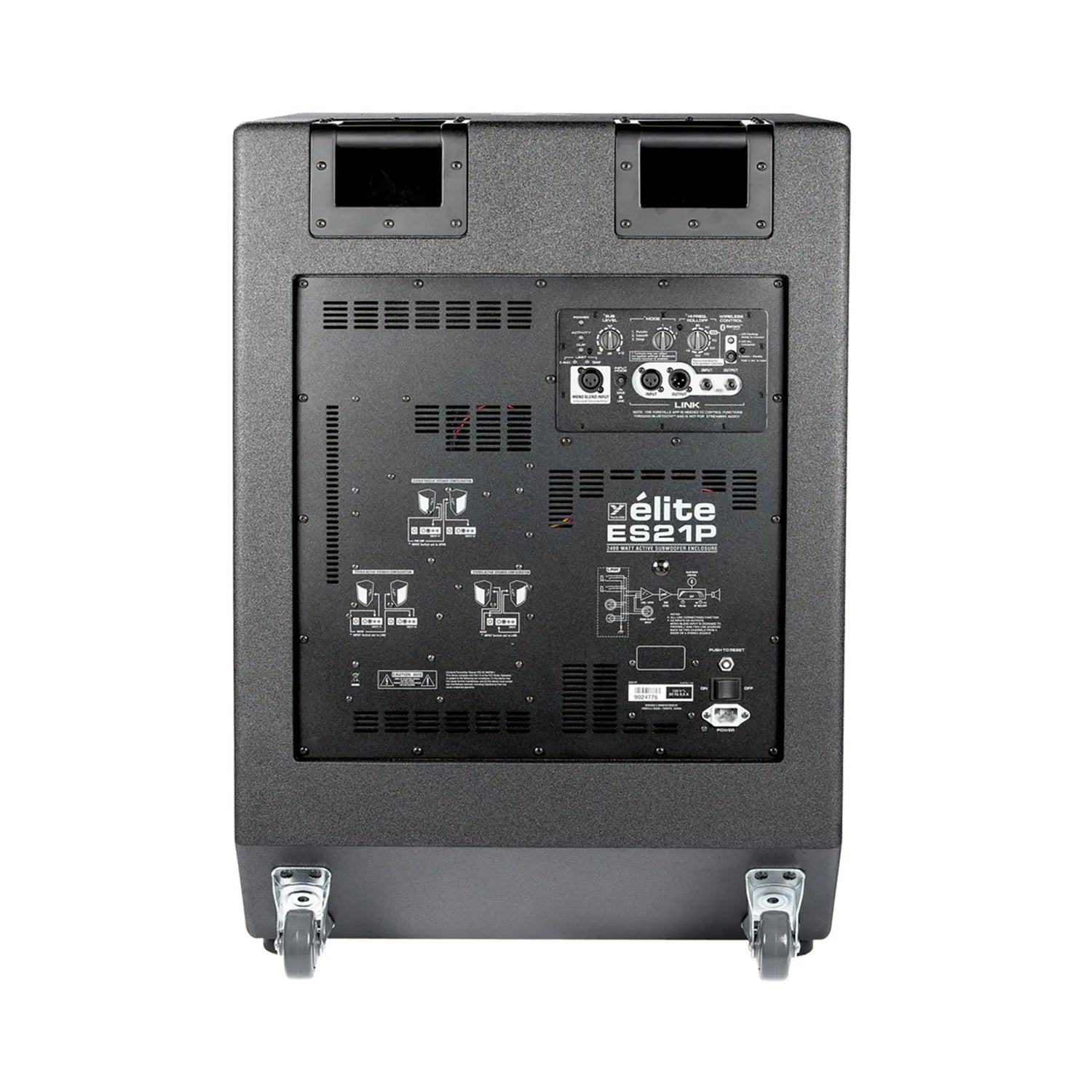

In / Out Connections
1 x XLR Input
1 x XLR Mono Blend Input
1 x 1/4-inch Link Input
1 x 1/4-inch Link Output
1 x XLR Link Output
Level Controls
Master - Sub Level
LED Indicators
Power, Activity, Protection (Clip, X-Max, Temp)
Other Controls / Features
Active Controls: Mode - 1 Punchy, 2 Smooth, 3 Deep
High Frequency Roll-off - 80Hz to 150 Hz

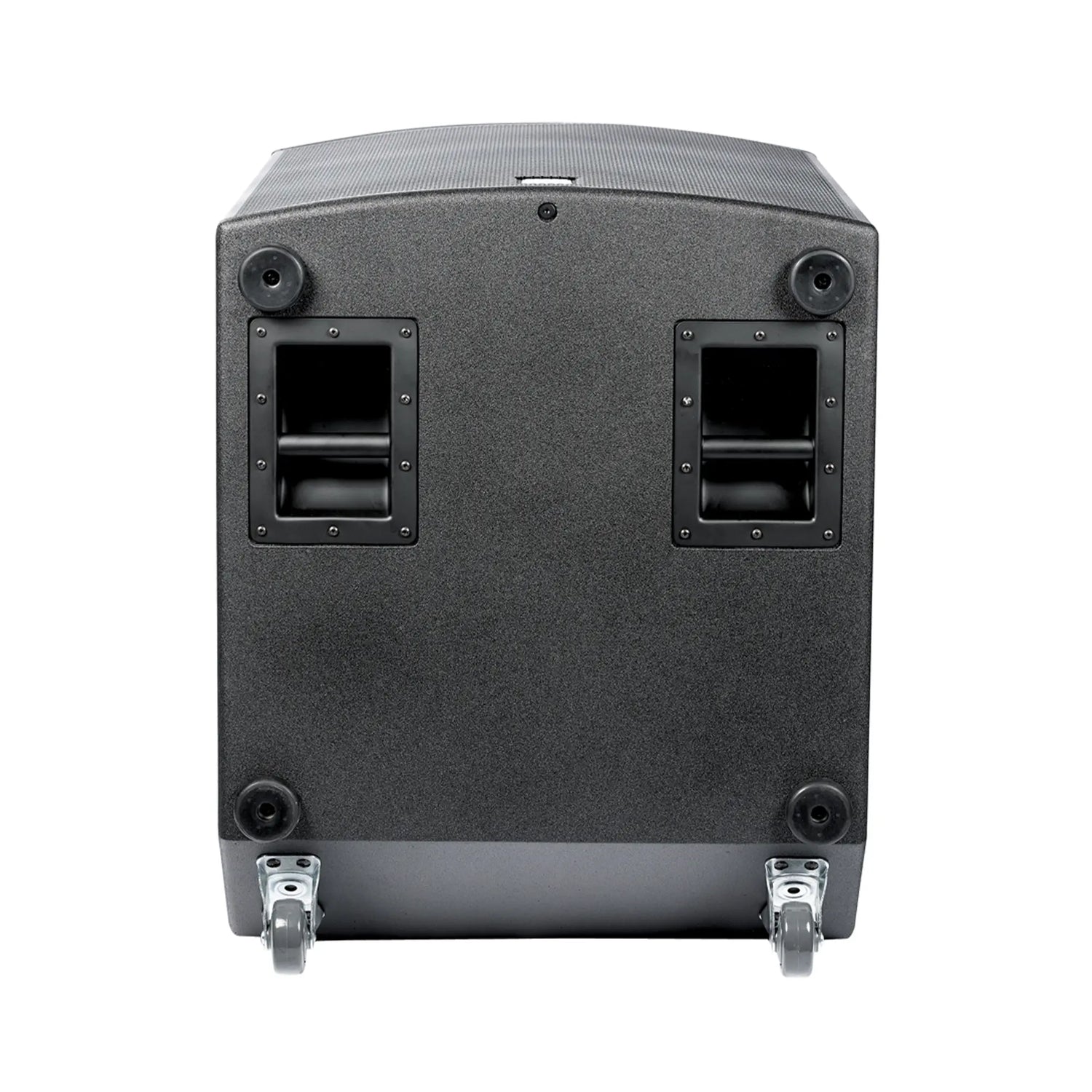

Wheels
2 x Rear tilt-back

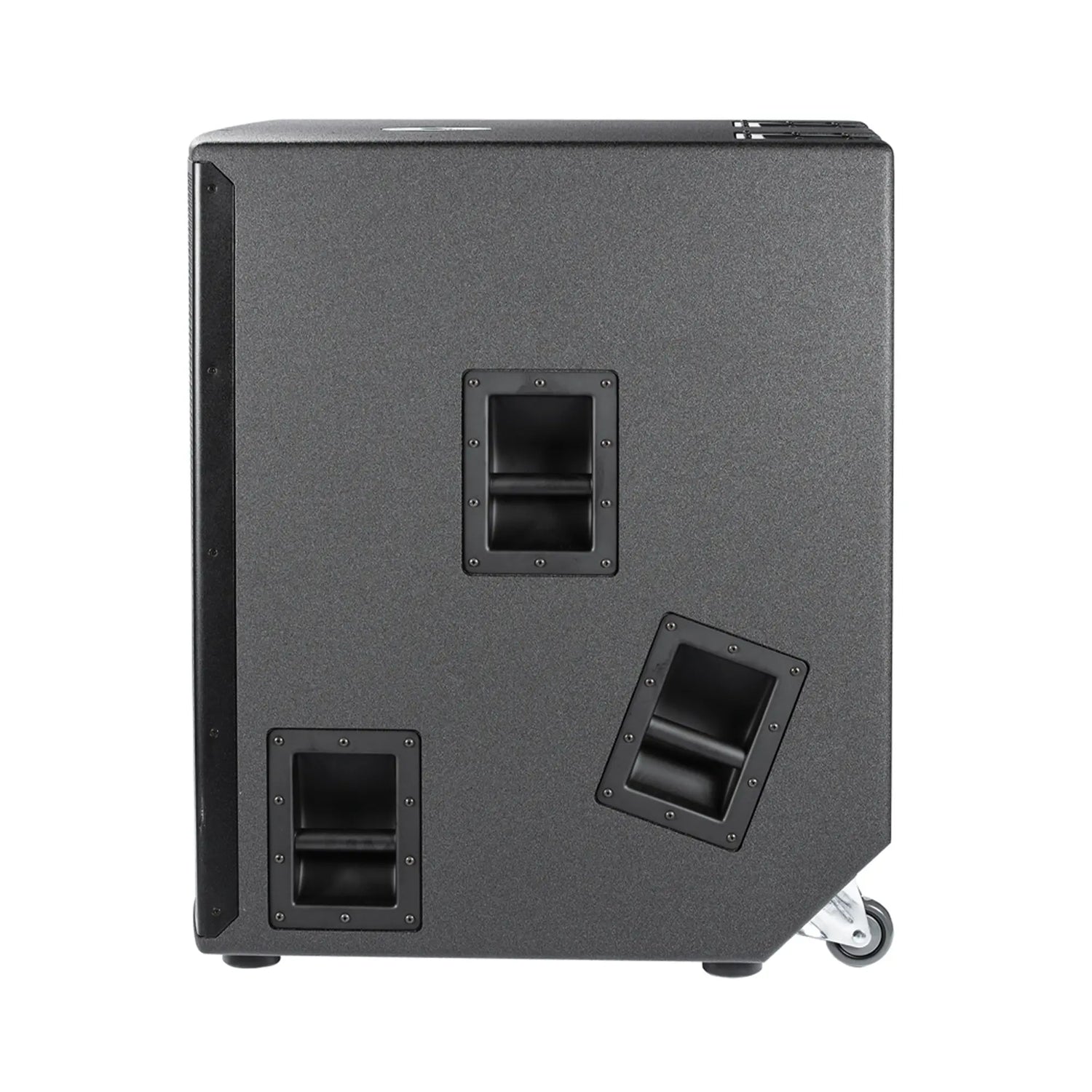

Bar Handles
1 x (Left Side ), 1 x (Right Side)
Pole Mount Adapter (1 3/8"-3.5cm)
1 (Top) (1 3/8-inch-3.5cm)
Enclosure Materials
15mm (5/8inch) 11-ply Russian Birch
Covering / Finish
Black Ultrathane Paint
Dimensions (DWH xbackW, inches)
30.5 x 25.5 x 36 (D/W/H)
Dimensions (DWH xbackW, cm)
77.5 x 64.1 x 91 (D/W/H)
Weight (lbs/kg)
202 / 92
