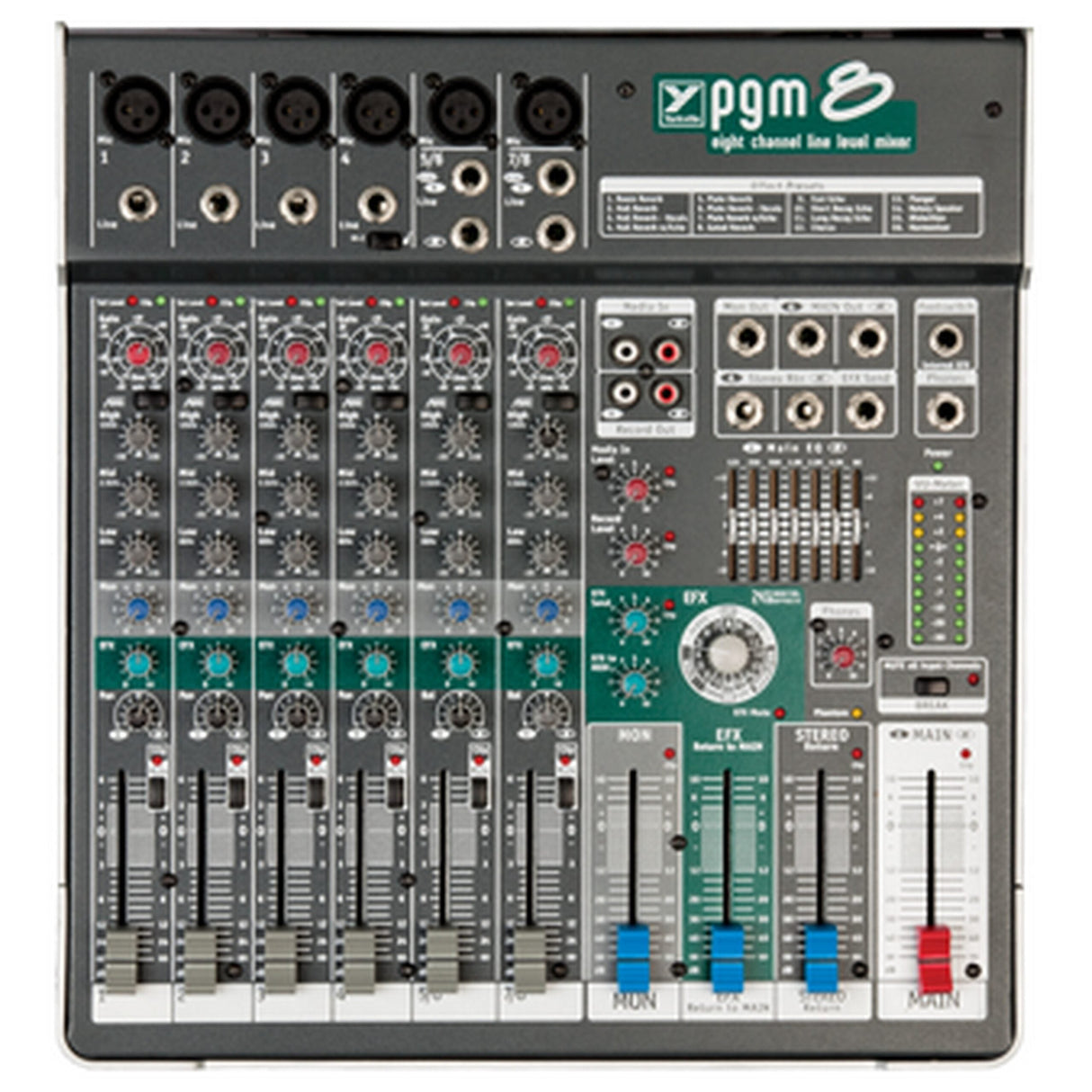

Yorkville PGM8 8 Channel Compact Live Sound Mixer

Yorkville PGM8 8 Channel Compact Live Sound Mixer

The Yorkville PGM8 delivers all of the essential features needed in a professional mixer in a convenient, ultra-compact package. High quality 60mm faders throughout, effective fully featured input channel design, 24-bit digital effects, and break switch make the PGM8 the perfect mixer for live music applications and for small installs.

Key Features

• Four Mono Input Channels with XLR & -inch TRS inputs
• Channel 4 Mono Input has a Hi-Z input switch
• Two Additional stereo line input channels (5/6 and 7/8)
• Additional XLR mono input per stereo channel for maximum 6 Mic inputs
• Input gain level control with Non-defeatable soft multi-slope compressor on every input
• 3-band EQ, High Pass Filter, Monitor send , Effect Send, Clip LED, Mute Switch and Pan control per Channel
• 60mm Faders Throughout
• Global 48 volt Phantom Power

Technical Specifications

Number of Channels
8
Mono Channel EQ
3-band
Balance Controls
Yes
Pan Controls
Yes
Channel Overload Protection
Yes
Inputs - XLR (bal)
6
Inputs - 1/4"
6
Inputs - RCA (unbal)
1 stereo pair
Phantom Power
48 volt + LED indicator
VU Meter
2 x 10 Segment LEDs
Headphone Monitor Features
yes
Internal Effects
24 bit stereo 16 effects
Effects Send
2 (1 internal, 1 external)
Effects Return to Main
Yes
Effects Return to Monitor
Yes
Reverb / Effects Footswitch
Yes
Record Outputs
1 stereo pair
Mixer - Signal to Noise Ratio (dB)
Greater Than -100dB 20Hz - 20KHz
Mixer THD (Main out w/ -10dB input)
Less Than 0.05%
Typical crosstalk -1 kHz (dB-
Greater Than -60dB
CMRR @ 60Hz (min/typ)
55dB/65dB
Power Consumption (typ/max)
26VA (typical)
Chassis Construction
Steel
Dimensions (DWH, inches)
14.2 x 12.8 x 2.8
Dimensions (DWH, cm)
36 x 32.5 x 7
Weight (lbs/kg)
8.5/3.8
