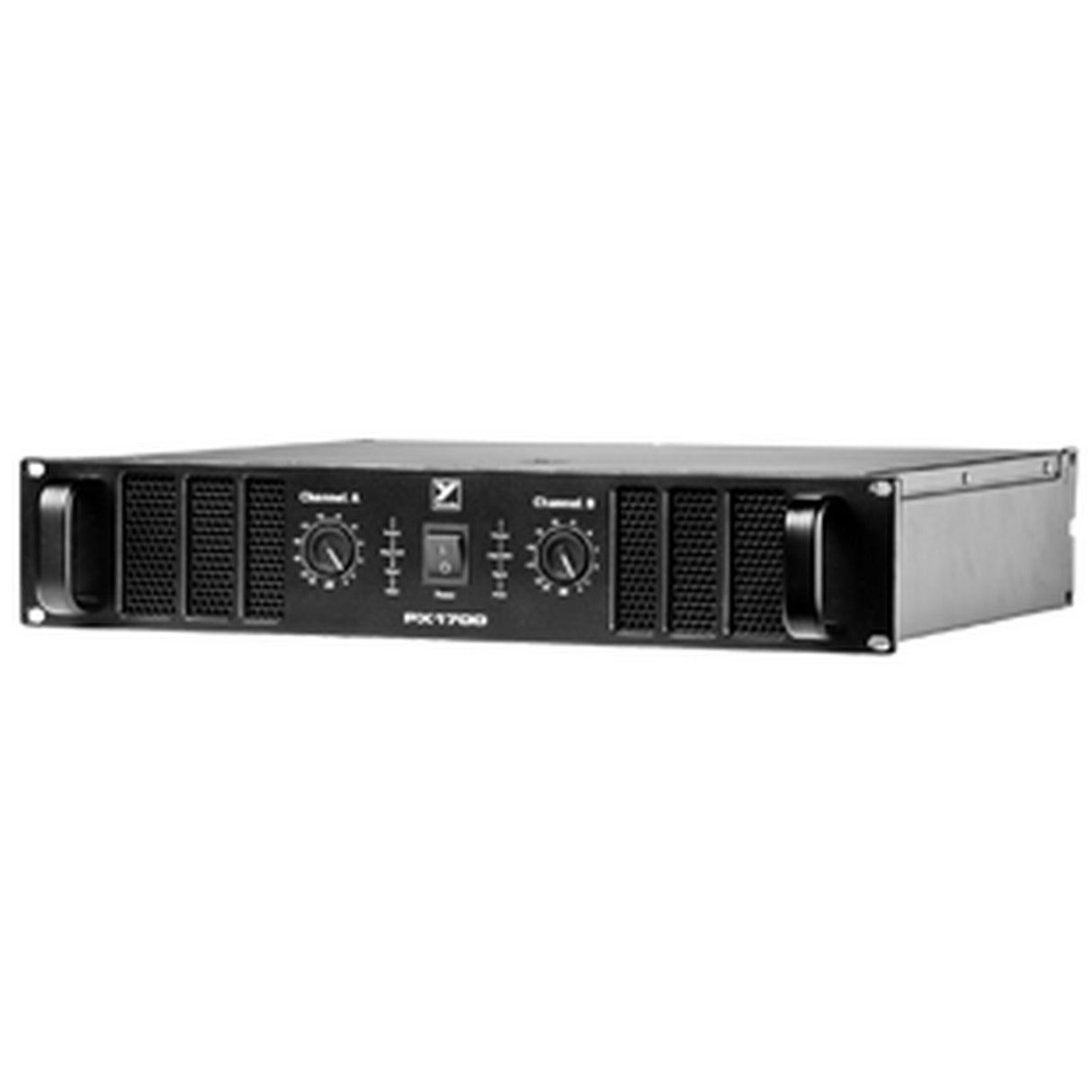

Yorkville PX1700 2 x 850 Watt Power Amplifier
2 x 850 Watt Power Amplifier, perfect for club or concert hall, the Yorkville PX Series PX1700 power amplifier delivers up to 1700 watts (2 x 850 watts @ 2 ohms). XLR and 1/4-inch inputs, binding post and Speakon outputs ensure the PX1700 can be integrated into virtually any high-performance sound system or mobile PA.
Key Features
- Easily Drives Reactive Loads
- Delivers 1700 Watts Bridged Mono @ 4 ohms
- 850 Watts PRE Channel @ 2 ohms
- Efficient Front-to-Back Cooling Scheme
- Recessed Front Panel Gain Controls
- Advanced Protection Schemes
- Front Panel Power, Protect, Activity and Clip LED's
- Speakon and Binding Post Outputs
- Balanced XLR & ¼-inch TRS Inputs
- Sturdy All-Steel Construction
Technical Specifications
Amplifier class
Class-H
Continuous Average Power @ 8 Ohms BCD (Watts)
400
Continuous Average Power @ 4 Ohms BCD (Watts)
600
Continuous Average Power @ 2 Ohms BCD (Watts)
850
Continuous Average Power Bridged BCD (Watts)
1700
Burst Average Power @ 8 Ohms BCD(Watts)
600
Burst Average Power @ 4 Ohms BCD (Watts)
1000
Burst Average Power @ 2 Ohms BCD (Watts)
850
Burst Average Power Bridged BCD (Watts)
1700
Frequency Response (Hz, +/- 1dB)
30Hz to 20kHz
Hum and Noise (un / Aweighted -dB)
-100dB
THD -1kHz- 4 OHMS
0.0003
THD - 20Hz-20kHz, 4 Ohms
0.001
Damping Factor (30 Hz - 400 Hz @ 8 Ohms)
Greater than 300
Crosstalk (1kHz / 20Hz-20kHz)
-75dB / -60dB
Input Impedance - Bal/Unbal (Ohms)
30kOhms/15kOhms
Input Sensitivity (Vrms) For Full Power Out
1.4
Max Voltage Gain (dB)
31dB
Stereo / Mono / Bridge )S/M/B)
Yes
Protection
DC/Load/Thermal
Limiter
Defeatable
High Pass Filter
No
Cooling
Fan
Cooling Path
Front to Back
Inputs XLR
Yes (x2)
Inputs - 1/4" Jacks
Yes (x2)
Outputs - Speakon 4-pin
Yes
Outputs - Binding Post
Yes
Power Consumption (typ/max)
700/1500
Rack Spaces
Two
Transformer Type
Toroidal
Exterior Finish
Black Paint
Dimensions (DWH /D fm ears, inches)
16 x 19 x 3.5
Dimensions (DWH /D fm ears, cm)
40.6 x 48.3 x 8.9
Weight (lbs / kg)
35/16
