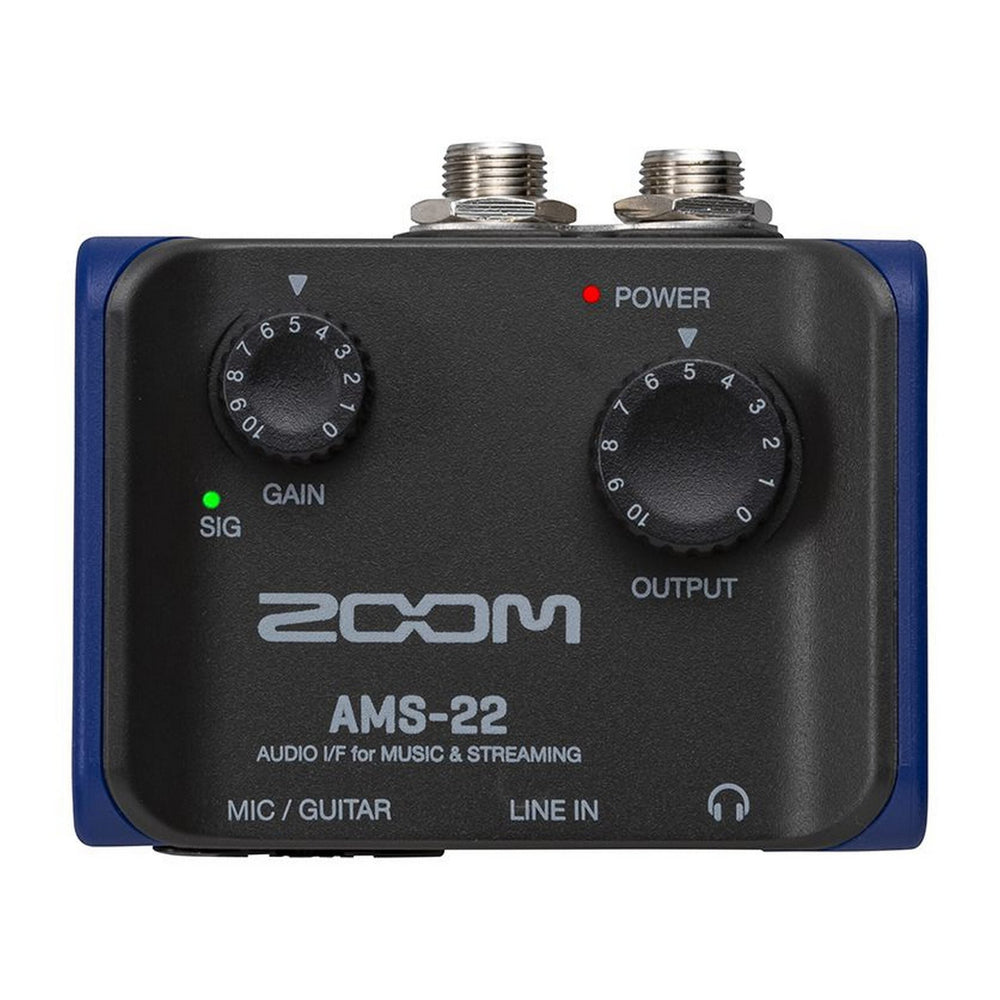

Zoom AMS-22 2-In/2-Out XLR/TRS Audio Interface
Zoom AMS-22 2-In/2-Out XLR/TRS Audio Interface
Perfect for mobile recording or streaming, the AMS-22 includes an XLR/TRS combo input, plus a stereo line in. It also includes a headphone output and 2 TRS outputs for external monitors.
With onboard hardware switches, the AMS-22 is designed to simplify common streaming challenges without the need for additional software.
Use the Direct Monitor Switch to directly send the input signal to your headphones while routing the same signal to your DAW or streaming software.
The Loopback Switch combines the input audio with playback from your computer and routes it to your streaming software. This is perfect for adding background music to your stream or singing live with an instrumental track.
Use the AMS Series on any device thanks to its support for Mac and PC, along with iOS and Android devices.
Technical Specifications
Input and Output Channels
NUMBER OF INPUT CHANNELS
Mono (MIC/GUITAR)
1
Stereo (LINE IN)
1
NUMBER OF OUTPUT CHANNELS
Stereo (TRS)
1
Stereo (PHONES)
1
Connectors
MIC/GUITAR
Type
XLR/TRS combo jack
(XLR: 2 HOT, TRS: TIP HOT)
Input Gain
+8 - +54 dB (MIC) / +8 - +54 dB (GUITAR)
Input impedance
XLR: 2 kΩ (MIC)
TS: 1 MΩ (GUITAR)
Maximum input level
XLR: +0.6 dBu (MIC)
TS: +11 dBu (GUITAR)
Phantom power
+48 V
OUTPUT (STANDARD PHONE JACKS)
Type
TRS phone jacks (impedance balanced)
Maximum output level
-2 dBu (at 0 dBFS)
Output impedance
100 Ω
OUTPUT (HEADPHONE JACK)
Type
3.5mm stereo mini jack
20 mW + 20 mW (32 Ω load)
Output impedance
10 Ω
USB
USB Type-C (audio interface function)
Use a USB cable that supports data transfer. USB bus power is supported.
DC 5V
USB Type-C (for power supply)
LINE IN Type
3.5mm stereo mini jack
Input impedance
20 kΩ
Maximum input level
+1.5 dBu
Frequency Response
44.1 kHz: +0/-2 dB (20 Hz - 20 kHz)
96 kHz: +0/-3 dB (20 Hz - 40 kHz)
Equivalent Input Noise
-120 dBu or less (IHF-A) at +54dB/150Ω input
Audio Interface
INPUT AND OUTPUT CHANNELS
Recording: 2 channels
Playback: 2 channels
SAMPLING FREQUENCIES
96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz
BIT DEPTH
24-bit
INTERFACE
USB 2.0
CLASS
USB Audio Class 2.0
Power
AC adapter (ZOOM AD-17): DC 5 V/1A
USB bus power is supported.
Rated Current
USB bus power / DC 5 V power supply: 170 mA
Power Consumption
1.8 W maximum
Dimensions
68.0 mm (W) x 57.7 mm (D) x 46.0 mm (H)
Weight (unit only)
85 g
Note: 0 dBu = 0.775 Vrms
