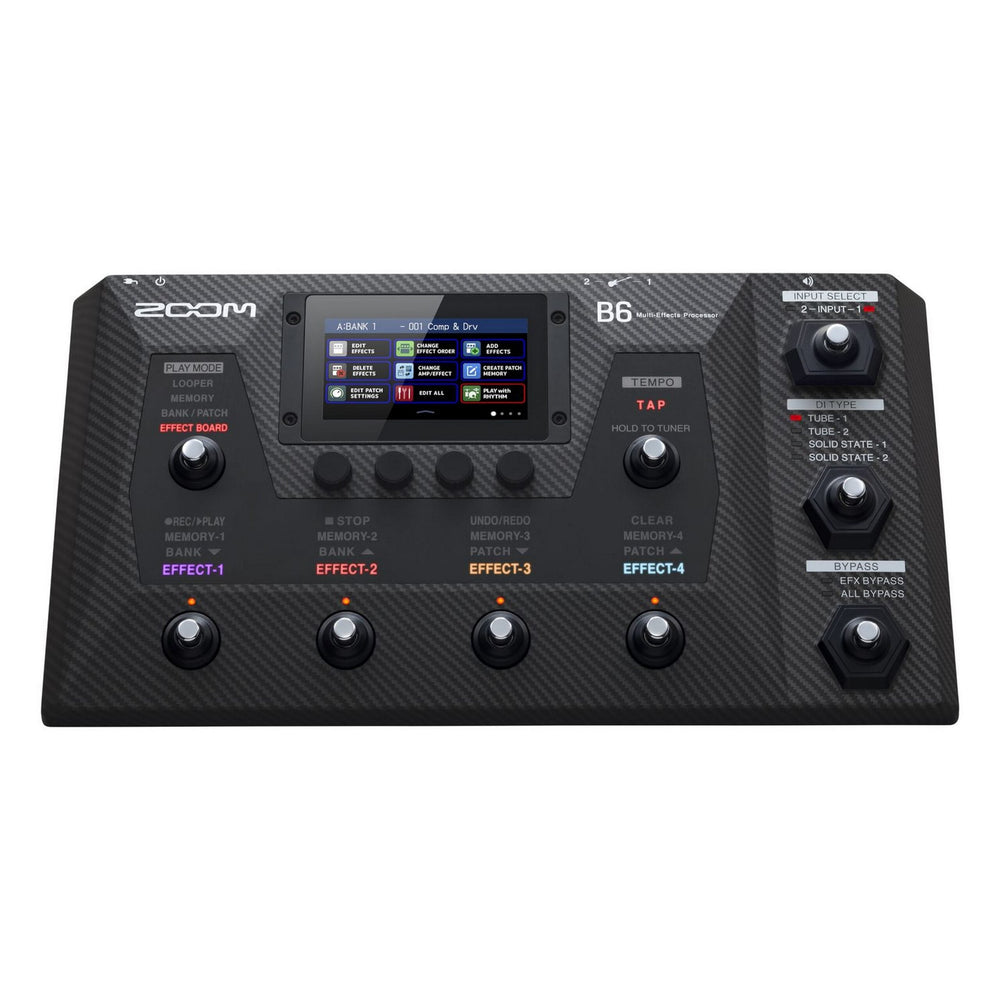

Zoom B6 Multi-Effects Processor for Bass
Zoom B6 Multi-Effects Processor for Bass
Free Shipping
Zoom B6 Multi-Effects Processor for Bass
With four DI models and advanced multi-effects, the B6 gives you freedom to explore entirely new sounds. Our new analog circuit, combined with the DI section vastly improves the low-frequencies of your instrument. With an 88.2 kHz effects processor, double the rate of others, the B6 has your high end covered. Separate inputs allow you to A/B switch from electric bass to synth or acoustic bass, and back again. Both inputs let you change the impedance from 1M to 10M ohms, giving you a cleaner tone for upright basses equipped with piezo pickups. The B6 features 11 of the best amp models in history, plus a couple of new ones. The B6 provides simulations of 12 classic bass cabinets, each with three variations based on mic positioning. The B6 also delivers the ultimate collection of Zoom’s legendary effects, along with 10 new ones. The 4.3-inch color touchscreen lets you drag, drop and rearrange effects to build the perfect signal chain in seconds.
Key Features
- 4 DI models: 2 tube and 2 solid state models
- Integrated A/B switcher for seamless instrument switching
- Ultimate Zoom FX processor technology with amp modeling
- Integrated pedal board with 9 stomp switches
- IR load function for speaker cabinet simulation
- 4.3 color LCD touch-screen interface
- Chain up to 6 effects (including amp emulation)
- Two variable-impedance inputs for electric and acoustic bass
- New Play Mode Footswitch provides instant access to different play modes
- Easy-to-see backlit panel with color-coded stomp effects
- Built-in USB audio interface (2-in / 2-out)
- Rhythm patterns and looper
- Compatible with Zoom Guitar Lab
- Wireless control via optional Bluetooth adapter (BTA-1) with Handy Guitar Lab for B6 app
- Accessibility functionality for the visually impaired with Handy Guitar Lab for B6 app
Technical Specifications
MAXIMUM NUMBER OF SIMULTANEOUS EFFECTS
6
USER PATCHES
240
SAMPLING FREQUENCY
88.2KHz
A/D CONVERSION
24-bit 128x oversampling
D/A CONVERSION
24-bit 128x oversampling
SIGNAL PROCESSING
32-bit
FREQUENCY CHARACTERISTICS
20 Hz ~ 40 kHz +0.5 dB -0.5dB (10 kOHMS load)
DISPLAY
4.3" TFT color LCD (480 x 272 pixels)
INPUTS
INPUTS
Standard mono phone jack
Rated input level
-20 dBu
Input impedance (line)
1 / 10 MOHMS (Select by Switch)
RETURN
Standard mono phone jack
Rated input level
-20 dBu
Input impedance (line)
1 MOHMS
AUX IN
Stereo mini jack
Rated input level
-10 dBu
Input impedance (line)
10 kOHMS
OUTPUTS
AMP OUT/PHONES
Standard mono phone jack
Maximum output level (line)
+11.4 dBu (when output impedance 10 kOHMS or higher)
Headphones
24 mW + 24 mW (at 32 OHMS load)
OUTPUT
XLR jack
Impedance
100 OHMS (HOT-GND, COLD-GND), 200 OHMS (HOT-COLD)
GND LIFT (Select by switch)
SEND
Standard stereo phone jack
Maximum output level (line)
+11.4 dBu (when output impedance 10 kOHMS or higher)
NOISE FLOOR (RESIDUAL NOISE)
AMP OUT/PHONES
-96.0 dBu
OUTPUT
-100.0 dBu
SEND
-99.0 dBu
CONTROL INPUT
FP02M input
POWER
AC adapter (9v DC 500mA, center negative) (Zoom AD-16)
USB
Port
USB 2.0 Micro-B/Supported cable type: Micro-B
Guitar Lab
USB 1.1 Full Speed
Audio Interface
USB 2.0 Full Speed, 44.1 kHz(32-bit)/88.2kHz(16-bit), 2 in, 2 out
- Use a USB cable that supports data transfer. USB bus power is not supported
SD CARD
STANDARDS
Cards that support SD/SDXC/SDHC specifications (class 10 or higher)
LOOPER
44.1 kHz/ 16-bIt'stereo WAV
IR
44.1 - 192kHz, 16/24/32-bit WAV
REMOTE
ZOOM BTA-1 or other dedicated wireless adapter
EXTERNAL DIMENSIONS
228 mm (D) x 418 mm (W) x 65 mm (H)
WEIGHT
1.89 kg
Note: 0 dBu = 0.775 V
