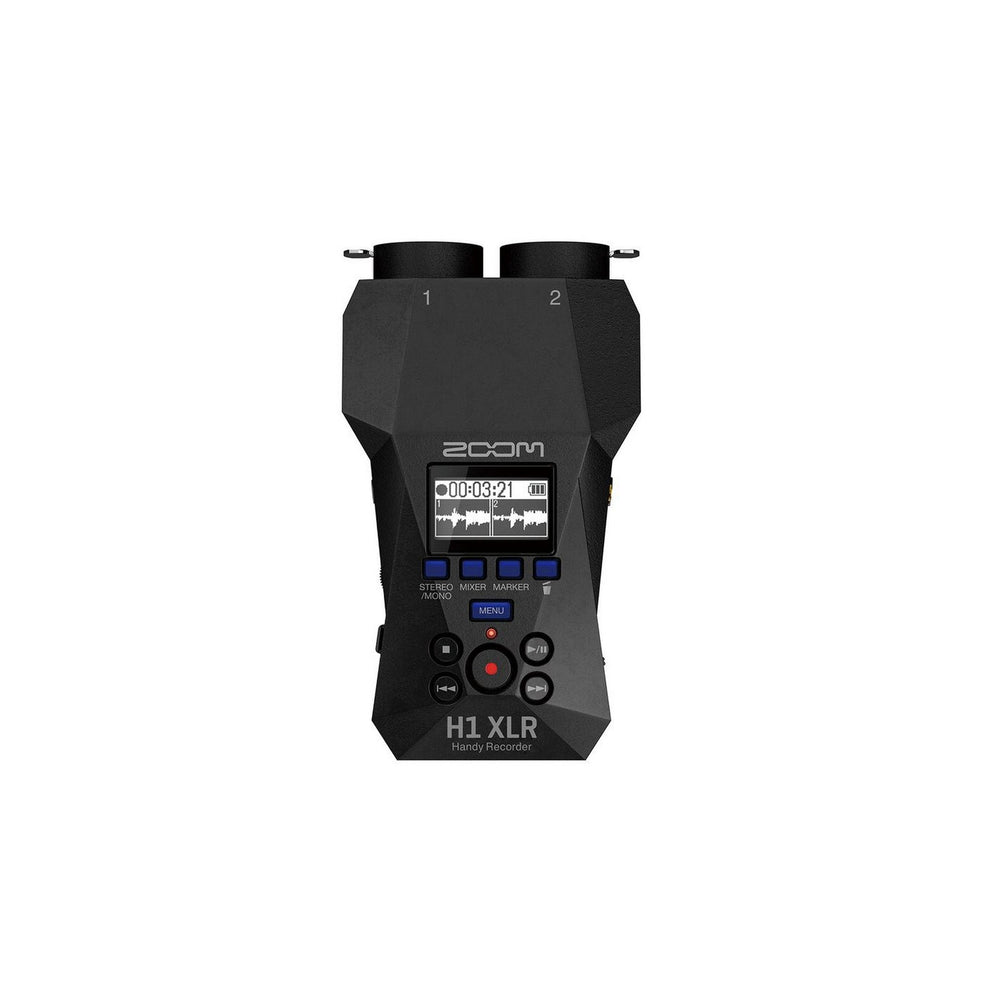

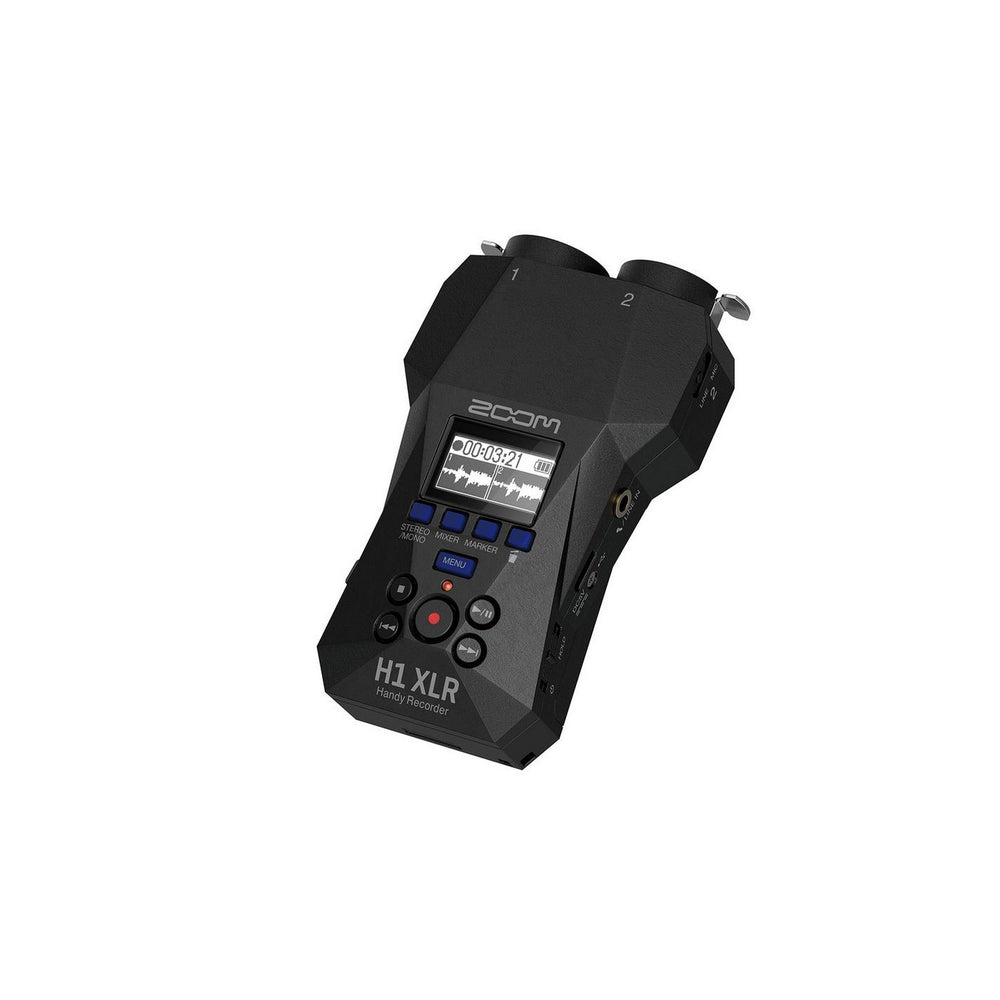

Zoom H1 XLR 2-Track Handy Recorder

The Zoom H1 XLR is a high-performance 2-track handheld recorder that offers exceptional audio quality with its dual A/D converters. This recorder captures up to 96kHz sample rates in 32-bit float format, ensuring a clip-free experience even in extreme dynamic environments. With two XLR/TRS combo inputs and a built-in mixer, users can easily adjust input levels for optimal sound capture. The H1 XLR’s robust features are designed for professional sound designers, musicians, podcasters, and videographers who require reliable, high-quality recordings in any setting.

Accessibility is a key feature of the H1 XLR, as it includes voice guidance for visually impaired users. Whether you're recording interviews, music, or field audio, the real-time waveform display on the OLED screen provides clear visual feedback. The device’s dual-functionality lets you use it as an audio interface while recording directly to SD cards (microSDHC and microSDXC cards up to 1TB), making it ideal for both mobile recording and home studio setups. You can even mount it on a tripod for stability during recordings.

Designed for long sessions, the H1 XLR offers up to 10 hours of battery life on two AA batteries, or can be powered via USB-C for extended use. With its versatile input options, including a stereo ⅛" mic/line mini phone jack and a ¼”-20 tripod mount, the H1 XLR is built to handle a wide range of recording scenarios. Whether you're capturing live performances or recording studio-quality audio on the go, the Zoom H1 XLR ensures your sound is always crisp and clear.

Key Features

• 2-track 32-bit float recording with dual A/D converters
• Clip-free recording with automatic gain adjustment
• Records up to 96kHz sample rate in WAV format
• Voice guidance accessibility for visually impaired users

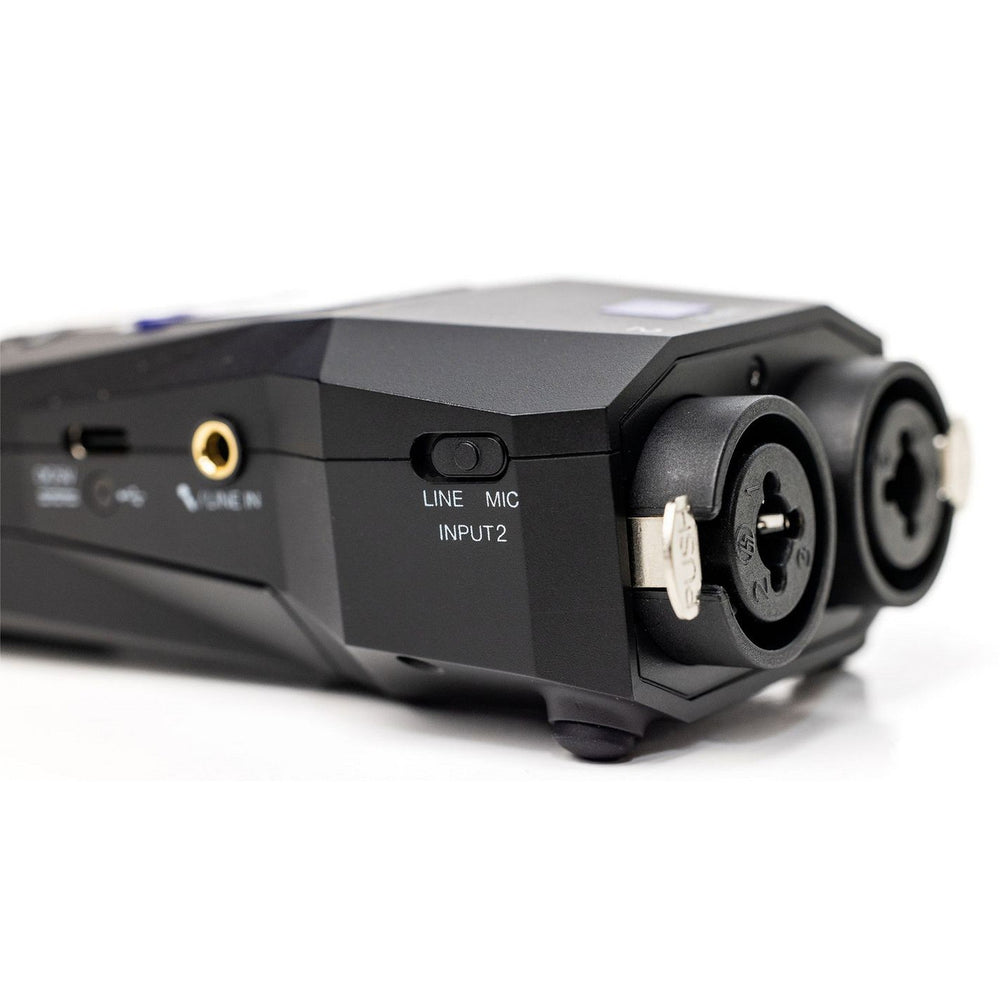

• 2 XLR/TRS combo inputs with locking connectors
• Hardware MIC/LINE input level select switch for each input
• Stereo ⅛" Mic/Line In mini phone jack
• Stereo ⅛" Phone/Line Output jack with dedicated volume control

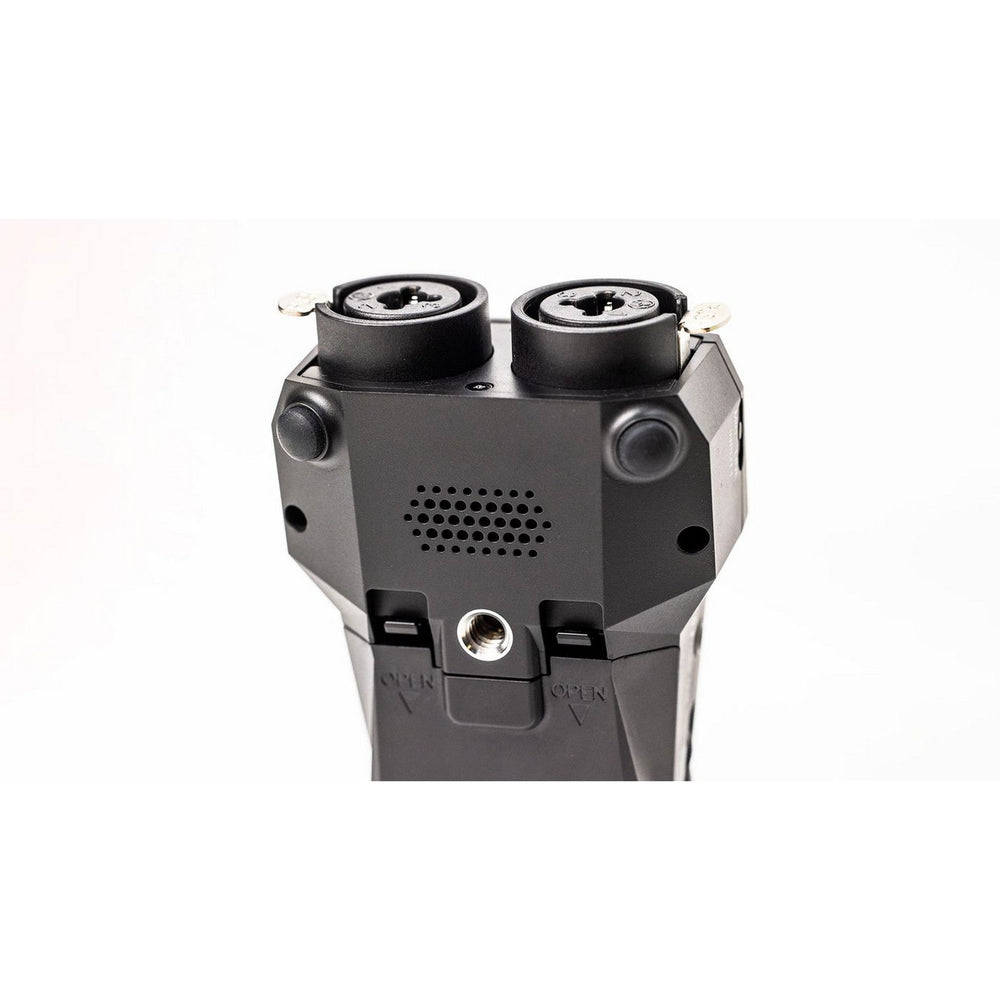

• ¼”-20 tripod mount for secure placement
• Real-time waveform display on OLED screen
• Built-in mixer for adjusting input levels per track
• USB-C audio interface compatible with PC, Mac, iOS, and Android
• Simultaneous recording to SD card and as a USB interface
• Battery life of up to 10 hours on 2 AA batteries or USB-C bus power

Technical Specifications

Inputs
MIC/LINE (mono) Connectors: 2 XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)
Input gain: Adjustment unnecessary (dual A/D converter circuits used)
Input impedance: MIC: 2.7 kΩ or more, LINE: 1 kΩ or more
Maximum input level: MIC: +4 dBu, LINE: +24 dBu
Phantom power: +48 V, Channel total 10 mA or less
Equivalent input noise: MIC: –122 dBu or less (IHF-A) at 150Ω input, LINE: –100 dBu or less (IHF-A) at 600Ω input
MIC/LINE IN jack Connector: Stereo mini jack
Input impedance: 2 kΩ
Plug-in power: 2.5 V

Outputs
PHONE / LINE OUT jack Connector: Stereo mini jack
Maximum output level: 20 mW + 20 mW (when 32 Ω load)
Output impedance: 10 Ω or less
Built-in speaker Type: 20 mm × 30 mm elliptical dynamic speaker
Effective maximum output: 250mW

Recorder
Recording format: WAV (44.1, 48 or 96 kHz / 32-bit float), Stereo / Mono
Recording media: 4 – 32GB microSDHC cards, 64GB – 1TB microSDXC cards
Display: OLED, 128 x 64
USB
Connector: USB Type-C
Audio interface: USB Audio Class 1.0
Input and output channels: 2 in / 2 out (Stereo)
Sampling frequencies: 44.1, 48 kHz
Bit depths: 16-bit, 32-bit float
File transfer: USB 2.0 High Speed

Power
2 AA batteries: Alkaline, Lithium, or Rechargeable NiMH
AC adapter: ZOOM AD-17: DC 5 V/1 A (USB bus power supported)
Estimated continuous operation time (Phantom Power OFF)
Alkaline batteries: About 12 hours
NiMH batteries (1900 mAh): About 11 hours
Lithium batteries: About 19 hours
Estimated continuous operation time (Phantom Power ON)
Alkaline batteries: About 4 hours
NiMH batteries (1900 mAh): About 3 hours
Lithium batteries: About 9 hours
Power consumption: 2.5 W maximum

Dimensions: 2.4" x 4.2" x 1.5"
Weight: 0.36 lbs (including batteries)

What’s Included

• Zoom H1 XLR Handy Recorder
• Owner’s Manual
