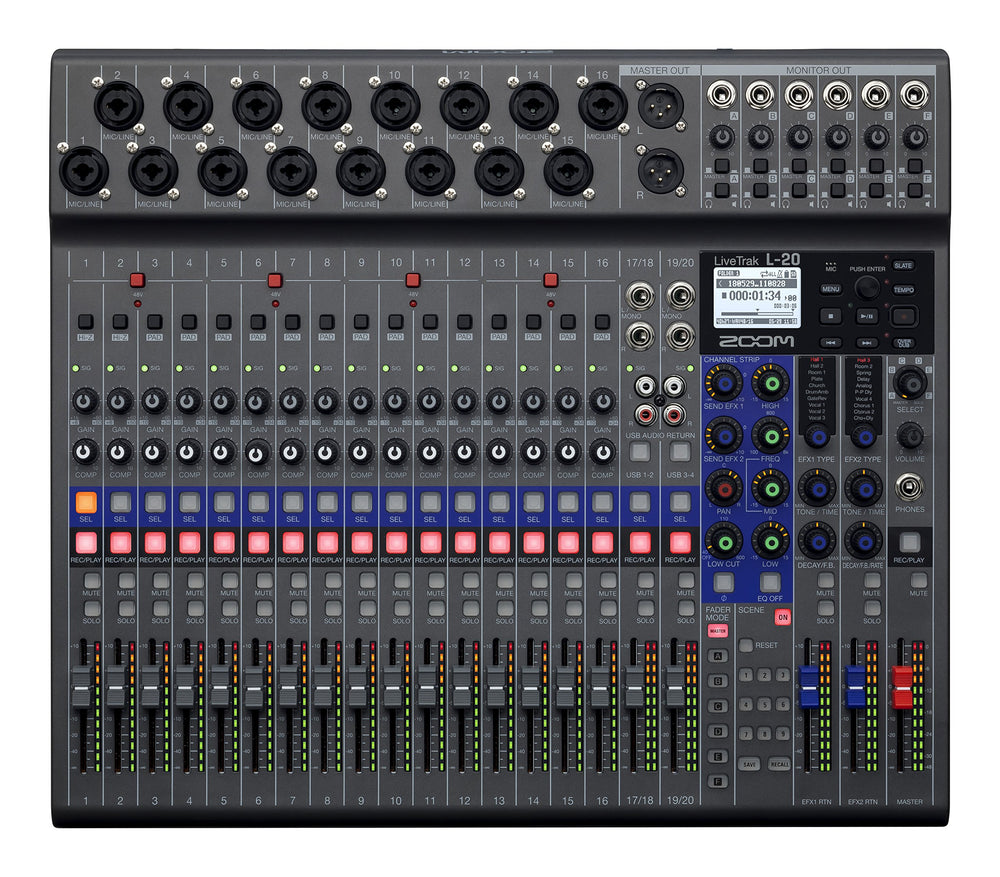

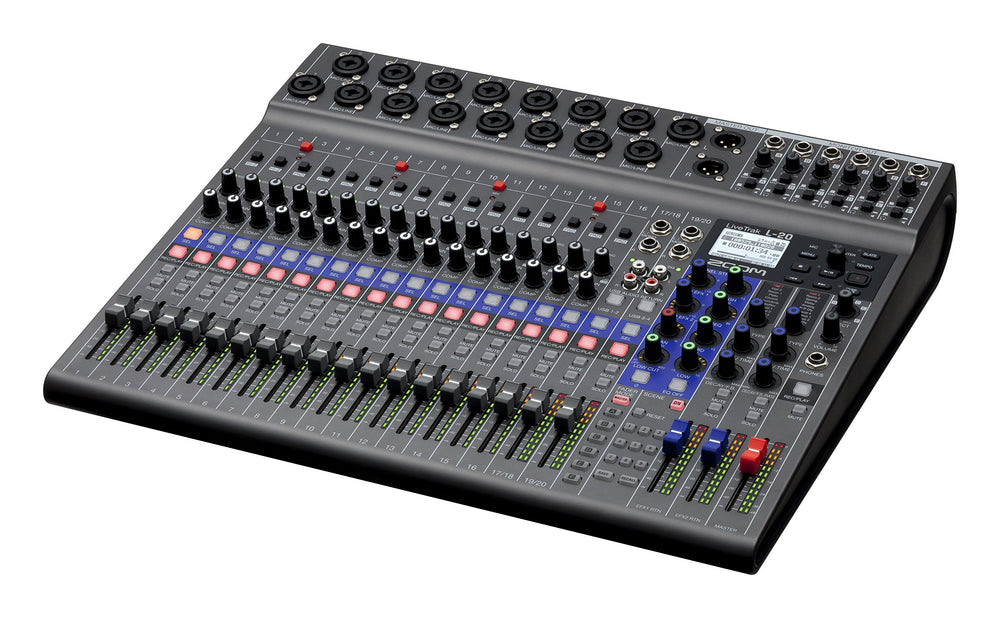

Zoom LiveTrak L-20 20 Channel MultiTrack Recorder and Digital Mixer
The LiveTrak L-20 is the new digital console offering everything creators need to mix, monitor, and record complex productions. With 20 discrete audio channels and six individual custom monitor mixes, it’s built for bigger, bolder arrangements.
Key Features
- 20 discrete channels (16 mono plus 2 stereo) with XLR or ¼-inch connectivity
- 22-track simultaneous recording, 20-track playback
- 22-in/4-out USB audio interface connectivity
- Records up to 24bit/96kHz audio to SD card
- 48V phantom power
- Hi-Z connectivity (channels 1-2)
- 26dB pad (channels 3-16)
- Built-in compression control (Channels 1-16)
- Solo buttons for individual channels
- Variable frequency low-cut control
- Main outputs plus 6 customizable monitor outputs
- Dedicated headphone output for sound engineer
- Scene saving function, up to 9 scenes saved at a time
- 20 built-in chorus, delay and reverb effects with adjustable parameters
- Two effect busses
- Built-in slate mic
- Class-compliant mode (for iOS compatibility)
- Compatible with Remote Mixer app for iPad
- Automatic recording starting/stopping capability
- Pre-record function
- Import/export projects with USB 2.0 host port
- Compatible functions for ZOOM FS01 footswitch
- Automatic power-save function
Technical Specifications
Included with the L-20
LiveTrak L-20
AD-19 AC Adapter
USB 2.0 Cable
Quick Guide
NUMBER OF INPUT AND OUTPUT CHANNELS
Inputs:
Mono (MIC/LINE): 16
Stereo (LINE): 2
Output:
MASTER OUT: 1
MONITOR OUT: 6
PHONES : 1
SYSTEM REQUIREMENTS FOR AUDIO INTERFACE MODE
Windows
OS? Windows® 7 SP1 or later / 8.1 / 10 (32bit/64bit)
CPU: Intel® Core i3 or faster*
USB: USB 3.0/USB 2.0**
* Operation is not guaranteed with CPUs from Atom, Celeron or Pentium series or CPUs made by AMD.
** Only USB host controllers with Intel Chipsets are supported. Operation is not guaranteed when used with USB hubs or expansion cards.
Mac
OS? Mac® OS X 10.11 / 10.12 / 10.13
CPU: Intel® Core i3 or faster
USB: USB 3.0/USB 2.0*
* Operation is not guaranteed when used with USB hubs or expansion cards.
iPhone/iPad
OS? iOS 9 / 10 / 11
* Apple Lightning-to-USB Camera Adapter required.
External dimensions
445 mm (W) × 388.4 mm (D) × 82.6 mm (H)
Weight (main unit only)
3.71 kg
