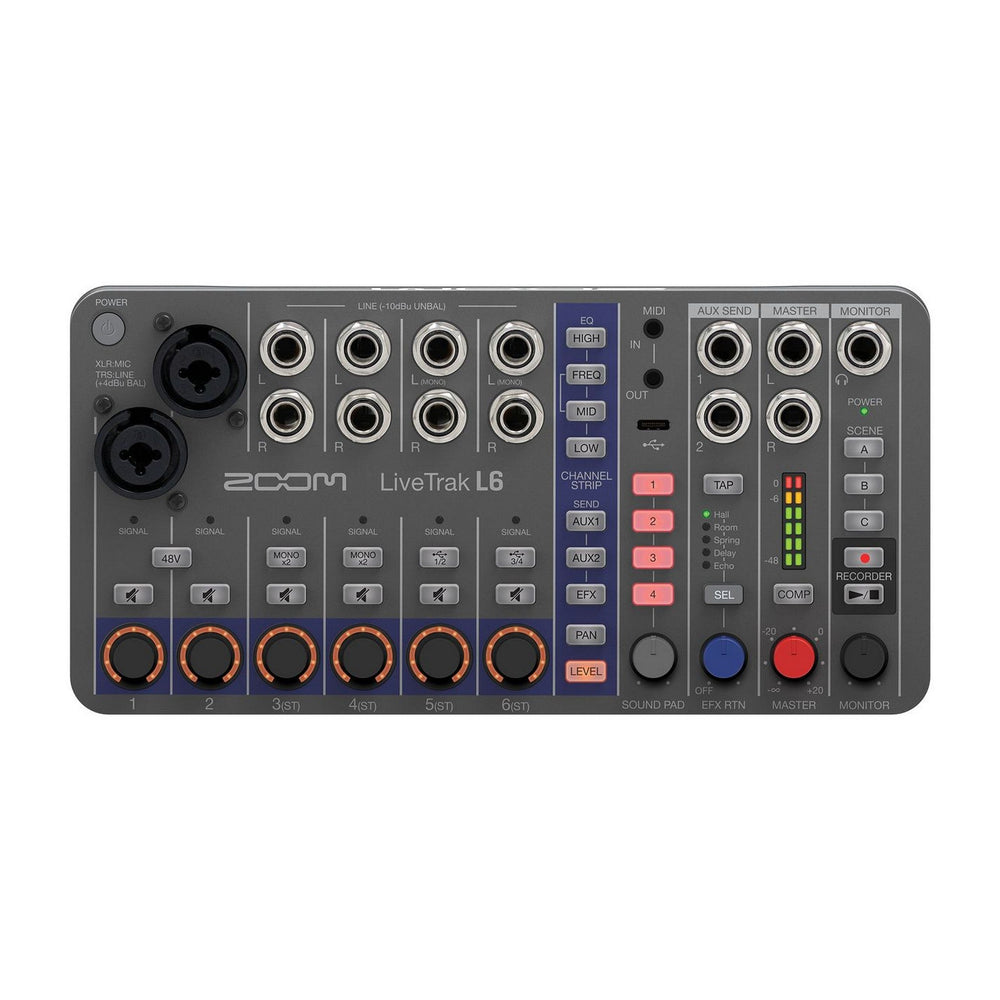

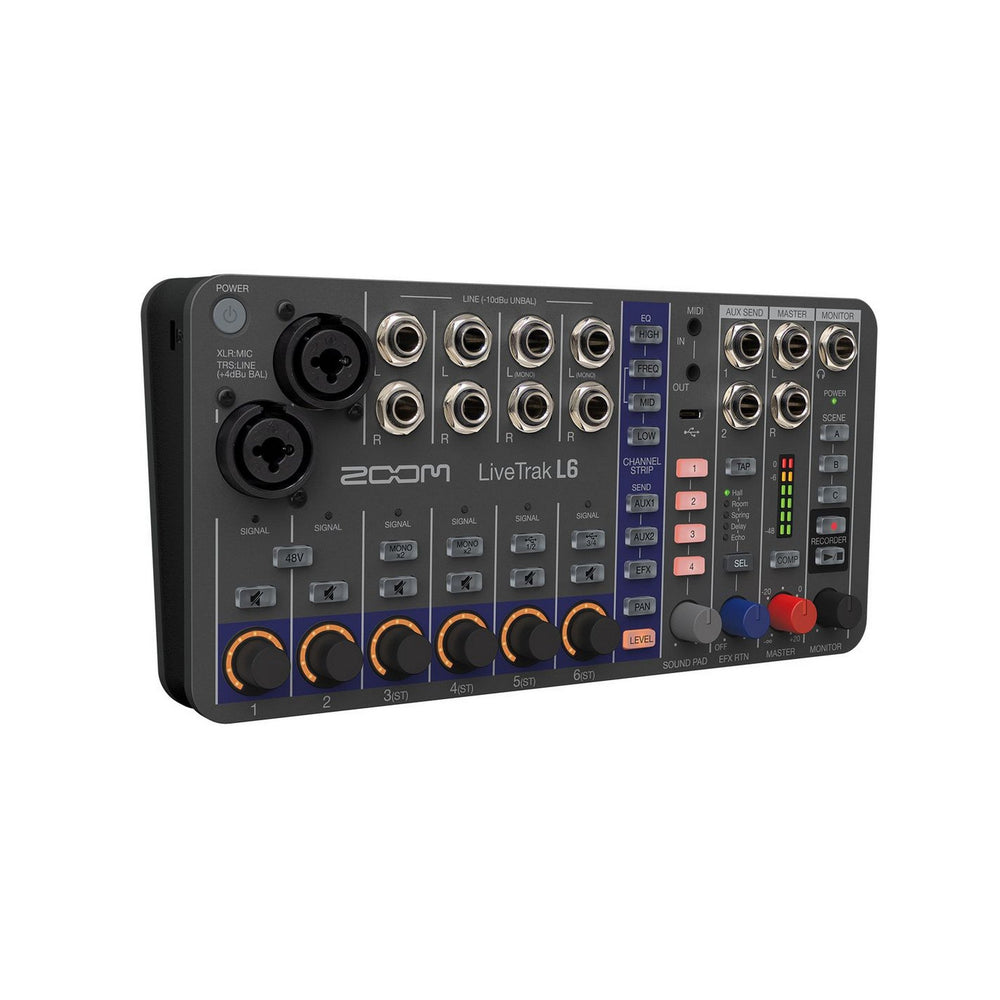

Zoom LiveTrak L6 10-Track Digital Mixer/Recorder

The Zoom LiveTrak L6 is a highly portable and ultra-compact 10-channel digital mixer and recorder designed for musicians, podcasters, and live performers. With its 2 XLR/TRS combo inputs and 4 stereo inputs, the L6 allows for versatile recording and mixing in any setting. This digital mixer features 12-track simultaneous recording, 32-bit float multi-track recording to microSD cards, and 5 internal send effects, ensuring professional-grade sound quality in all your recordings. The intuitive interface also includes 3 Scene memory settings to store mixer and tempo configurations for easy recall.

In addition to its powerful recording capabilities, the LiveTrak L6 serves as a 12-in/4-out USB audio interface for seamless integration with DAWs, allowing you to record and mix in real time. The mixer includes MIDI in/out for controlling external gear, and 4 assignable sound pads to trigger audio clips during live performances. With its 3-band EQ, including mid-frequency control for each channel, the L6 enables complete sound customization. The device also features headphone and master outputs for clear monitoring and is compatible with Eurorack setups, giving you flexibility in both studio and live environments.

Designed for maximum portability, the LiveTrak L6 can run on 4 AA batteries or via USB power, making it perfect for mobile recording. Whether you’re in a studio, on stage, or on the move, the LiveTrak L6 combines ease of use with professional-level functionality, providing an all-in-one solution for digital mixing and recording.

Key Features

• 10-channel ultra-compact digital mixer
• 2 XLR/TRS combo inputs + 4 stereo inputs
• 12-track simultaneous recording to microSD cards
• 32-bit float multi-track recording for high-quality, clip-free audio
• 5 internal send effects for enhanced sound processing
• 2 AUX send outputs for flexible routing
• 4 assignable sound pads for triggering audio clips
• 3-band EQ with MID freq control for each channel
• Headphone output + master output for easy monitoring
• MIDI In/Out for external gear control and USB MIDI interface
• 3 Scene memory for storing mixer and tempo settings
• Eurorack compatible for modular synth integration
• 12-in/4-out USB audio interface for DAW integration
• Operates on 4 AA batteries or USB power for portable use

Technical Specifications

Input and Output Channels
Inputs
MIC/LINE (mono) – 2
LINE (stereo) – 4
Outputs
AUX SEND (mono) – 2
MASTER (stereo) – 1
MONITOR (stereo) – 1

Inputs
MIC/LINE Connectors – 2 XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)
Input gain – Adjustment unnecessary (dual A/D converter circuits used)
Input impedance – XLR: 3.8 kΩ or more, TRS: 39 kΩ or more
Maximum input level – XLR: +4 dBu, TRS: +24 dBu
Phantom power – +48 V, Channel total of 10 mA or less
LINE Connectors – 8 TS phone jacks (balanced)
Input impedance – 10 kΩ
Maximum input level – +9 dBu
Outputs
AUX SEND Connectors – 2 TRS phone jacks (impedance balanced)
Maximum output level – +9.5 dBu
Output impedance – 147 Ω
MASTER Connectors – 2 TRS phone jacks (balanced)
Maximum output level – +15 dBu
Output impedance – 147 Ω
MONITOR Connector – TRS phone jack
Maximum output level – 50 mW + 50 mW (63 Ω load)
Output impedance – 14.7 Ω
Buses
MASTER – 1
AUX SEND – 2
SEND EFX – 1
Channel Strip
3 BAND EQ – HIGH 10 kHz, ±15 dB, shelving
MID 100 Hz – 8 kHz, ±15 dB, peaking
LOW 100 Hz, ±15 dB, shelving
Level Meters
6 segments
Send Effects
5 types
Recorder
Maximum simultaneous recording tracks – 12
Maximum simultaneous playback tracks – 2
Recording formats – 48 kHz, 32-bit float, mono/stereo WAV
Recording media – microSDHC memory cards (Class 10 or higher), microSDXC memory cards (Class 10 or higher)
Audio Interface
Input and output channels – Input: 12 channels, Output: 4 channels
Sampling frequency – 48 kHz
Bit depth – 32-bit float / 24-bit
Interface – USB 2.0
Card Reader
Mass storage class USB 2.0 High Speed
Sampling Frequency
48 kHz
Frequency Response
20 Hz – 20 kHz / -1.0 dB
Equivalent Input Noise
-120 dBu or less (IHF-A) at 150Ω input
Power

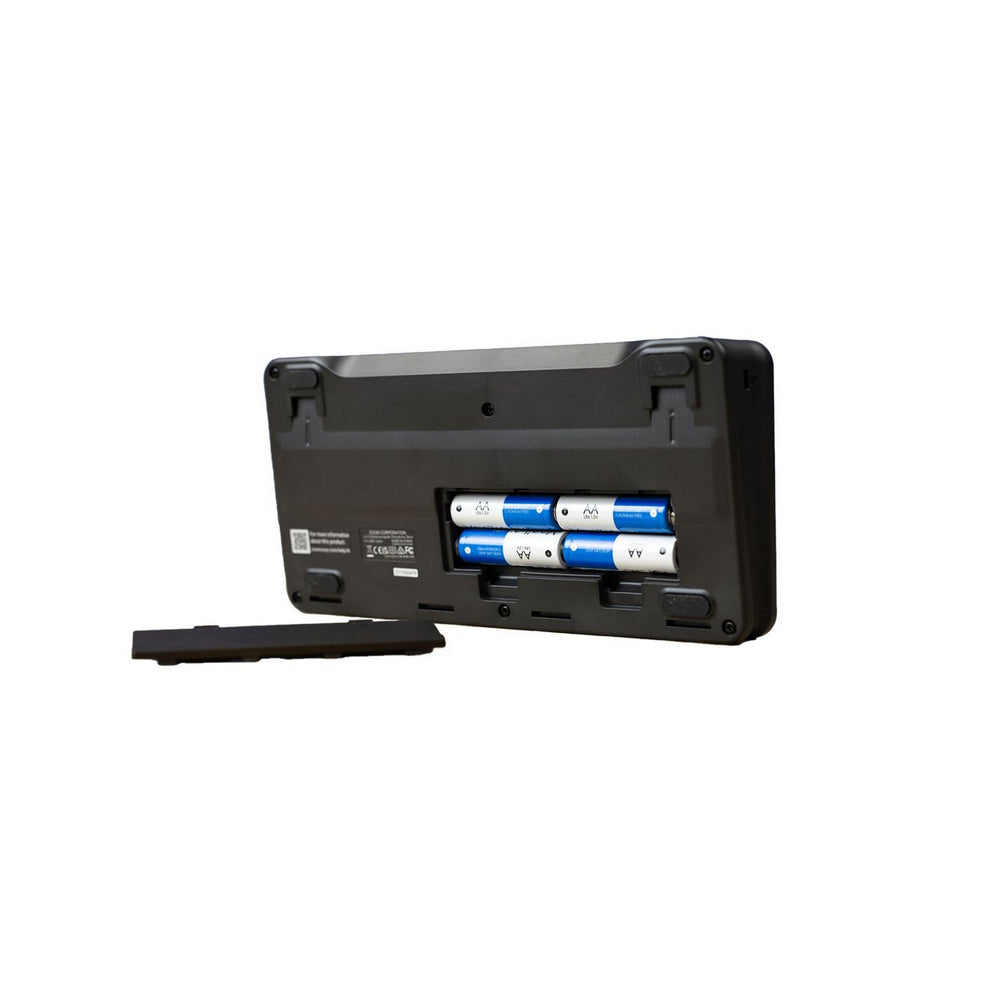

4 AA batteries – Alkaline, Lithium, or Rechargeable NiMH
AC adapter – ZOOM AD-17: DC 5V/1A
USB bus power is supported.
Estimated continuous recording time using batteries
Alkaline batteries – About 3 hours
NiMH batteries (1900 mAh) – About 3.5 hours
Lithium batteries – About 7 hours

Power Consumption
5 W maximum

Dimensions
8.78" (W) × 4.49" (D) × 1.83" (H)
Weight (Main Unit Only)
1.16 lbs
Weight (Including Batteries)
1.36 lbs

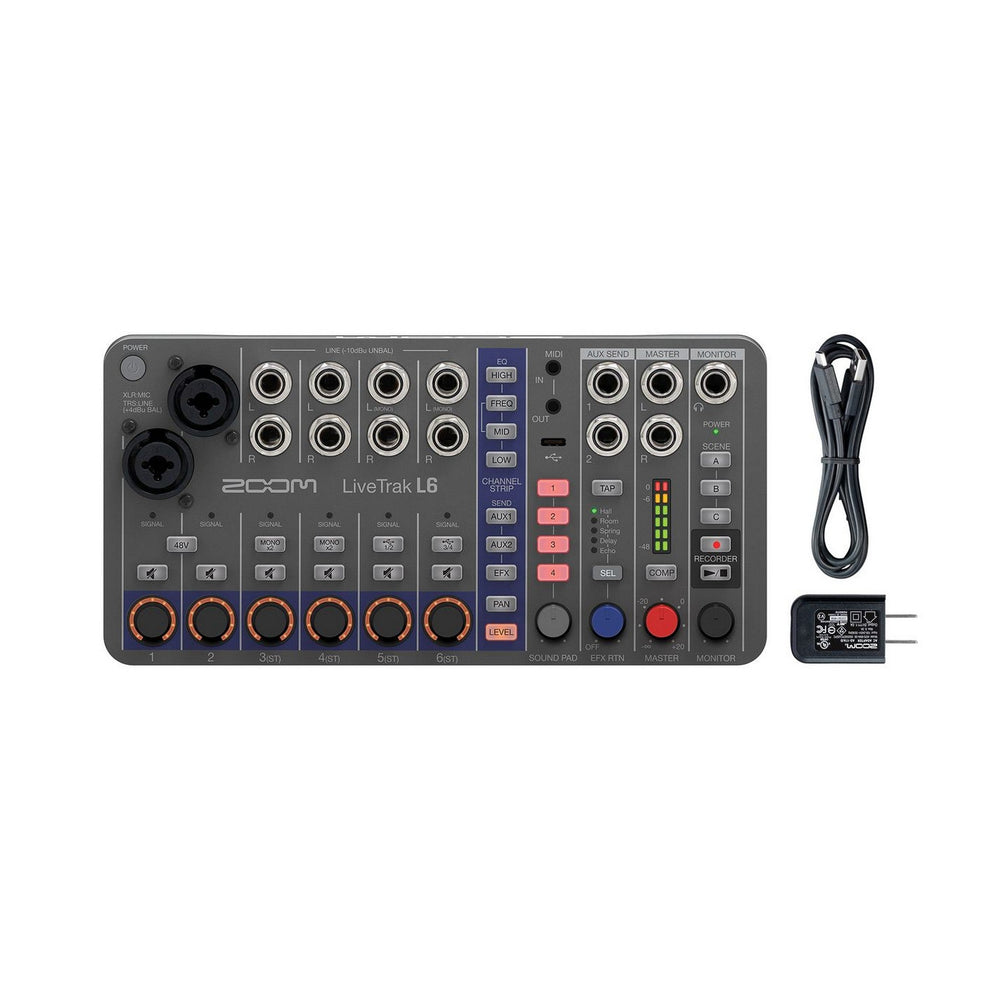

What’s Included

• LiveTrak L6
• AD-17 USB AC Adapter
• USB-C Cable
