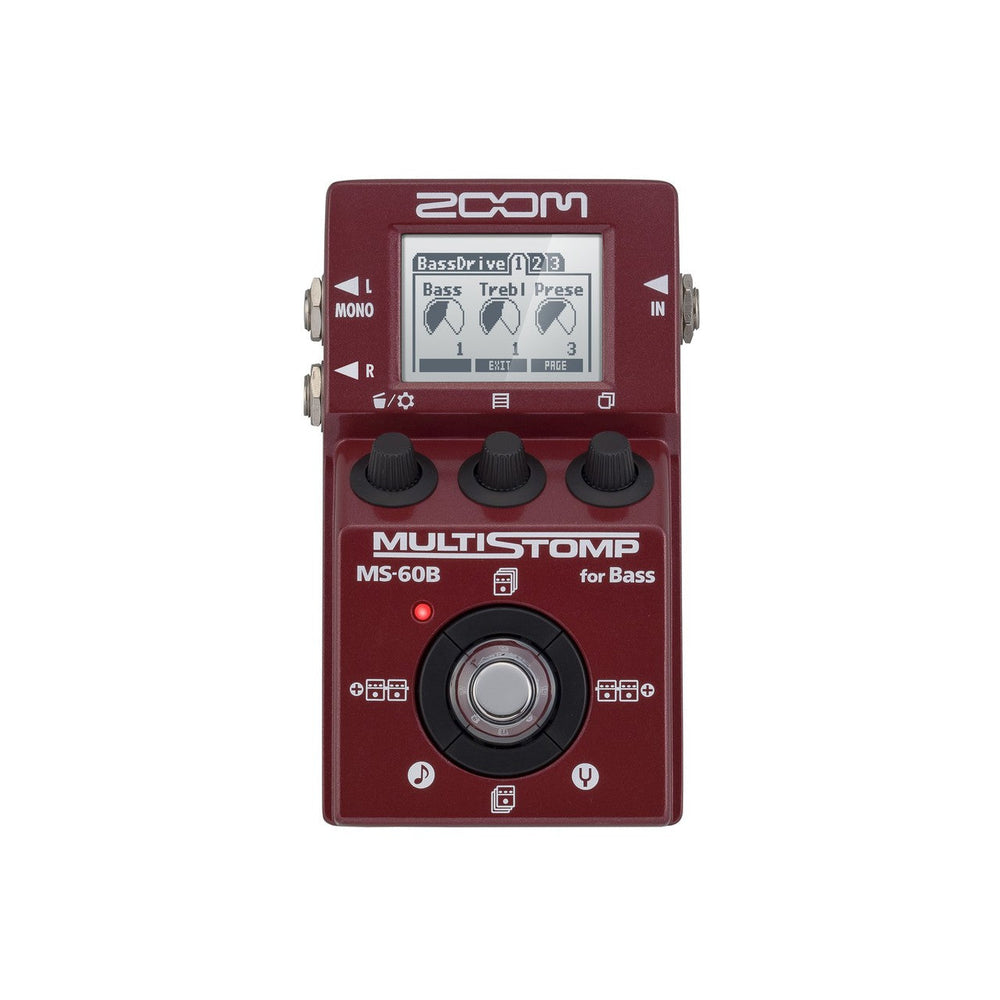

Zoom MS-60B | MultiStomp Bass Pedal with Chromatic Tuner Patch Cycling Battery Powered 1/4 Inch Input Output USB Port

Zoom MS-60B MultiStomp Bass Pedal with Chromatic Tuner Patch Cycling Battery Powered 1/4 Inch Input Output USB Port

Plug into Zoom's MS-60B Multistomp and bring your bass to the forefront. 58 expertly crafted DSP effects and bass amp / cabinet models give you everything you need to quickly and easily create deep, rich bass tones. Dual output jacks and a handy built-in tuner complete the package, making the MS-60B the perfect companion both onstage and in the studio.

The MS-60B's intuitive design allows easy navigation in both live and studio settings and makes creating, saving, and rearranging effects a breeze. Its input jack accepts signal from both passive and active guitars, and dual line-level output jacks enable you to record the MS-60B's many sounds in stereo.

You can use up to 4 effects simultaneously and arrange them in any order you likeeven bring individual effects in and out of the chain as desired. There are 50 patch memories where you can store your custom edited and chained multi-effects, with the first 30 pre-loaded with useful factory settings. An Auto Save function ensures that whatever edits you make will automatically be saved, and you can create a list of up to 26 patches to cycle through as you step on the MS-60B footswitchhandy for live gigs or whenever you want your effects in a certain order.

Key Features

• 58 bass effects and amp/preamp/DI models, including modulation, equalization, delay, and reverb
• Up to 4 effects can be used simultaneously, in any order
• 50 memory locations for the storage of user-created patches
• 30 preset patches
• Patch cycling
• Onboard chromatic tuner supports all standard bass tunings
• Tap Tempo for synchronization of delay times or modulation rates
• Auto Save function for automatic saving of all patch parameters
• 1/4" input jack (both active and passive instruments supported)
• Dual 1/4" output jacks
• Backlit LCD with contrast control for easy viewing in low-light environments
• USB port for power and firmware updates
• Lightweight and small enough to fit in your gig bag
• Easily integrated into any existing pedalboard
• Runs on 2 AA batteries, with alkaline battery life of up to 7 hours

Technical Specifications

Number of effects:
58
Number of simultaneous effects:
4
Number of patch memories:
50
Number of patch presets:
30
Sampling frequency:
44.1 kHz
A/D conversion:
24-bit, 128 x oversampling
D/A conversion:
24-bit, 128 x oversampling
Signal processing:
32-bit floating point and 32-bit fixed point
Frequency response:
20Hz - 20 kHz +1 dB, -3 dB (into 10k OHMS load)
Display:
LCD
Input:
1 x 1/4" monaural phone jack
Rated input level:
-20 dBm*
Input impedance:
1M OHMS
Output:
2 x 1/4" monaural phone jack
Maximum output level:
+5 dBm (output impedance load of 10 k OHMS or more)
Battery type:
AA size (LR6) battery x 2
Continuous battery operation time:
7 hours when using 2 AA batteries
AC adapter (optional):
DC 9V center-negative, 500 mA (Zoom AD-16)
USB:
Firmware update, bus power
Dimensions:
130.3 (D) x 77.5 (W) x 58.5 (H) mm
Weight:
350g (without batteries)
* Note: 0 dBm = 0.775 Vrms
Here's what comes included with the MS-60B:
Operation manual
AA size (LR6) battery x 2
