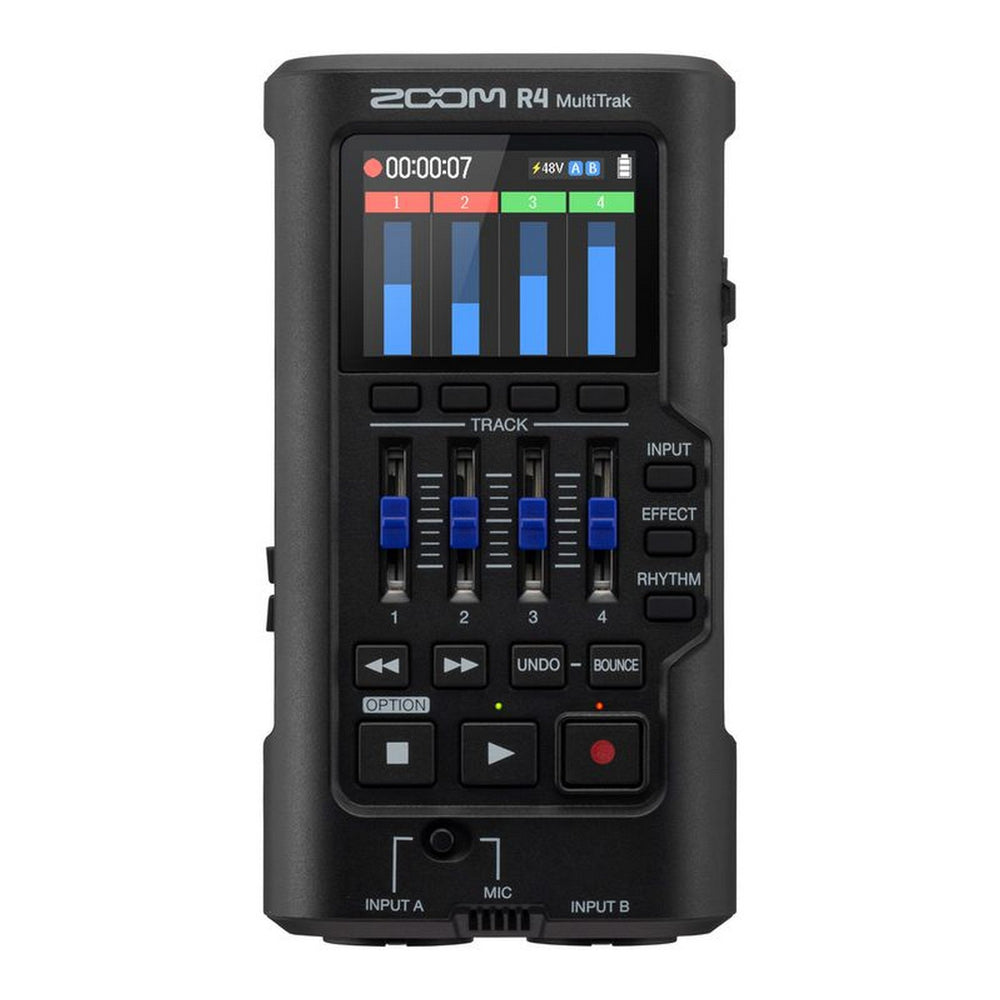

Zoom’s team of engineers are musicians, and they designed the R4 with the needs of fellow musicians in mind. The R4 boasts a dedicated ‘bounce track’ and 32-bit float recording, making it the perfect tool for capturing yZoom’s most ambitious compositions.

Record, Bounce, Repeat
With the R4, you can record up to fZoom’s tracks, mix, and bounce them to the dedicated ‘bounce track.’ This lets you free up additional tracks to keep adding layers. What's more, you can choose to do a quick bounce or mix and bounce in real-time. Plus, the R4 allows you to undo yZoom’s last bounce if you're not satisfied with the results.

32-Bit Float Recording
The R4 captures perfect audio with every take, without the need to set gain.

Combo Inputs
The R4 features 2 XLR/TS combo inputs with legendary Zoom preamps. You can plug in microphones, instruments, keyboards, and more.

Track Effects
Each track features a 3-band EQ, pan, echo, and reverb to refine yZoom’s mix.

Input Effects
Apply effects to input A, such as amp simulations, delays, distortions, and more.

Built-In Microphone
The R4 also features a high-quality built-in microphone, perfect for acoustic guitars, vocals, or capturing a quick reference recording.

Much More Than A Metronome
The R4 comes preloaded with a rhythm section of over 80 different drum patterns to play along with. Genres include rock, hip hop, funk, heavy metal, and more.

Every Take Is Saved
Tracks that you record are automatically saved individually, even after they have been bounced.

32-Bit Float Audio Interface
The R4 is also a powerful 2-in/ 2-out USB audio interface with 32-bit float technology. Connect it to either yZoom’s computer or smartphone.

Control and Create
With a fader for each track and dedicated hardware buttons for the most used functions, you won’t need to menu dive to record yZoom’s music.

Powered For YZoom’s Ideas
The R4 can be powered by 4 AA batteries or through its USB-C port.

Key Features

• 4 recording tracks and a dedicated bounce track
• Versatile inputs for guitar, bass, keyboards, microphones, and more
• Includes a built-in omnidirectional microphone
• Dual AD circuitry with advanced 32-bit float recording technology
• Features a color LCD display for easy navigation
• Offers built-in effects such as EQ, reverb, compression, and guitar effects
• 4 faders for precise volume control
• Can be used as a USB audio interface
• Powered by 4 AA batteries or an external USB-C battery
• Provides flexibility and convenience for recording on the go.

Technical Specifications

Inputs
Built-in mic (mono): 1
XLR/TS inputs (mono): 2
Output
Headphones: 1

XLR/TRS Inputs
Connectors
2 XLR/TRS combo jacks (Balanced, XLR: 2 HOT)
Input Gain
No adjustment required (dual A/D converter circuit used)
Input Impedance
XLR: 2.3 kΩ
TS: 1 MΩ
Maximum Input Level
XLR: +4 dBu
TS: +10 dBu
Phantom Power
+48 V (switchable separately for INPUTS A and B)
Equivalent Input Noise
XLR: −120 dBu or less (IHF-A)
TS: −107 dBu or less (IHF-A)
Frequency Response
XLR: -0.5 /+0.0 dB : 20 Hz - 20 kHz
TS: -0.2 /+0.0 dB : 20 Hz - 20 kHz

Built-In Mic Input
Directionality
Omnidirectional
Input Gain
No adjustment required (dual A/D converter circuit used)
Maximum Sound Pressure Input
115 dB SPL

Headphones Output
Connector
1 stereo 3.5mm mini jack
Output Impedance
10 Ω
Maximum Output Level
20 mW + 20 mW (into 32Ω load)

Recorder
Maximum Simultaneous Recording Tracks
2
Recording Format
WAV: 48kHz, 32-bit float, mono
Recording Media
Cards compatible with microSDHC specifications 4 GB – 32 GB
Cards compatible with microSDXC specifications 64 GB – 1 TB

Display
2" full-color LCD (240 x 320)

USB
Connector
USB Type-C
Note: Use a USB cable that supports data transfer. USB bus power is supported.
Audio Interface Function
Class: USB 2.0 High Speed
Sampling frequency: 48 kHz
Bit rate: 24-bit/32-bit float
Input / output channels: 2 in/2 out
Mass Storage Function
USB2.0 High Speed

Power Supply
Batteries: 4 AA (alkaline, lithium, or rechargeable NiMH)
AC adapter: ZOOM AD-17 (5V/1.0A)
* USB bus power is supported.
Estimated Continuous Operation Time Using Batteries
Alkaline batteries: about 7 hZoom’ss
NiMH batteries (1900 mAh): about 6 hZoom’ss
Lithium batteries: about 14 hZoom’ss
* Use conditions: Recording 1 track, playing 1 track, phantom power off, headphones into 32Ω load, power saving on
* The above values are approximate.
* Continuous battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions.
Power Consumption
5 W
External Dimensions
74 mm (W) x 138 mm (D) x 36 mm (H)
Weight (Including Batteries)
287 g
Note: 0 dBu = 0.775 Vrms
