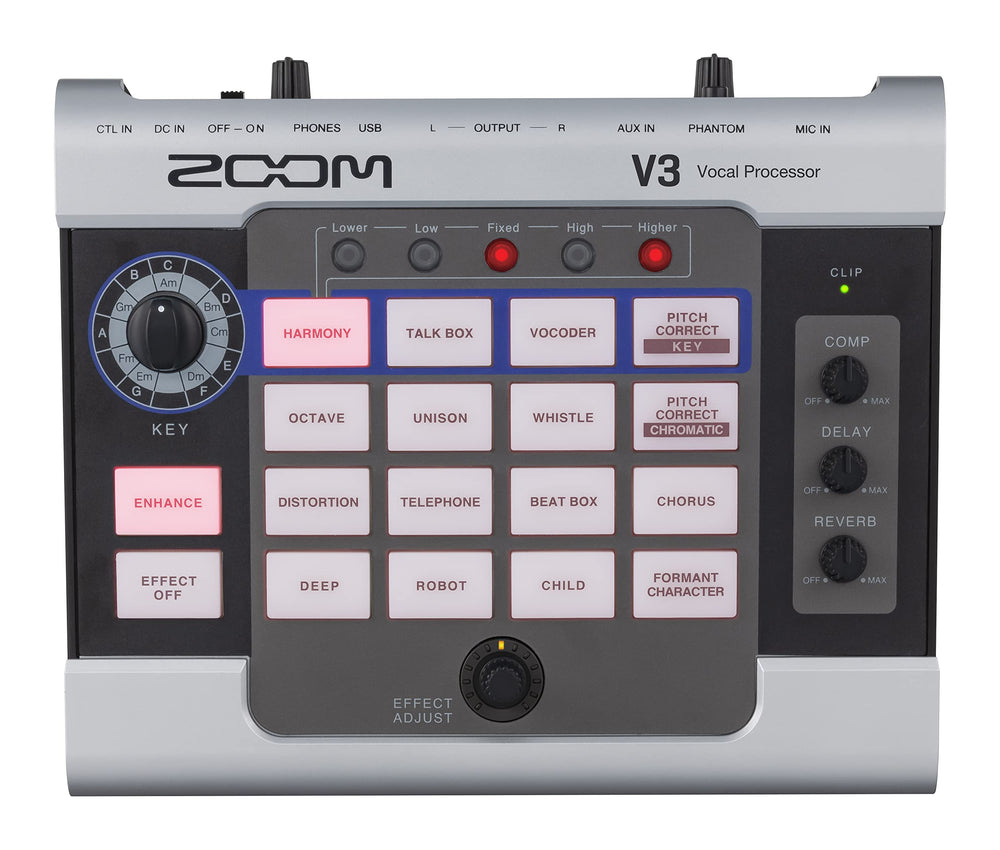

Zoom V3 Vocal Processor

Give Your Voice New Dimensions
Whether you’re streaming, recording, or collaborating online, the V3 is packed with effects, harmonizing options, pitch correction and more. Your voice will sound instantly amazing - from home, or anywhere else.

Back Up Yourself
Create and arrange your own backup vocals. Add up to two voices to create your 3-part harmonies in both major and minor keys.

Creative Voice Effects
Choose from 16 voice-changing effects like Unison and Vocoder to enhance your performance. V3’s parameter knob allows you to fine-tune your sound. The special effects enable you to alter your voice for video game streaming, podcasts, and YouTube videos.

All the Essentials
In addition to advanced effects, the V3 lets you dial-in your reverb, delay and compression using dedicated control knobs.

Moment of Clarity
The V3 provides a professional quality pre-amp so you can sound your best. While, the Enhance function automatically optimizes the performance of any mic.

Add More Flavor
Press the Formant Character button and use the parameter knob to alter your vocal characteristics without changing the pitch.

The Zoom SGV-6 Mic
The optional Zoom SGV-6 microphone is designed to isolate your voice by suppressing ambient noise. The mic’s vocal isolation enables the V3 to process your voice with unmatched accuracy.

USB Audio Interface
The V3 connects to your computer or mobile device via USB to become an audio interface for recording and streaming.

Hands-Free Control
Toggle effects precisely on beat with the ZOOM FS01 footswitch, or freely modulate effect parameters with the ZOOM FP02M expression pedal.

Easy Access

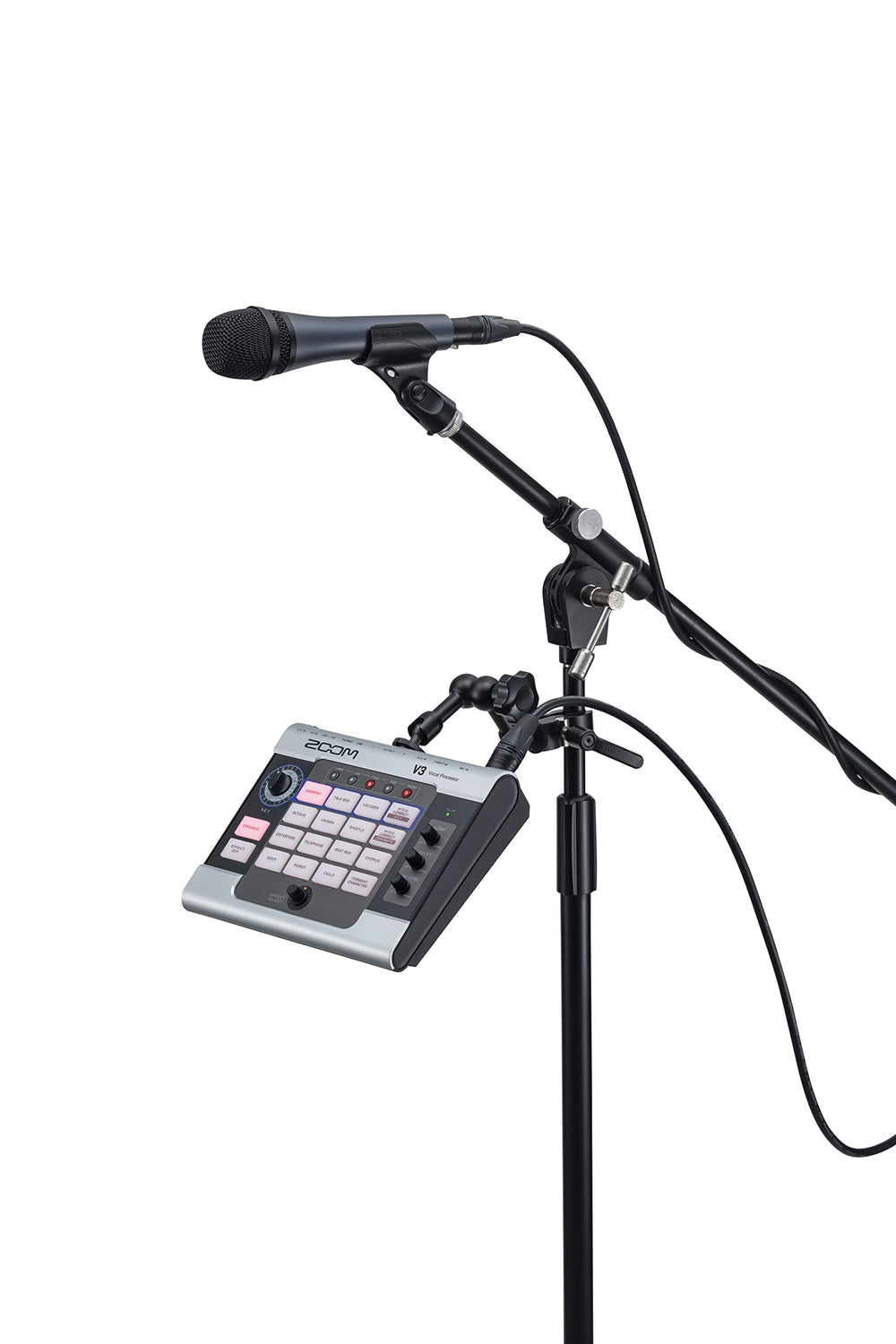

The V3 can be used on a tabletop or can be attached to a mic stand using the Zoom HRM-7 or HRM-11 Handy Recorder Mount.

Key Features

V3 offers 16 creative voice effects plus compression, reverb, delay and enhance
Add up to two voices to create 3-part harmonies across a full octave
Independent compression, reverb and delay controls
Built-in Enhancer for increased sound clarity
48V phantom power for condenser microphones
USB 2.0 audio interface capable of recording up to 16/24/32-bit, 44.1 kHz
Line outputs for connecting to PA systems or mixing consoles
Headphone output with dedicated volume control
Auxiliary input
Operates for 3.5 hours on 4 AA batteries or with Zoom AD-16 AC adapter

Technical Specifications

V3 MULTI-EFFECTS VOCAL PROCESSOR
Effects: 16 types
Concurrent effects: 5
Sampling frequency: 44.1 kHz
A/D conversion: 24-bit 128× oversampling
D/A conversion: 24-bit 128× oversampling
Signal processing: 32-bit
Frequency response: 20 Hz-20 kHz (+1 dB/-3 dB) (10 k OHM load)
MIC IN
XLR jack
Input gain: +3 - +40 dB
Maximum input level: +4 dBu
Input impedance: 3 k OHM or higher (1 kHz)
Phantom power: +48 V
AUX IN
Stereo mini jack
Rated input level: -10 dBu
Input impedance (line): 22 k OHM
L/R OUT
Unbalanced TS jacks
Maximum output level: +6 dBu
Output impedance: 100 OHM
PHONES
Stereo mini jack
Maximum output level: 20 mW + 20 mW (into 32 OHM load)
Equivalent input noise (when phantom power off): -125 dBu or less (A-weighted, 150 OHM input, +40 dB input gain)
Noise floor (residual noise): -75 dBu
Control input: FS01/FP02M input
POWER
AC adapter (9 V DC 500 mA, center negative) (ZOOM AD-16)
4 AA batteries (about 3.5 hours continuous operation time when using alkaline batteries)
USB: Connector
Micro USB
Audio interface operation: 2-in/2-out USB2.0 Full Speed, 44.1 kHz, 16/24/32-bit
Power can also be supplied through the USB port.
When using a cable designed only for power, other USB functions cannot be used.
WEIGHTS AND DIMENSIONS
External dimensions: 150 mm (D) × 190 mm (W) × 50 mm (H)
Weight: 0.59 kg (excluding batteries)
What’s in the Box
V3 Multi-Effects Vocal Processor
4 AA Batteries
V3 Operation Manual
