Aurora TAV 21 21 Inch Next-Generation Infrared Temperature Check Tablet, White

The TAV-10 is a 10.1" next generation infrared temperature check tablet. To ensure that people entering a location are not running a high temperature, the TAV-10 can provide audible, visual, email, and other electronic alerts when a person is running a high temperature. Scan results take less 1 second, and users can be scanned from up to 5ft (1.5 meters) away. Built from the ground up with the latest technology, the system uses an advanced algorithm for detecting and calculating heat signatures by detecting the canthus of the human eye. A new precision thermal sensor with 5 times the resolution of previous solutions measures with a tolerance of +/- 0.3 degrees Celsius (+/- 0.5 degrees Fahrenheit).

Key Features

• Photo & thermal result email alerts
• 2 person forehead scanning
• Digital signage capabilities
• QR code scanning
• Mask detection and enforcement
• Gesture detection for hands-free questionnaire responses
• Configurable min/max temperature thresholds, mask enforcement, questionnaire, alerts, digital signage, and more
• ReAX control engine for automation & integration with third-party devices and access systems
• Streaming camera feed for security and remote viewing

Technical Specifications

Panel Information
Resolution
1920 x 1080
Brightness
350 cd/m
Contrast ratio
1000:1
Aspect Ratio
16:9
Active Display Area
479 x 270.5mm
Viewing angle
H:178 / V:178
Touch Technology
10 point capacitive touch (reflective glass)
Hardware & OS
CPU
RK3399 Cortex Six core Processor 1.8GHz/1.4GHz
RAM
4GB DDR3
ROM
32GB eMMC Flash
OS
Android 9 or Linux Debian 9 (Coming Q1)
Video/Audio Output
Auxiliary video
HDMI output for remote monitoring of results
Speaker
3W x 2
Communication
Bluetooth
EDR 4.0
WiFi
802.11 b/g/n 2.4GHz and 5GHz
Ethernet
10/100/1000 LAN
General Information
Color
Black or White
I/O

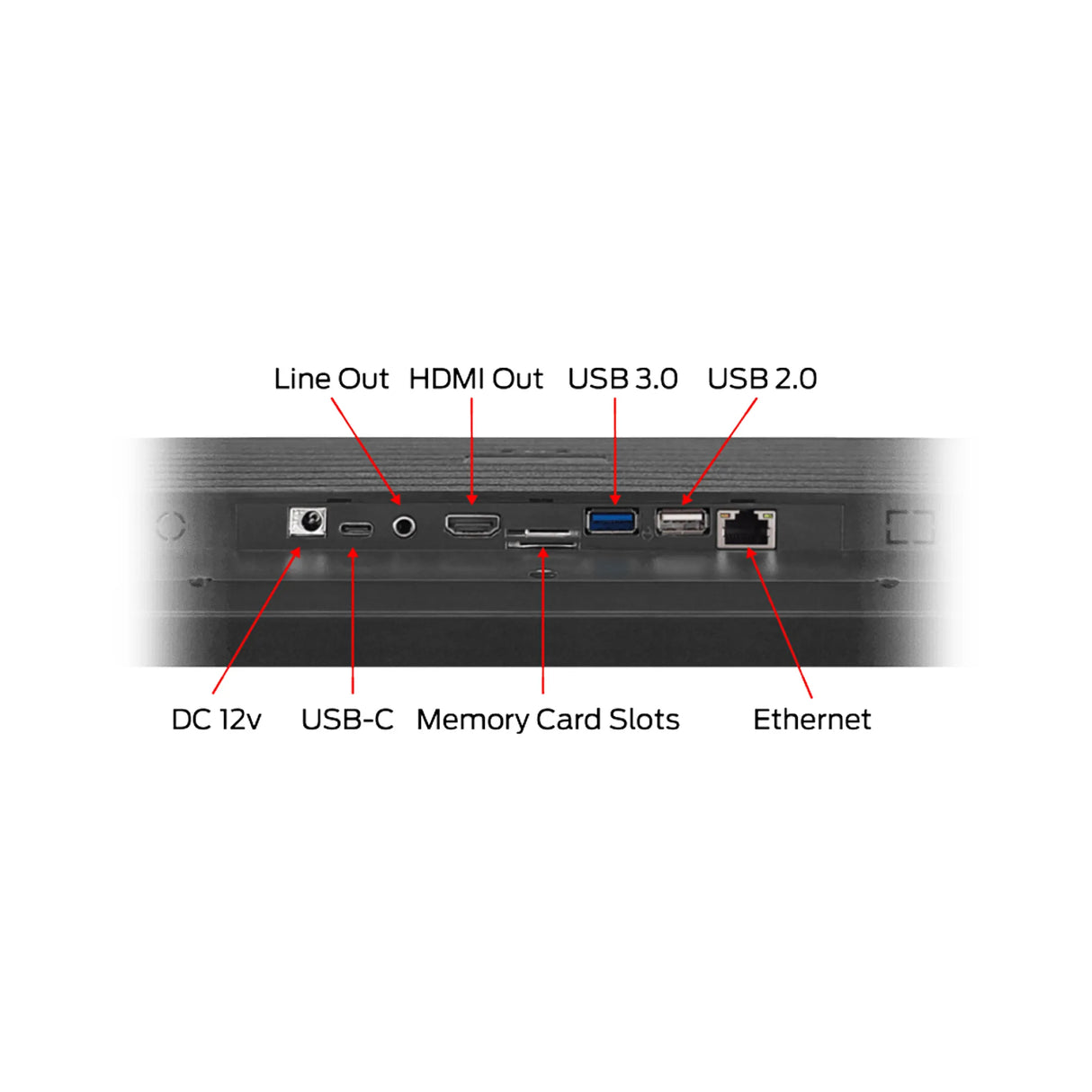

12v DC Input, USB Type C, 3.5mm Audio Line L/R Out, HDMI 2.0 Output, SD Card Slot, SIM Card Slot (4G Option), USB 3.0, USB 2.0, 1G LAN PoE
AV Capability
Front Facing Binocular Camera 2 MP fixed focus
Included in Box
Tablet, Power Adapter, Power cable
Sensors
G-sensor
Consumption
32W
Power Input
12V 3A or PoE++
Operating Environment Temperature
Operating: 32F to 100'F (0C to 40C); Storage: -4 F to 122F (-20'C to 50C)
Operating Environment Humidity
Operating: 20%-80%; Storage- 10%-95%
Certification
CE, FCC, ROHS
Language
Multi language
VESA
VESA 100
Warranty
3 Years
Infrared Temperature Sensor
Size
125mm x 36.44mm x 27.20mm (39.67mm deep including lens)
Temperature check distance
0.3m-1.5m
Physical
Size (WxDxH)
597mm x 321.2mm x 35.5mm
Product Weight
3.8Kg
Box Size
593mm x 465mm x 98mm
Mount Pattern
VESA 100x100
