Aviom A320 Personal Mixer
Authorized Dealer
Free Shipping
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description

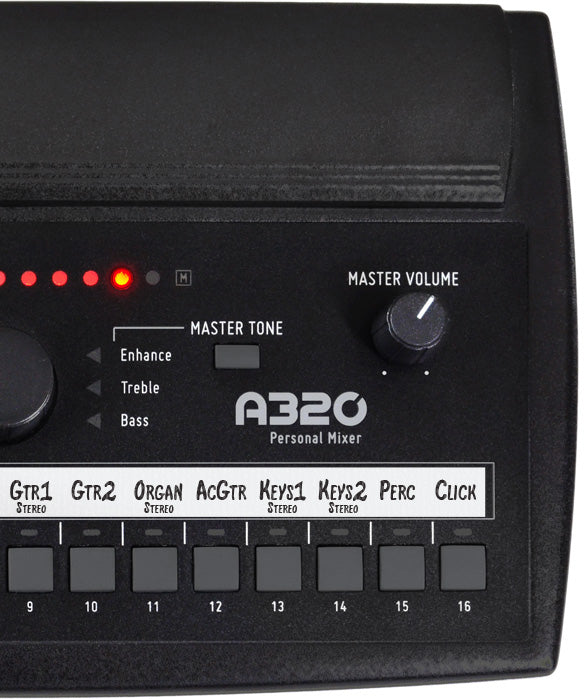

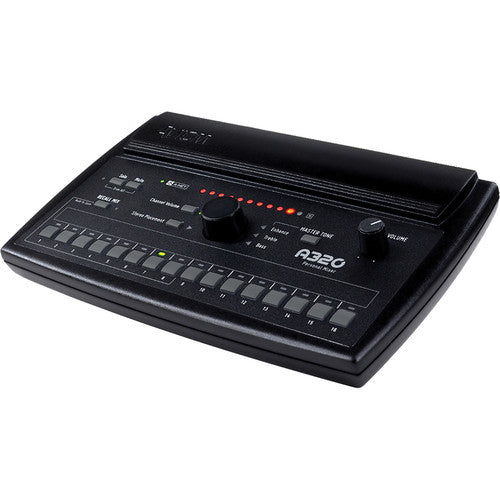

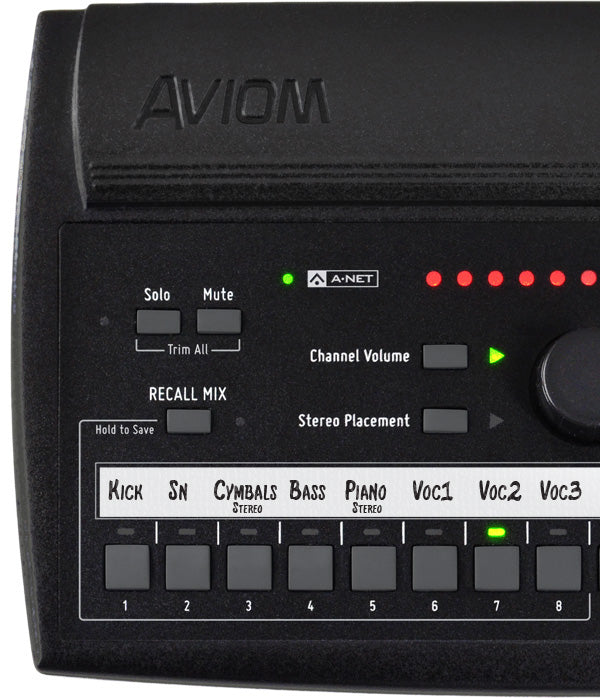

Aviom A320 Personal Mixer
The A320 Personal Mixer gives performing and recording musicians simple, intuitive control over their monitor mixes. With many of the features of the award-winning A360 Personal Mixer, the A320 gives musicians the ability to get clear, musical monitor mixes every time they play. Ideal for use with in-ear monitors and headphones, the A320 gives musicians powerful control over their mix, while also preserving the simplicity required for use while performing.
Key Features
- 16 mono or stereo sources
- 32-channel mix engine
- Per-channel volume and stereo placement
- Eight customizable mix presets
- Three-band master tone controls optimized for in-ear monitors
- Per-channel solo and mute
- Compatible with existing Aviom personal mixing systems
Technical Specifications
- Audio Output: 1/4" TRS stereo, headphone or line level
-
Stereo Mix Output, Headphone/Line:
- Tip: Audio Left
- Ring: Audio Right
- Sleeve: Ground
-
A-Net I/O:
- Input: 1 A-Net In, RJ45 connector
- Supports: Pro16 and Pro16e
- D/A Conversion: 44.1/48kHz, 24-bit
-
Stereo Operation:
- Mode: Stereo Link, per channel pair
- Setting: Set at the input module
- Control: Variable pan per mono channel or pan/spread per stereo channel pair
- Headphone Output: 275 mW per side into 50 Ohms (both sides driven)
- Output Impedance: 5 Ohms
- Frequency Response: 3Hz-22kHz +0.2dB/-3dB at 50 Ohms
- THD +N: < 0.003%
- Output Voltage for Personal Mixers: 24VDC, 0.5 amp
- Transmission: Transmitted over the Cat-5e cable
- Signal to Noise (unweighted): -106dB (measured with zero data into all channels)
- Latency: 0.880 msec (measured from analog input to analog output)
-
Pro16e A-Net:
- Cable: Use Cat-5e (or better) cable
- Maximum Distance: 400 ft (122 m) between devices
- Power Support: Supports Power Over A-Net
- Cat-5 Cable: Use shielded Cat-5e (or better) cable to stay below the CISPR 22 Class B, ICES-003, and FCC 47 CFR Part 15 Class B emissions limits.
-
Power:
- Requirement: 24 VDC, 0.5 amp
- Supply Method: Power is supplied over the Cat-5 cable when connected to an Aviom A-Net Distributor
- Dimensions: 10.26" (260.6 mm) wide x 6.14" (155.95 mm) deep x 1.91" (48.51 mm) high
- Weight: 1.3 lb. (0.59 kg)
- Options: MT-1a Mic Stand Mount
Installation / Use Cases
- Creating personal monitor mixes with a personal mixer for performing and recording musicians
- Using in-ear monitors and headphones for clear, musician-controlled monitoring during live performance
- Adjusting per-channel volume and stereo placement for customized monitor balance
- Saving and recalling customizable mix presets for repeatable rehearsal and stage setups
- Integrating into existing Aviom personal mixing systems using A-Net connectivity
- Building simple, intuitive monitor workflows for musicians who need quick control while performing
Package Contents
- Aviom A320 Personal Mixer
Frequently Asked Questions
What is the Aviom A320 Personal Mixer used for?
The Aviom A320 Personal Mixer is a personal monitor mixing system designed for live sound and studio environments, allowing musicians and performers to create their own custom in-ear monitor mixes with precise control over multiple audio channels.
How does the Aviom A320 Personal Mixer connect in a monitoring system?
The Aviom A320 Personal Mixer connects via Aviom’s A-Net digital audio network, integrating with compatible Aviom systems to receive multiple channels of audio over a single Ethernet cable for streamlined setup and reliable signal distribution.
How many channels can you control on the Aviom A320 Personal Mixer?
The Aviom A320 Personal Mixer provides control over up to 16 mono or stereo channels, giving users flexible mixing options for instruments, vocals, and other audio sources in a personal monitoring setup.
Is the Aviom A320 suitable for in-ear monitoring systems?
Yes, the Aviom A320 Personal Mixer is ideal for in-ear monitor systems, offering high-quality audio control, stereo mixing capability, and an intuitive interface that allows performers to adjust their monitor mix in real time.
What features make the Aviom A320 Personal Mixer easy to use on stage?
The Aviom A320 Personal Mixer features a user-friendly interface with dedicated channel controls, customizable channel grouping, stereo linking, and quick-access buttons, making it easy for performers to adjust their personal mix during live performances.
Who is the Aviom A320 Personal Mixer best suited for?
The Aviom A320 Personal Mixer is ideal for musicians, bands, worship teams, and live production environments that require reliable personal monitor mixing, giving each user independent control over their audio mix for improved performance and monitoring clarity.
