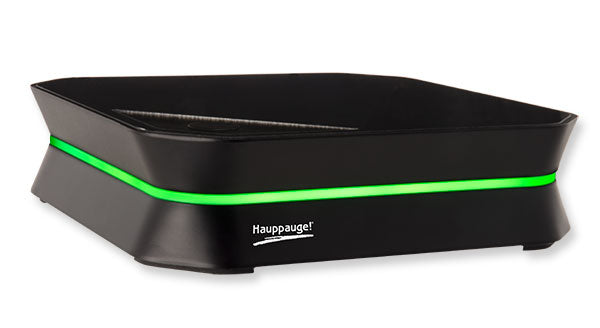

Hauppauge HD PVR 2 HD Video Recorder from Cable or Satellite TV

Hauppauge HD PVR 2 HD Video Recorder from Cable or Satellite TV

The HD PVR 2 records video at up to 1080p from a DVR or satellite or cable TV set top box or a video game console. HD PVR 2 can record from either HDMI (without HDCP protection) or Component Video at up to 1080p. You can record TV programs from a DVR and free up space on the DVR for more recordings. Create a library of your favorite TV programs. Or use the included WinTV v8 application to schedule TV recordings directly from a cable TV or satellite set top box.

Key Features

• 1080p Recording Capability: Captures video at resolutions up to 1080p30 from HDMI or component video sources
• Hardware H.264 Encoder: Studio-quality video encoding with 70-frame GOP for superior compression quality
• Dual Input Options: HDMI input for non-HDCP sources and component video input for maximum compatibility
• Variable Bitrate Recording: 1 to 13.5 Mbits/sec CBR or up to 21 Mbits/sec VBR for optimal quality-size balance
• No-Delay HDMI Passthrough: Watch TV live while recording simultaneously without latency
• IR Blaster Included: Automatic channel changing for scheduled recordings from cable/satellite boxes
• WinTV v8 Software: Advanced scheduling and recording management for unattended TV capture
• StreamEez Integration: Built-in live streaming capability for Twitch and YouTube channel creation
• Multiple Recording Formats: AVCHD (.TS and .M2TS) plus .MP4 for broad software compatibility
• Built-In Record Button: Front-panel control for instant recording start/stop without PC access
• Personal Logo Inserter: Add custom branding watermarks to recordings and video streams
• Optical Audio Support: High-quality digital audio capture in addition to analog stereo
• Compact Desktop Design: Space-efficient 6"" x 6"" x 1.5"" footprint, weighs only 0.75 lbs
• DVR Offload Capability: Create personal TV program library and free up cable/satellite DVR space

Technical Specifications

• Hardware Encoder: Studio quality video encoder with 70 frame GOP for optimal recording quality
• Video Encoding: H.264 AVCHD high definition encoder with recording resolution up to 1080p30
• Recording Datarate: 1 to 13.5 Mbits/sec (CBR) or up to 21 Mbits/sec (VBR)
• Recording Video Formats: AVCHD (.TS and .M2TS) plus .MP4
• HDMI Passthrough:
  • HDMI in to HDMI out - up to 1080p60
  • Component Video in to HDMI out - up to 1080p60
• Input/Output Connections:
  • HDMI in, from HDMI sources without HDCP (some cable and satellite boxes)
  • Component video in, with stereo audio (sometimes marked 'YPrPb' on cable or satellite boxes)
  • S-Video and composite video in, with stereo audio (optional cable not supplied)
  • HDMI passthrough
• Dimensions (W x D x H): 6" x 6" x 1.5"
• Power: 6V at 1.6 amps
• Weight: .75lb / .34 kg / 12 oz
• Recording Formats:
  • 1080p60p (recorded as 1080p30)
  • 1080p50p (recorded as 1080p25)
  • 1080i60
  • 1080i50
  • 720p60
  • 720p50
  • 480p60
  • 480i60
  • 576p50
  • 576i50
• System Requirements:
  • Laptop or desktop PC with 3.0 GHz single core or 2.0 GHz multi-core processor
  • Microsoft Windows 10, 8, 7 or Vista (32 or 64-bit)
  • TV set with HDMI input (optional for preview)
  • 1 GB memory recommended
  • Internet connection (for Hauppauge Capture download)

Package Contents

• HD PVR 2 high definition H.264 personal video recorder, USB 2.0
• 6V 1.6 amp power supply
• USB cable - 9 ft.
• 2 meter HDMI cable to connect to your TV monitor
• 2 meter IR blaster cable
• Hauppauge A/V adapter cable with Component video connectors, to connect to your cable or satellite box
• Hauppauge Capture (download)
• WinTV v8 (download)
• Quick installation guide
