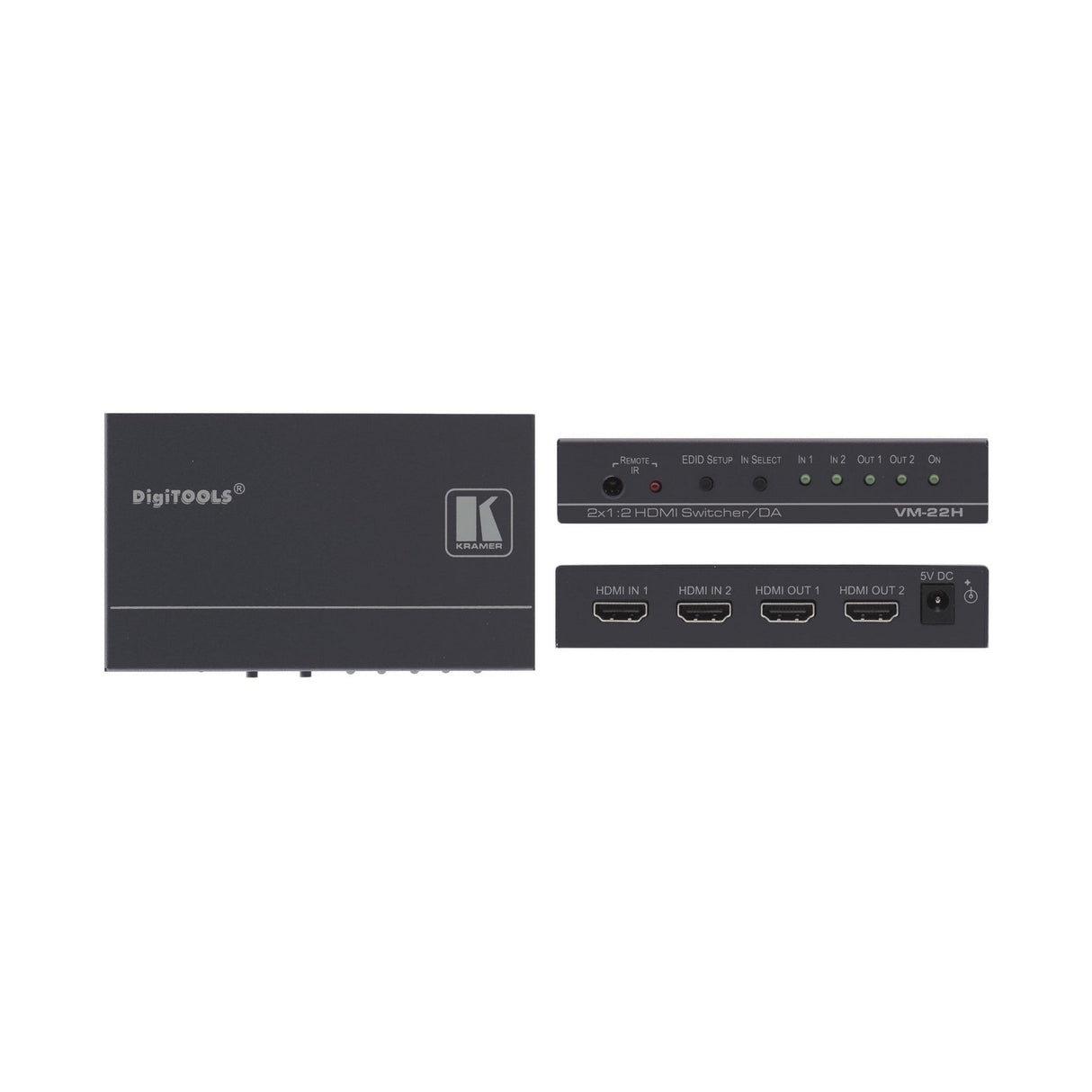

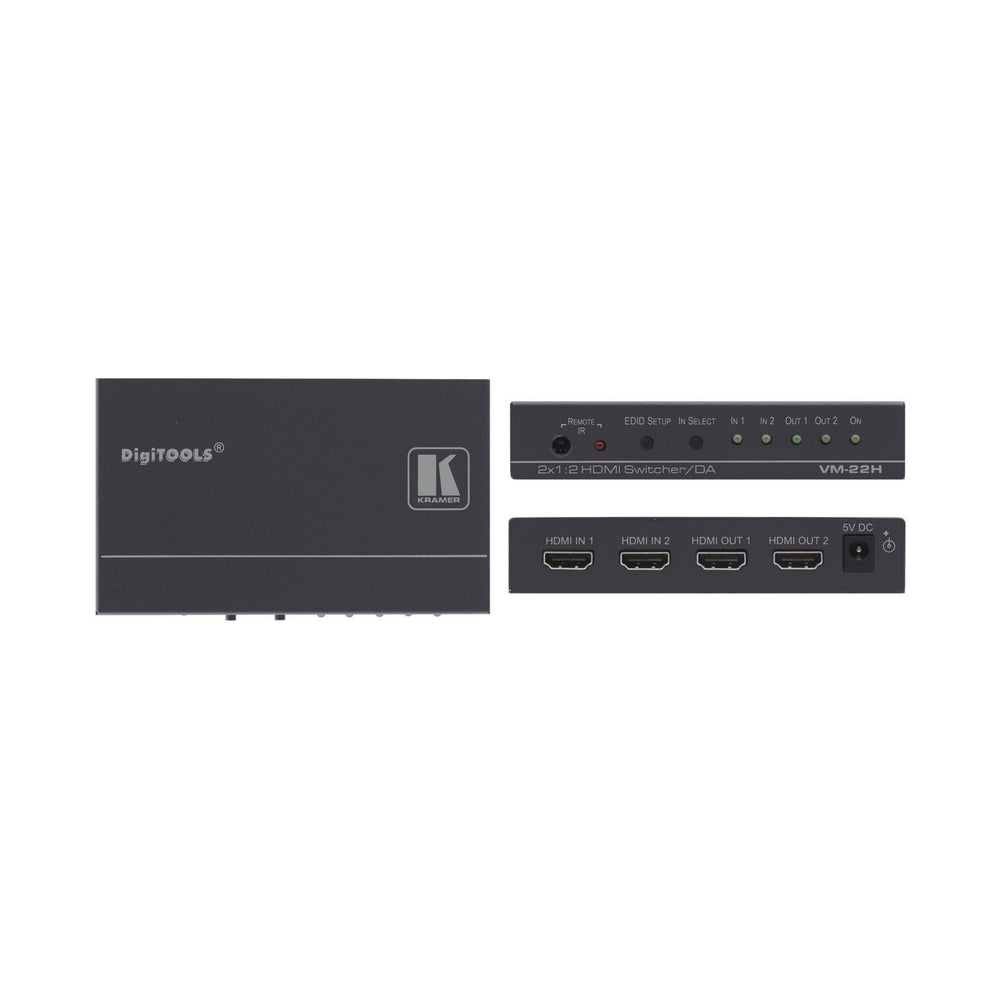

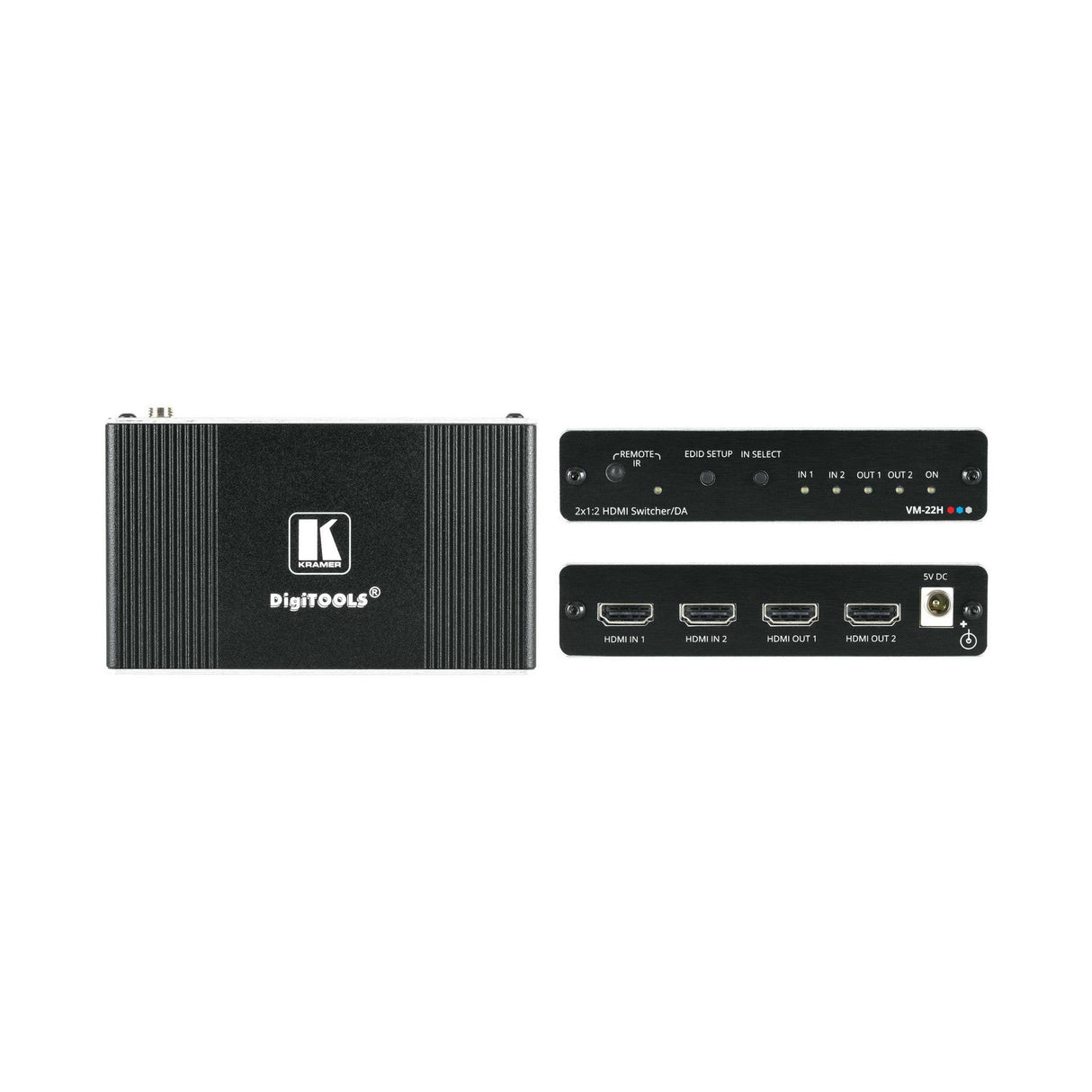

Kramer VM-22H 2x1:2 Compact HDMI Switchable Distribution Amplifier

The Kramer VM-22H is a compact HDMI switcher designed to seamlessly switch between two HDMI inputs and two HDMI outputs. It supports high-definition video and audio with a bandwidth of 6.75Gbps. The device is ideal for applications requiring HDMI switching with full compliance to HDMI and HDCP standards, making it an excellent choice for home theater systems, presentation setups, and digital signage.

Key Features:

• 2 HDMI input and output connectors
• 6.75Gbps bandwidth (2.25Gbps per graphic channel)
• Supports HDMI and HDCP compliance
• EDID Setup button, input select button, and IR control
• LED indicators for IN 1, IN 2, OUT 1, OUT 2, and ON
• Power consumption of 5V DC, 910mA

Technical Specifications:

Inputs: 2 HDMI connectors
Outputs: 2 HDMI connectors
Bandwidth: 6.75Gbps (2.25Gbps per graphic channel)
Compliance: HDMI, HDCP
Power Consumption: 5V DC, 910mA
Indicator LEDs: IN 1, IN 2, OUT 1, OUT 2, and ON LEDs
Controls: EDID setup button, input select button, IR

Package Contents:

• Power supply
• Bracket installation kit
• Optional HDMI/HDMI male-to-male cables
