NovaStar VX16s All-In-One 4K LED Video Processor/Display Controller
Authorized Dealer
Free Shipping
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description
NovaStar VX16s: All-in-one LED Display Video Processor for Richer Image Mosaic Effects
The NovaStar VX16s is a powerful and versatile all-in-one LED display video processor that integrates video processing, video control, and LED screen configuration into a single unit. This makes it a cost-effective and user-friendly solution for a variety of applications, including stage control systems, conferences, events, exhibitions, high-end rental, and fine-pitch displays. Beyond its core processing power, the VX16s boasts a number of features that make it a standout choice for demanding applications. A key advantage is its support for a wide range of video signals, including Ultra HD 4K×2K@60Hz image processing and sending capabilities. This ensures compatibility with even the latest high-resolution video sources and delivers stunning image quality on even the most pixel-dense LED walls.
The VX16s also provides exceptional flexibility for managing complex video presentations. It offers up to 10,400,000 pixels of processing power, allowing you to drive massive LED displays with ease. With three independent layers and adjustable layer priorities, you can create layered video compositions that combine live video feeds, pre-recorded content, and computer graphics. This capability is ideal for applications such as live events productions, where you might need to overlay a presenter's image on top of a background video or incorporate data visualizations into your presentation.
For added creative control, the VX16s supports 3D display effects, enabling you to create visually immersive experiences that will captivate your audience. It also provides three scaling options for flexible image manipulation, allowing you to resize and position video content to perfectly fit your LED display. Whether you need to pixel-to-pixel map a video source to a specific display area or create a custom aspect ratio for a unique visual effect, the VX16s provides the tools you need to achieve your creative vision.
Key Features
Technical Specifications

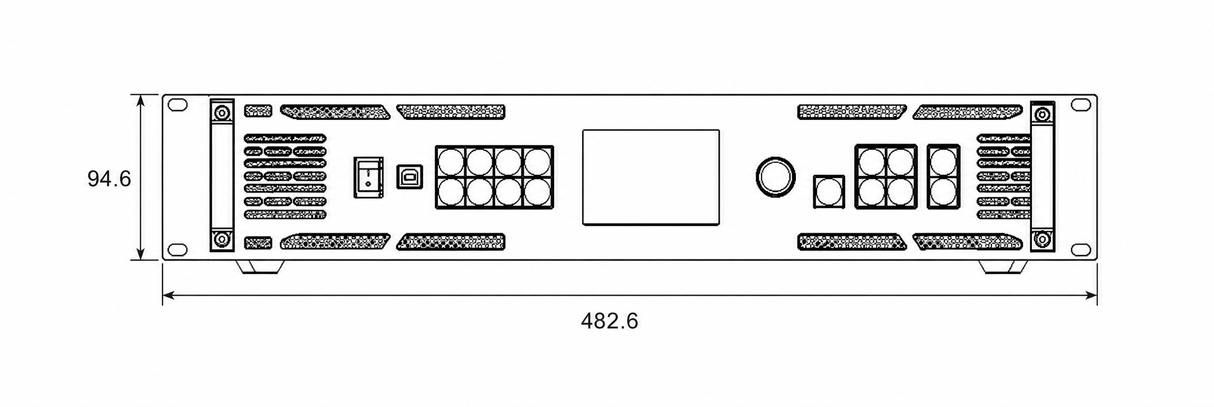

Physical
Installation / Use Cases
- Use as an all-in-one LED display video processor that integrates video processing, video control, and LED screen configuration.
- Suitable for stage control systems, conferences, events, exhibitions, high-end rental, and fine-pitch LED displays.
- Use for Ultra HD 4K×2K@60Hz image processing and sending workflows.
- Suitable for large LED displays with up to 10,400,000 pixels of processing capacity.
- Use three independent layers to combine live video feeds, pre-recorded content, and computer graphics.
- Use 3D display effects, pixel-to-pixel scaling, full-screen scaling, or custom scaling for flexible LED display presentation.
- Use backup mode for automatic failover in case of signal loss or Ethernet port failure.
- Link up to four devices to load a super large screen.
Packing Information
Frequently Asked Questions
What does the NovaStar VX16s do?
The VX16s combines video processing, video control, and LED screen configuration in one all-in-one LED display video processor.
What applications is the VX16s suitable for?
It is suitable for stage control systems, conferences, events, exhibitions, high-end rental, and fine-pitch displays.
What is the pixel capacity of the VX16s?
The VX16s supports up to 10,400,000 pixels.
What input connectors are available?

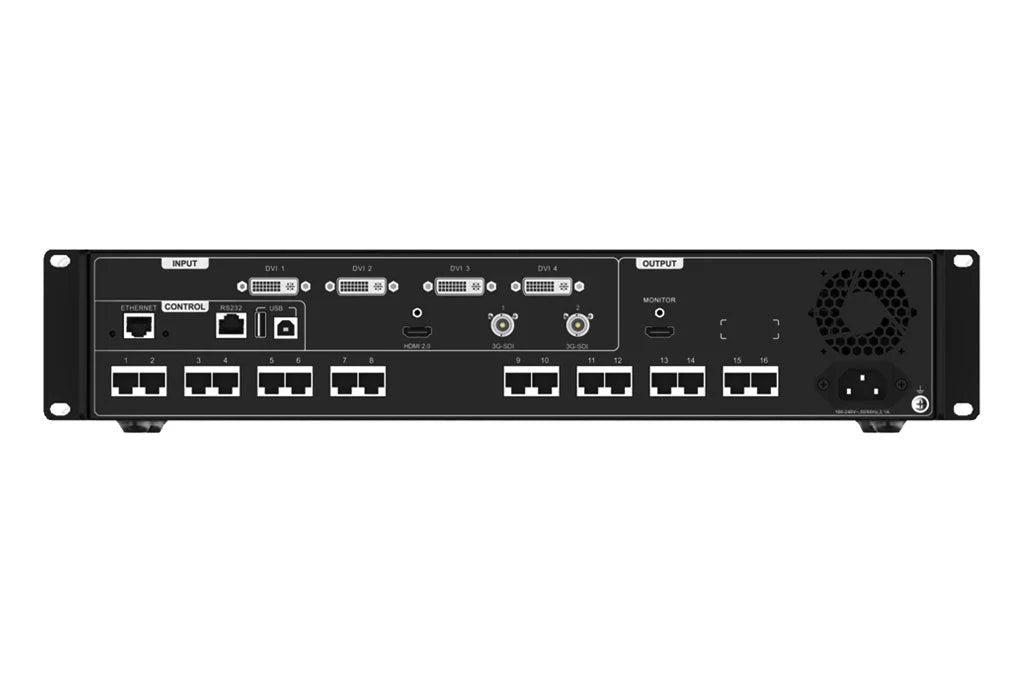

Input connectors include 2x 3G-SDI, 1x HDMI 2.0, and 4x SL-DVI.
How many layers does the VX16s support?
It supports one 4K x 2K main layer and two 2K x 1K PIP layers, with adjustable layer priorities.
What scaling options are available?
The scaling options are pixel-to-pixel, full screen, and custom scaling.
Can multiple VX16s units be linked together?
Yes. Up to four devices can be linked to load a super large screen.
What comes with the NovaStar VX16s?
The package includes the VX16s controller, European power cord, US power cord, UK power cord, Cat5e Ethernet cable, USB cable, DVI cable, HDMI cable, Quick Start Guide, and Certificate of Approval.
